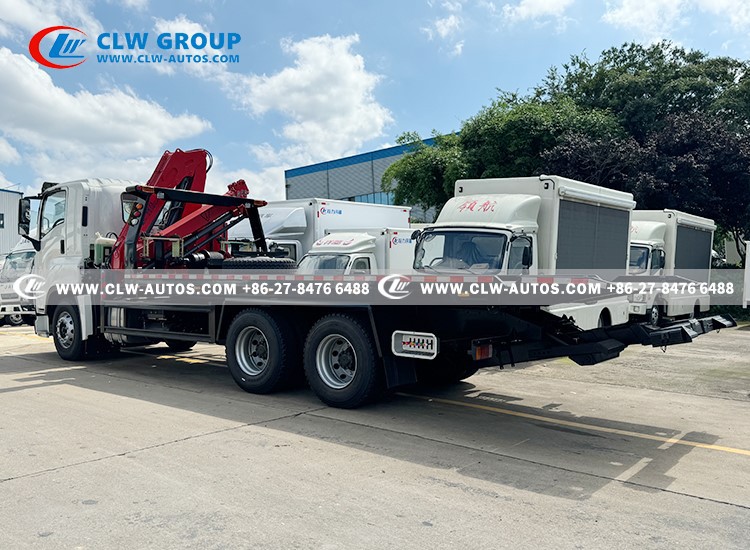

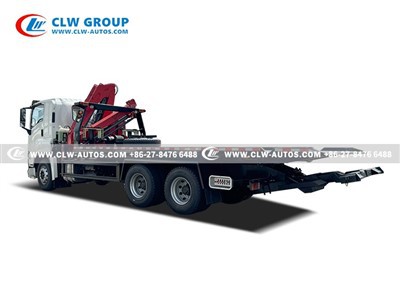

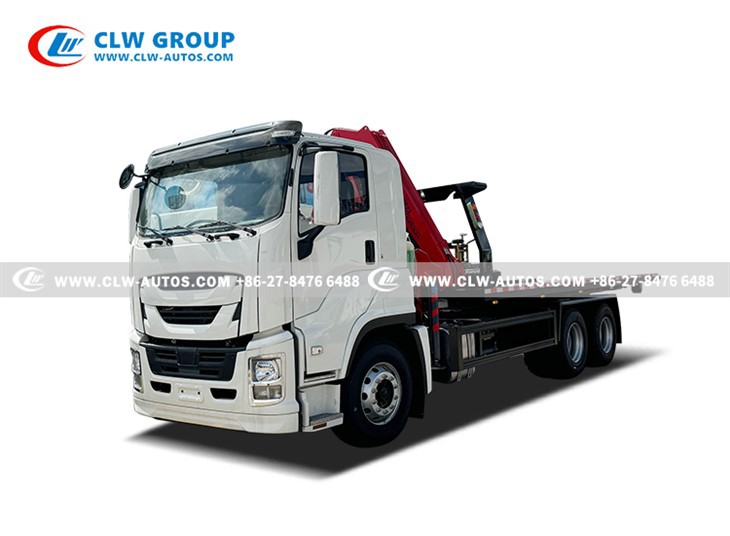

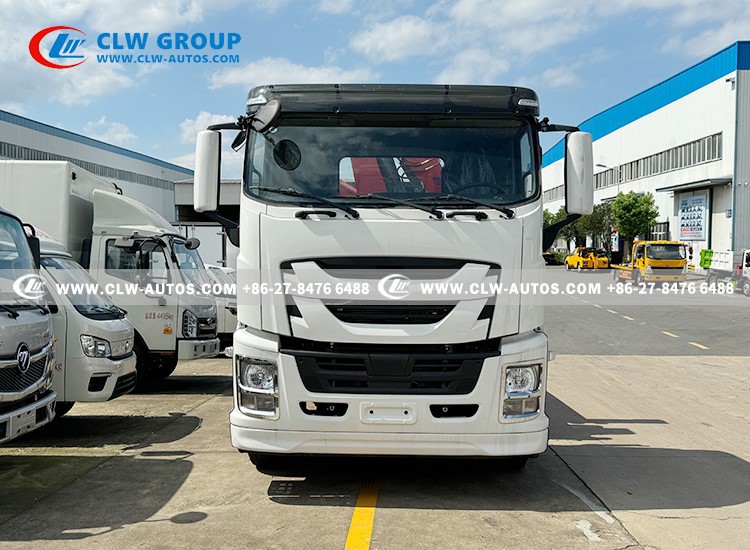

ISUZU Giga Recovery Truck With Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga recovery truck with crane in China. If you're going to buy high quality isuzu giga recovery truck with crane, welcome to get more information from our factory. For price consultation, contact us.





ISUZU 6X4 16Tons Recovery Truck With 5Tons Crane For Costa Rica



We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance



Flatbed clearance truck (Recovery Truck with Crane, Flatebed Truck with Crane) with crane because it is installed on the basis of flatbed clearance truck crane, generally installed for the XCMG crane, as the name suggests this can be called flatbed with crane clearance truck, with crane clearance truck, because of its characteristics not only can be towed by two clearance trucks, but also can be lifted to the faulty vehicle, also known as multifunctional clearance truck, this model is a type of clearance truck. And this model of the recovery truck is designed for Mexico, Costa Rica and so on country.

1. Powerful Towing Capacity - 16Tons heavy-duty recovery for truck.
2. Robust Hydraulic Crane - Integrated crane(5Tons lifting capacity) for easy loading/unloading of disabled trucks.
3. High-Strength Flated - Durable steel deck with anti-slip surface for secure transport.
4. Reliable ISUZU Chassis - ISUZU 6x4 drivetrain ensures stability and off-road recovery capacity.
5. Advanced Hydraulic System - Smooth winching & lifting with a hydraulic winch.
6. Easy Operation - Remote control & ergonomic cab for efficient recovery operations.
7. Fuel-Efficient Engine - ISUZU Euro 6 diesel engine balances power and low emissions.
8. Customizable Options - Adjustable wheel lift, extra storage, or extended deck.
9. Low Maintenance Design - Corrosion-resistant body and long-lasting components reduce downtime.











Chassis Specification
Condition	Brand New
Chassis model	QL1252
Driving model	6X4
Dimension	12200×2500×3950 mm
Cab	Original ISUZU GIGA VC61/5X cabin One Row and one sleeper Left Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Overall Weight	25000 kg
Net Weight	21550 kg
Wheelbase	5800+1370 mm
Axle No.	3
Front Axle Loading Capacity	7,000 kg
Rear Axle Loading Capacity	10,000X2 kg
Engine	ISUZU, diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1
	Horse power: 300 HP, 221 KW
	Displacement: 7790 ml
	Emission standard: Euro Ⅵ
Transmission	Manual type, 9 Forward & 1 Reverse
Tire	295/80R22.5 18PR
	10 wheels with 1 spare tire
Fuel Tank Capacity	400L

Upper Parameters
Under Lift Boom	Max. Under Lift Capacity: 16000 kg
	Max. Under Lift Capacity at Full Extension: 6500 kg
	Under Lift Boom Effective Length: 1700 mm
	Under Lift Telescopic Stroke: 1360 mm
	Ground Clearance when Under Lift Fully Retracted: 800 mm
Flatbed	Ground Clearance: 1200 mm
	Flatbed Plate Size(length*width): 8500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 16000 kg
Winch	Number: 1
	Rated Towing Capacity: 80~150KN for option
	Diameter of Steel Rope: Φ16~Φ22 for option
	Length of Steel Rope: 50m
	Min. Line Speed: 4.52m/min
Crane Parameters
Brand	XCMG SQZ105
Max. Capacity	16,000 kg
Lifting Height	16.5 meters
Working Radius	14.5 meters
Max. Lifting Moment	300 KN.m
Recommend Power	45 kw
Max. Pressure of Hydraulic System	26 Mpa
Oil Tank Capacity	270L
Rotation Angle	360° All rotation
