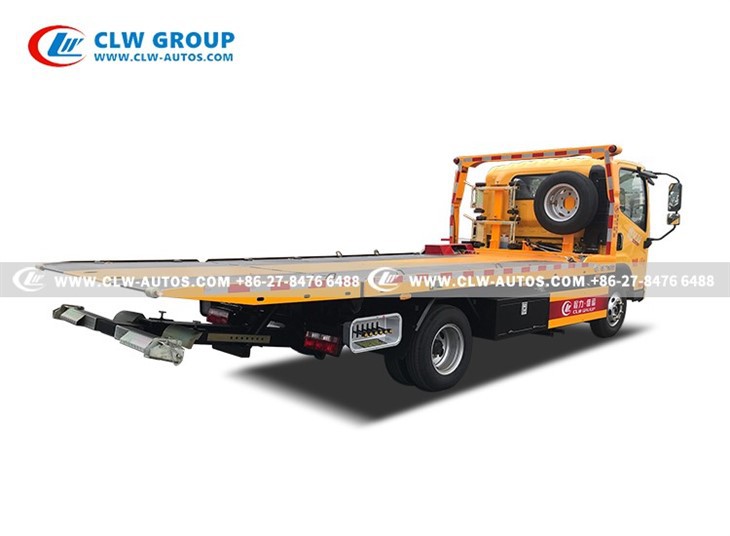

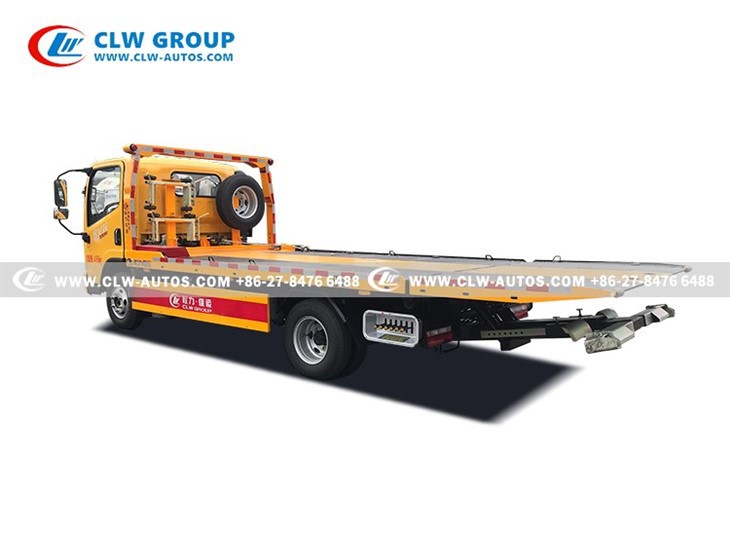

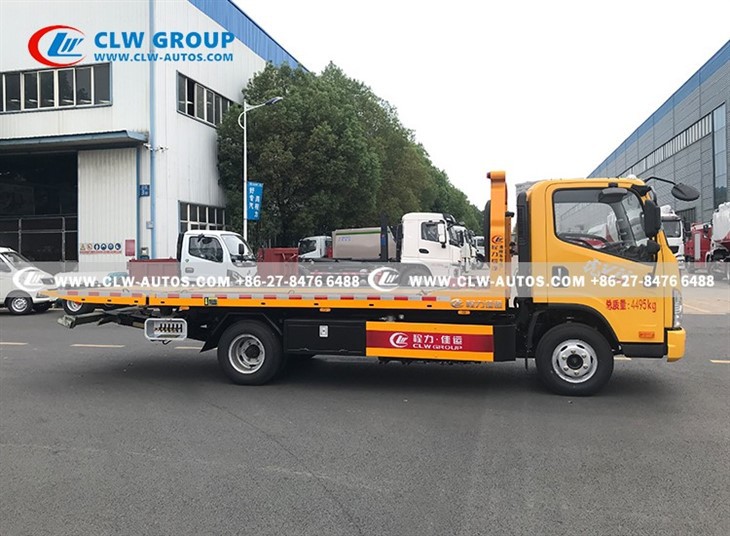

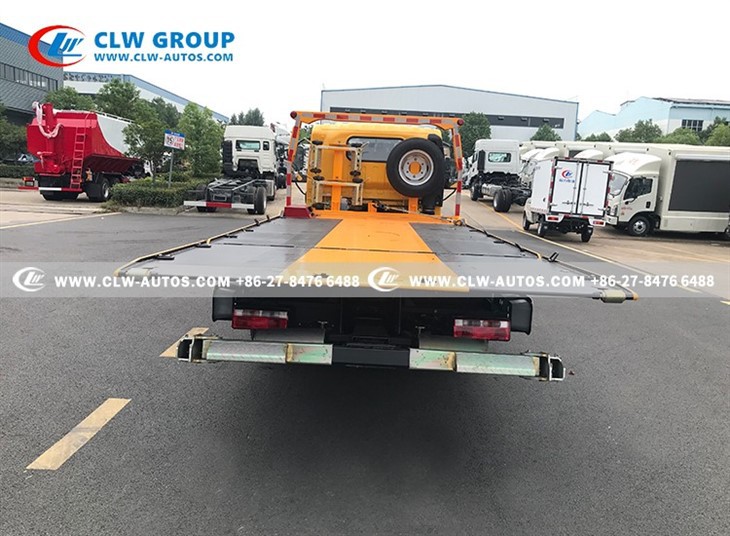

FAW 4x2 4Tons Tilt Tray Flatbed Towing Ttruck

FAW Tiger VH 6 Wheeler 4tons or 5tons Car Carrier flatbed Towing Truck For Road Recovery.

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 4x2 4tons tilt tray flatbed towing ttruck in China. If you're going to buy high quality faw 4x2 4tons tilt tray flatbed towing ttruck, welcome to get more information from our factory. For price consultation, contact us.

Products Description

Features of FAW Tiger VH 4x2 Flat-Bed Tow Truck for Breakdown Car

A pair of training wheels makes towing warking easily when wheels are damaged.
Strong and strength Winch with 20-25 meters steel cable.
Manual joystick with instructions on each side of the truck makes control work easily.
Remote control is available.
The tire belt keep car stabilitu on wrecker tow truck
Other different Type of wrecker trucks are available, such as integrated wrecker tow truck, Rotator Wrecker Truck.

For more detailed technical things, please contact:

WhatsApp: +86 135 5419 5719

helen@clw-autos.com

Parameters

Truck Specification
Driving Type		4*2
Max Speed (km/h)		103
Overall dimension(mm)		7305x2380x2650
Mass in working order( kg)		4800
GVW( kg)		7300
Wheelbase(mm)		3815
F/R track base (mm)		1504/1522
F/R overhang (mm)		1015/2475
Approach/Departure Angel		16/12
Tire		7.50R16
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		WLY6T115 Manual, 6 Forward & 1 Reverse Gear
Bridge	Front axle	2.5T
	Rear axle	4.8T
Enging	Model	YC4D130-33, 4 Cylinders
	Horse power	130HP/96KW
	Displacement	2999L
Braking system	Service Brake	Compressed air brake
	Park Brake	Spring energy
Eletric system		24v
Upper-Body specification
Hydraulic Under Lift at Rear
Max Lifting weight(kg)		3000
Max. Rated towing weight(kg)		5000
Max effective length of boom(mm)		1700
Extension traveling of boom (mm)		1340
Hydraulic winches & steel cables
Type:		Planetary type
Quantity (set)		1
Max. Pulling power of winch(kgs)		4000
Length of steel cable(m)		21
Speed of winch (m/min)		3.23
Diameter of winch(cm)		11
Back load platform
External dimension of platform (length×width)(mm)		5600*2350
Max. Loading of platform(kgs)		4000
Min. Elevation of full extending platform°		10
Extension traveling of platform		3000
Power take off
Type		PTO drive from transmission
Wrecker Operation
Description		Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.
Hydraulic System
Description		uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.
Safety Device
Auto brake for winch		Automatic safe brake in case winch / Engine fail.
Hydraulic valves		Necessary hydraulic pressure relief & lock valve/ valves
