Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu zero degree full landing road wrecker 4tons in China. If you're going to buy high quality isuzu zero degree full landing road wrecker 4tons, welcome to get more information from our factory. For price consultation, contact us.

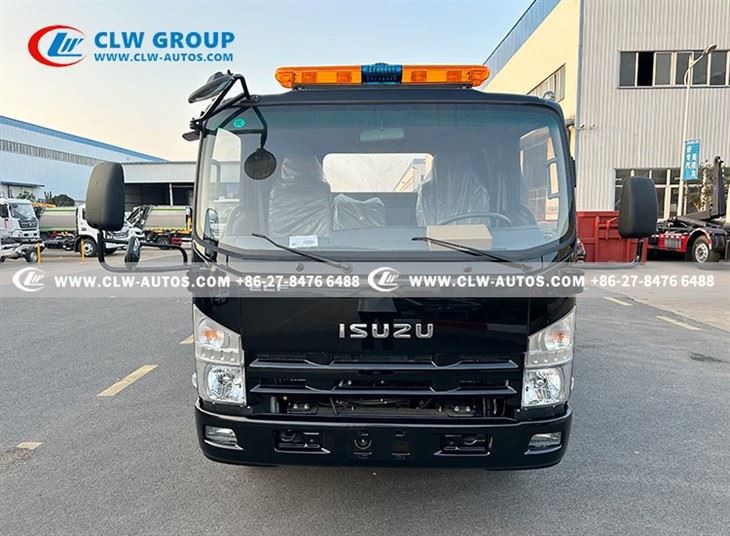

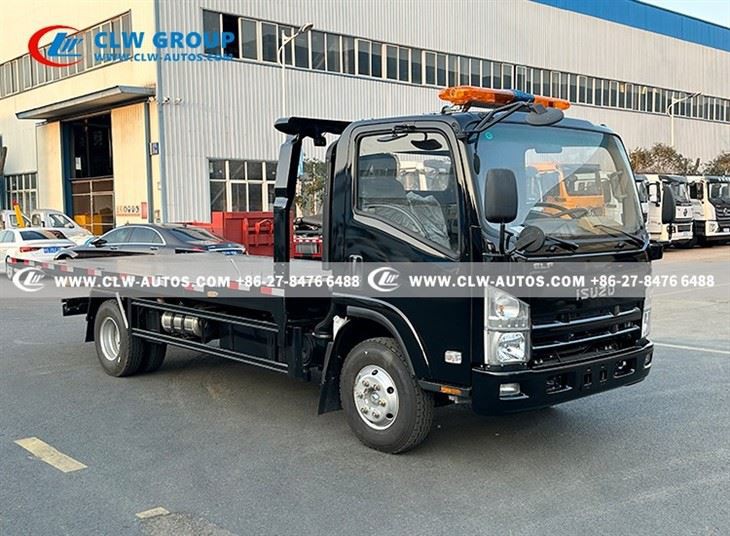

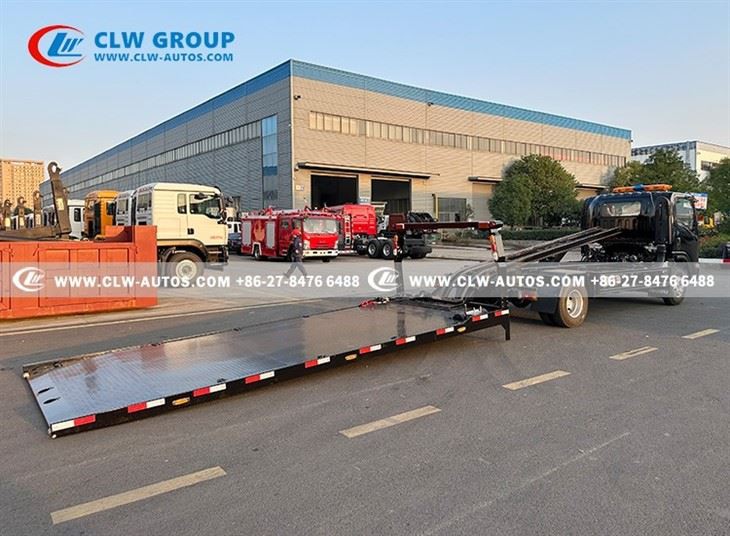

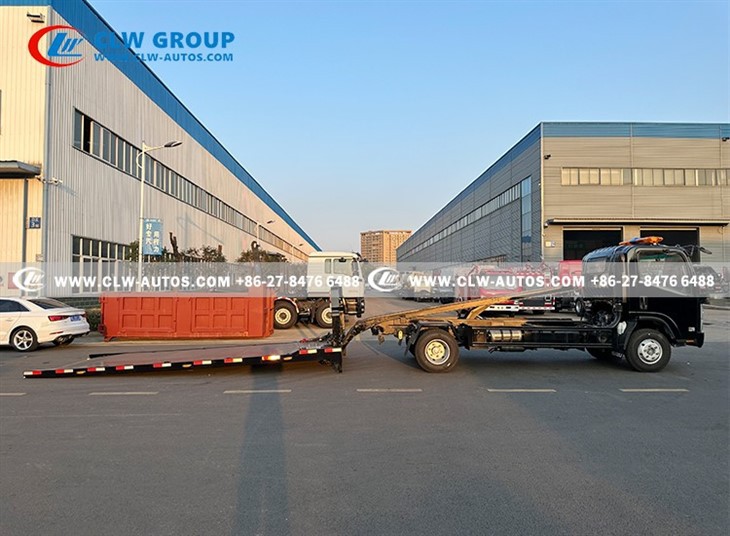

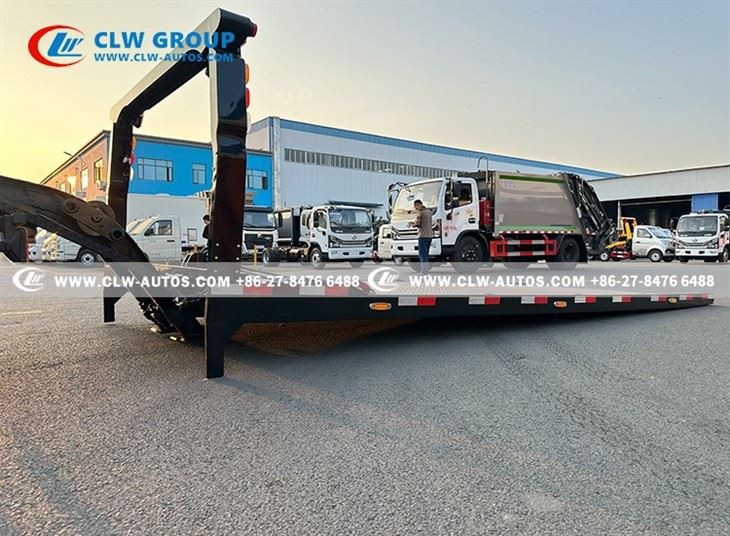

ISUZU zero degree full landing flatbed road wrecker truck/tow truck/:
Email: shirley@clw-autos.com
Address: Chengli Automobile Industry Park,Suizhou, Hubei, China
Whatsapp: +86 135 4506 4324
Wechat: +86 135 4506 4324
check more about ISUZU zero degree full landing flatbed road wrecker by youtube video
|
Technical Parameters |
|||
|
Chassis |
|||
|
Drive Model |
4X2,left hand drive for Philippines |
||
|
Wheelbase (mm) |
3360 |
||
|
Weight in KGS |
Curb Weight (kg) |
4930 kg |
|
|
Front/Rear axle loading(kg) |
2500/4800 |
||
|
Max. driving speed(km/h) |
95 |
||
|
Engine |
Model |
4KH1CN5HS |
|
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power(HP/KW) |
130HP/96KW |
||
|
Emission standard |
Euro V |
||
|
Displacement(ml) |
2999 |
||
|
Brakes |
Service brake: Dual circuit oil brake |
||
|
Cabin |
ISUZU KV600 cabin,single row Color optional for white,yellow,red.. accommodate three people With Air conditioner |
||
|
Gearbox |
MSB 5 forwards & 1 reverse |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
7.00R16 tire , 6 + 1(spare tire) |
||
|
Oil Box |
100L |
||
|
Color |
White or yellow |
||
|
Upper & Equipment |
|||
|
Platform material |
4mm thickness checked plate |
||
|
Lifting and Towing device |
Max. Towing capacity(kgs) |
4000 |
|
|
Max. Lifting capacity(kgs) |
2500 |
||
|
Platform |
Max. Loading capacity(kgs) |
5000 |
|
|
Length(mm) |
5200 |
||
|
Width(mm) |
2350 |
||
|
Minimum inclination angle(°) |
0° |
||
|
Ground clearance (mm) |
1100 |
||
|
Winch device |
Quantity(pcs) |
1 pc |
|
|
Rated traction(KN) |
40 KN |
||
|
Wire rope diameter(mm) |
φ11 |
||
|
Wire rope length(m) |
21 m |
||
|
Minimum linear speed of wire rope(m/min) |
3.23 m/min |
||
|
Remarks |
1. Auxiliary trolley one sets 2. Top electronic lamp one unit 3. 1 pair “L” bracket fork 4. 4 units fastening strap |
||
|
Control |
Controlled by handle stick at both sides of truck rear |
||
