Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6x4 camc 25tons 30tons 40tons dump truck in China. If you're going to buy high quality 6x4 camc 25tons 30tons 40tons dump truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Dump Truck(also called Tipper Truck, Dumper, Heavy duty dump truck, Heavy duty tipper truck and Heavy duty dumper) is used for transporting different kinds of cargo such as coal, mineral and stone in construction site.
--Dump Truck can be divided into various types as follows,
1) according to truck brands,there are SINOTRUK HOWO, CAMC, Shacman and FAW Dump Truck;
2) according to dirving model: 4x2, 4x4, 6x4, 6x6, 8x4, 8x8, 10x4 and 10x6 Dump Truck;
Feature
--Powerful CAMC 385HP 420HP engine for optional;
--Emission standard: Euro2/Euro3/Euro4/Euro5/Euro6 for optional.
--Middle tipping and front tipping for optional according to loading weight.
--Oil cylinder brand: China local brand and HYVA brand for optional.

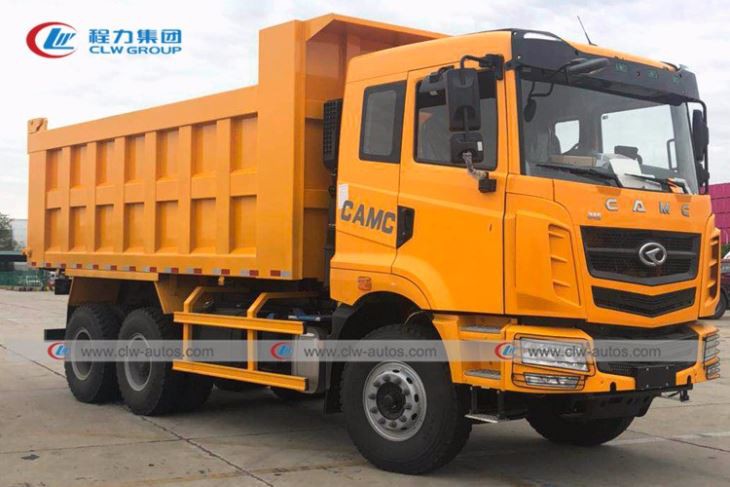

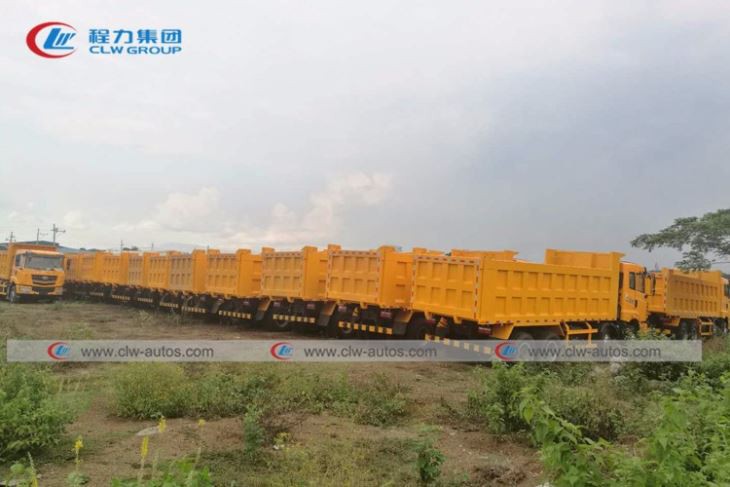

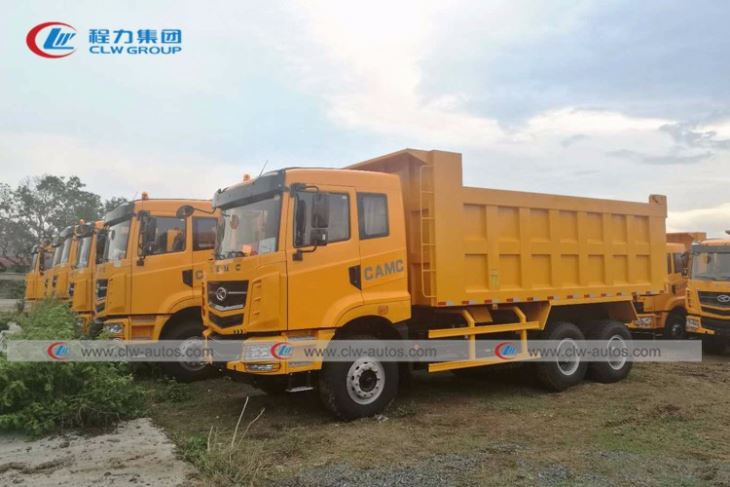

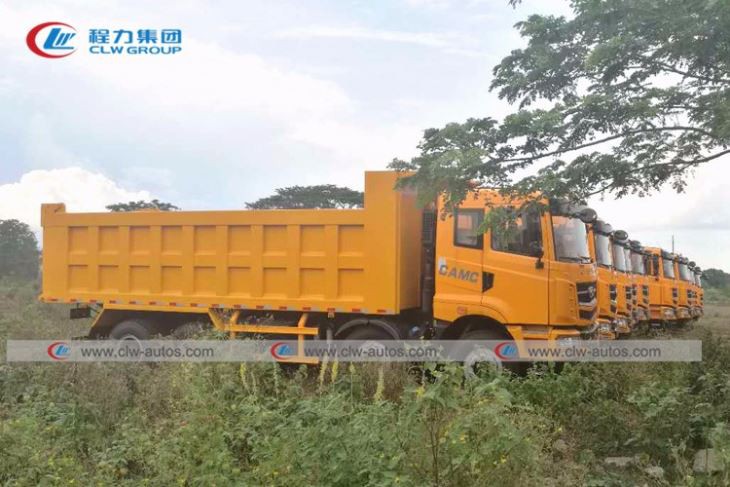

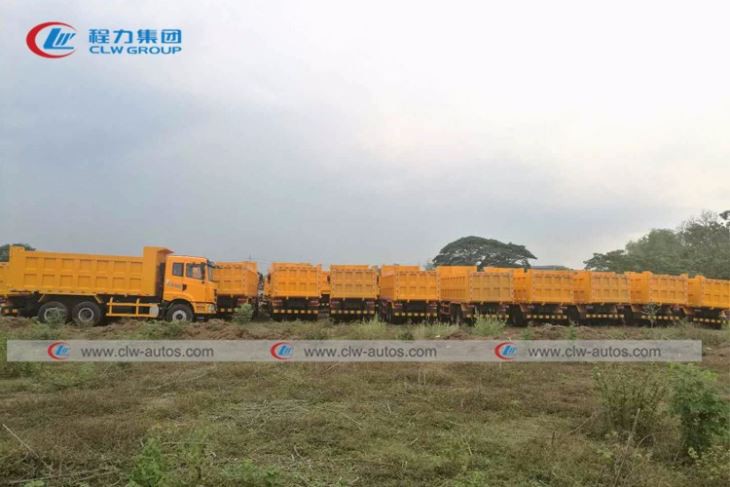

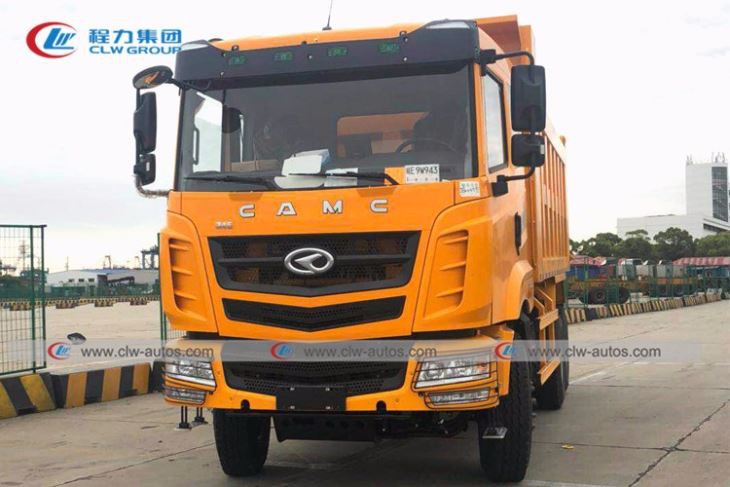

Reference picture
Specification
Cabin | Driving type 6x4(Left hand drive/Right hand drive) | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8400*2500*3500 | |
Wheel base (mm) | 3800+1350 | ||
Weight in KGS | Tare Weight | 12100 | |
Front axles loading capacity | 1x7000 | ||
Rear axles loading capacity | 2x16000 | ||
Max. driving speed（km/h） | 80 | ||
Engine | Brand | CAMC | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power（HP) | 385 HP | ||
Emission standard | Euro III | ||
Gearbox | Manual Transmission, 10 Forwards & 2 reverses | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | Hydraulic steering with power assistance | ||
Fuel tank (L) | 400 | ||
Tire | 12R22.5,11 pieces including one spare | ||
Brakes
| Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
