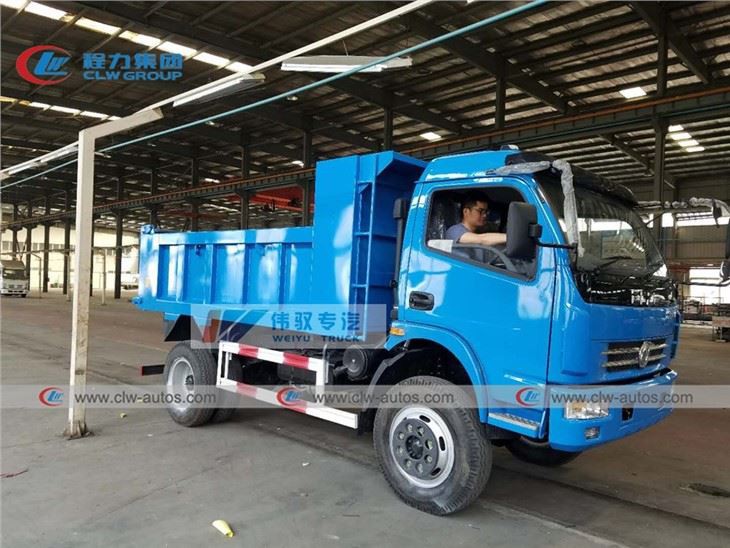

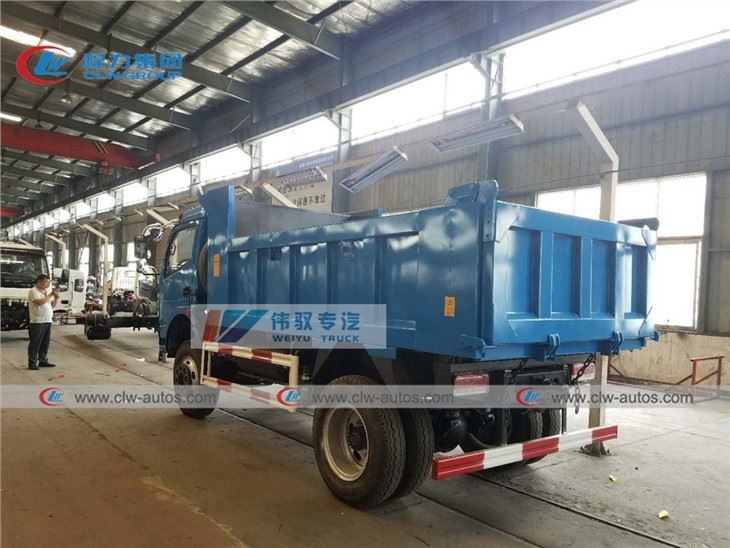

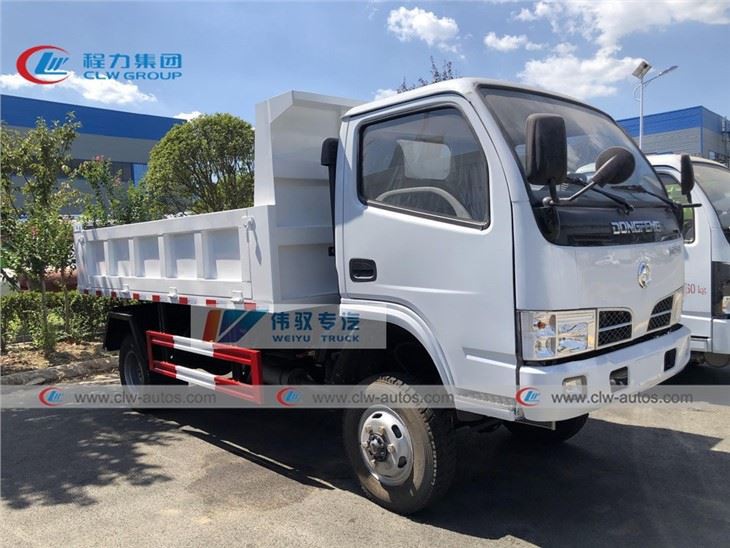

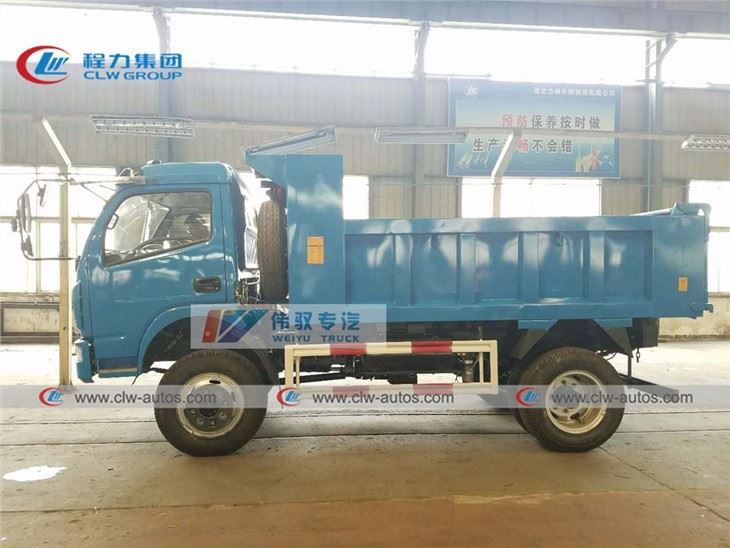

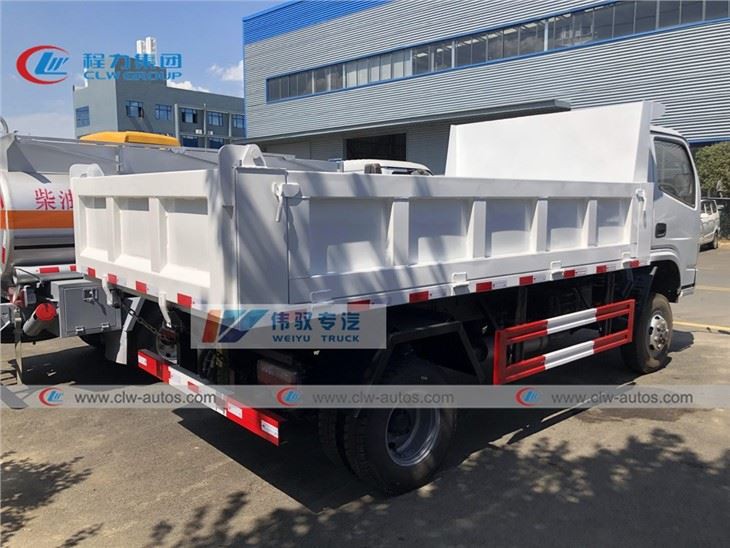

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5ton 4x4 full drive donfeng tipper truck for off road use in China. If you're going to buy high quality 5ton 4x4 full drive donfeng tipper truck for off road use, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1) Truck chassis brand of Dumper Truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model of Dumper Truck: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand of Dumper Truck: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia of Dumper Truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of Dumper Truck
Dimension(L×W ×H)(unloaded)(mm) | 6300 x 2500 x 3300 | |
Cargo body size (L×W×H)(mm) | 4200 x 2100 x 550mm | |
Approaching angle/Departure angle(°) | 19/26 | |
Overhang(front/rear) (mm) | 1500/1739 | |
Wheel base (mm) | 33000 | |
Max speed(km/h) | 75 | |
Curb weight(kg) | (Kg) | |
Loading Weight(kg) | (Kg) | |
Engine | Model | CY4103 |
Fuel type | Diesel | |
Displacement (ml) | 3450 | |
Emission | EURO 2 | |
Fuel tanker capacity(L) | 150 | |
Transmission | Model | 5 Forward & 1 Reverse |
Brake system | Service brake | air brake |
Parking brak | spring energy, compressed air operating on rear wheels | |
Steering system | Model | Hydraulic |
Front axle | Steering with double T-cross section beam | |
Rear axle | Cast axle housing, central double reduction with differential locks between axles and wheels | |
Tyre | 7.00-16 | |
Electrical system | Battery | 12V/165Ah |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
