ISUZU GIGA Combined Vacuum Sewer Jetting Truck 16Tons

Description

Combined vacuum sewer jetting truck (also called vacuum jetting tanker truck, jet vacuum cleaner truck, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum truck, etc.) will be used to clean and collect liquid such as waste oil,dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

ISUZU Combined vacuum sewer jetting truck includes two parts mainly.The high pressure jetting part to remove the blocked sewage,tunnal and the other vacuum suction part is to collect the sewage.

Above ISUZU GIGA vacuum sewer truck is customized to produce 16,000 -20000Litres Combined Vacuum Jetting Tank.The tank & sewer vacuum truck could be hydraulic lifted and the rear door & tank could be hydraulic opened for completely tipping sewage and solid stuff.

phone Shirley +86 135 4506 4324

whatsapp +86 135 4506 4324

youtube https://www.youtube.com/watch?v=Zsu44f6Rw0w&t=3s

Feature

--Sewer jetter truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;-- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
-- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
-- Pump can be operated by a hydraulic motor or by an auxiliary engine.
-- Adopt imported high pressure pump PINFL or HPP or equivalent China top brand pump.
-- Overfilling system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
-- Nice shape ISUZU GIGA trucl, rational structure, durable and long service life.

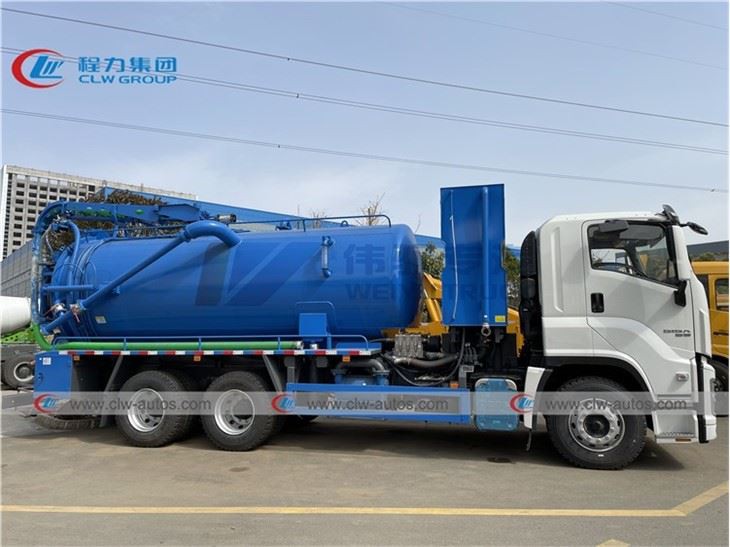

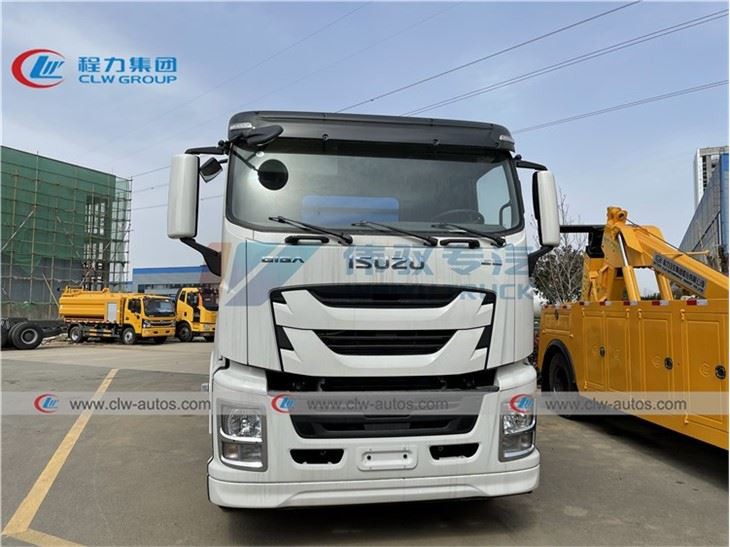

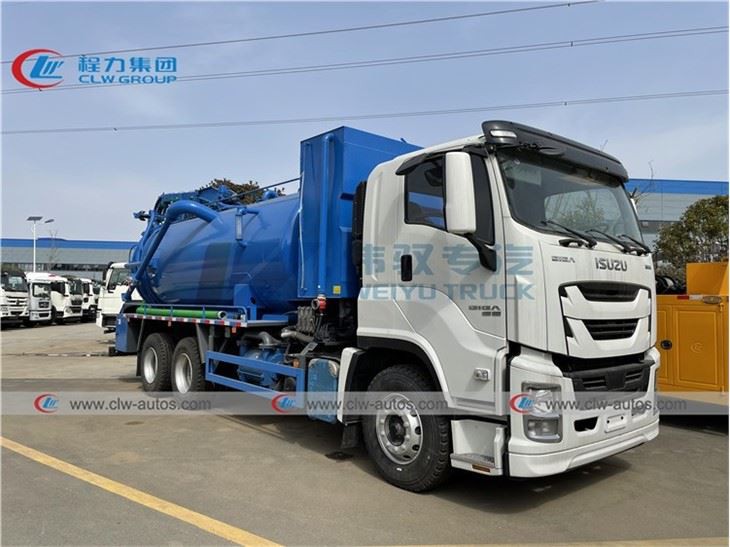

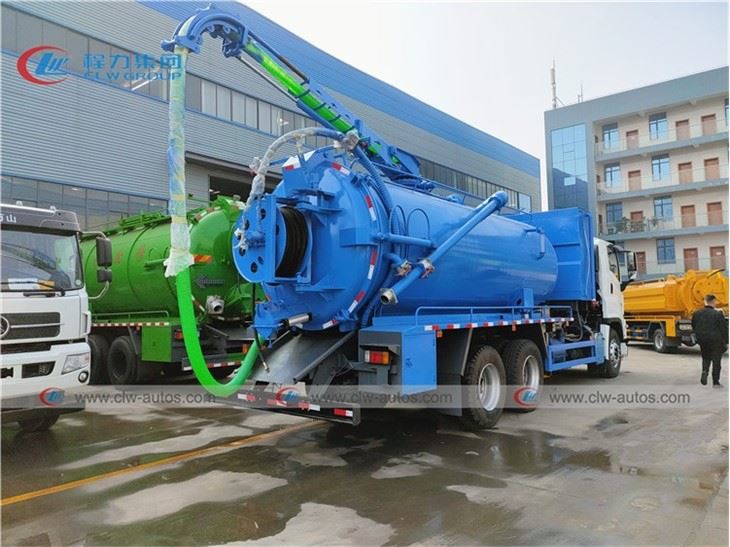

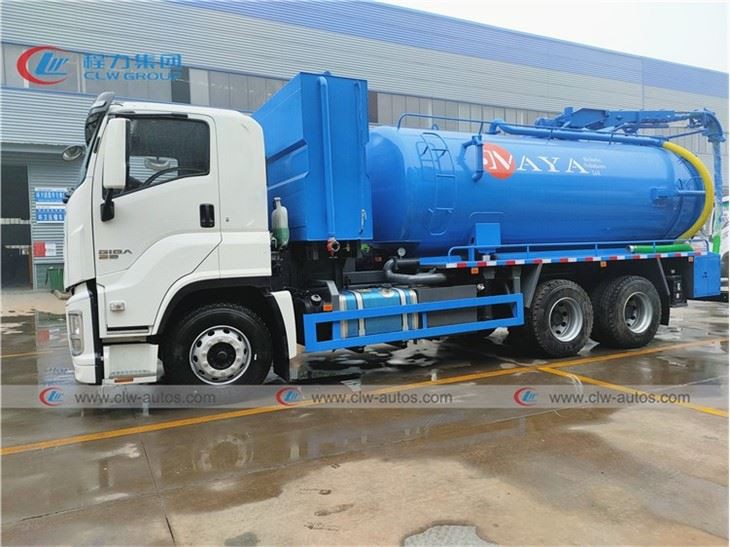

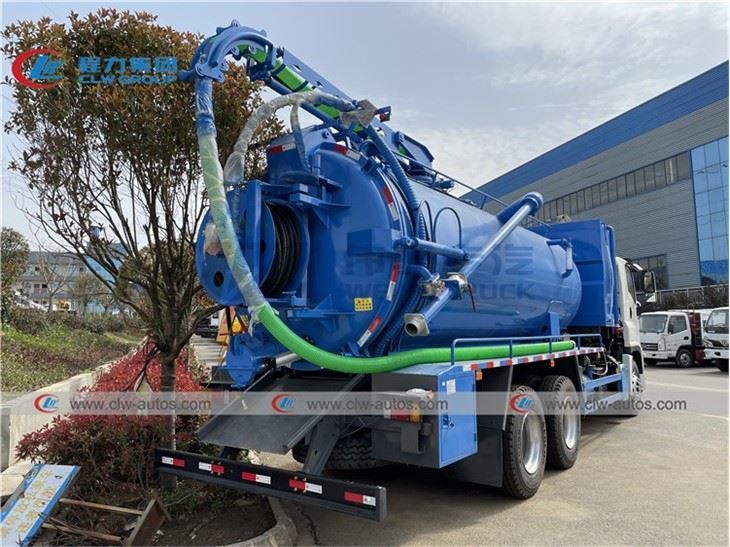

Pictures

Specification

Vehicle Parameter
ITEM	DESCRIPTION
Vehicle	ISUZU combined sewer jetting truck
Overall dimensions (mm)	9850 x 2500 x 3850
Sludge tank (L)	15000
Flushing tank L	4000
Gross Vehicle Weight (kg)	25000
Curb weight (kg)	9000
Loading (kg)	16000
Wheelbase (mm)	4350+1350
Max speed (Km/h)	90
Chassis Parameter
Cabin	ISUZU GIGA cabin,power steering,no air conditioner, 2-3 passengers,left hand drive.
Drive type	6x4
Engine	Brand : ISUZU
Transmission	12 forward,2 reverse, manual operated
Tire model	12.00R22.5
No.of tire	10pcs,with a spare tire
Superstructure Parameter
Standard configuration	1. Sludge tank 13000l, flushing tank 3000l. 2. Sludge tank and flushing tank material are carbon steel plate. 3. Equipped with 60m high pressure tube,diameter 19mm. 4. Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 5. Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m.
High pressure pump	Brand : Italy HPP Model : ESL122/130 Pressure : 16Mpa Flow : 130L/min
Vacuum pump	Model : SK-12 Type : water circulation pump Vertical suction: 9m Flow : 1.5m3/min
Hydraulic system	Sewage suction tank can lifting through hydraulic cylinder

Key words:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck

Hot Tags: isuzu giga combined vacuum sewer jetting truck 16tons, China, manufacturers, suppliers, factory, price

ISUZU GIGA Combined Vacuum Sewer Jetting Truck 16Tons

Product Details

Above ISUZU GIGA vacuum sewer truck is customized to produce 16,000 -20000Litres Combined Vacuum Jetting Tank.The tank & sewer vacuum truck could be hydraulic lifted and the rear door & tank could be hydraulic opened for completely tipping sewage and solid stuff.
