Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8cbm 8000liters garbage compactor truck in China. If you're going to buy high quality dongfeng 8cbm 8000liters garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
-1. Different chassises for customer to choose, like Dongfeng, FAW, Foton etc.
-2. In accordance with local DOT rules and regulations
-3. The compaction ratio varies between 0.6 to 0.7 according to the characteristic of the garbage.
-4. Top, hydrant, and reservoir filling capability.
-5. Hydraulic System
--PTO: according to the transmission
--Gear pump: China Top Brand
--Working Pressure: 24 MPa
--Rear loading garbage compactor
--Garbage compression system: slide plate mechanism; scraper blade mechanism
--Working time for finish one cycle: 35s

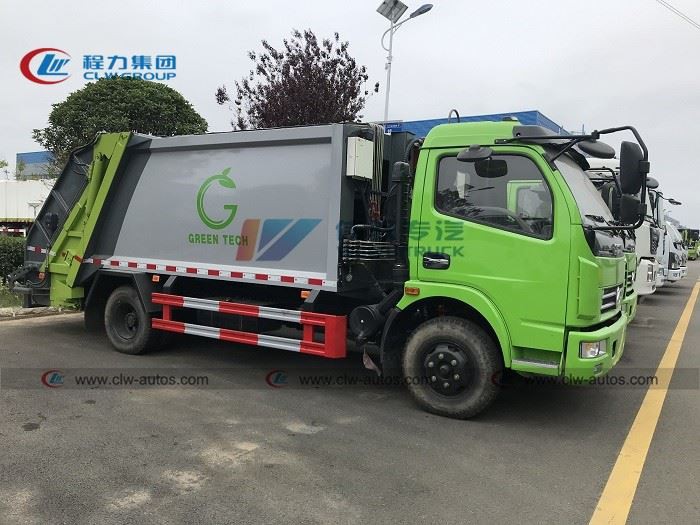

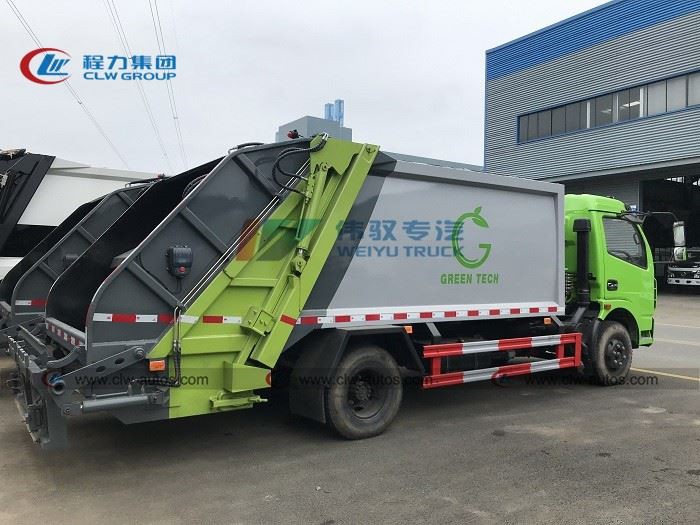

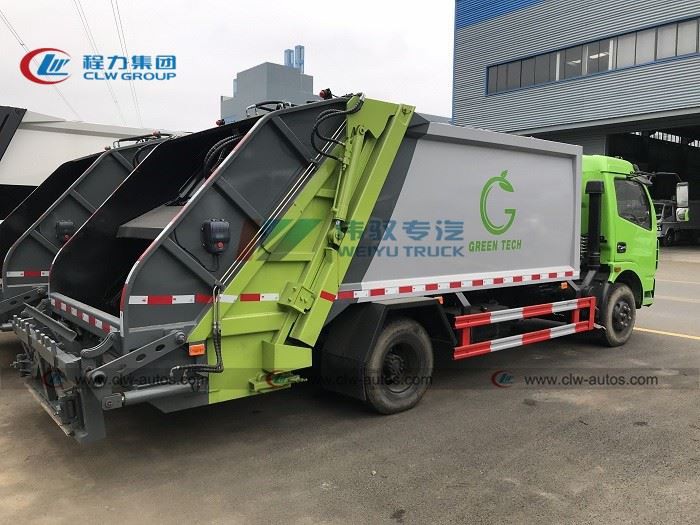

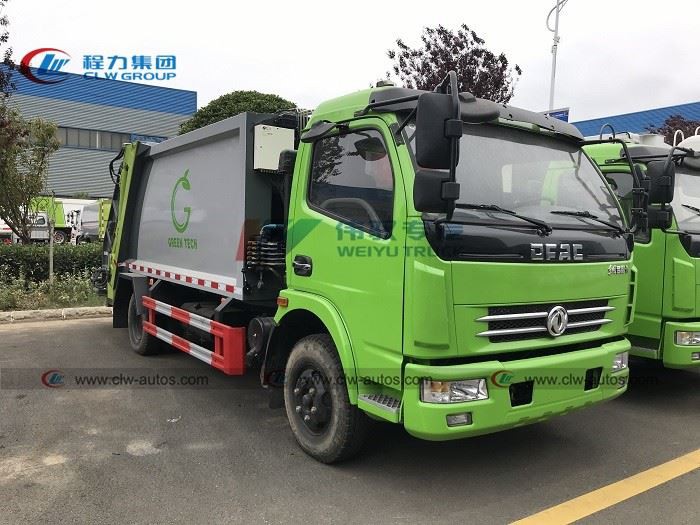

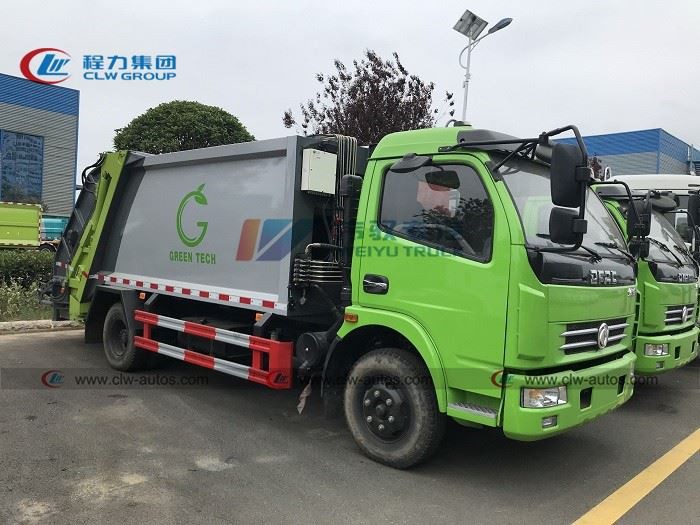

Reference Photos
Product Specification
| Dongfeng 8cbm Self Compressed Garbage Truck | |||
Overall Dimension | 7750×2495×3400 mm | Gross Vehicle Weight | 7360 kg |
Curb Weight | 5400 kg | Loading Weight | 5000 kg |
Wheel Base | 3800 mm | Front / Rear Axle | 2500/4500 kg |
Cabin | Left Hand Driving or Right Hand Drive, 3 Passengers Allowed, with Air Conditioner | ||
Engine | Yuchai brand | ||
Engine horsepower | 130HP, EURO 2/3 | ||
Max Driving Speed | 90 km/h | ||
Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
Tire | 8.25R16, 6 pieces with one spare) | ||
Garbage Bin | Capacity | 8CBM | |
Material | 4mm Carbon Steel for Garbage Bin Body | ||
Design | Whole unit with Leakage Proof Design | ||
Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
Garbage Compact Ratio | 0.6-0.7 | ||
Control System | One control Panel on the back, One Control system in back of Cabin | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
2. Automatic loading, compressing and discharging, all handled by 1 person | |||
3. Sewage water collection tank to avoid any pollution during handling. | |||
4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
Dependable Security | |||
5. Electrical Control Panel for compacting system. | |||
6. Cycling time<14~18s | |||
Remarks | 1. Color is optional | ||
2. Customized LOGO painting as per customer request | |||
Structure Diagram
Main Details
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
