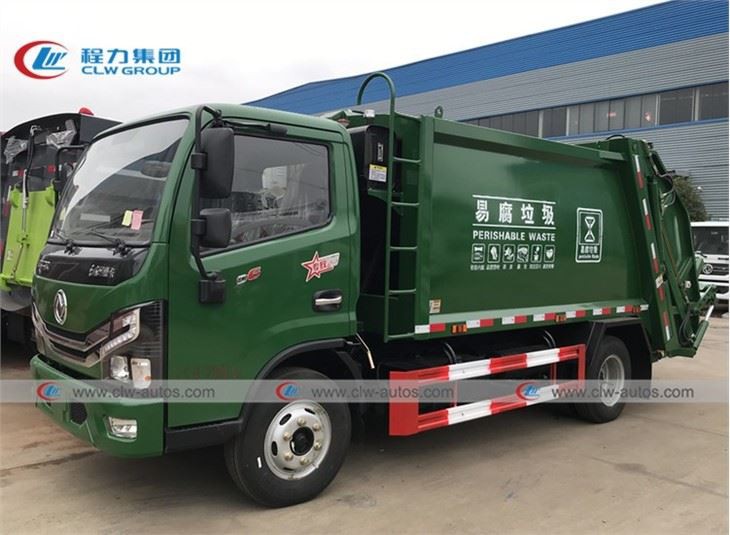

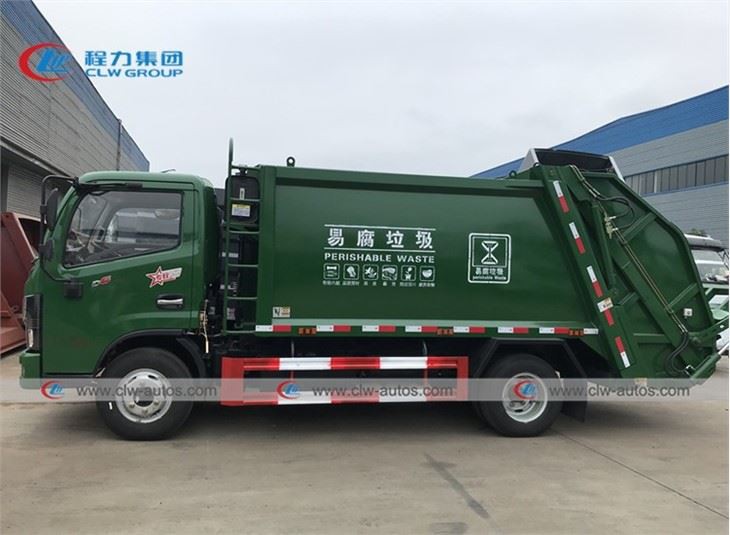

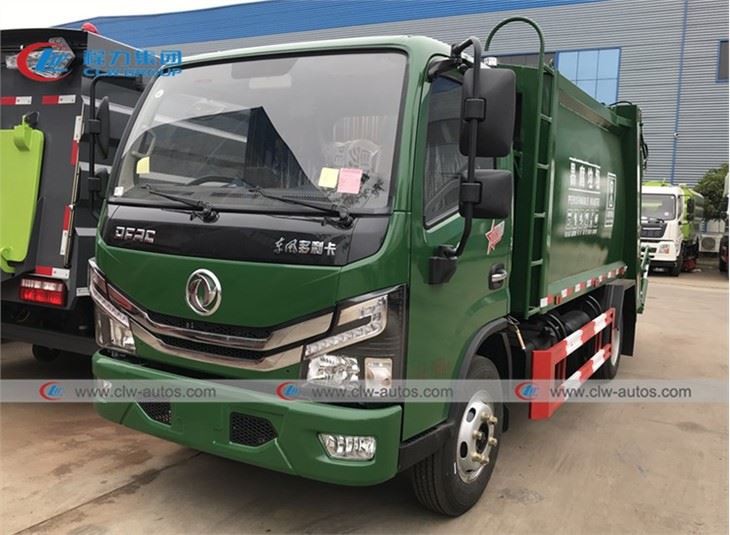

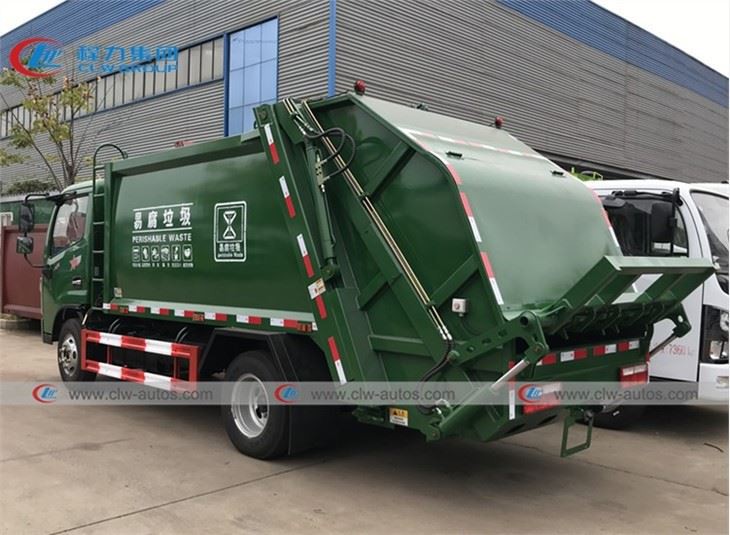

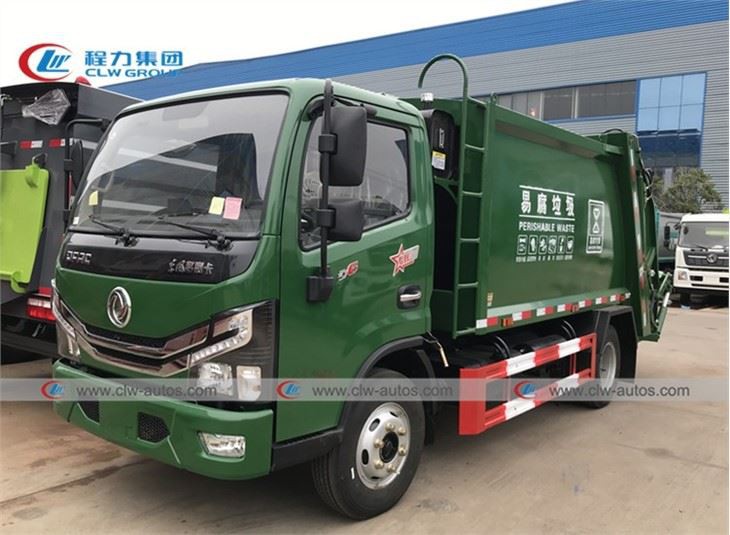

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dfac 6 wheels 8cbm garbage compactor truck in China. If you're going to buy high quality dfac 6 wheels 8cbm garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
Truck Chassis configuration: 4 x2 rear single-axle drive, new wide body green cab, Chaochai 160 horsepower, Diesel engine, EURO-3 Emission Standard; 6-speed gearbox manual control, electric windows, original air conditioning, power steering, air brake,7.00-16 tires with spare tires.

Compactor garbage truck Bodywork configuration: Compressed volume 8 cubic meters, made by T420 special steel plate integral bending, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 63 + 20 double hydraulic pump with 3 + 2 double valve, Zhongmei multi-way valve, Siemens PLC control, electro-optic switch, 2 sewage collection boxes, 3 operation control boxes, with night light, equipped with two-way compression function, two-way hydraulic lock dripping.

Compactor garbage truck Optional configuration: optional double pump confluence + double valve control, optional hanging bucket rack, triangle bucket, fully sealed bucket, swing arm device, can hold 3-18 tons of garbage container.



Specification for DFAC 6 wheels 8CBM Garbage Compactor Truck:
Technical parameters | |||||||
Name | 8 cubic compressed garbage truck | ||||||
Cross weight (kg) | Permitted number of passengers in the cab ( people) | 3 | |||||
Rated capacity (kg) | Overall dimension | ||||||
Curb weight (kg) | |||||||
Approach/Departure: (°) | F/R overhang:(mm) | ||||||
Axle load (kg) | Max speed (km/h) | ||||||
Details : | Note: 1. This car adopts two wheelbase chassis: 3950 and 4500. 2. Optional cab with chassis. 3. This car has five optional flipping styles: A: triangulator device, B: bucket hanging device, C: arm swinging device, D: large landing bucket device, E: no rear flipping device. When ABCD is selected, the corresponding relationship between the vehicle length (mm)/ wheelbase (mm)/ rear suspension (mm)/ maintenance mass (Kg) is :7690/3950/2510/8900; When choosing E, the vehicle vehicle (mm)/long wheelbase (mm)/rear suspension (mm) as follows: the relation between 7450/3950 0/4500/2270800/2270. 4. Protective material :Q235 carbon steel, connection mode: the right and left side protection is welded to the auxiliary beam, and the rear protection is exempted by special device. 5. ABS system manufacturer, model: jiaozuo borico control technology co., LTD. 6. The corresponding relationship between engine and fuel consumption value is (L/100km): yc4eg170-50/26.0, yc4eg185-50/26.3,ISB180 50/27.8,ISD160 50/26.3. 7. Special device: box body. Mainly used for urban sanitation waste collection and transportation. 8. The car can optionally install the appearance of three-cylinder large landing bucket device and swing arm device, as well as the appearance of two-cylinder swing arm device, three-cornered bucket device and large landing bucket device. | ||||||
Chassis technical parameter | |||||||
Chassis type | Chassis type | Cargo chassis | |||||
Chassis brad | dongfeng | Chassis manufacturer: | Dongfeng automobile company ,.ltd | ||||
Axes number | Tire number | ||||||
wheelbase:(mm) | |||||||
Tire specifications | |||||||
Leaf springs number | Front tread (mm) | ||||||
Fuel type | Diesel oil | Rear tread (mm) | |||||
Emission basis: | |||||||
Engine type | Engine manufacturer | Displacement | Engine power | ||||
Dongfeng Cummins engine co. LTD | |||||||
