Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 12cbm sanitation compression waste collection truck in China. If you're going to buy high quality isuzu 12cbm sanitation compression waste collection truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Japan 1SUZU chassis truck cab, 190HP diesel engine, 9.00-20 tires, air brake
Garbage loading from rear of truck, with rear turnover mechanism
Garbage offloading: the garbage is pushed out by the push plate inside truck garbage box
Control system: Electronic control box, more convenient; and also mounted operation levers, mechanical hydraulic operation, more reliable
Chasiss brand optional: HOWO, DONGFENG, JMC, FOTON, SHACMAN, JAC, JAPAN BRAND, LIUQI CHENGLONG, etc.
For more information, please feel free to contact Ms. Helen Jiang; WhatsApp: +86 135 5419 5719.

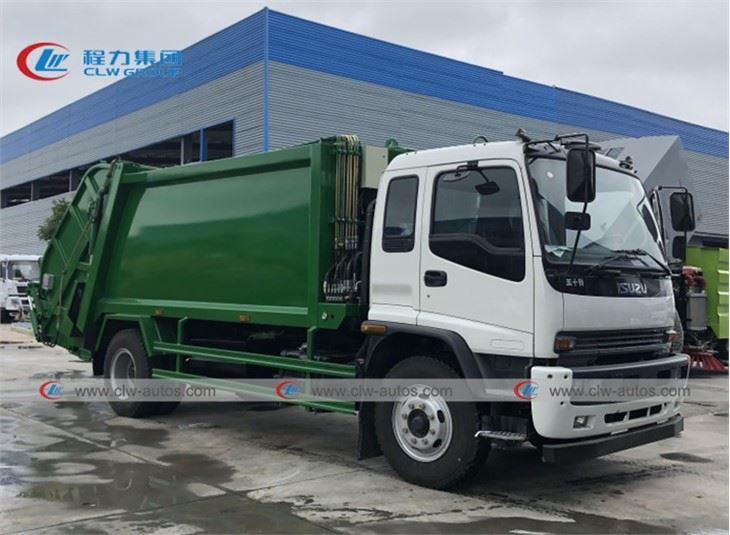

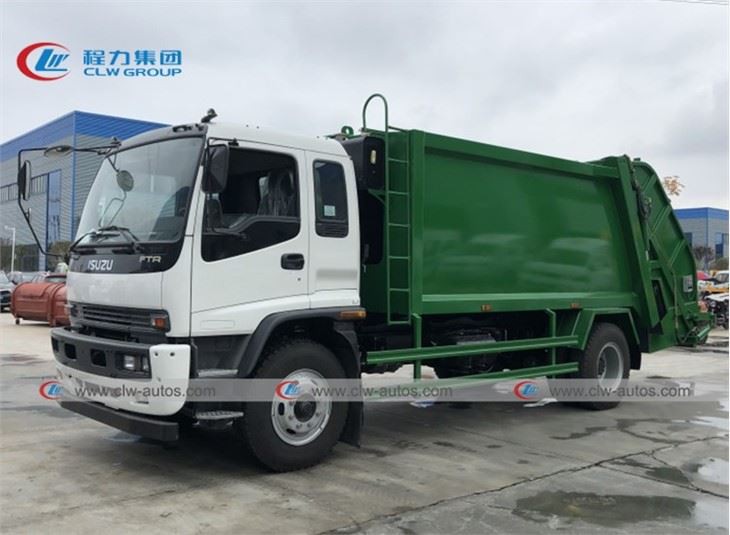

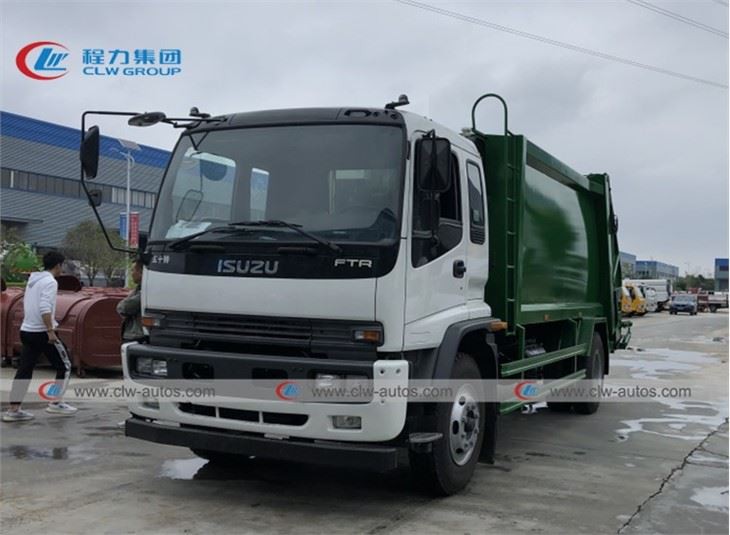

More Pcitures for ISUZU FTR Garbage Compactore Truck:
Specifications of garbage truck compactor:
| Drive type | 4*2, New condition, LHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 8500×2490×3250 | |
| Wheel base (mm) | 4500 or 4700 | ||
| Track front/rear mm | 1880/1800 | ||
| F/R Axle-Load | 6300/13000 kg, | ||
| Approach/departure angle | 19/12 | ||
| Weight in KGS | Curb Weight | 9850kg | |
| GVW | 15800kg | ||
| Max. driving speed(km/h) | 98 | ||
| Engine | Brand | isuzu Brand,Diesel ENGINE | |
| Model | 4HK1-TCG40 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 190hp | ||
| Emission standard | Euro IV | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 9.00R20,10.00R20,9R22.5 or 10R22.5, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 12cbm or 14cbm | ||
| Body material | Floor plate 5mm and side plate 4mm | ||
| Waste water tank | 200L | ||
| Filling container volume | 500L | ||
| Filling time | 8~10s | ||
| Filling cycle time | 50~60s/time | ||
| Discharge time | 30~40s | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge ,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
| Push Panel | Used to push and squeeze garbage,works together with the skid way in the box | ||
