Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 4x2 4000liters asphalt distributor truck in China. If you're going to buy high quality shacman 4x2 4000liters asphalt distributor truck, welcome to get more information from our factory. For price consultation, contact us.

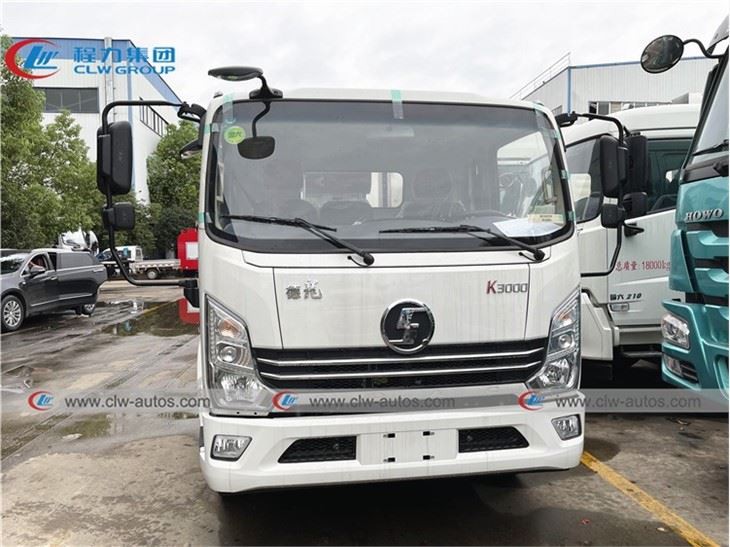

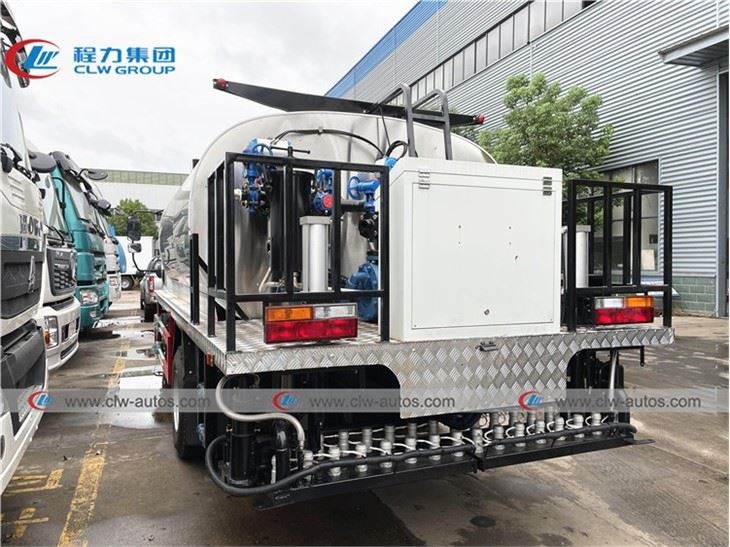

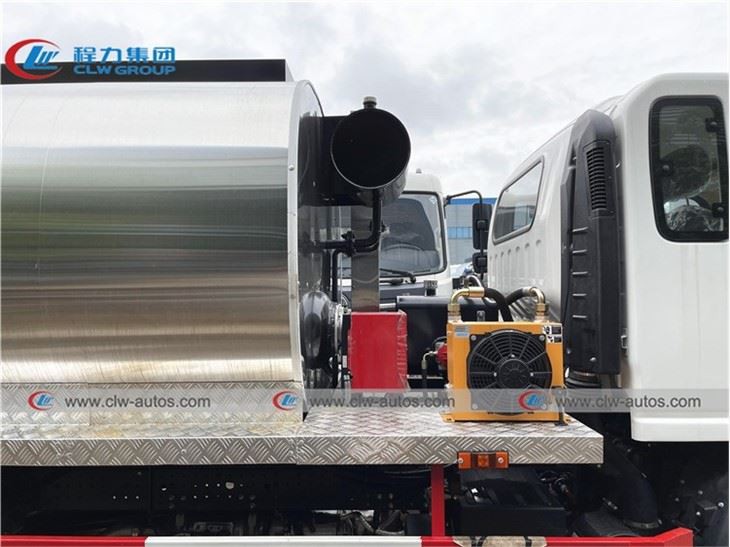

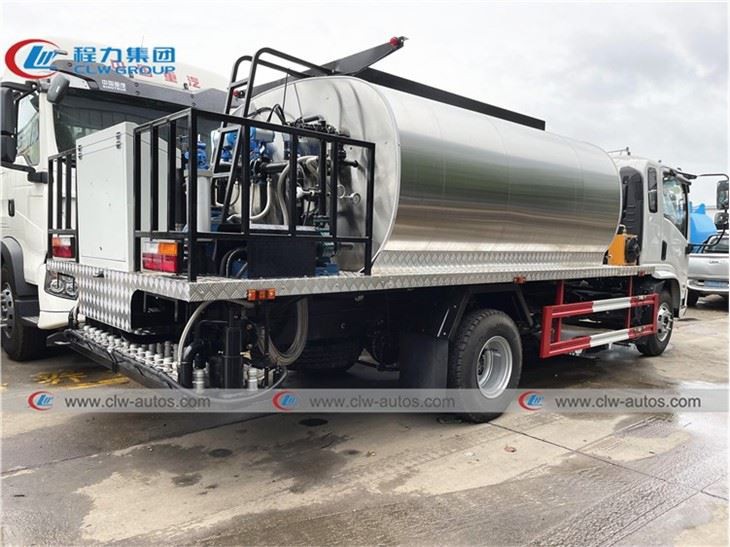

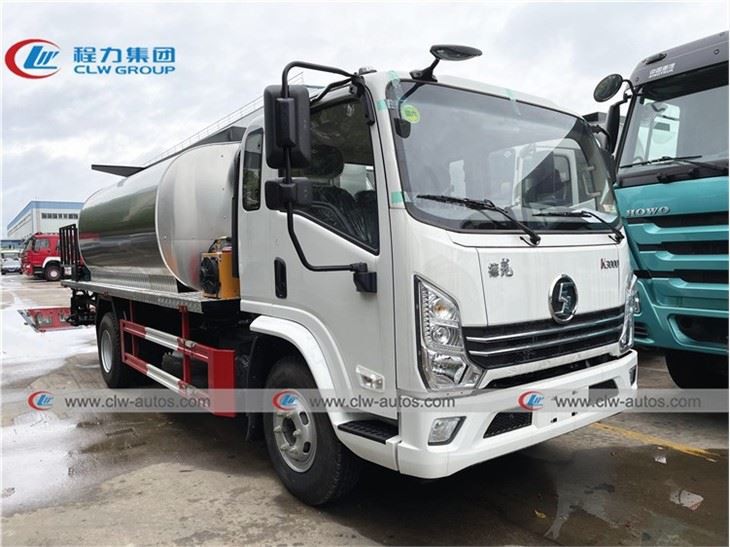

Shacman 4X2 4000liters Asphalt Distributor Truck

Product description

1) Spraying asphalt and bitumen: heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

2) System of 5-10tons bitumen distributor truck

manual/automatic control of spraying volume and working width,control of single spraying nozzle
control in cabin or rear working platform
automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
Heating system(10~15ºC/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control

System

1. Manual/automatic control of spray volume and working width. Each nozzle can be controlled separately, and the determinant nozzle can be freely combined to realize the width of any adjustable spray. Sprinkle control can be performed in the cab or on the rear platform.
2. The automatic control system can measure the speed of the vehicle and automatically calculate the number of revolutions of the asphalt pump according to the amount of the supplied cloth and the width of the spray and the type of asphalt, and then automatically adjust the number of pumps of the asphalt pump through the system.
3. Vehicle-mounted rapid heating system (10-15 ° C / h), can improve heating efficiency and reduce construction assistance time to ensure the temperature of the cloth;
4. Punching nozzle This system can blow the remaining asphalt of the nozzle through the diesel and high-pressure air to prevent the asphalt from freezing in the nozzle and improve the service life of the nozzle.

Personalized equipment

1. Parts of the key parts of the vehicle (hydraulic pump, hydraulic motor, asphalt pump, proportional valve, automatic control system), etc., adopt internationally best components to effectively extend the service life;
2. Using the international advanced high-viscosity asphalt pump, the external asphalt can be pumped into the tank to achieve "self-priming", and the asphalt in the tank can also be pumped out;
3. The heating system uses imported Italian burners, with automatic ignition and temperature control;
4. All heat pipes have heat insulation layers on the outside to reduce the heat dissipation while avoiding burns to the operators;

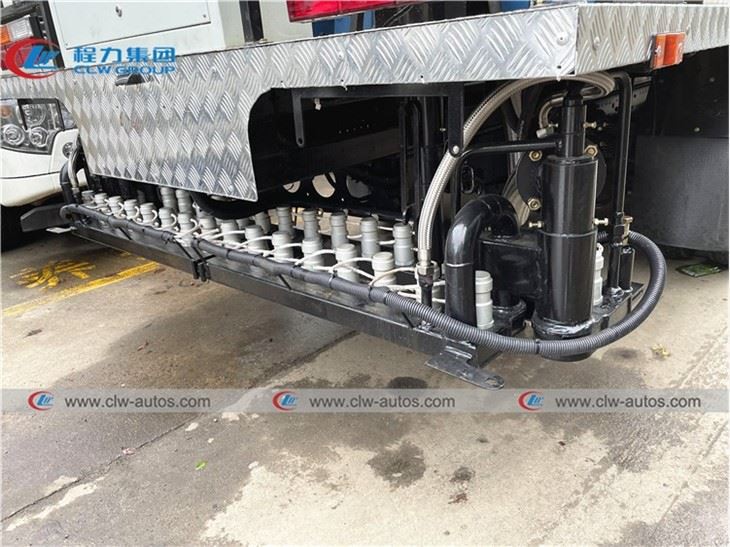

5. The asphalt spray bar adopts a three-stage folding structure. Double or multiple spray can be realized by moving the spreader bar up and down. By moving the spreader bar left and right, the spread range can be expanded, and the obstacle can be effectively avoided.
6. There is a sedimentation drain tank inside the asphalt tank, and it is equipped with liquid level display, alarm and safety device.

Product Specifications

Shacman 4X2 4000Liters Asphalt distributor truck
Item	Descriptions	Specifications and types
General	Truck Brand	CLW
	Chassis Brand	Shacman
	Approx. Dimension	680023502820 mm
	GVW./Kerb Wt.	14000/ 7330 kg
Cab	Cab Capacity	2 persons' seat
	Air Conditioner	Air Conditioner is optional
Chassis	Drive Type	4X2,LHD or RHD
	Fuel Type	Diesel
	Engine Make & Model	Weichai ENGINE
	Power	102-140hp
	Displacement	4700ml
	Emission Standard	Euro II or EURO III or EURO IV or Euro V
	Brake	Air Brake
	Wheelbase/No.of axle	3300 mm / 2
	Tyre Specfication	7.50R16 8.25R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
Bitumen tank	Medium	Liquid Asphalt
	Density	0.9kg/cm3
	Insulation layer	100 mm
	Capacity	4-6CBM
Equipment	Equipped with high quality carbon steel bitumen tank, powerful bitumen pump,Italy brand burner,auxiliary engine for spray pump,air compressor ,bitumen distributor pipeline,etc
