Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4tons full landing car carrier flatbed tow wrecker truck in China. If you're going to buy high quality 4tons full landing car carrier flatbed tow wrecker truck, welcome to get more information from our factory. For price consultation, contact us.
Features of Full Landing Car Carrier Flatbed Towing Wrecker Truck:
1. small angle of flatbed to ground, easy for off road low ground clearance broken car to be on it.
2. Thick good quality checker plate platform, long service time, skid-proof
3. Adpot Italy imported special balance valve.
4. Operate on both sides of the truck and remote is available.
5. Purpose of 4ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing
ownership of private cars,wreckers are now widly used by government organization or towing company.
6. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
7. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint;
imported sealing element; strengthed checked plate.
8. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton etc

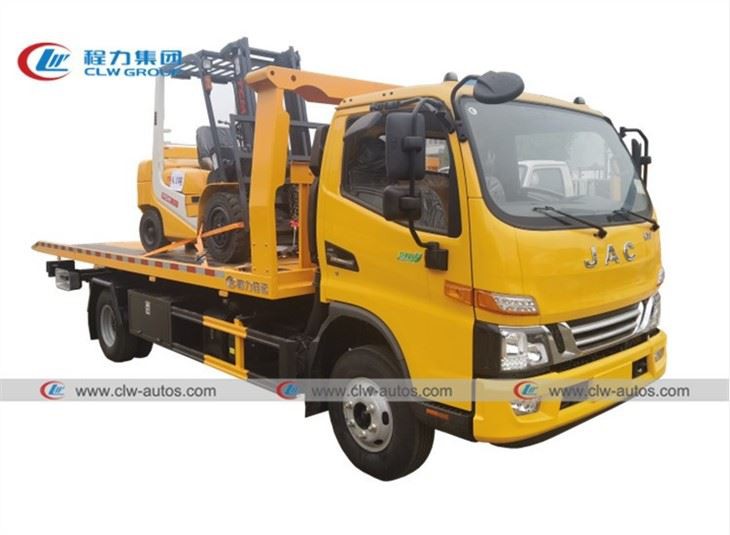

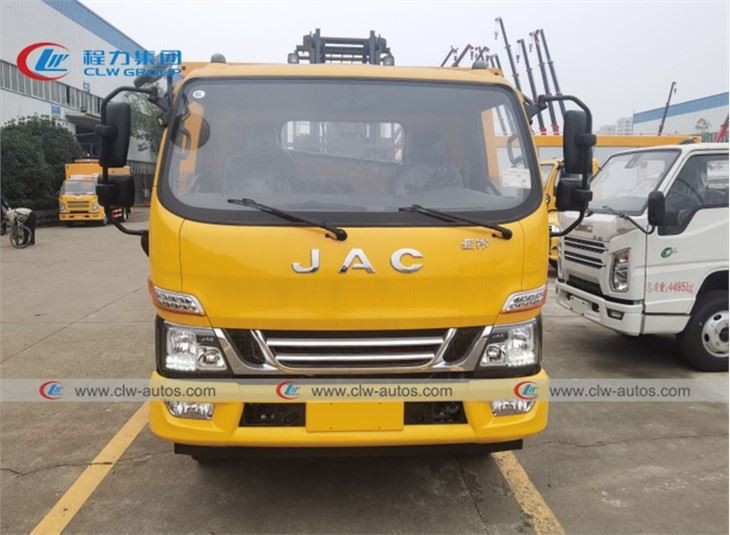

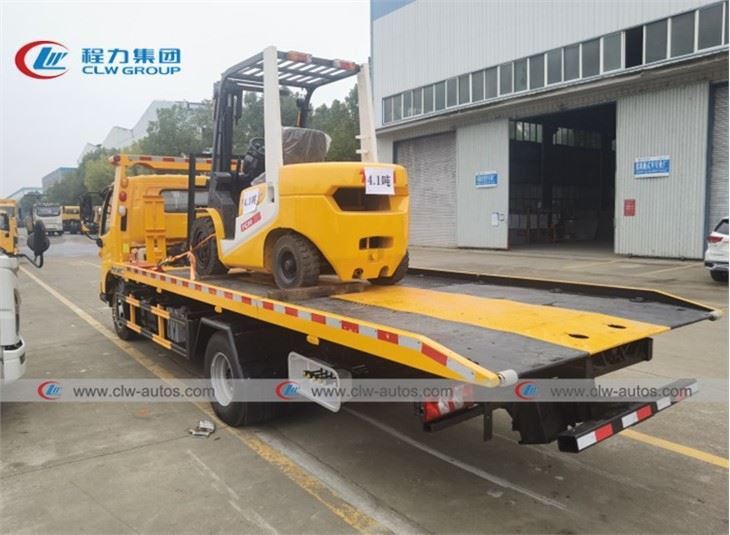

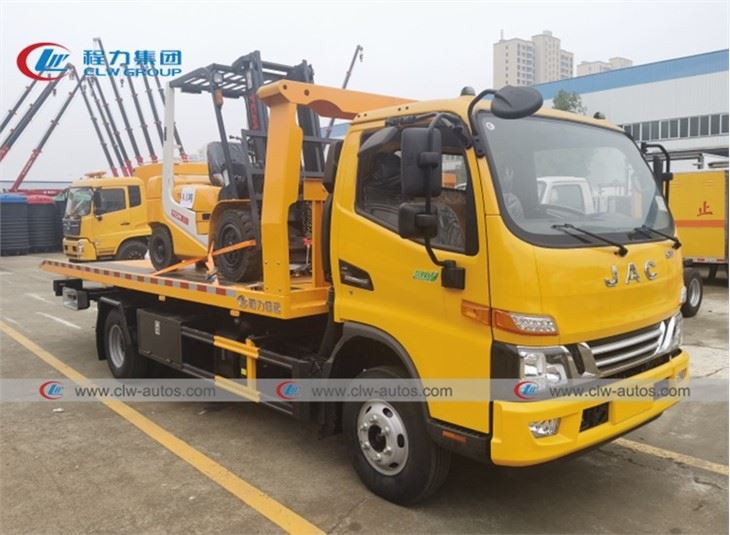

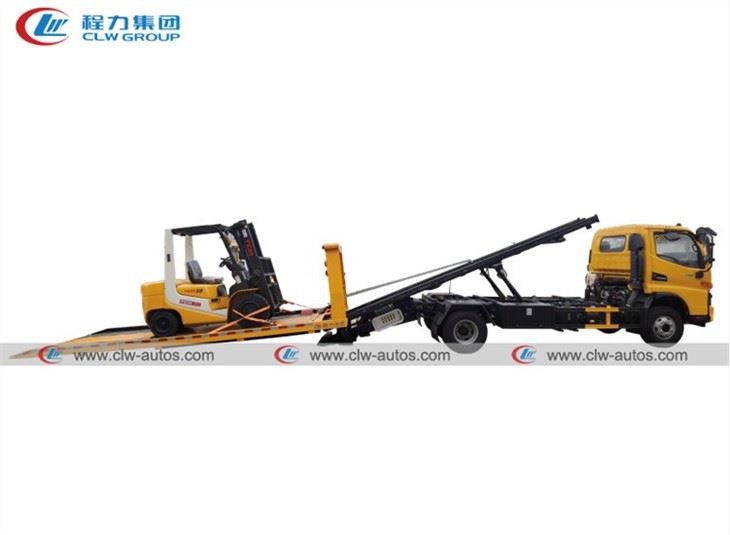

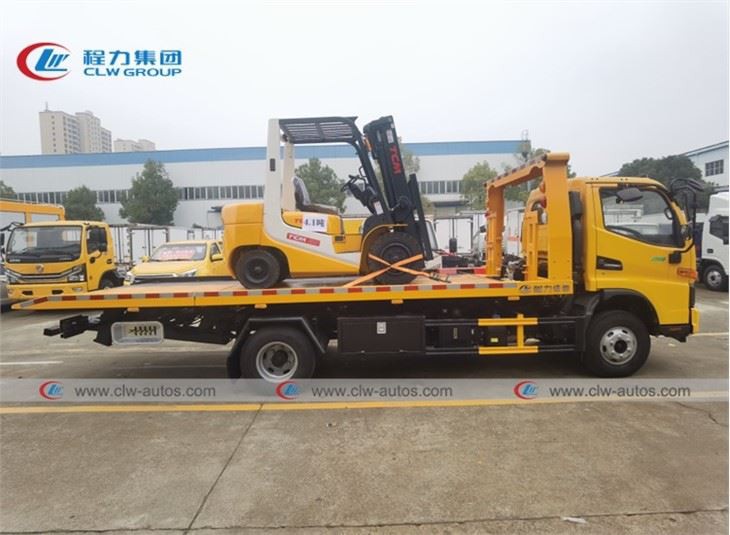

More detailed pictures of JAC 4x2 4Tons Full Landing Car Carrier Flatbed Tow Wrecker Truck:
Parameters for JAC 4x2 4Tons Full Landing Car Carrier Flatbed Tow Wrecker Truck:
Vehicle | JAC Full Landing flatbed towing truck |
Overall dimension (mm) | 7470 × 2350 × 2440 |
Flatbed dimension (mm) | 5950 × 2300 |
Gross Vehicle Weight (kg) | Appro × 8675 |
Net weight (kg) | Appro × 4480 |
Loading (kg) | Appro × 4000 |
Wheel base (mm) | 3815 |
Max speed (km/h) | 110 |
ISUZU Truck Chassis Parameter | |
Manufacturing year | 2022 |
Cabin | Single row cabin,power steering, ABS, air conditioner, cabin roof warning light, 3 passengers,left hand drive |
Traction system | 4×2 |
Engine | Brand :cummins Model : B140 33 Engine power : 140hp Type : diesel, 4 cylinder, turbocharged, inter-cooled. Emission standard : Euro 2 |
Transmission | 6 forward,1 reverse, manual operated |
Tire model | 7.00R16 |
No.of tires | 6pcs, and a spare tire |
Wrecker Body Parameter | |
Standard configuration | (1) 4 ton hydraulic winch 1 set. (2) Rear towing arm assembly 1 set. (3) Auxiliary wheel 2pcs. (4) Steel wire rope 21m.
|
| Other parts | (5) Bundle rope 4pcs. (6) Rear tail lights LED,both sides electronic lights. (7) Tool box on both sides. |
Performance | 1. Flatbed towing 4 ton car, under lift towing 4 ton car. 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. 3. Winch speed : 8m/min. 4. Flatbed minimum tilt angle: 10°. 5. Flatbed working stroke: 2680m. |
