Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 5tons flatbed towing truck with sany crane in China. If you're going to buy high quality howo 5tons flatbed towing truck with sany crane, welcome to get more information from our factory. For price consultation, contact us.
Description:
We are 17 years professional manufacturer of special trucks, supply different kinds of trucks,can be customized as
customer requirements.
Capacity: 2-10 ton flatbed wrecker,11-60 ton rotator wrekcer.
Steering wheel: both left and right hand drive,meet the needs of different countries.
Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 tow truck
Truck chassis: option japan and china brand
Tow truck is also called tow truck wrecker, road wrecker,truck wrecker,road recovery truck,recovery truck vehicle,rotator wrecker,
flatbed wrecker,flat bed tow truck,etc.
Customize tow trucks wreckers,
please contact WeChat and WhatsApp number : +86-135 5419 5719. Helen Jiang from Chengli Special Automobile Co., Ltd.

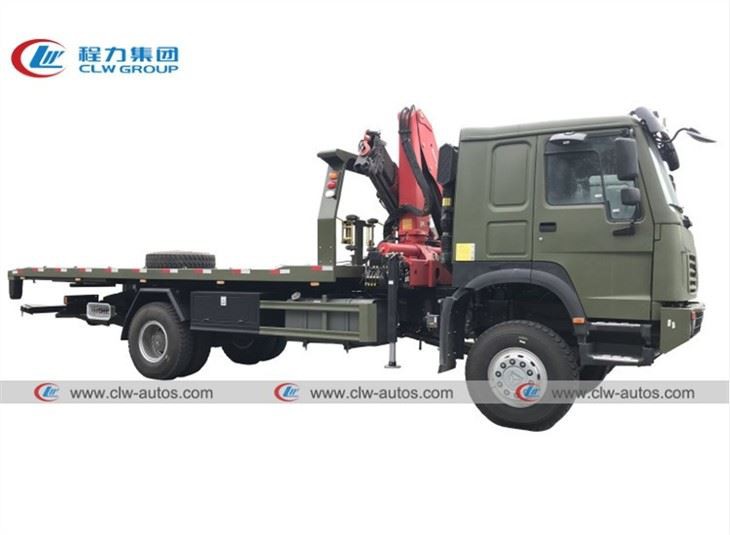

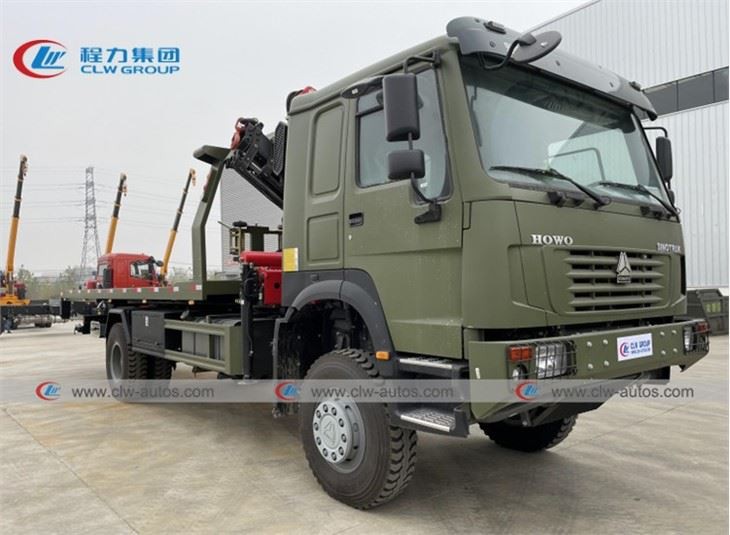

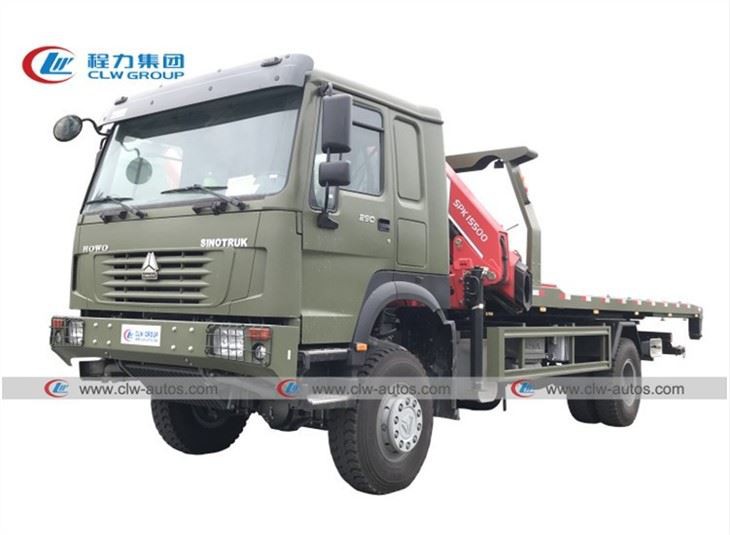

More Pictures of HOWO 4x4 off road 5Tons Flatbed Towing Truck With Sany Crane
Parameters for HOWO 5Tons Flatbed Towing Truck With Sany Crane:
| General Technical Parameters | |||
| Overall Dimension | 9440x2480x2760 (mm) | ||
| Gross Vehicle Weight | 12495kg | ||
| Curb Weight | 10000kg | ||
| Chassis Specification | |||
| Chassis Parameters | Cabin | Row and half, Right Hand Driving | |
| Engine | Model | ISD180 50, 4 Cylinders | |
| Power | 132KW/180HP | ||
| Emission Standard | EURO V | ||
| Displacement | 4.5L | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4.5T/9T | ||
| Wheel Base | 4700(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 9.00R20, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 6000x2400 (mm) | |
| Max. Loading Weight | 8000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 6000 (kg) | ||
| Length of Steel Cable | 35 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Boom Type | Telescopic Boom | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars 6. Outrigger 2pcs | ||
| Parameters of the Crane | |||
| Item | Unit | Value | |
| Max Lifting Capacity | kg | 8000@2.5m | |
| Max lifting height | M | 14 | |
| Max working range | M | 11.5 | |
| Max Lifting Moment | T.M | 20 | |
| Recommend Power | kw | 27 | |
| Max Oil Flow of Hydraulic System | L/min | 55 | |
| Max Pressure of Hydraulic System | Mpa | 27 | |
| Oil Tank Capacity | L | 160 | |
| Crane Weight | kg | 3315 | |
| Installation Space | mm | 1200 | |
| Rotation Angle | ° | 360° All Rotation | |
The SANY crane's information:
