Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 28tons folding boom crane truck in China. If you're going to buy high quality 28tons folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

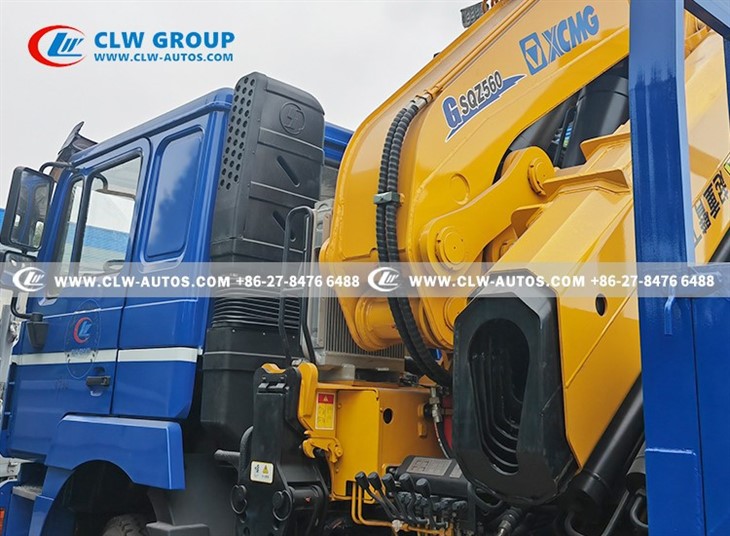

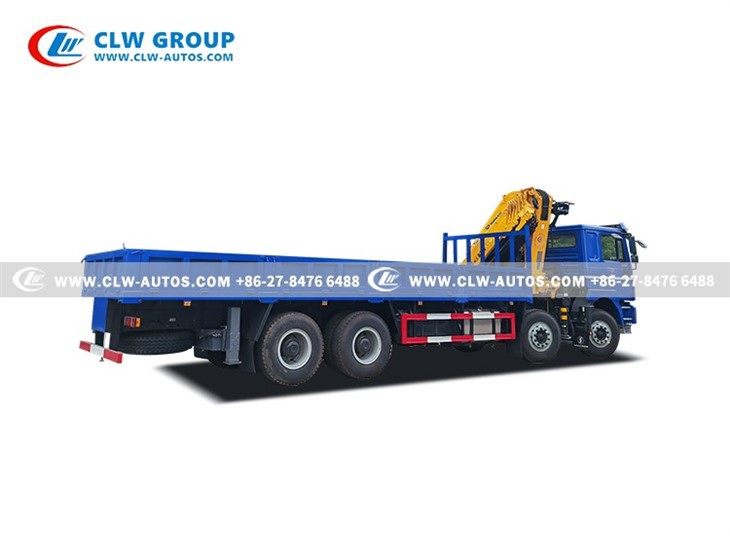

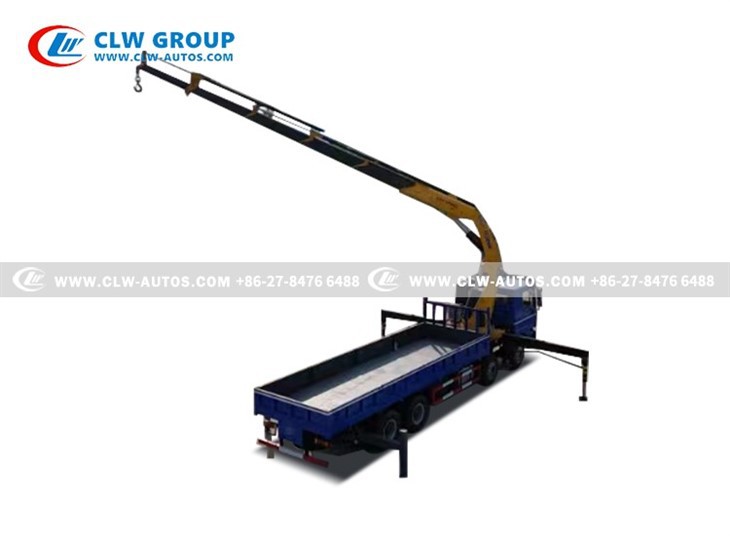

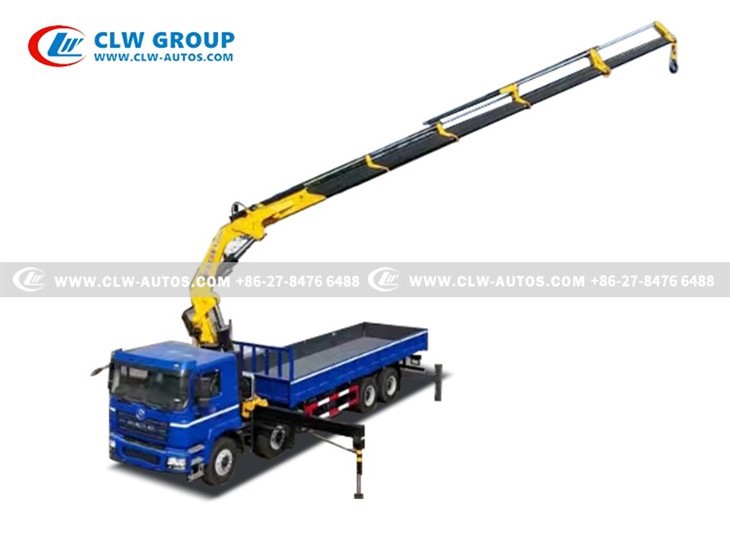

8X4 SHACMAN XCMG 28Tons Folding Boom Crane Truck
The Shacman 28-Ton Truck Mounted Crane is a robust 8x4 chassis integrated with XCMG's industry-leading 28,000kg knuckle boom crane, engineered for maximum lifting efficiency and off-road versatility. Powered by a reliable Weichai 380HP engine and built with a reinforced Q235 carbon steel cargo bed (3mm sides / 5mm floor), this all-in-one heavy hauler delivers exceptional performance in construction, logistics, and industrial lifting operations.
High Efficiency: 8x4 chassis + 28T crane enables single-vehicle load-and-lift operations.
Durability: Reinforced Q235 steel bed withstands heavy-impact loads.
Mobility: Optimized wheelbase (2100+4575+1400mm) ensures stability on rough terrain.
Cost-Effective: Eliminates need for separate crane + transport vehicles.
Versatility: XCMG knuckle boom reaches confined spaces with 360° rotation.
Main Scenario
Construction Sites: Material handling in confined or uneven terrain.
Utility Maintenance: Pole installation, cable handling, and equipment lifting.
Remote Logistics: Off-grid cargo transport + self-loading capability.
Disaster Relief: Rapid deployment in flooded/muddy conditions.
Industrial Yards: Machinery relocation and container loading/unloading.
Logistics Hubs: Container loading, machinery relocation
Energy Sector: Wind turbine components, transformer transport
Emergency Services: Disaster recovery operations
Power and Drivetrain
Chassis and Axles
Crane System
Cargo Body
|
Chassis technical specification |
||
|
Chassis brand |
SHACMAN F3000 |
|
|
Driving mode |
8X4 |
|
|
Wheelbase |
2100+4575+1400mm |
|
|
Cabin |
Left hand driving; 2~3passengers; With one sleeper. |
|
|
Engine |
Engine brand |
WEICHAI, WP10.380E22, 6 cylinders |
|
Fuel type |
Diesel |
|
|
Horsepower |
380hp |
|
|
Displacement |
12L |
|
|
Emission standard |
Euro Ⅱ |
|
|
Transmission |
FAST 10JSD180, Manuel, 10 forward gears and 2 reverse |
|
|
Front axle |
9,500kg |
|
|
Rear axle |
16,000kg |
|
|
Tyre |
12.00R20, 12 pieces with one spare |
|
|
Fuel tank |
300L |
|
|
Cargo box |
||
|
Dimension |
8000*2450*600mm |
|
|
Material |
Q235 carbon steel |
|
|
Material thickness |
Side 3mm, bottom 5mm |
|
|
Crane |
||
|
Brand |
XCMG |
|
|
Boom crane model |
GSQZ560 |
|
|
Boom type |
Folding arm |
|
|
Max. Lifting moment |
490 KN.m |
|
|
Max. Lifting weight |
28,000kg |
|
|
Max. Hydraulic outreach |
20.8m |
|
|
Lifting capacity |
28,000kg/1.75m; 20,000kg/2.50m; 10,500kg/4.79m; 5,400kg/8.38m; 3,440kg/12.21m; 2,340kg/16.38m; 1,750kg/20.80m. |
|
|
Slewing angle |
360°continuous |
|
|
Stabilizer spread |
8216mm |
|
|
Max.operatingl pressure |
32MPa |
|
|
Recommended pump capacity |
80L/min |
|
|
Oil tank capacity |
300L |
|
|
Crane dead weight |
7,350kg |
|
Crane Truck with LOG Grapple Attachment
Crane Truck with Brick Clamp Attachment
Crane Truck with Drilling Rig Attachment Crane Truck with Personnel Basket
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
