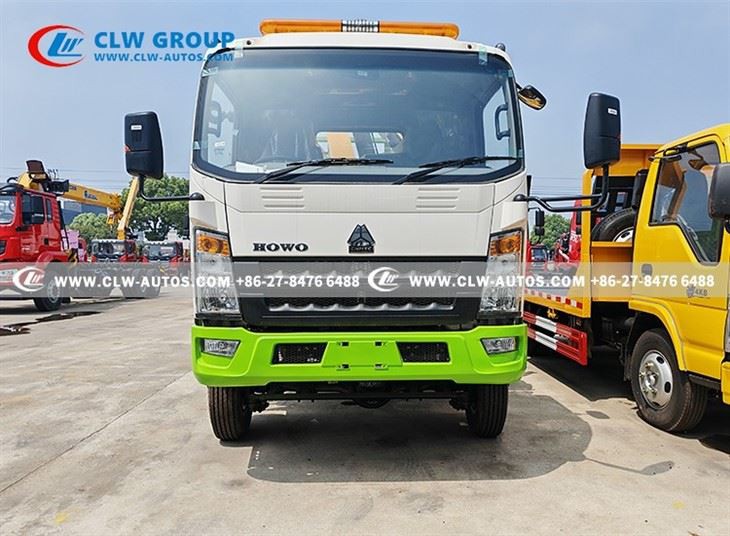

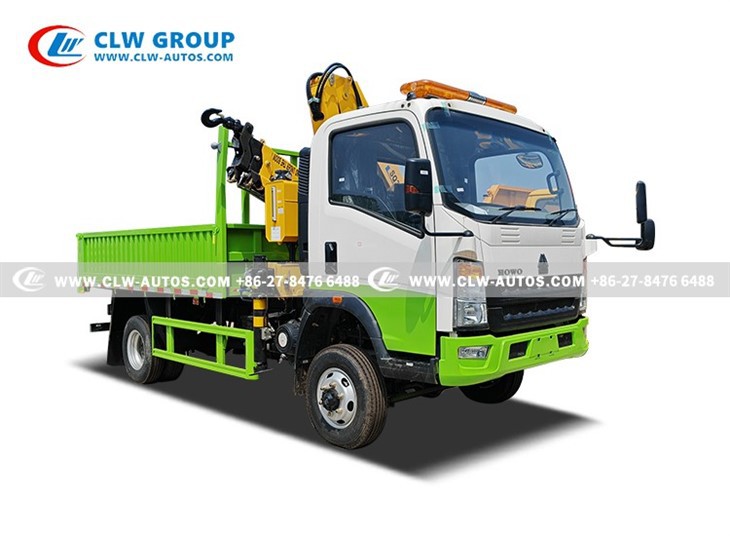

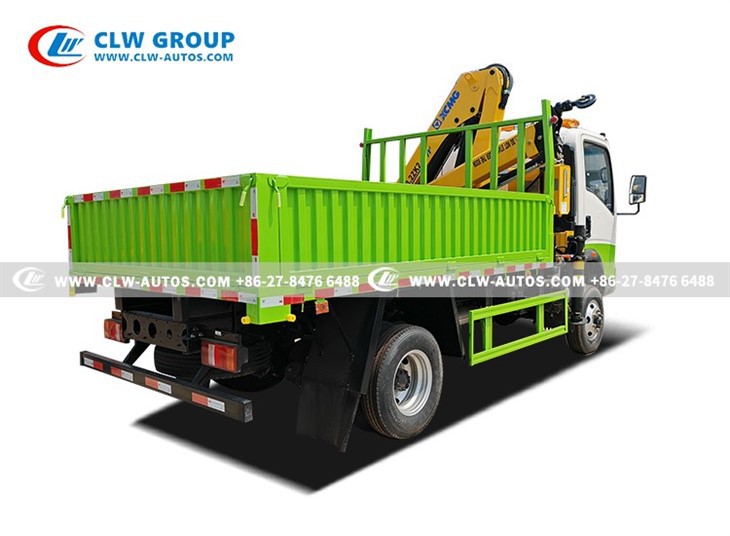

SINOTRUK HOWO 4x4 RHD XCMG 3.2Tons Folding Crane Truck

Products Description

Engineered for extreme environments and specialized operations, the Sinotruk HOWO 4X4 chassis paired with XCMG's 3.2-ton folding boom crane delivers unmatched flexibility and power. Designed with right-hand drive for global markets, this robust workhorse combines off-road capability with precision lifting, making it ideal for logistics, construction, utilities, and remote project support.

Chassis: Sinotruk HOWO 4X4 (RHD), 3300mm wheelbase
Engine: Yunnei Diesel 116 HP, Euro II emission standard
Load Capacity: Front axle 2 tons / Rear axle 3.5 tons
Crane: XCMG 3.2-ton 3-section folding boom crane; max outreach 7.3m
Tires: 7.00R16 all-terrain
Fuel Tank: 80L capacity
Cargo Body: Q235 carbon steel, customizable side & floor thickness

Core Applications

Main Scenario

Construction Sites: Material handling in confined or uneven terrain.

Utility Maintenance: Pole installation, cable handling, and equipment lifting.

Remote Logistics: Off-grid cargo transport + self-loading capability.

Disaster Relief: Rapid deployment in flooded/muddy conditions.

Industrial Yards: Machinery relocation and container loading/unloading.

competitive advantage

Uncompromising Mobility

True 4X4 Traction: Conquers mud, sand, and steep grades where 4X2 trucks fail.
High Ground Clearance: Optimized for off-road stability with 7.00R16 tires.
Right-Hand Drive (RHD): Streamlines operations in RHD-dominant regions (ASEAN, Africa, Oceania).

Intelligent Crane Integration

XCMG 3-Section Folding Boom: Maximizes spatial efficiency – folds compactly during transit, extends to 7.3m for precision lifting.
360° Rotation & Versatile Mounting: Works in tight spaces; mounts behind cab to preserve cargo space.
3.2-Ton Capacity: Handles pipes, generators, concrete barriers, and machinery effortlessly.

Rugged Build and Customization

Heavy-Duty Axles: 2T front + 3.5T rear load capacity ensures stability under stress.
Q235 Carbon Steel Cargo Body: Customizable thickness (sides/floor) for abrasion/impact resistance.
3300mm Wheelbase: Balanced maneuverability and load distribution.

Cost-Effective Performance

Yunnei 116HP Engine: Reliable torque for heavy loads while minimizing fuel consumption.
Euro II Compliance: Lower acquisition cost vs. Tier 4/5 models – ideal for emerging markets.
80L Fuel Tank: Extended operational range in remote areas.

Products Specification

Chassis technical specification
Chassis brand		SINOTRUK HOWO
Driving mode		4X4
Wheelbase		3360mm
Cabin		Right hand driving, 2~3passengers, with one sleeper
Engine	Engine brand	YUNNEI, YN4102QBZL; 4 cylinders, vertical in line
	Horsepower	116hp
	Displacement	3.76L
	Emission standard	Euro Ⅱ
Transmission		WLY6TS40, Manuel, 6 forward gears and 1 reverse
Front axle		2,000kg
Rear axle		3,500kg
Tyre		7.00R16
Fuel tank		80L, aluminium alloy material
Suspension		11/9+7H
Cargo box
Dimension		48002450600mm
Material		Q235 carbon steel
Material thickness		Side 2mm, bottom 3mm
Crane
Brand		XCMG
Boom crane model		SQ3.2ZK2
Boom type		Folding arm, 3 section
Max. Lifting moment		68kN.m
Max. Lifting weight		3,200kg
Max. Hydraulic outreach		7.3m
Lifting capacity		3200kg/2.1m; 1300kg/4.15m; 950kg/5.8m; 650kg/7.3m
Slewing angle		370°
Stabilizer spread		3554mm
Recommended pump capacity		25L/min
Max. Pressure of hydraulic system		22MPa
Oil tank capacity		60L
Crane weight		1,215kg
