ISUZU GIGA 16Ton Straight Boom Arm Crane Truck
High Position Seat for heavy duty equipments delivery
Product Description
Brand: ISUZU
Series: GIGA
Engine: ISUZU 350HP, EURO 4 or 5
Gearbox: FAST 12 Forward & 2 Reverse
Tire: 11.00R20, 11R22.5
Crane Brand: XCMG
Capacit: 16Ton
Product Specification
eneral Technical Parameters | ||
Overall Dimension | 11980×2500×3980 (mm) | |
Gross Vehicle Weight | 24900(Kg) | |
Curb Weight | 15800(Kg) | |
Chassis Specification | ||
Chassis Brand | ISUZU | |
Drive model | 8*4 | |
Cabin | Double, Left Hand Driving, with air conditional | |
Number of Passengers | 3 | |
Engine | Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR |
Power |
| |
Emission standard | EURO 4 | |
Displacement | 8300(ml) | |
Fuel type | Diesel | |
Gearbox | 9Forwards & 1Reverse | |
Brake System | Air break | |
Wheel Base | 1850+4600+1400 mm | |
Front/Rear Axle Loading | 8000/11500(Kg) | |
Approach/Departure Angle | 23/12(°) | |
Overhang | 1250/3545(mm) | |
Tire | 11.00R20 | |
Max Driving Speed | 90(km/h) | |
Upperstructure Specification | |||
Cargo Body | Dimension | 8600×2300×550(mm) | |
Material | Q235 carbon steel | ||
Cargo Thickness | Side 1.5mm, Bottom 2.5mm | ||
Working System | Boom Type | Straight 4-Arm telescopic boom | |
Crane | Crane Brand | XCMG or SANY or CLW | |
Range of Sprayer | 30m | ||
Max Lifting Moment | 25(T.M) | ||
Max Lifting Capacity | 16000(kg) | ||
Max lifting height | 12(m) | ||
Rotation angle | 360(°) | ||
Installation space | 1150(mm) | ||
Recommented power | 30(kw) | ||
Maximum working pressure | 26(Mpa) | ||
Max Flow | 63(l/min) | ||
Crane weight | 3800(kg) | ||
Oil tank capacity | 160(L) | ||
Leg | Leg type | H type | |
Leg Span | 2.28-5.9(m) | ||
Hydraulic system | Pressure | 18(M pa) | |
Capacity | 70(l) | ||
Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||

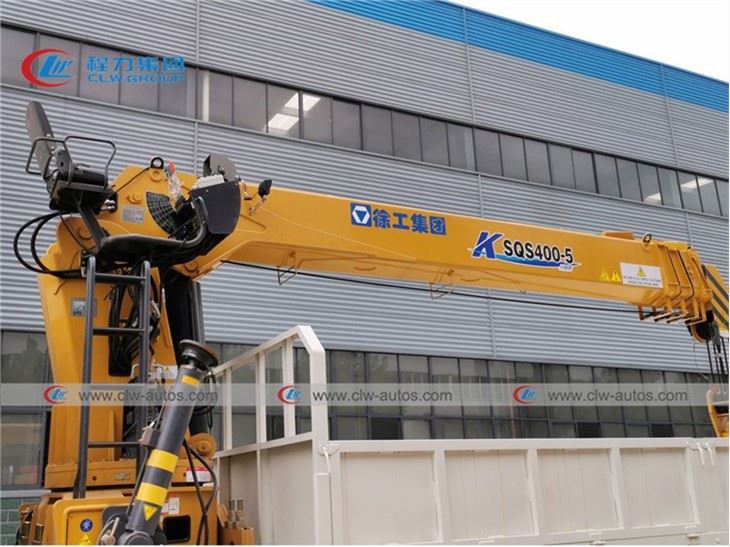

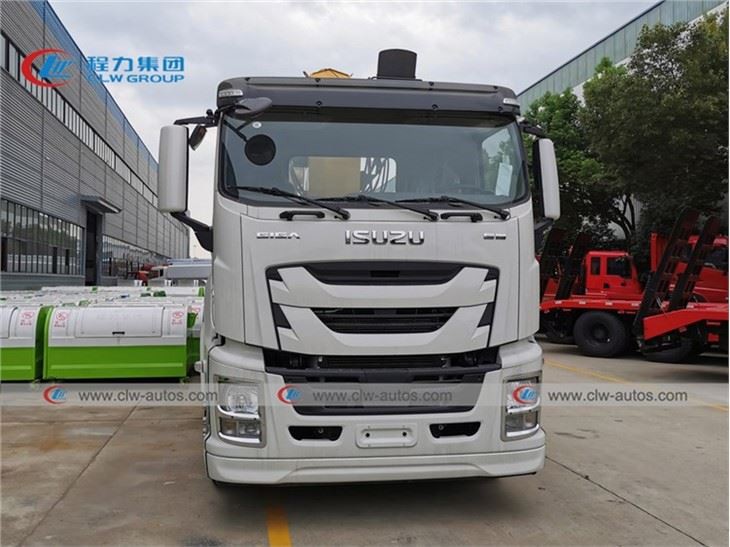

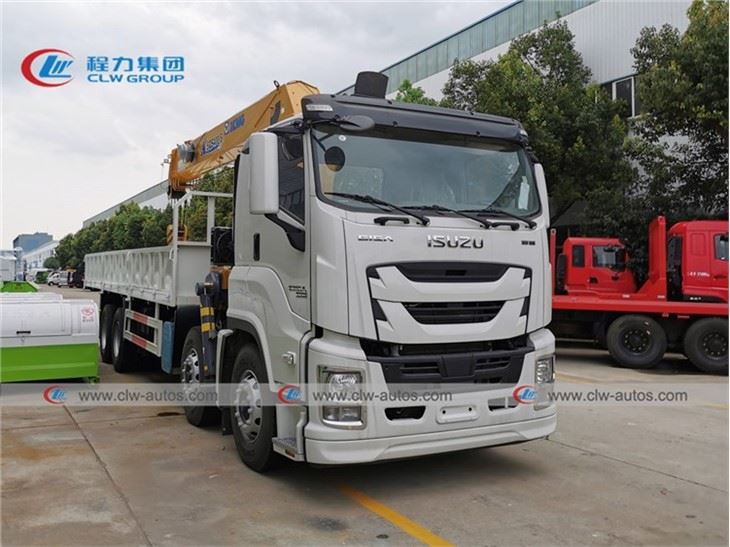

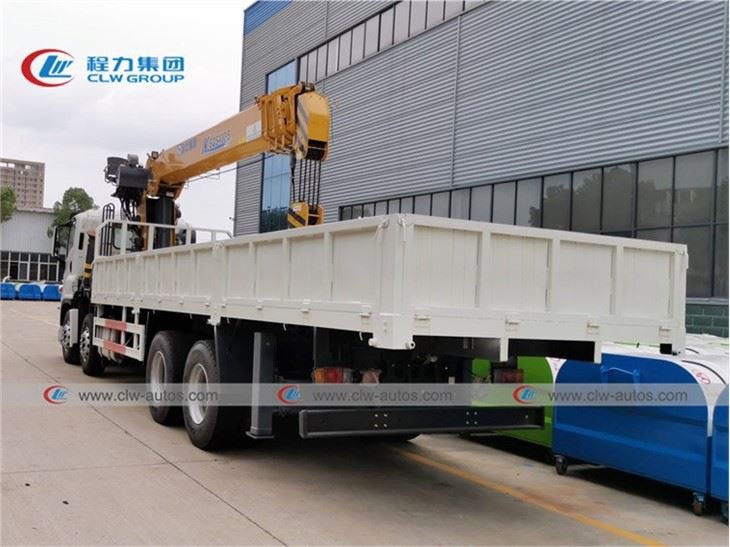

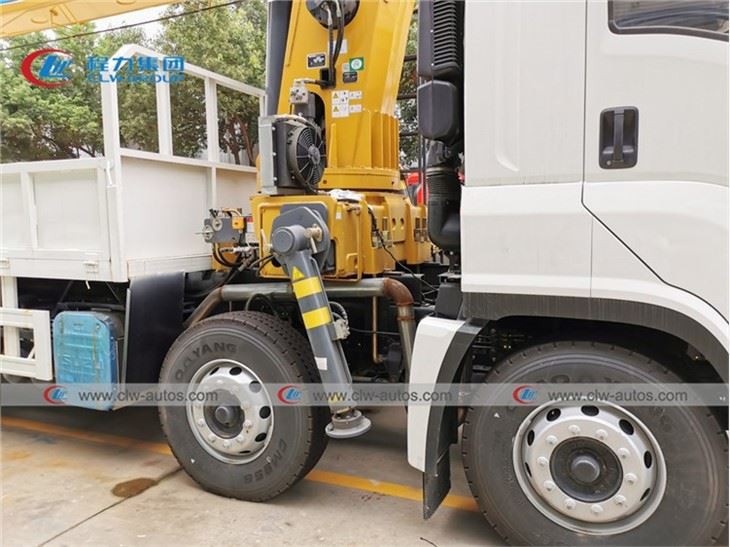

Product Photos Detail
