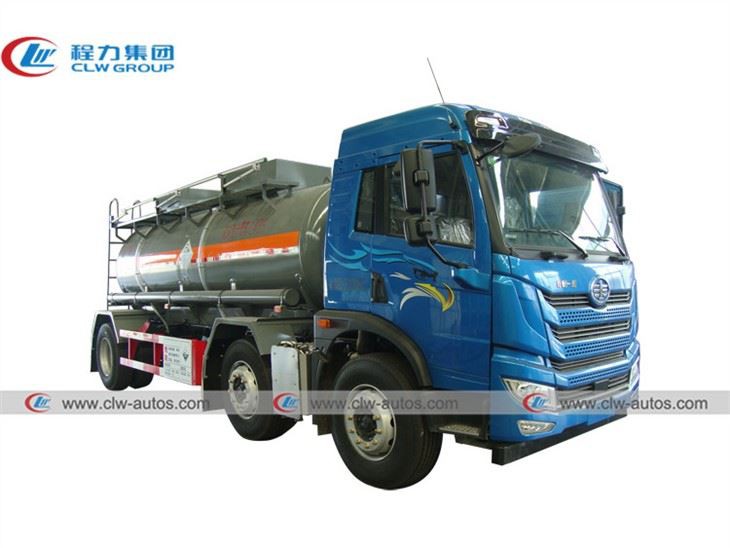

6X2 FAW 10-15CBM Chemical Sulfuric Acid Transport Truck
Product Description 1. Purpose: It is used for mobile refueling gasoline, diesel, liquid paraffin and other chemical liquid. 2. Main parts: Pump, flow meter, dispenser and filling gun etc. 3. Truck Brand: Dongfeng, optional for SINOTRUK HOWO, FAW, Foton, SHACMAN, North Benz and other brands 4....
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6x2 faw 10-15cbm chemical sulfuric acid transport truck in China. If you're going to buy high quality 6x2 faw 10-15cbm chemical sulfuric acid transport truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: It is used for mobile refueling gasoline, diesel, liquid paraffin and other chemical liquid.
2. Main parts: Pump, flow meter, dispenser and filling gun etc.
3. Truck Brand: Dongfeng, optional for SINOTRUK HOWO, FAW, Foton, SHACMAN, North Benz and other brands
4. Available tank capacity: 4m³ 5m³, 6m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 25m³, 30m³, 35m³
Specification
| Description | FAW 6x2 Chemical transport truck sulfuric acid transport truck | ||
| Condition | New condition/LHD&RHD | ||
| Chassis | Curb weight(kg) | 9890 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 1860+4140 | ||
| Dimensions(mm) | 9650×2490×3100 | ||
| Overhang (front/rear) (mm) | 1272/2378 | ||
| Wheel track (front/rear) (mm) | 1930/1930/1860 | ||
| Approach/Departure angle(°) | 22/20 | ||
| Axle Load(kg) | 6780/6850/11370 | ||
| Max. driving speed(km/h) | 80 | ||
| Brand | FAW | ||
| Model | CA5250 | ||
| Tire | Number | 8pcs with one spare tire | |
| Specifications | 10.00-20 10.00R20 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Cab | 3 persons allowed | ||
| Gear box | 7 Forwards & 1 Reverse | ||
| Engine | Model | CA6DF3-22E3F | |
| Displacement(ml) | 7120 | ||
| Power(kw/hp) | 165/224 | ||
| Emission standard | Euro 3 | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tank | Capacity(m³) | 10-15 | |
| Tank material | Q235 carbon steel | ||

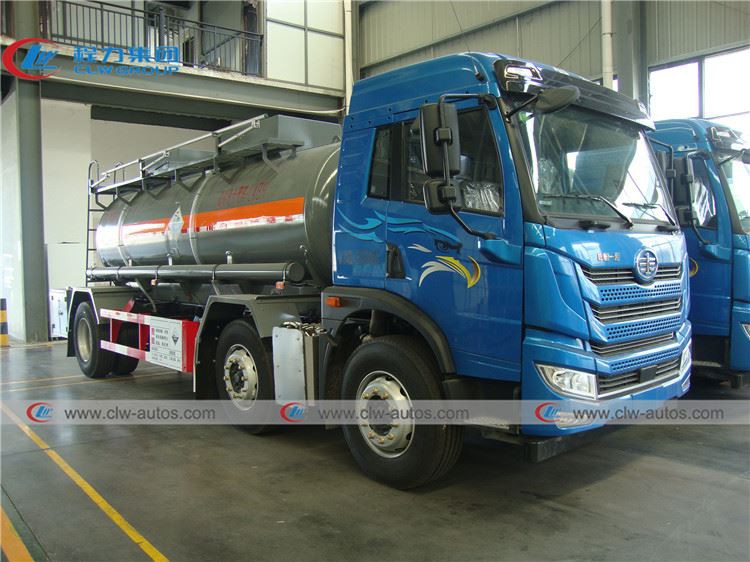

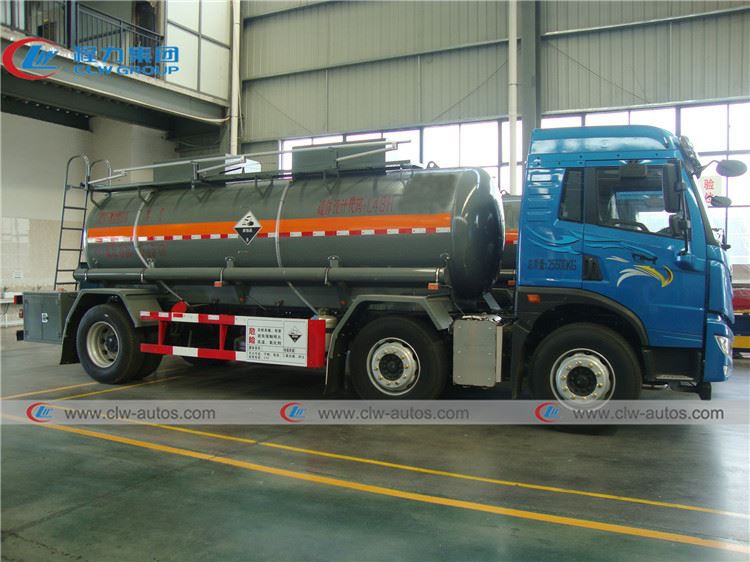

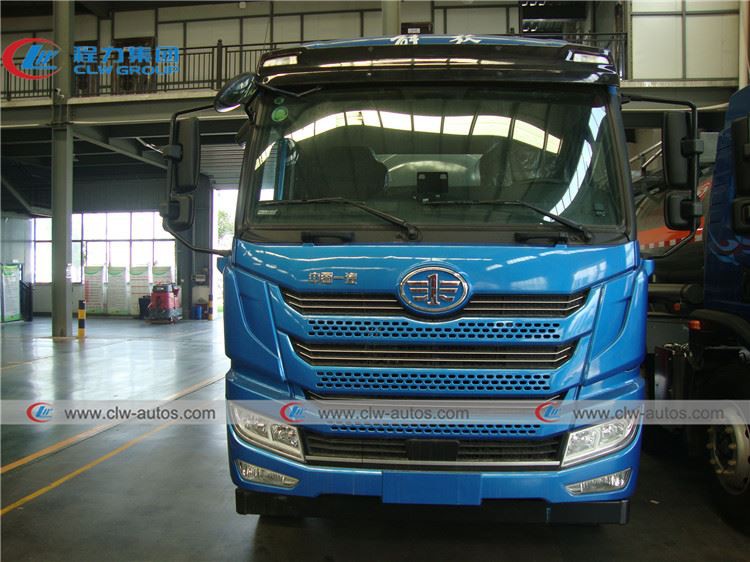

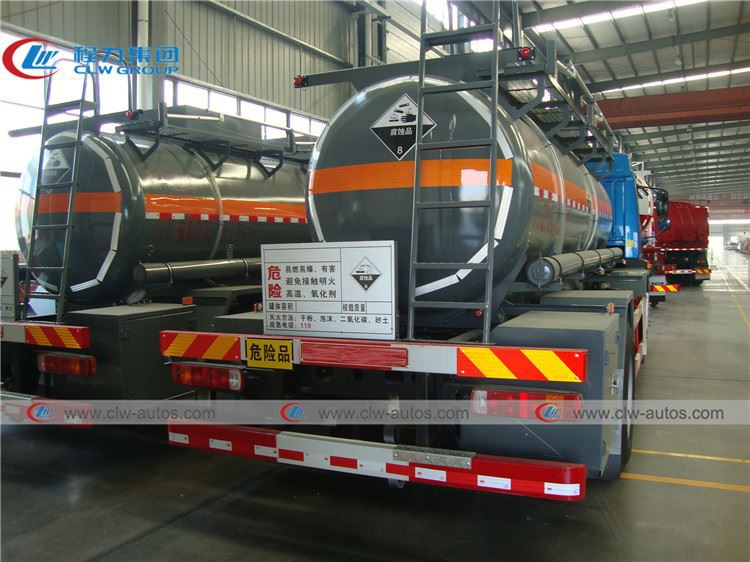

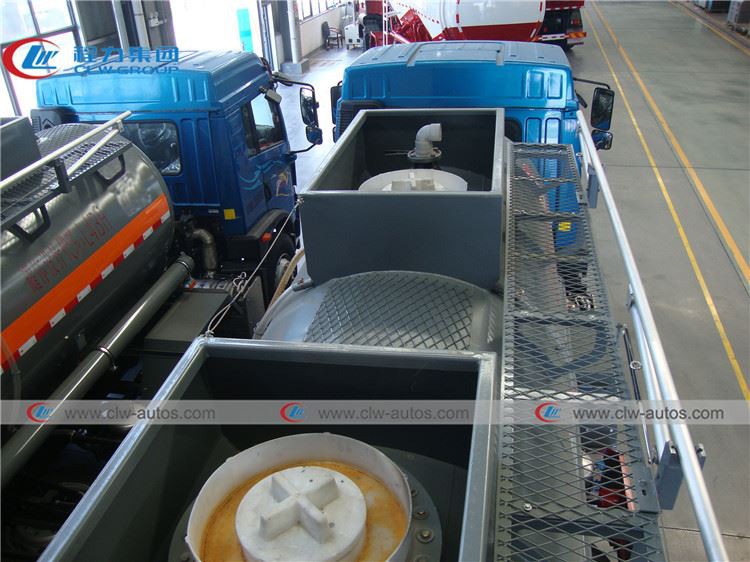

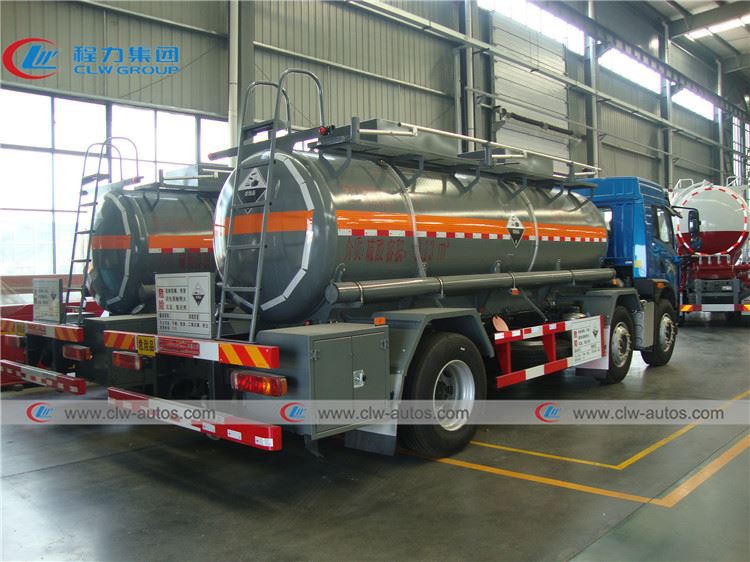

Product photos
