10Ton Isuzu Oil Delivery Tank Truck With Auto Dispensing System
10000L Fuel Tank Truck
PTO Drive oiL Pump
Censtar Oil Dispenser
Carbon Steel or Stainless Steel
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10ton isuzu oil delivery tank truck with auto dispensing system in China. If you're going to buy high quality 10ton isuzu oil delivery tank truck with auto dispensing system, welcome to get more information from our factory. For price consultation, contact us.
10Ton Isuzu Oil Delivery Tank Truck with Auto Dispensing System
Description:
1. Engine: ISUZU
2. Gearbox: ISUZU
3. Axle: 7Ton Front Axle & 16Ton Axle
4. Tire: 8.25R16
5. Filling System: Oil Pump & Oil Dispenser,
Feature& Advantage
A. Separated Oil Tank to obtain crude oil, diesel, separately at the same time.
B. Bottom Loading & Unloading system which reduce the labor intensity of the gas station,
C. Oil gas recycling system which reduce the loss of oil, eliminate the potential danger, environmental friendly.
D. Anti-overflow system which prevent the overflow during oil loading process. Adopt advanced, accurate optical sensor to substitute heat-senstive.
Truck Specification | |||
Cab | Row and half cab, with power steering. | ||
Driving Type | 4*2 Left hand driving | ||
Overall dimension(mm) | 8500*2450*3200 | ||
GVW( kg) | 15000 | ||
Wheelbase(mm) | 4700 | ||
Tire | 10.00R20 | ||
Clutch | Single-plate dry diaphragm spring clutch | ||
Steering | Hydraulic steering with power assistance | ||
Gear box | 6 Forward & 1 Reverse Gear | ||
Engine | Fuel Type | Diesel fuel | |
Type | Water-cooled four-stroke, direct injection, turbocharged | ||
Exhaust(ml) | 4700 | ||
Max output power/rotate speed (hp /rpm ) | 180 | ||
Braking system | Service Brake | Compressed air brake | |
Park Brake | Spring energy | ||
Auxiliary brake | engine exhaust brake | ||
Eletric system | 24v | ||
Upper-Body specification | |||
Volume of tank | 12-15m3 | ||
Material of tanker | 5mm carbon steel | ||
Color of the tanker | According your demands | ||
Equipment | Oil pump | ||
Transport medium | Diesel oil, gasoil or others | ||
Fittings | PTO oil pump | ||
Aluminum alloy European standard manhole | |||
Fuel hose box fitted on both side of tank | |||
Bottom valve | |||
Fire extinguisher | |||
One spare tyre | |||
Ladder: For access to top of tank complete with cat walk on top of tank | |||
Heavy-duty rear bumper | |||

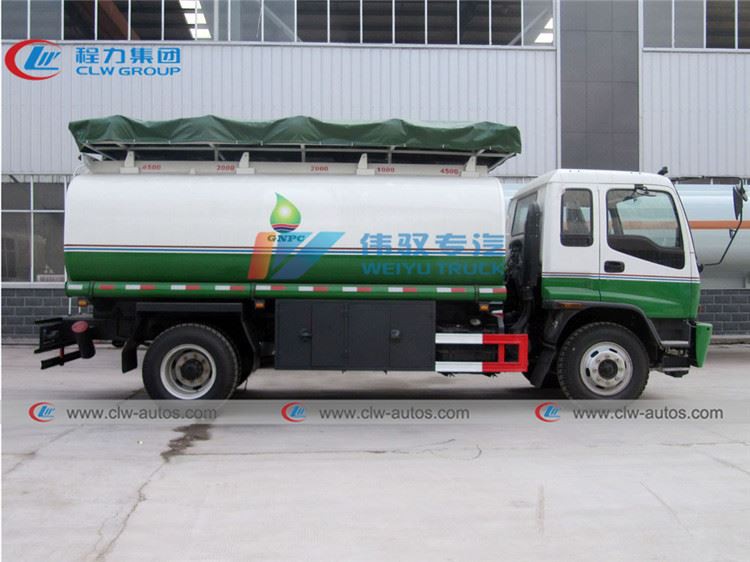

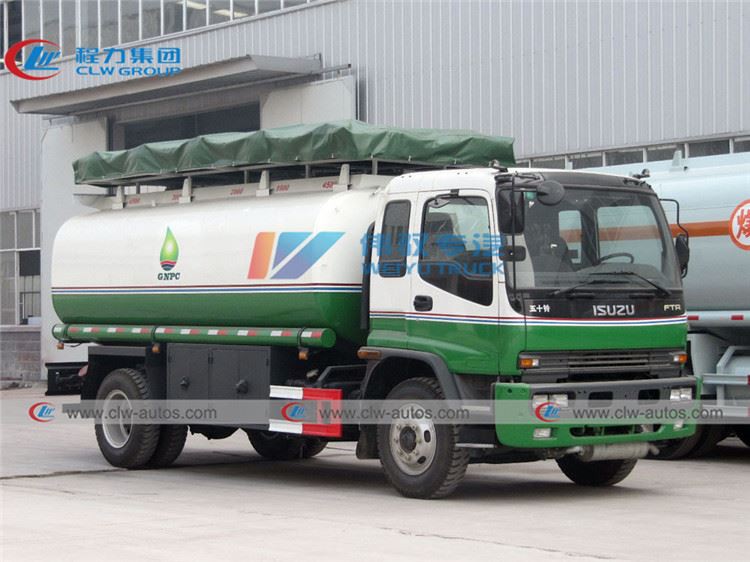

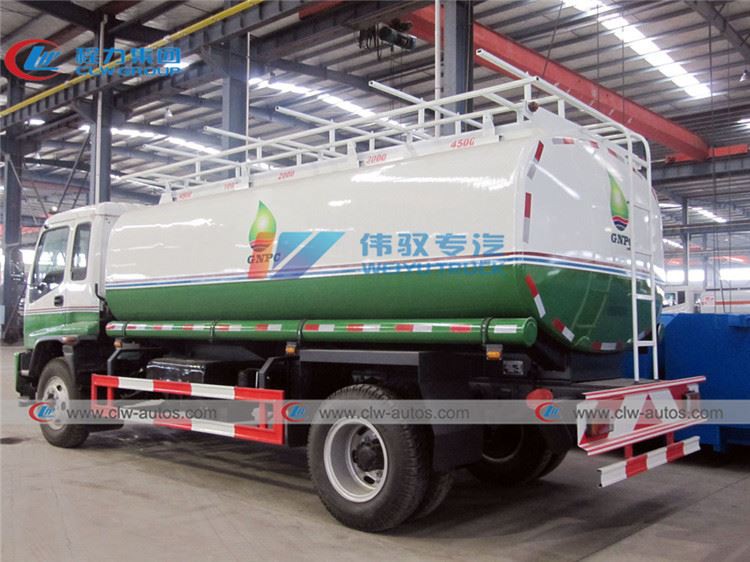

Photo Reference:
Chengli Special Automobile Corporation Limited, which was appointed by the Development and Reform Committee of China. Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Established from 2004.
12 independents workshops.
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians. About 8000 workers.
800kinds of LPG, trucks and semi-trailers.
20 years wholesale experience.
Turnover 250 million and Export 20million annually.
Turnover 2 billion trucks and semi-trailers annually.
LPG/Truck sold to 90 countries.
Cooperates with DONGFENG,SINOTRUCK HOWO,SHACMAN,FOTON,FAW,BEIBEN,JAC ETC.
