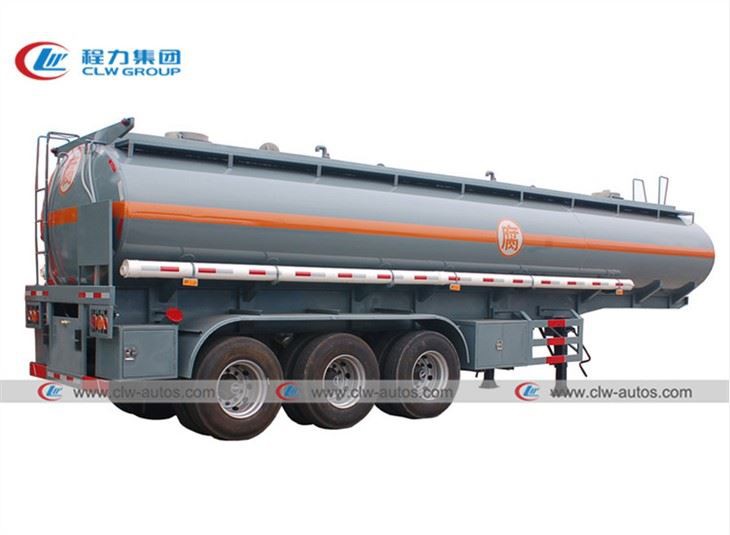

3 Axle 18CBM Chemical Acid Tank Semi Trailer
3 Axle Chemical Liquid Acid Tank Semi Trailer Tank Volume: 18CBM, 18000Liters, 18M3, Plastic Lined.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 18cbm chemical acid tank semi trailer in China. If you're going to buy high quality 3 axle 18cbm chemical acid tank semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Factory customise benzene/sulfuric acid/alcohol chemical material transport Tri-axle tank semi trailer with best price
The Specification for 3 axle 18000Liters Dilute sulfuric acid Transport Tank Trailer:
Main Dimensions | ||
Overall Length | 9440mm | |
Overall Height | 3000mm | |
Overall Width | 2500 mm | |
Tare Weight | 9400 KGS | |
Loading Capacity | 35000 kgs | |
Photo only for reference, final product can be made according to exact requirements | ||
Tank Body | ||
Shape | Mono block Cylinder | |
Total Volume（m3） | 18 CBM | |
Tanker Body Material | 5 mm Carbon steel lined with 16 mm plastics , | |
End plate | Carbon steel lined with 16 mm plastics or 6 mm stainless steel 316L | |
Manhole cover | Carbon steel lined with 16 mm plastics or Stainless steel manhole cover, ∮500mm , 2 sets with 2 breather valve | |
Discharging valve | 1 sets ∮100mm discharging valves, stainless steel material or Carbon steel lined with 16 mm plastics | |
Discharging Pipe | 4”rubber hose, 2 pcs, 6m long , stainless steel material or Carbon steel lined with 16 mm plastics | |
Chassis | ||
Axle | 3 axles | |
BPW or FUWA 13 ton | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
King Pin | JOST brand 2” bolt-in king pin | |
Suspension | German design heavy duty mechanical suspension 13-pcs leaf spring | |
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30 Spring brake chamber; 40L air tanks. | |
Wheel rim | 9.0-22.5 wheel rim, 12 pieces | |
Tire | 12R22.5 tubeless tire , 12 pieces | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Accessories | One standard tool box, one spare tyre and carrier | |

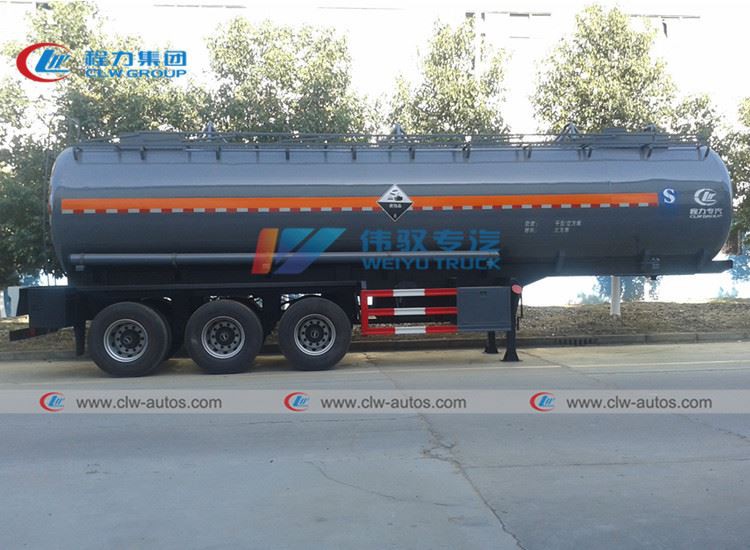

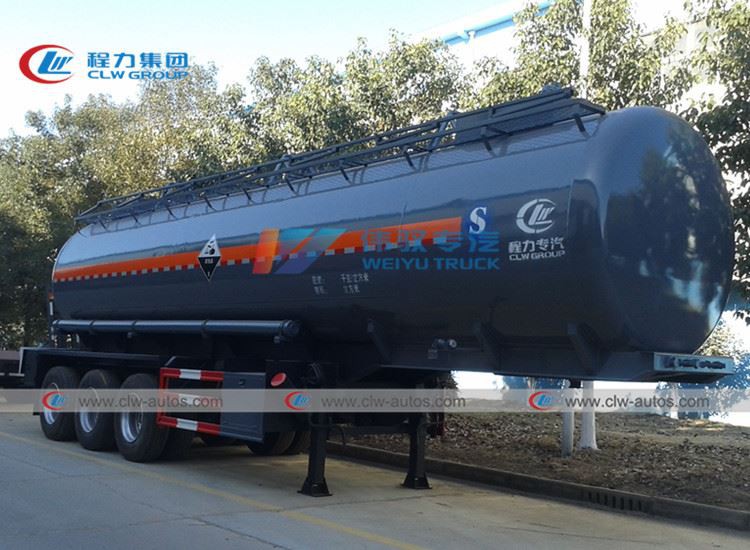

The more pictures about the 3 axle 18000Liters Dilute sulfuric acid Transport Tank Trailer:

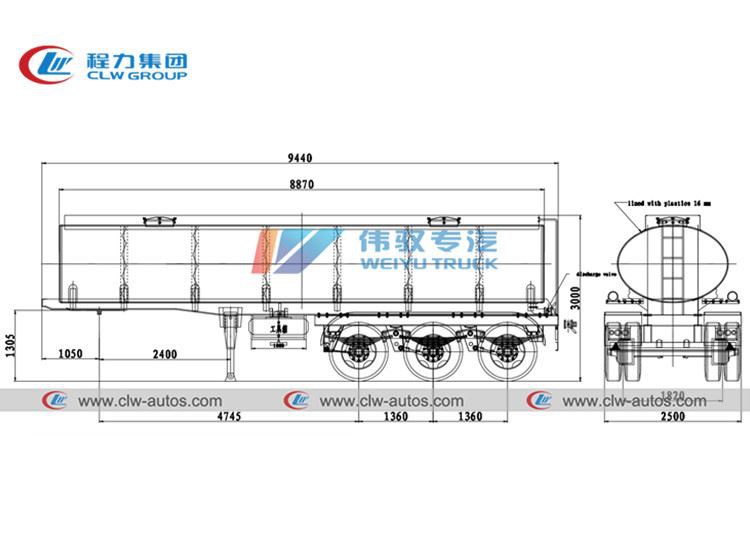

The customized technical drawing for 3 axle 18000Liters Dilute sulfuric acid Transport Tank Trailer:

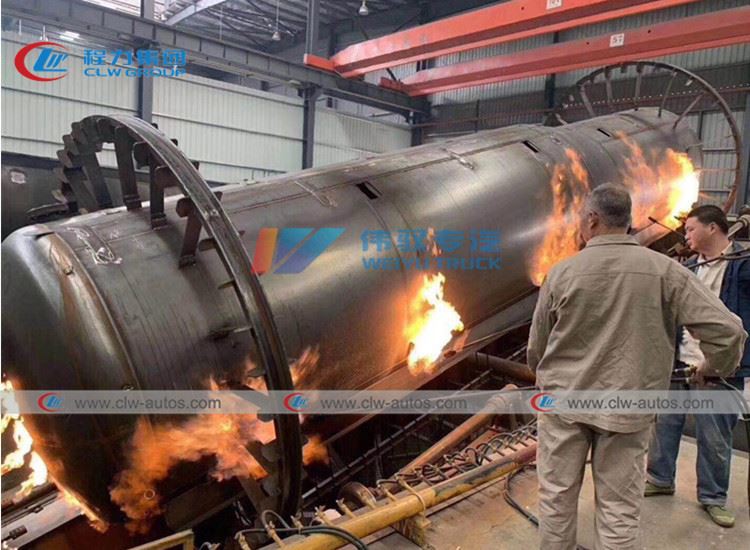

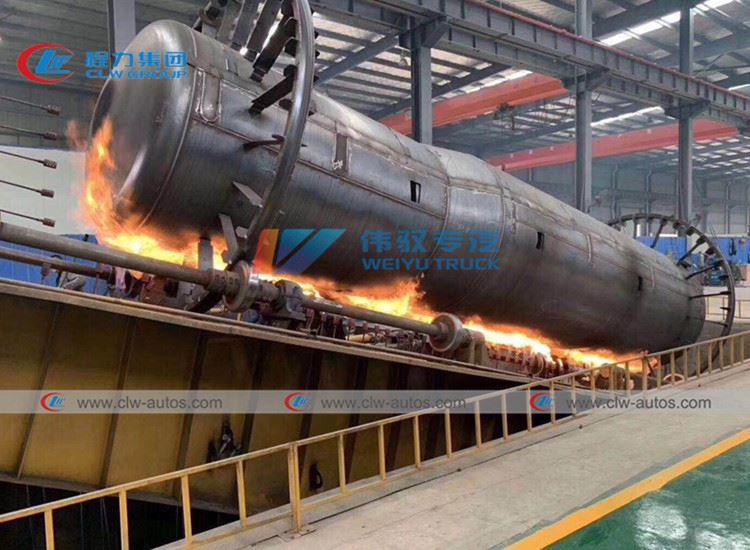

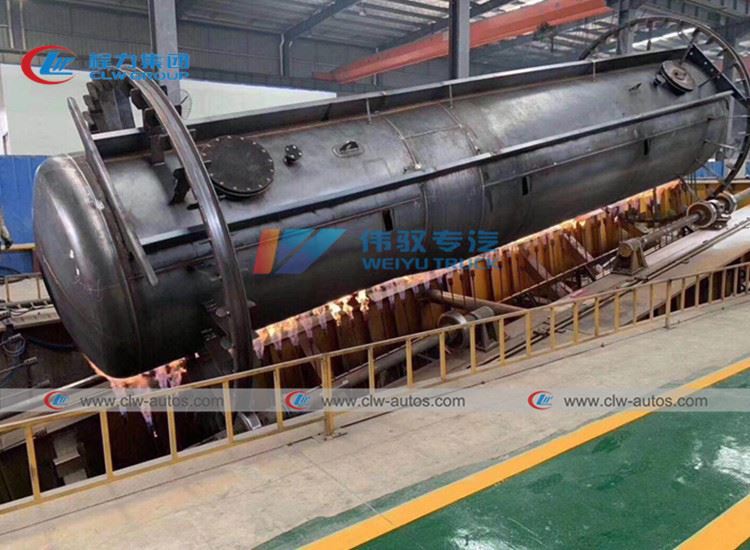

Plastic lined production pictures for acid tanker :

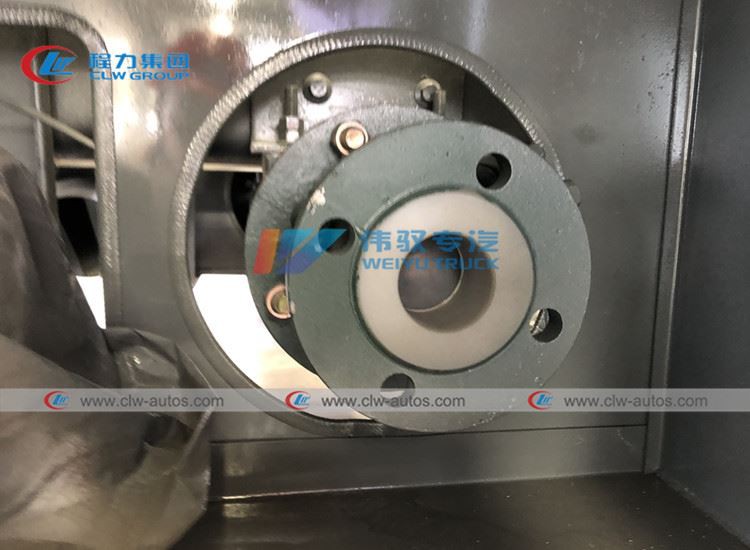

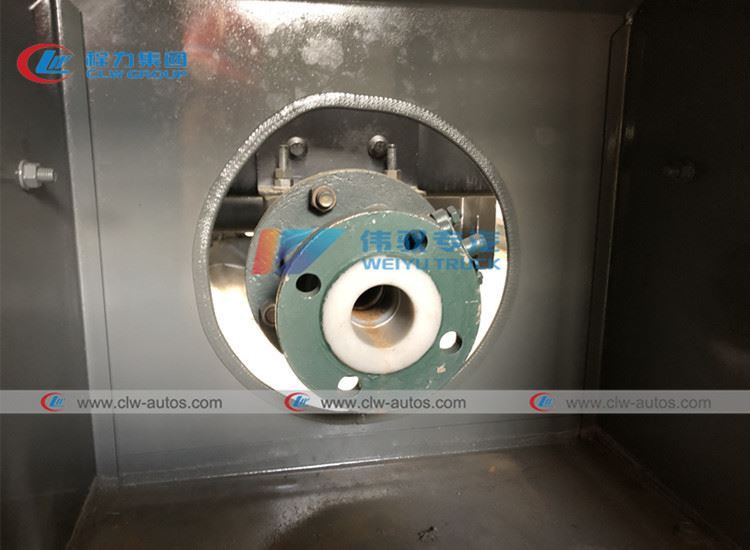

Plastic lined for Discharge Valves:

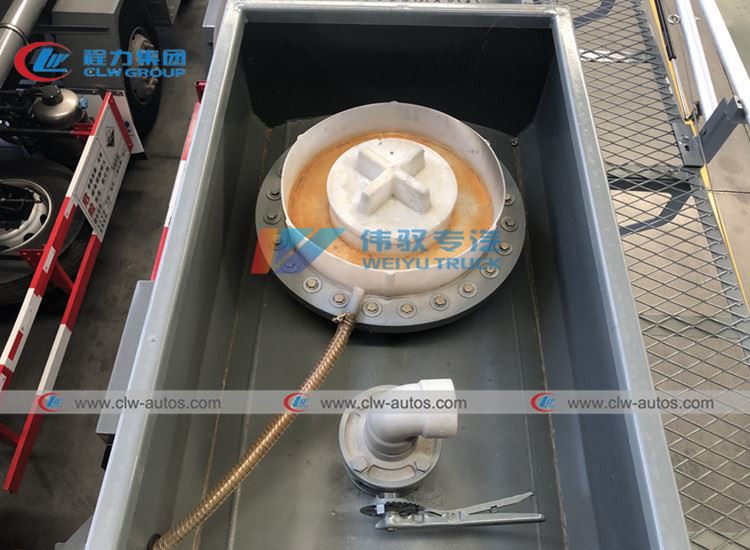

Plastic lined for manhole:

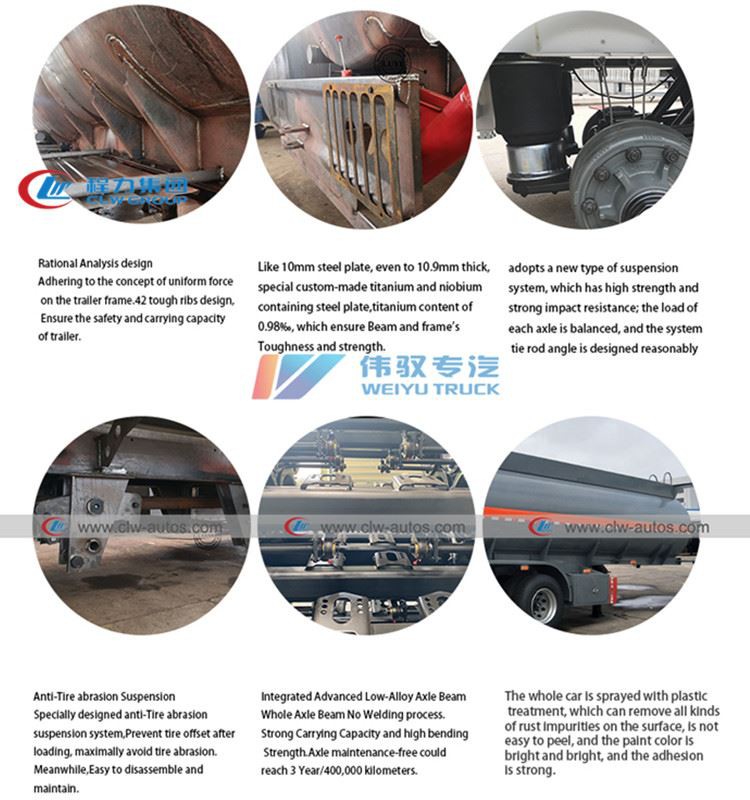

Features for our 3 axle 18000Liters Dilute sulfuric acid Transport Tank Trailer:
