Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of rhd sinotruk 290hp synchronous chip sealer in China. If you're going to buy high quality rhd sinotruk 290hp synchronous chip sealer, welcome to get more information from our factory. For price consultation, contact us.
--Synchronous chip sealer(called synchronous gravel sealing truck) is widely used for road surface, bridge deck waterproofing and gravel sealing layer technology in the lower sealing layer. It is a special equipment that synchronizes the spraying of the asphalt binder and the spreading of the aggregate to make the most sufficient surface contact between the asphalt binder and the aggregate to achieve the maximum cohesiveness between them.
CLW brand synchronous chip sealer is a synchronous crushed stone sealer with independent intellectual property rights developed and designed by clw group. This machine is improved on the basis of the same model of synchronous crushed stone, so that it can work in more severe conditions. Medium construction operation has enhanced the stability of equipment operation. It has achieved the integrated operation of machine, electricity and liquid, the equipment operation procedures have been simplified, the operation is simple and the technology of the whole machine has reached the world advanced level.
◆ Product model: CLW5250TBDFCC
◆ Total mass: 25000kg
◆ Curb weight: 17800kg
◆ Dimensions: 10250×2500×3800mm
◆ Asphalt tank: 8m3
◆ Stone silo: 12m3
◆ Spreading width: 4000mm
◆ Nozzle spacing: 125mm
◆ Asphalt spreading amount: 0.2～3.5L/m2
◆ Stone specifications: S3～S24mm
◆ Heating method: Riello diesel burner + heat conduction oil automatic heating
◆ Spraying medium: hot asphalt, SBS modified asphalt, emulsified asphalt, rubber asphalt.
◆ Spreading error: ±2%

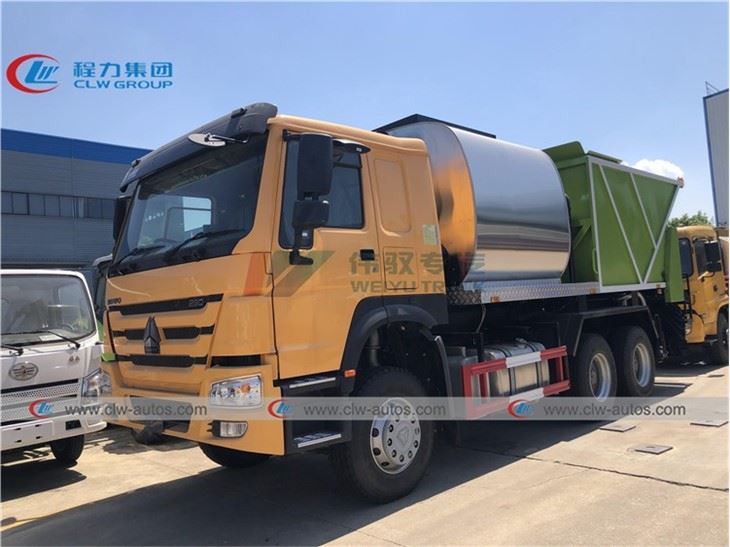

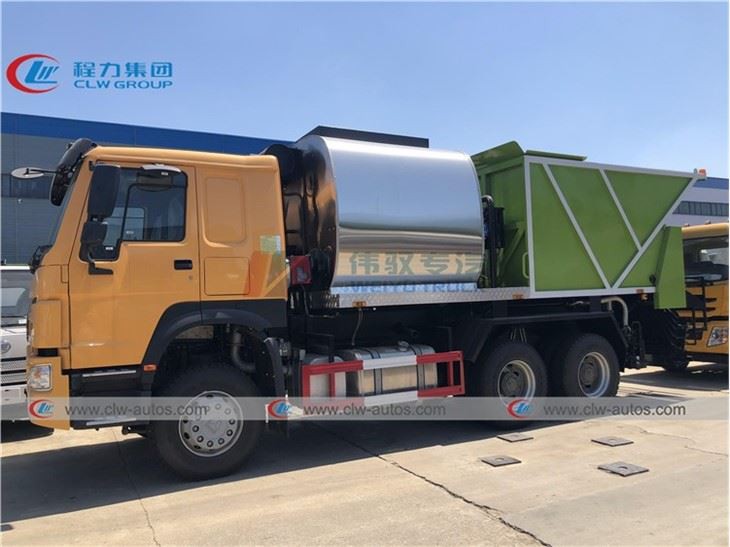

( right hand drive howo synchronous chip sealer for Kenya/Tanzania/Zambia/Mozambique/Namibia...)

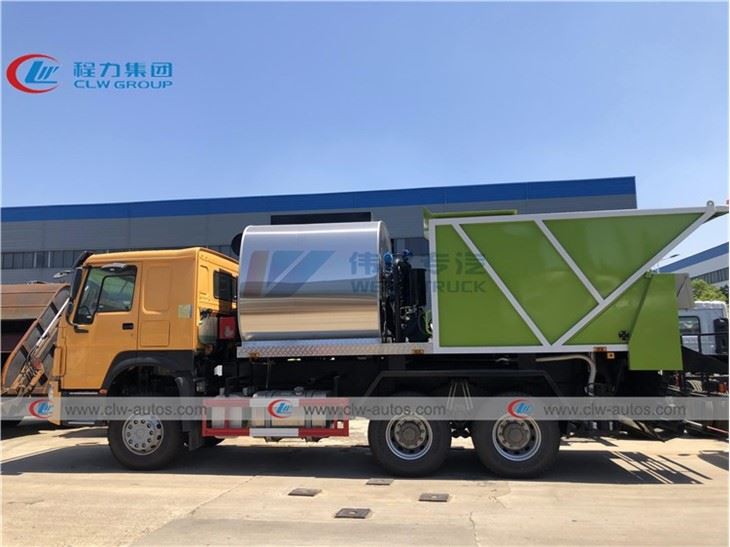

( side view of howo synchronous chip sealer for Kenya/Tanzania/Zambia/Mozambique/Namibia...)

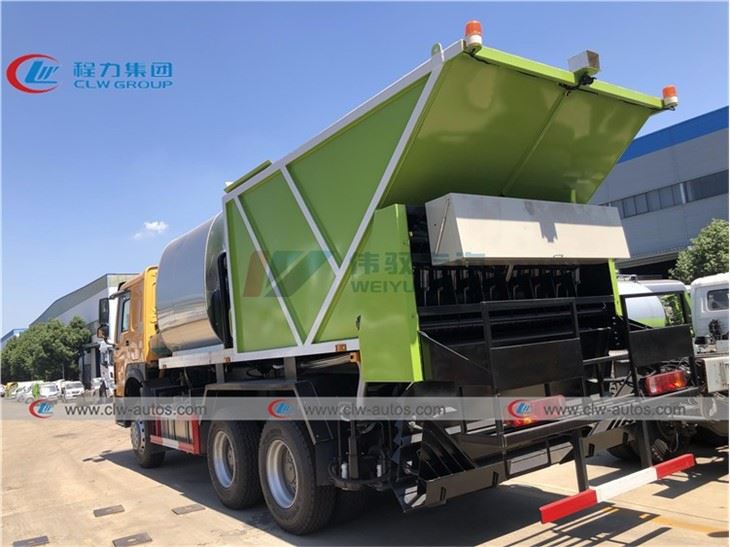

( Rear view of howo synchronous chip sealer for Kenya/Tanzania/Zambia/Mozambique/Namibia...)
Italy RIELLO Burner G20
Hydraulic motor
Radiator
Why do you choose us for Synchronous chip sealer?
★Accurate spraying amount, perfect realization of asphalt spraying three overlapping, good uniformity.
★ Intelligent control of sprinkling (sprinkling), real-time monitoring of sprinkling quantity and speed, closed-loop control
★ Full computer touch screen operation, equipped with video monitoring system, can observe the whole working process at any time;
★ Reliable performance and convenient operation
★Zero-start in-line spraying (strong spraying system and asphaltene in-line spraying system)
★ The control system adopts modular design (low failure rate, quick and easy maintenance).
★The most effective heating system and circulating heat preservation system ensure the unimpeded flow of pipes and nozzles without diesel cleaning
★ Equipped with a flexible asphalt hand spray system, it can spray asphalt on special parts of the road
★The nozzle and the feed door are fully pneumatic, and each feed door and the feed door are individually controlled by the computer
★ The width of the cloth can be adjusted at any time during the process of spreading
★With self-suction efflux function, it can add self-discharge asphalt to improve work efficiency
★Equipped with a system, in case of failure of the main control system, can manually sprinkle (scatter) cloth
★ Compact structure, beautiful appearance, flexible u-turn at high speed.
★English control screen of Howo 8X4 Synchronous chip sealer for overseas customer
★Working of howo Synchronous chip sealer
