Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of rhd sinotruk howo 16000l bitumen distributor truck in China. If you're going to buy high quality rhd sinotruk howo 16000l bitumen distributor truck, welcome to get more information from our factory. For price consultation, contact us.
--RHD Bitumen distribution truck(also called right hand drive asphalt distribution truck,bitumen distribution truck,bitumen distributor truck,interlligent asphalt distribution truck) is a kind of road construction machinery and the main equipment of highway, city road, airport and port terminal construction widely used in highway construction and highway remaintenance engineering.
--It can also be used for asphalt overlay and spraying in highway maintenance as well as for the construction of county and township level highway oil road for the implementation of layered pavement technology.The intelligent asphalt distributor truck is composed of vehicle chassis, asphalt tank body, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system and operating platform.
★Spraying asphalt and bitument types:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt,rubber asphalt;
★Asphal tanker:3-layer insulation tanker body;
★Spraying width:4500mm;
★Asphalt spraying volume:0.25~4.0L/m2;
★ Asphalt tanker volume: 16cbm/16m3/16000Liters
★Spraying nozzle number:36 pcs of interlligent spraying nozzles and indepent controlled;
★manual/automatic control of spraying volume and working width,control of single spraying nozzle
★Asphalt spreading control can be done not only through the touch screen computer in the cab, but also on the operating platform at the rear of the vehicle;
★automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
★Heating system(10~15ºC/h) to improve heating efficiency
★Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
★Italy burner for automatic fire and temperature control

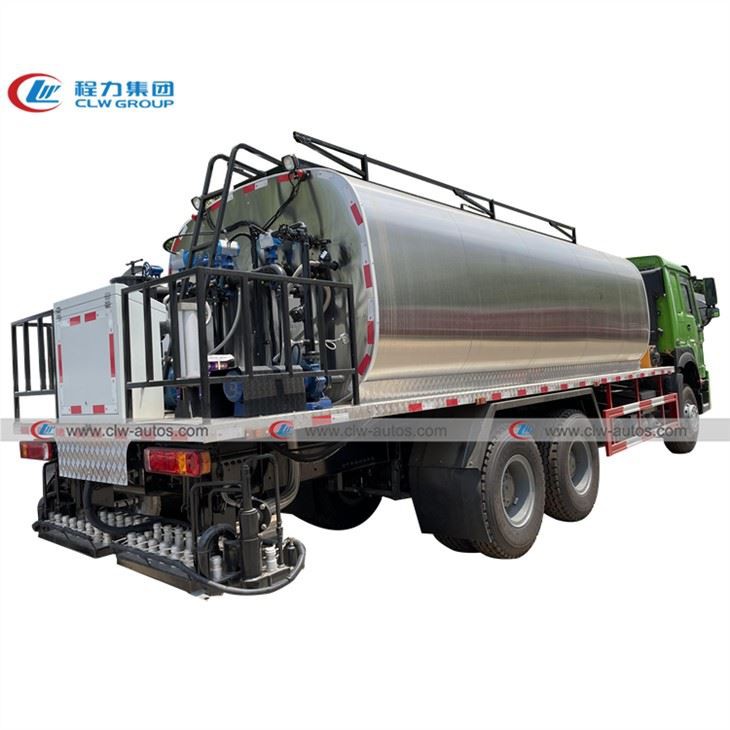

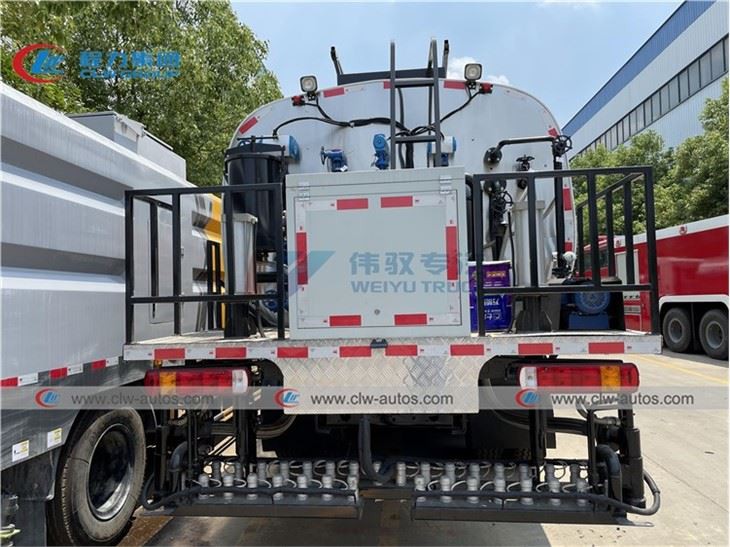

★ Three-section folding structure asphalt spraying rod. Double or multiple spraying can be realized by moving the spraying rod up and down. The spreading range can be expanded by expanding the spraying rod left and right and obstacles can be effectively avoided;
★ All heat pipes are equipped with thermal insulation layer to reduce heat dissipation while avoiding scalding operators;
★There is a sedimentation sewage tank inside the asphalt tank, which can discharge all the asphalt that has not been sprayed that day;
★The outer packaging of the truck is made of stainless steel plate, which is anti-corrosion, durable and beautiful;
★The manual spraying function allows the asphalt to be sprayed through the hand nozzle, which is flexible and convenient, and is suitable for small areas and corner construction conditions. Connect the hand spray gun. Open the main oil valve, open the transfer valve, open the oil return valve, use the oil return valve to adjust the pressure of the spray gun;
Specification
Item No. |
|
| |
Overall Dimension | 10200x2500x3450mm |
Gross Vehicle Weight | 25000 kg |
Curb Weight | 16000 kg |
Loading Weight | 8870Kg |
Wheel Base | 4600 +1350mm |
Front/rear Tread | 1500/2750 mm |
Approach/Departure Angle | 16/16 degree |
Front Axle | 7000kg |
Rear Axle | 18000kg |
| WD615.69,Weichai Diesel Engine, watering cooling, four stroke, 6 cylinder in line |
Engine horsepower | 336HP EURO II |
Displacement | 9.726L (Diesel) |
Max Driving Speed | 90 km/h |
Cabin | HW76,2~3 Passenger allowed, Right Hand Driving or left hand drive with Air Conditioner |
Tire | 12R22.5 (10 pieces+1piece spare tire) |
|
|
Outside Material | 1.2mm Stainless plate |
Insulation layer | 40mm rock wool insulation layer,≤20℃/8h |
Asphalt pump | QGB950,950L/min |
Driving Motor | 05-130-BD31(NING BO TILORMS) |
| |
Hydraulic pump | CBQ550-L from Tianjin |
Proportional Valve | EFBG-03-160-HF/Taiwan brand |
Shuttle Valve | Shanxi Yuci brand |
Overflow Valve | Shanxi Yuci brand |
| |
Control System | CLW-32-01/Germany STW |
Control Method | Computer control |
Smart asphalt nozzle | 36 pcs intelligent nozzles |
Temperature sensor | 2 pcs from Zhejiang China |
Speed sensor | 2 pcs from Germany |
| |
Heating method | Automatic heating by oil |
Burner | G20/Italy brand |
Radiator | RISEN brand |
Heat transfer oil pump | 40-25-160(Hebei province,China) |
Gasoline Engine | LUTIAN brand,6kw |
Spreading Width | 6m |
Spreading Speed | 0.3~3.5L/min |
Spreading Precision | ±2% |
