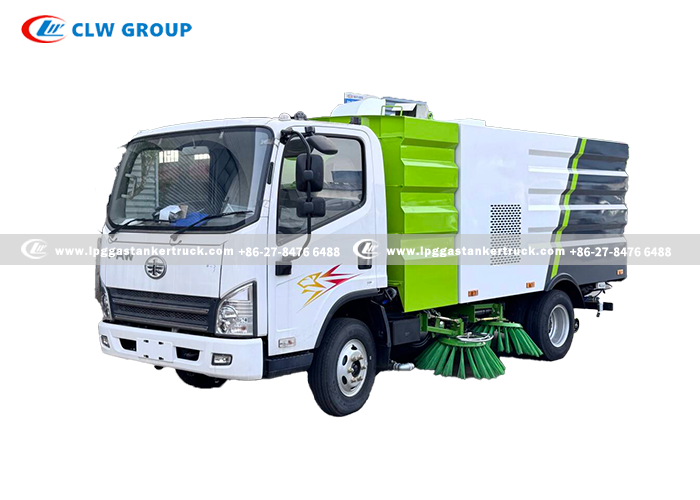

5.5m3 FAW City Cleaner Truck
Brand:FAW
Driving mode:4x2
Water tank:1.5m3
Dust tank:4m3
Wheelbase:3300mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5.5m3 faw city cleaner truck in China. If you're going to buy high quality 5.5m3 faw city cleaner truck, welcome to get more information from our factory. For price consultation, contact us.
RHD FAW 5.5m3 Road Sweeper Truck
We Are 100% Straight Factory Manufacturer For Road Sweeper Truck Since 2004
Products Description
The FAW 5.5m3 Road Sweeper truck also called vacuum truck, street sweeper, road sweeper, sweeper truck, city cleaner, the Broom, Gutter Vac, Debris sucker, Dirt devil, power sweeper, SWT, and scrubber-sweeper, and etc.
Funtion
It uses FAW chassis, adopts Yuchai 130hp and JMC auxiliary engine 88hp , equipped with fan, suction pipe, suction nozzle and high speed air flow which can bring garbage inside.The auxiliary engine drives the hydraulic oil pump and fan to work, the hydraulic oil pump drives the left and right sweep discs to expand, lift and rotate.
Features
- Efficient cleaning: Quickly removes dust, debris, leaves and litter from roads, parking lots and industrial areas.
- Improved Air Quality: Reduces airborne dust and pollutants, contributing to a cleaner environment.
- Water-saving: Many modern sweepers use controlled water spray to minimize dust without excessive water usage.
- Versatility: Can operate in urban streets, construction sites, airports and highways.
- Time & labor saving: Prevents small debris from causing accidents, like slippery surfaces or tire damage.
- Eco-friendly options: Some models use electric or hybrid engines to reduce emissions.
- Cost-effective maintenance: Prevents long-term road damage by removing abrasive particles.
Keywords
High-Capacity Road Sweeper,
Eco-Friendly Street Cleaner
Intelligent Sweeping System
Urban Sanitation Solutions
Low-Noise Sweeper Truck
Cost-Effective Maintenance
Advanced sweeping system
Combines high-pressure water spray and vacuum suction to remove dust, debris, and stubborn stains efficiently, ensuring "one-sweep cleanliness."
Intelligent control panel
Features a digital interface for one-touch start/stop and mode switching, simplifying operation and improving precision.
Robust chassis construction
Built on FAW's robust and durable chassis, it withstands rough terrains, like potholes, gravel roads, for extended service life.
Modular Component Design
Critical parts (fans, filters) are easily replaceable, reducing downtime and repair costs.
360°Safety protection
Includes rearview cameras, emergency braking, and rollover-proof cabin structures to protect operators and pedestrians.

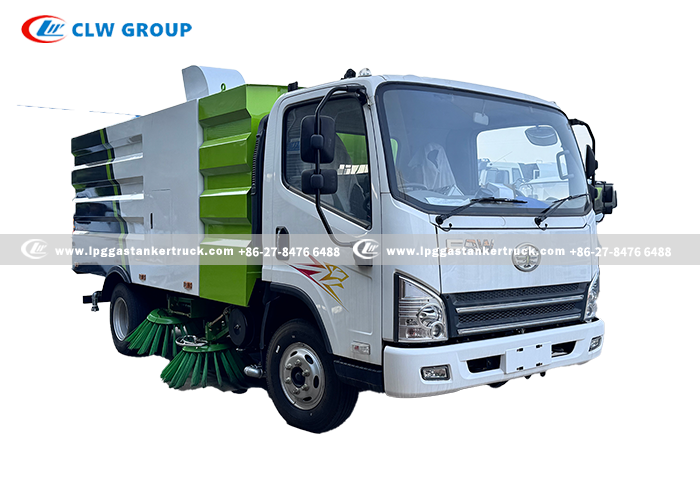

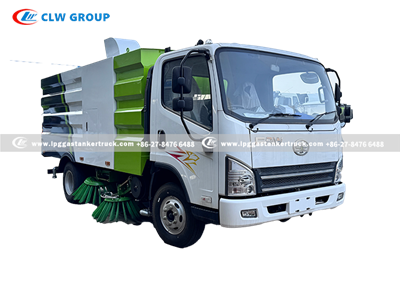

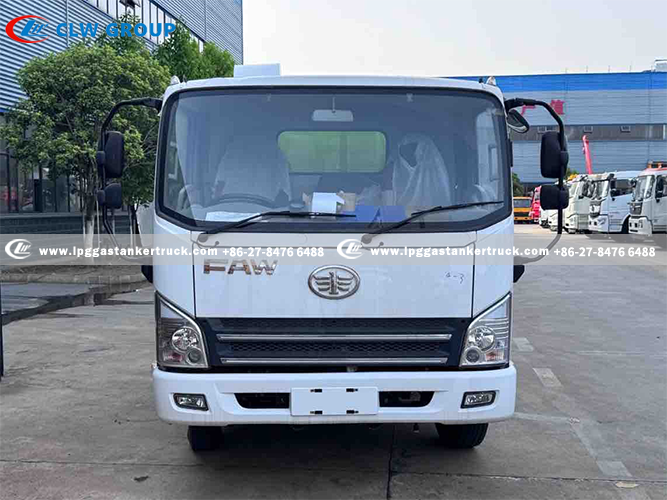

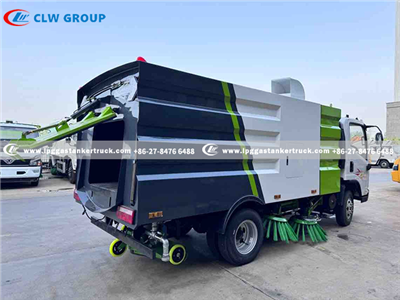

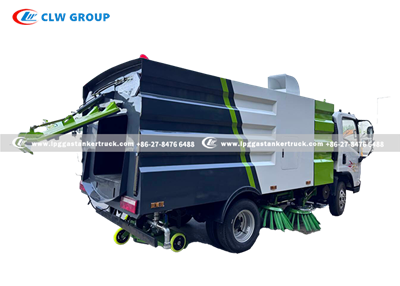

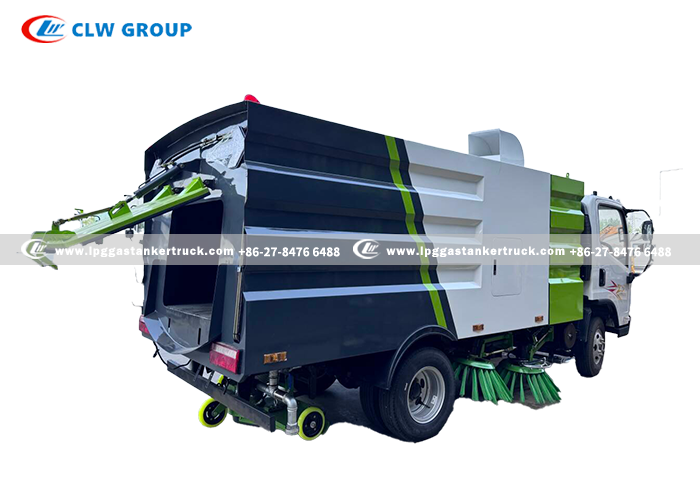

product Pictures
High-Efficiency Cleaning System
Equipped with a 5.5m³ dustbin and regenerative air suction technology to collect debris, sand, and fine particles (up to 99% efficiency).
Dual-side rotating brushes + high-pressure water spraying (300L water tank) suppress dust during operation.
Durability Design
Reinforced chassis with anti-corrosion coating for harsh environments (e.g., coastal or deicing salt zones).
Stainless steel filter system reduces maintenance frequency by 40%.
Eco-Friendly:
Closed-loop water recycling system reduces water consumption by 30%.
Low-noise design (<75 dB) complies with urban noise regulations.
Versatility:
Adjustable brush width (2.2–3.5m) adapts to narrow lanes or wide highways.
Primary Use Scenarios:
Urban Road Maintenance
Daily street sweeping in downtown areas, pedestrian zones, and bus lanes.
Industrial Zones
Removal of metal shavings, gravel, and construction residue from factory perimeters.
Park & Public Space Hygiene
Gentle brush modes prevent damage to pavements or landscaped areas.

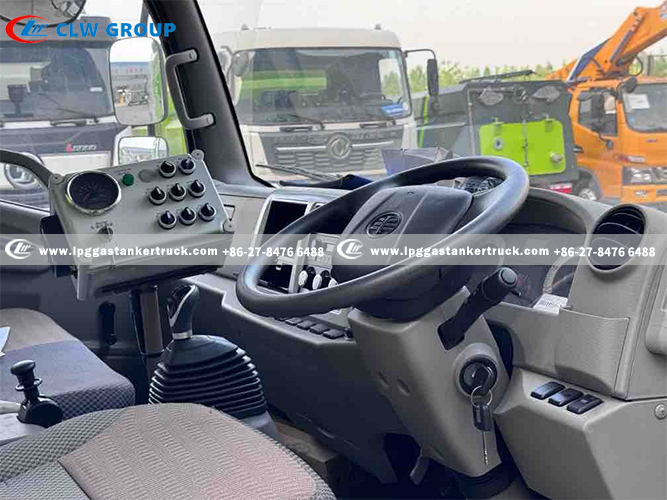

Interior of the cabin
Intelligent Control
Touchscreen cockpit interface for real-time monitoring of suction pressure, water flow, and engine status.
Auto-adjust brush pressure based on road surface conditions (asphalt, cobblestone, etc.
Operational Workflow:
Sweeping:
Engage brushes and suction system via the control panel; adjust speed (5–20km/h).
Debris Handling:
Compact waste into the dustbin using hydraulic compression; monitor fill level via sensors.
Unloading:
Hydraulic tilt mechanism empties the bin in ≤2 minutes; optional automated conveyor for sticky materials.
Products Specification
|
Technical specification |
|
|
Driving mode |
4X2 |
|
Wheelbase |
3300mm |
| Cabin |
|
|
Engine brand |
YUCHAI |
|
Horsepower |
130hp |
|
Power |
95kw |
|
Displacement |
4.2L |
|
Fuel type |
Diesel |
| Clutch | Ф330 |
| Transmission | WLY, 6 forward gears and 1 reverse gear |
|
Emission standard |
Euro 2 |
|
Front axle loading |
2,000kg |
|
Rear axle loading |
6,000kg |
|
Tires |
7.50R16 14PR *7 (with one spare) |
|
Gross vehicle weight |
8,000kg |
|
Deputy engine |
JMC, 87hp |
|
Upper specification |
|
|
Water tank |
1.5m3, carbon steel |
|
Dust tank |
4m3 , stainless steel |
|
Sweep disk |
Center four sweeping discs |
|
Sweeping width |
2300-2800mm |
|
Sweeping speed |
3-15km/h |
|
Suction capacity density |
2.0g/cm3 |
|
Garbage box dumping angle |
≥45° |
|
Sweeping efficiency |
≥96% |
|
Spraying type |
Low pressure fog type |
|

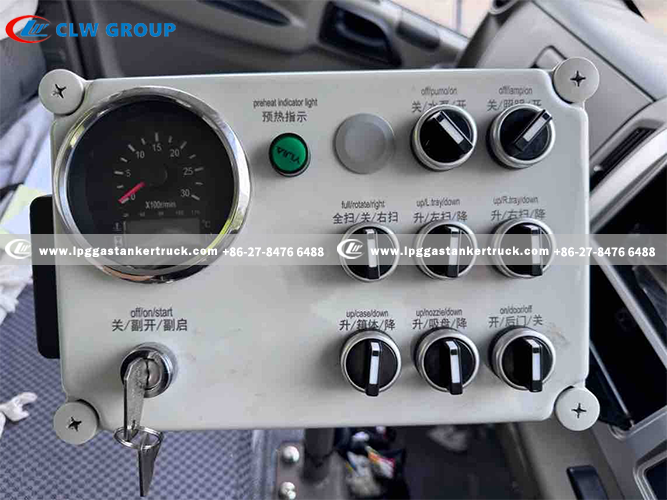

Operation control panel |
Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches |
|
Fan type |
High-pressure centrifugal fan |
Why do you choose us?
We also provide different brands of Vaccum truck/Road sweeper Truck, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.
Our advantages:
- High-pressure vacuum system: strong suction for effective debris collection;
- Dual brush system: Main brush for large debris and side brush for curbside cleaning;
- Water spray control: Adjustable misting to suppress dust while conserving water;
- Large debris hopper: High capacity storage for collected waste, reducing unloading frequency;
- Advanced filtration: HEPA filters to trap fine dust particles and prevent recirculation;
- GPS and telematics: Real-time tracking for route optimization and fleet management;
- Quiet operation: Low noise design for early morning or urban use;
- Automatic control system: Sensors and automated adjustments for efficient sweeping;
- Durable construction: Reinforced chassis and corrosion, resistant materials for long service life;
- Multi-purpose attachments: Some models can switch to snow removal or gutter cleaning.
