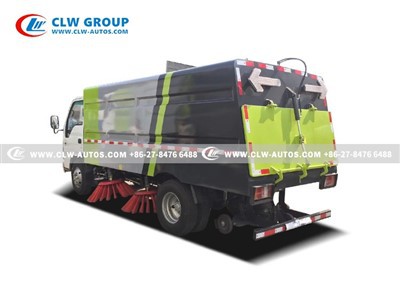

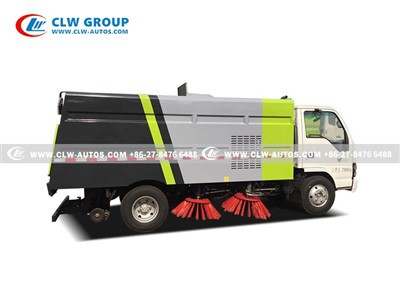

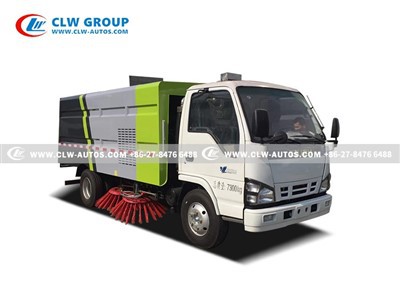

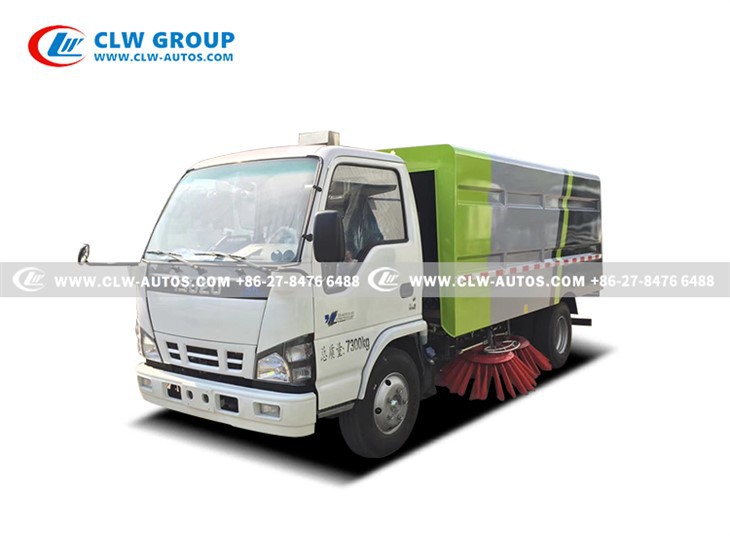

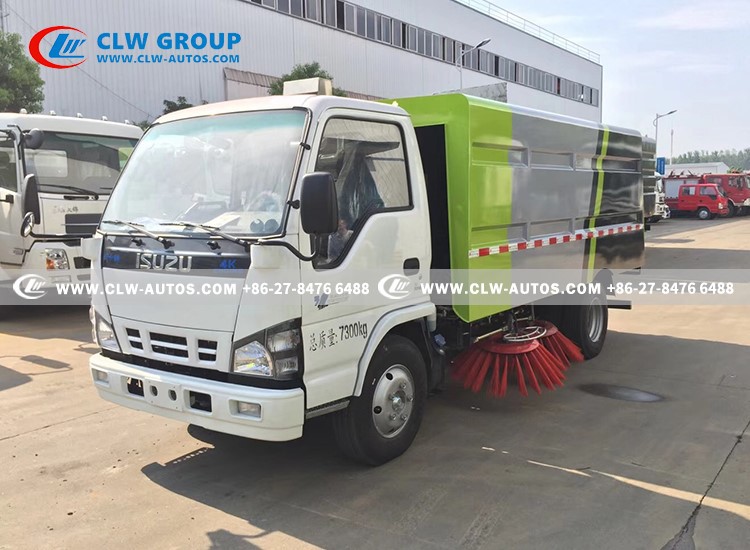

ISUZU 5m³ Road Sweeper Truck

Name: China ISUZU 5m³ Road Sweeper Truck Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 266421579

Drive type:4x2
Water capacity:2m³
Garbage capacity:3.5m³
Auxiliary engine horsepower:87hp
Max. sweeping capacity:40000㎡/h

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5m³ road sweeper truck in China. If you're going to buy high quality isuzu 5m³ road sweeper truck, welcome to get more information from our factory. For price consultation, contact us.

Japanese Brand ISUZU 4x2 5m³ Road Sweeper Truck

We are 100% Straight Factory Manufacturer

We have 100% Quality Assurance

Products Operation Video

Products Description

ISUZU Road Sweeper Truck, also called street sweepers, municipal cleaning vehicles, or debris collection trucks, are essential for maintaining clean, safe, and dust-free urban environments. These advanced machines combine high-efficiency sweeping, vacuum suction, and dust control to remove dirt, leaves, sand, and industrial debris from roads, highways, and construction sites.

Key Feature & Benefits

High-Performance Cleaning

Powerful Vacuum System – Efficient debris & dust collection
Dual Brush Technology – Wide sweeping path for thorough cleaning
Advanced Dust Control – Water spray system minimizes airborne particles

Reliable & Durable

Isuzu Heavy-Duty Chassis – Proven engine performance & fuel efficiency
Robust Construction – Long-lasting for intensive municipal/industrial use

Smart & Eco-Friendly

Low Noise Design – Suitable for urban & residential areas
Emission-Compliant Engine – Meets global environmental standards

Versatile Applications

Highway & City Road Cleaning – Large debris & fine dust removal
Airport & Port Maintenance – Heavy-duty sweeping capability

Top Applications & Why Choose a Professional Sweeper Truck?

City Sanitation – Keeps streets clean in urban areas.
Highway Maintenance – Removes hazardous debris for safer driving.
Construction Sites – Controls dust and collects rubble efficiently.
Airports & Seaports – Ensures debris-free runways and docks.

Reduces manual labor costs with automated cleaning.
Improves air quality by controlling dust pollution.
Enhances road safety by removing hazardous materials

Products Parameters

ISUZU Truck Parameters
Condition	New condition/4x2
Chassis	Brand		Isuzu
	Curb weight		2400 kg
	Wheelbase		3360 mm
	Dimensions		5900 x 1980 x 2450 mm
	Axle Load		2000/4000 kg
	Max. driving speed		100 km/h
	Tire	Specifications	6pcs with 1 spare tire
		Number	7.00R16
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 5 Forwards & 1 Reverse
Cabin	2 Passenger Allowed
Engine	Model		ISUZU Diesel Engine, 4 Cylinders
	Horsepower		120 HP
	Emission standard		Euro Ⅵ
	Displacement		2500 ml
Brakes	Air brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank	Tank material	Stainless steel 304
		Tank volume	3.5m³
	Water tank	Tank material	Stainless steel 304
		Tank volume	2m³
Auxiliary engine	Model	JAC diesel engine
	Horsepower	87HP
Brush	Quantity	4 pcs
	Working area	2.7-3.0 m
Sweeping speed	5~20km/h
Max.sweeping capacity	40000 ㎡/h
Garbage dump angle	≥45°
Cleaning	High pressure reel	18 meters
Remarks	1. Water sprayer bar 2. Rear vacuum cleaner 3. Blower 4. Rear LED pilot lamp 5. Self-unloading box body 6. The colour will be designed according to your requirements

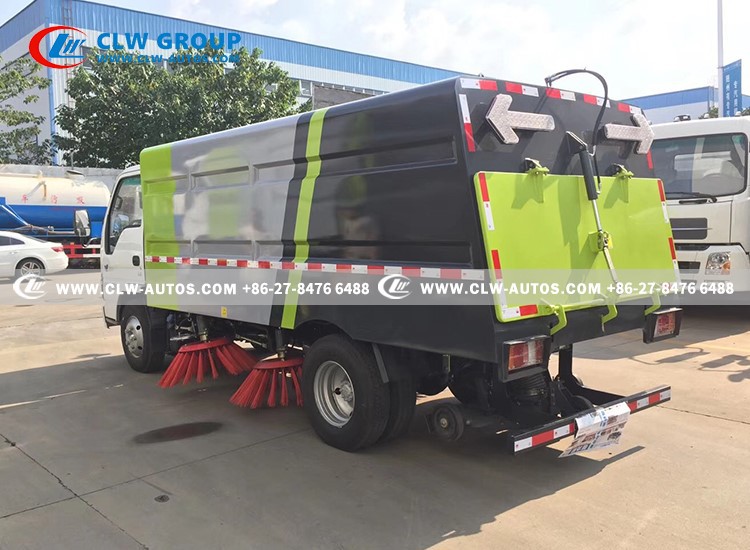

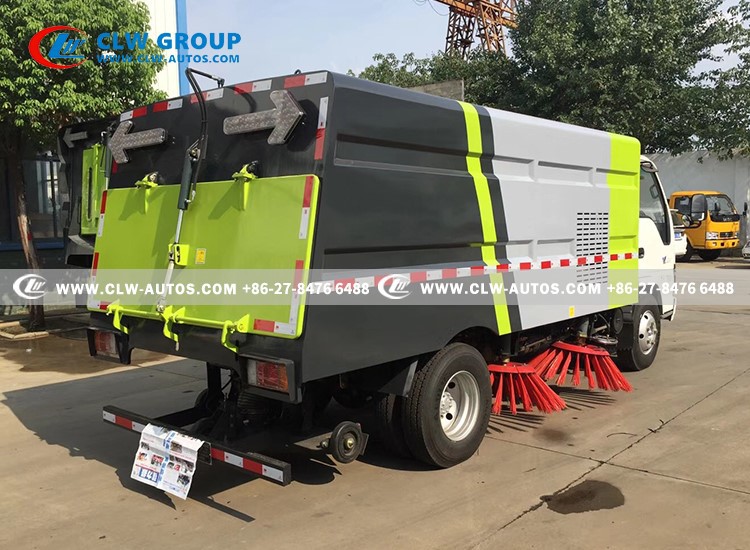

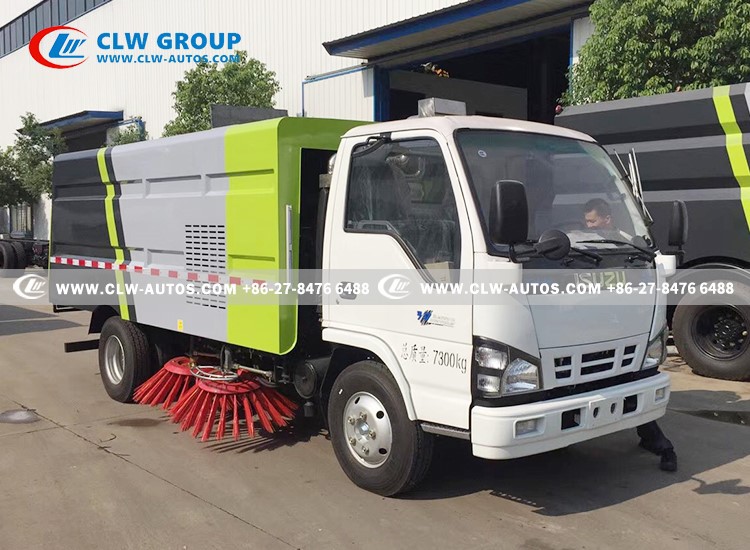

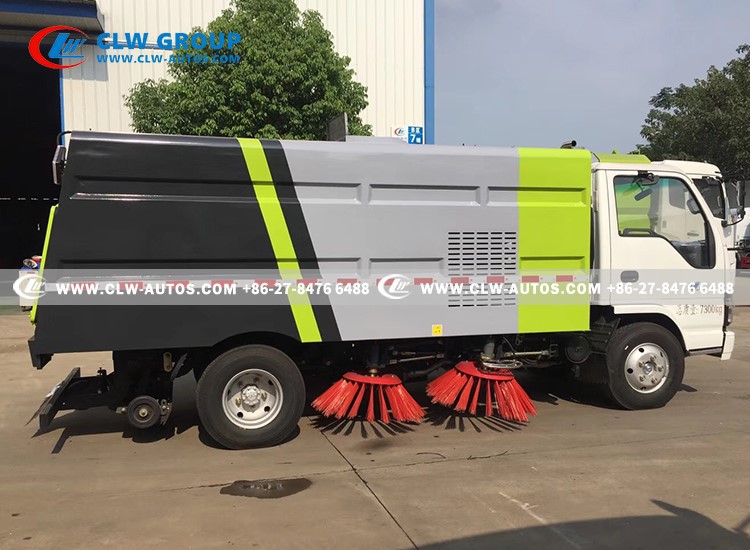

Products Photos

Electrical centralized control of each system in the cab, easy to operate.

Sub-engine drives the hydraulic oil pump and fan

Four sweeping brushes and suction nozzle for sweeping and suction combination, strong sweeping and suction ability.

Sweeping brush with anti-collision function.

Sweeping device mechanism is simple, reliable and difficult to damage.

Adopt all stainless steel garbage bin and water tank.

Exterior styling computer design, high side skirts, curved surface transition, overall coordination and proportionality

If you have any need or questions about products.

For quick inquiry, please contact Ms. Hedy He:

WhatsApp / Wechat: +86 188 2740 1066

Email: hedy@clw-autos.com.

Company Profile

Hubei Chengli Special Automobile Co., LTD

Situated in Suizhou city, Hubei province, central China, Hubei Chengli Special Automobile Co., Ltd, is among the maior manufacturer authorized by the National Ministry of Industry and information for producing 800 types of special purpose trucks. It is also recognized as the Export Center of Trucks and Spare Parts by the Hubei Province Government.
Collaborating with FAW, HOWO, FOTON, DONGFENG, JAC, JMC, SHACMAN, ISUZU, and others, we assure that allour products come with a one-vear warranty and life time maintenance. Additionally, our service commitments are handled within 48 hours. CLW Group is dedicated to serving you and eagerly awaits your visit to our factory.
