Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of jmc 3ton 5ton vaccine tansportation refrigerated van truck in China. If you're going to buy high quality jmc 3ton 5ton vaccine tansportation refrigerated van truck, welcome to get more information from our factory. For price consultation, contact us.
JMC 3Ton 5Ton Vaccine Tansportation Refrigerated Van Truck
Specification:
JX 92hp horsepower engine,
2.03-meter wide single-row forward-turning cab,
4 tons rear axle, 7.00R16 steel wire tire,
Original air conditioner, central control door lock,
Electric door and window, remote control key, multi-function steering wheel,
Cargo Box Size: 4080*2100*2100mm,
Box Specification:
Fiber glass reinforced wall inside and outside,
The middle 8CM polyurethane insulation layer,
Stainless steel door locks, aluminum checkered plate at the bottom, with single door opening,-
With a 0 degree to -18℃ refrigeration unit, the cabin temperature can be adjusted in the cab.
Vehicle size; 5995*2250*3325mm
Thermal insulation Van body:
generally composed of polyurethane material,
Fiber glass reinforced plastic inside
Color steel plate, stainless steel, ouside material
refrigeration unit, cabin temperature recorder and other components.
Optional Equipment: meat hooks, cargo troughs, aluminum alloy guide rails, ventilation slots and other optional components.
TECHNICAL PARAMETERS | |||
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5995*2020*3200 | |
Wheel base (mm) | 3360 | ||
Overhang (front/rear) (mm) | 1032/1488 | ||
Wheel track (front/rear) (mm) | 1506/1466 | ||
Approach/Departure angle(°) | 19/15 | ||
Weight in KGS | Gross Vehicle Weight (kg) | 6370 | |
Curb Weight (kg) | 2870 | ||
Loading Weight (kg) | 4000 | ||
Engine | Model | JX493ZQ4A | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, inter-cooling | ||
Horse Power(HP) | 92HP | ||
Emission standard | Euro II | ||
Max. driving speed (km/h) | 95 | ||
Gearbox | JC528T8, 5 forward & 1 reverse | ||
Clutch | Reinforced diaphragm clutch | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Fuel Tank | 120 Liters | ||
Tire | 7.00R16 tire , 6 pieces + 1 spare tire | ||
Brakes | Dual circuit compressed air brake | ||
Van Body | |||
Box Dimension | 4080*2100*2100mm / | ||
Material | Double layer FRP(Fiberglass Reinforced Plastics ) with 8CM thickness polyurethane middle layer | ||
Refrigerator Brand | American brand Thermo king RV580 | ||
Temperature | -18℃ ～ 0℃ Adjustable | ||
Specification of Refrigerator:
Brand | American brand Thermo king | |
Model | RV580 | |
35plicable Temperature | -18～0℃ (For Frozen Food) | |
Cooling capacity | 3600 W（0℃） 2060 W（-18℃） | |
Applicable refrigerated container’s volume | 12~25 m3 | |
Voltage & Total Current | DC12V(21A) DC24V(11A) | |
Compressor | 7L15 (168cc/r) | |
Condenser Volume | 2ｘ1200m3/h | |
Refrigerant | R134a 1.7~1.8Kg | |
Dimensions (mm) | Evaporator | 680x594x174mm |
Condenser | 905x420x211 mm | |
Refrigerator Photos:
Optional Brand:
Hanya
Carrier
Chinese Brand: Han Xue, Huatai,Bingli etc.

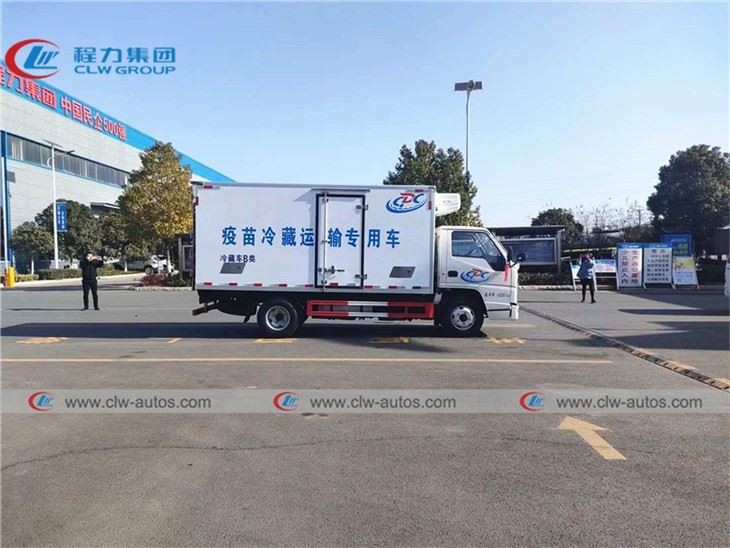

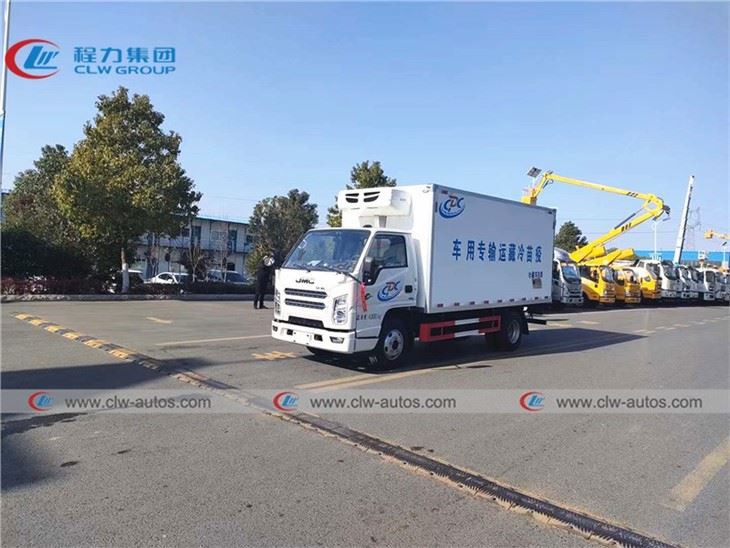

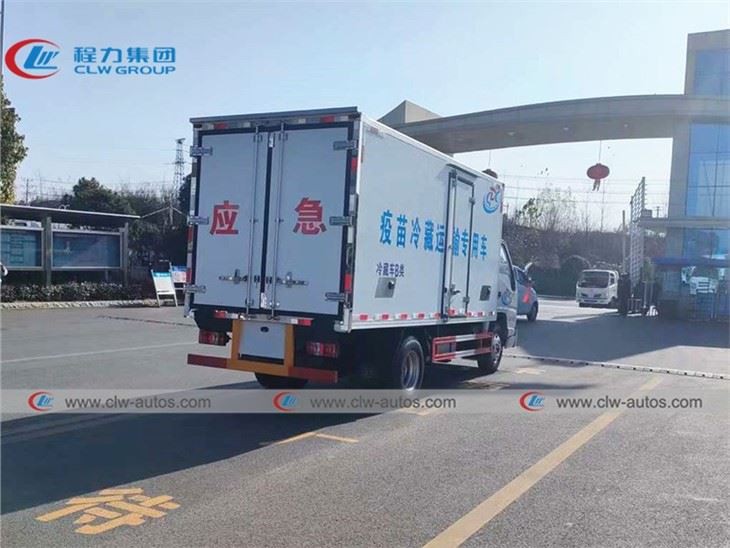

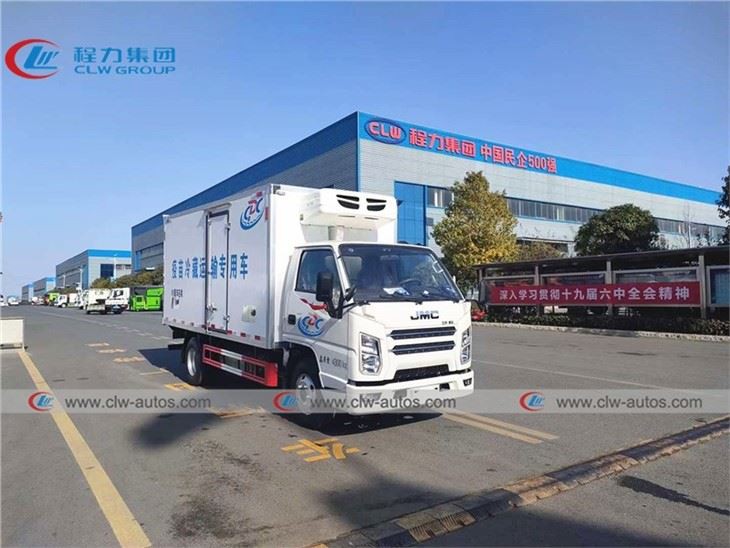

Truck Photos for reference:
