Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road 15tons refrigerated truck in China. If you're going to buy high quality howo 4x4 off road 15tons refrigerated truck, welcome to get more information from our factory. For price consultation, contact us.

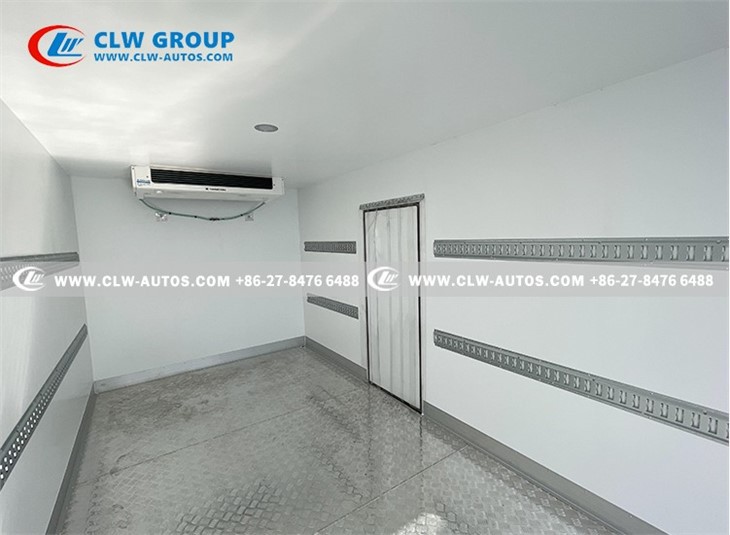

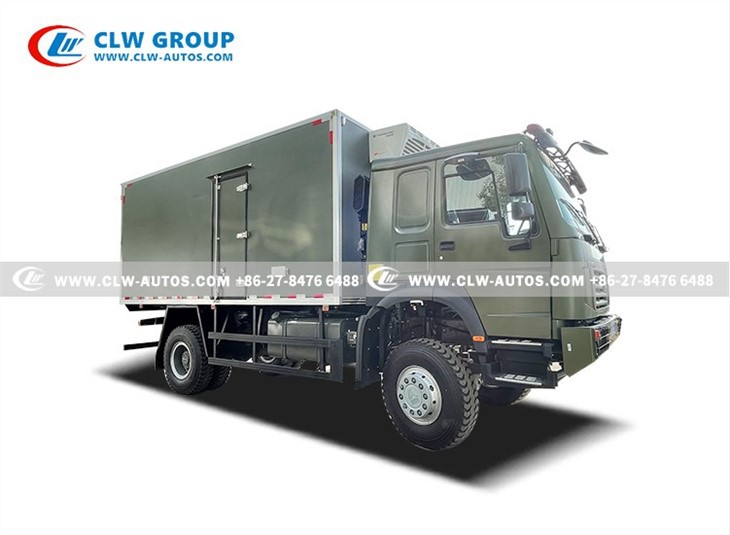

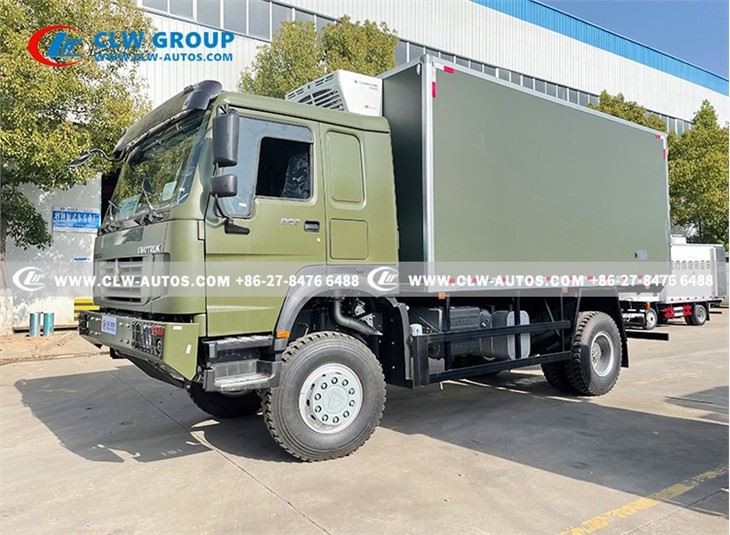

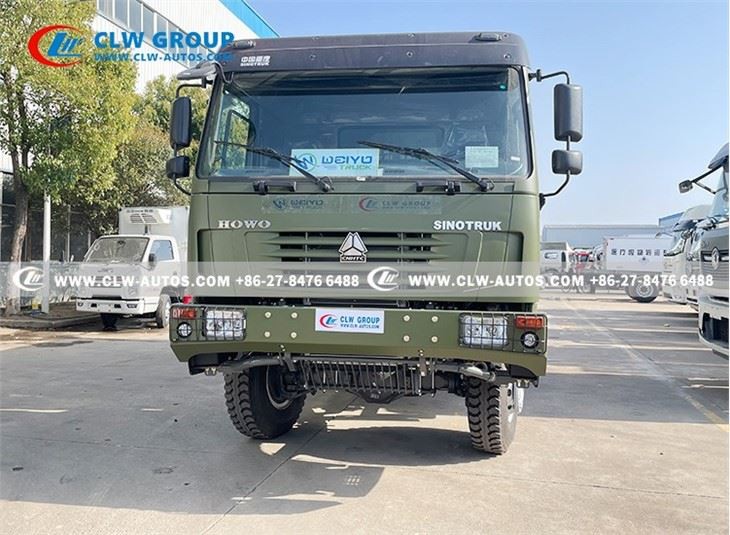

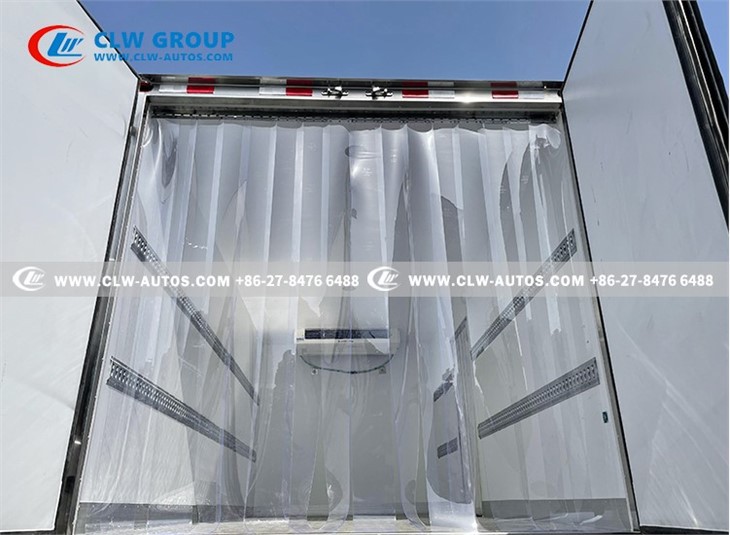

4X4 Refrigerated truck is mainly consists of off road howo chassis, heat insulation box, refrigeration unit, temperature recorders. For special purpose, optional parts will be includes,such as meat hook, aluminum alloy rail, ventilation channel etc. Off road refrigerated truck is mainly used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city.
features of howo 4x4 refrigerated van truck
For quick inquiry,contact us
|
Truck Brand |
SINOTRUK HOWO |
|
|
Driving Type |
Left Hand Driving/Right Hand Driving |
|
|
Dimension(Lx W x H)(unloaded)(mm) |
8268*2496*3200 |
|
|
Oil Tank |
400 L |
|
|
Wheel base (mm) |
4300/4600/5200 |
|
|
Max speed(km/h) |
95 |
|
|
Curb weight(kg) |
7870 |
|
|
Loading Weight(kg) |
16000 |
|
|
Engine |
Model |
WD615.87/ WD615.62/ D10.31-40/ D10.34-40, water-cooled,four strokes,6 cylinders in line with water cooling , directly injection |
|
Fuel type |
Diesel |
|
|
Horse Power |
290HP/266HP/310HP / 340HP |
|
|
Emission |
EURO II/III/ IV |
|
|
Fuel tanker capacity(L) |
400 |
|
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
8198 hydraulic steering with power assistance |
|
Front axle |
STR |
|
|
Rear axle |
ST16, Loading: 16000KG |
|
|
Color |
White( Optional) |
|
|
Tyre |
12.00R20 tire |
|
|
Option: 14.00-25, 14.00R25 (Single tire) |
||
|
Tyre quantity |
6pcs + 1 spare |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500w |
|
|
Starter |
7.5Kw/24V |
|
|
Cab |
HOWO76 cab, single sleeper with air conditioner, |
|
|
Van box side |
5200X2150X2200 mm |
|
|

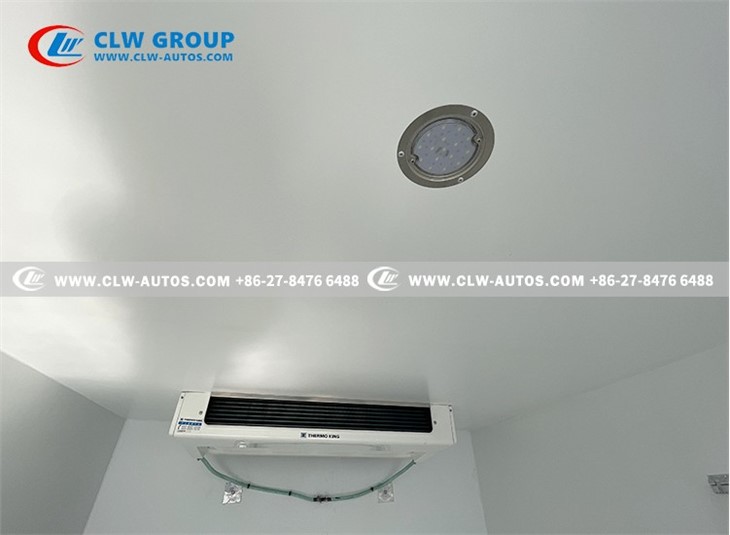

Refrigerated unit |

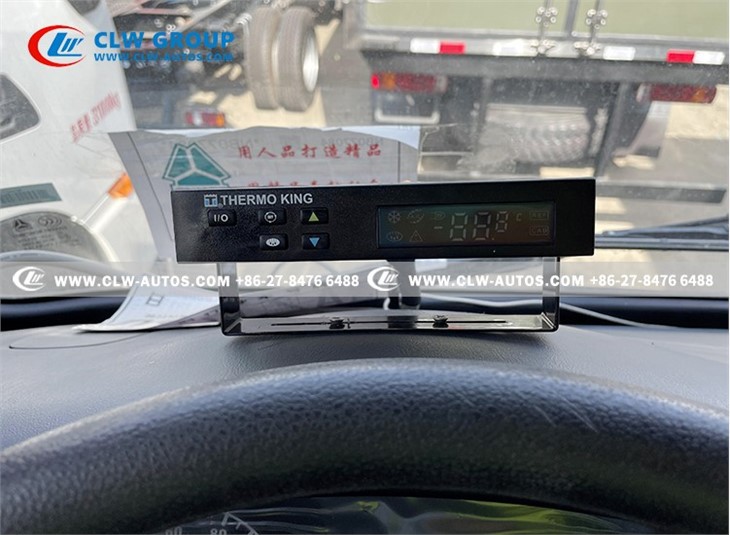

THERMO KING RV-680 |
|
