Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo all wheel drive 5tons refrigerated truck in China. If you're going to buy high quality howo all wheel drive 5tons refrigerated truck, welcome to get more information from our factory. For price consultation, contact us.
Product description:
Refrigerated truck is mainly consists of chassis, heat insulation box body, refrigeration unit, temperature recorders in the carriage. For special purpose, optional parts including meat hook, aluminum alloy rail, ventilation channel etc.
According to the different chassis model, we have mini type, middle-sized, large-scale etc. refrigerator trucks for your choice with different brands. The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
Refrigerator Truck is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.
Advantages of Insulated Freezer Van body:
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.
For more information, please freely contact: Ms. Helen Jiang, WhatsApp: +86 135 5419 5719.
Chengli Special Automobile Co., Ltd.

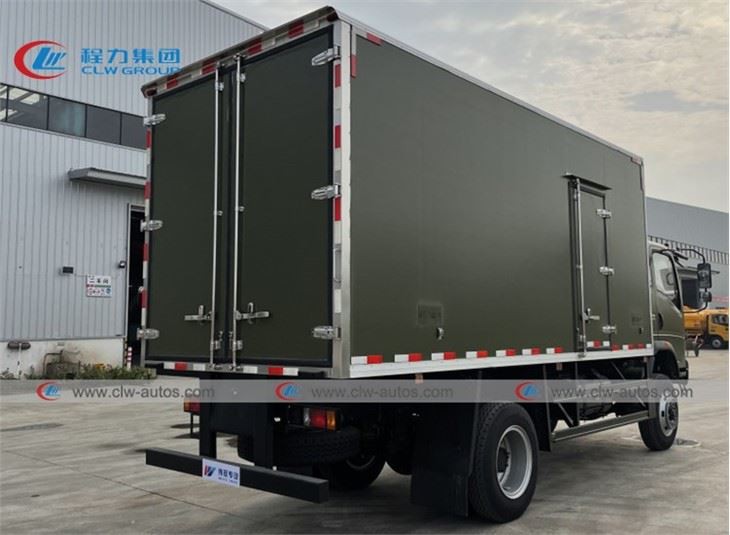

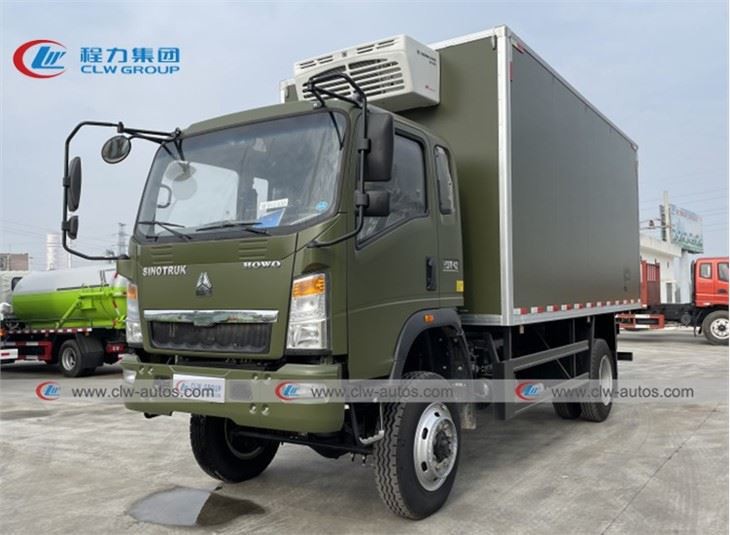

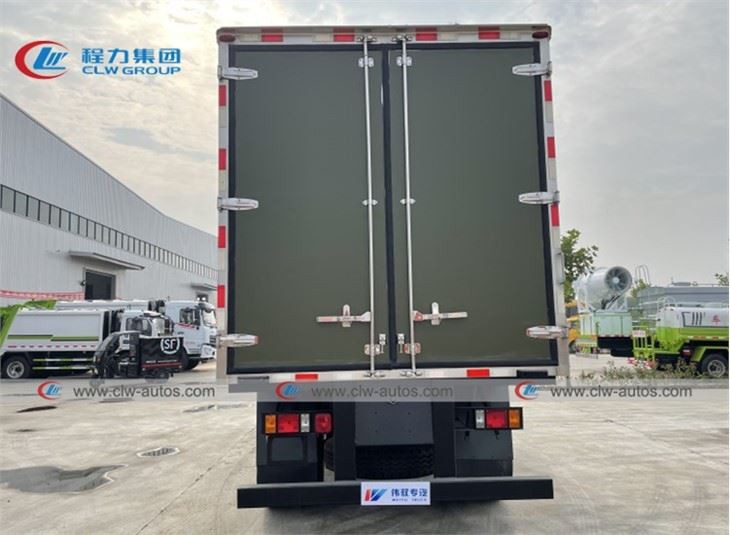

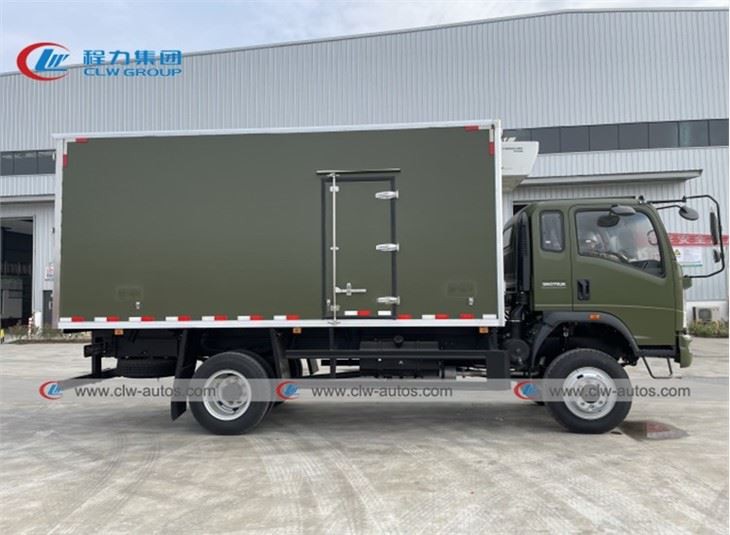

More pictures for HOWO All Wheel Drive 5Tons Refrigerated Truck:

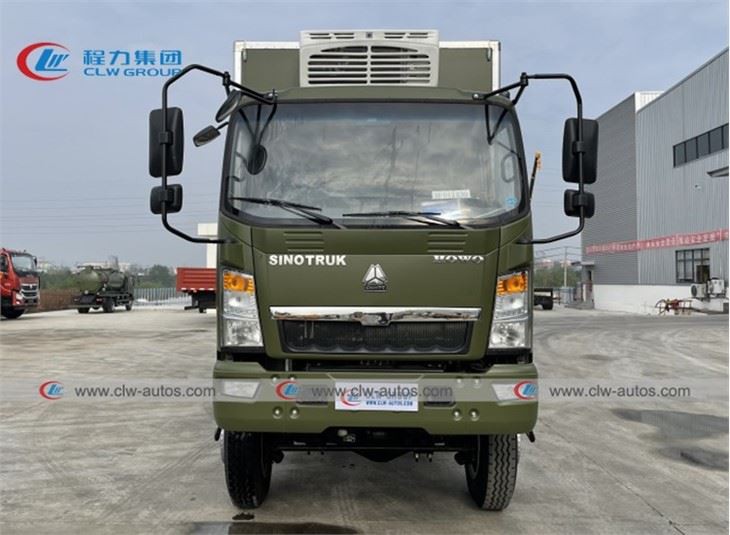

Cabin of HOWO All Wheel Drive 5Tons Refrigerated Truck:
Inner Side of HOWO All Wheel Drive 5Tons Refrigerated Truck:
Parameters for HOWO All Wheel Drive 5Tons Refrigerated Truck:
| Truck Specification | ||
| Cab | Single row cab, with power steering. Electronic flameout | |
| Driving Type | 4*4Left hand driving | |
| Max Speed (km/h) | 100Km/h | |
| Overall dimension(mm) | 5995*2100*3000 | |
| GVW( kg) | 4430 | |
| Wheelbase(mm) | 3300 | |
| F/R track base (mm) | 1506/1466 | |
| F/R overhang (mm) | 1120/1515 | |
| Approach/Departure Angel | 20/16 | |
| Tire | 7.00-16/7.00R16 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 5-speed | |
| Enging | Model | YC4F160-30 |
| Fuel Type | Diesel | |
| Type | Straight line four cylinder turbocharging | |
| Exhaust(ml) | 2660mL | |
| Max output power/rotate speed (hp /rpm ) | 160HP/3400RPM | |
| Max torque/rotate speed(N.m/rpm) | 210N·m/2200RPM | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | parking brake | |
| Eletric system | 24v | |
| Upper-Body specification | |
| Material of van box | In the middle of Polyurethenefoam, Inner and coating is glass fiber |
| Thickness of van box (mm) | 80mm Polyurethene foam |
| Model of Refrigeration unit | Korean ND THERMO brand Type:DT-150 |
| Cooling capacity (w) | 1960 |
| Van box dimension(mm) | 4000x1800x1850 |
| Length of van (m) | 3~4 |
| Capacity of van (m³) | 13m³ |
| Voltage & Total Current | DC12V(20A) |
| Power | 240W |
| Compressor | SD-5L09(87cc)/SD-5H09(87cc) |
| Refrigerant | R404A 1.2Kg |
| Evaporator Dimensions(mm) | 680×594×174 |
| Condenser Dimensions(mm) | 905×211×420 |
| Mini temperature in van (ºC) | -18(suitable for transfer food ) |
