Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 7 metric tons 15000 l lpg bobtail truck shacman in China. If you're going to buy high quality 7 metric tons 15000 l lpg bobtail truck shacman, welcome to get more information from our factory. For price consultation, contact us.

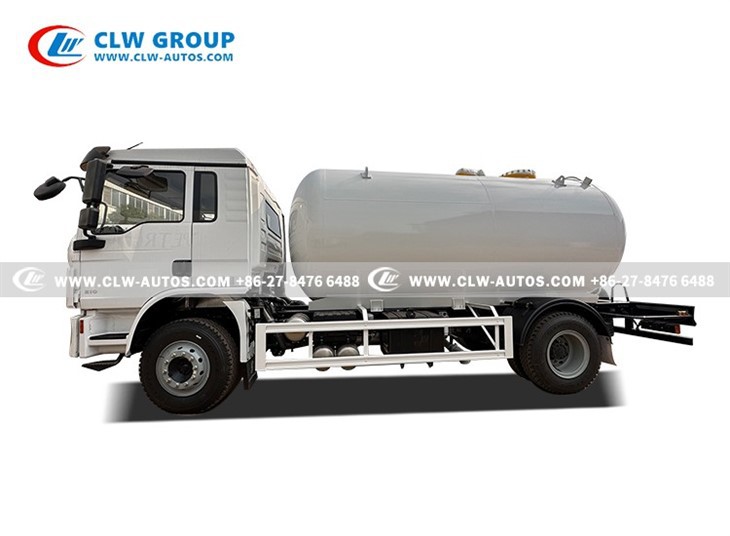

7 Metric Tons LPG bobtail truck/Shacman 15m3 lpg gas tanker truck/RHD 8 tons LPG bobtail is customized for Zimbabwe client, and it's used for rough road in Africa and for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.
For quick inquiry
whatsapp +86 135 4506 4324
Our design
Main equipment
2" Flowmeter or single nozzle filling dispenser machine
2" USA corken pump Z2000 or Chinese brand vane Pump YQB15-5
15/30/40 meters Filling Hose Reel
REGO Filling nozzle
Radiator(optional)
hydraulic oil box(optional)
Stainless steel tool box (optional)
Check video of RHD Shacman L3000 15,000L LPG Bobtail Truck
Optional gas bottling truck brand:
SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other Chinese brands.
Optional size of China HOWO LPG bobtail truck
5000liters,5000L,5 cbm
8000liters,8000L,8 cbm
10,000liters,10000L,10cbm,
12,000liters,12,000L,12cbm,
15000 Liters,15000L,15cbm,
20cbm,20,000liters,20,000L
25cbm,25,000liters,25,000L
35cbm 35,000liters,35,000L
Available options for pump drive
from truck’s PTO by hydraulic drive
From truck’s PTO by shaft
Electric motor-usually for lpg trailer
Main Truck Spec.
Stable Shacman L3000 chassis
with one sleeper
Left hand drive/Right hand drive
Wheelbase 4700mm
Weichai Diesel Engine WP6.210E32,210HP
FASt Gear box:8 speed forward and 1 reverse
Front axle 4.8 tons,Rear axle 10Tons
10.00R20 tires,6 pcs with one spare
Mounted with 15,000 liters LPG tank
10 mm thickness tank
Q345R,one of ASME standard material
Safety relief valve
2" vapour and liquid phase
Float ball Level gauge
Reference picture
Specification of Shacman L3000 15 m3 LPG bobtail Truck
|
Item No. |
Parameters |
||
|
Overall Dimension |
8000x2500x3450 mm |
||
|
Driving Model |
Right hand drive for Zimbabwe |
||
|
Gross Vehicle Weight |
18,000 kg |
||
|
Curb Weight |
10,500 kg |
||
|
Payload |
7,500 kg |
||
|
Wheel Base |
4500 mm |
||
|
Front Axle |
4,800kg |
||
|
Rear Axle |
10,000kg |
||
|
Engine |
Model |
WP6.210E32 |
|
|
Type |
WEICHAI diesel engine,6-cylinders in a line,Water cooled,turbocharged,after cooled , cold start. |
||
|
Horse Power |
210Hp |
||
|
Max output power |
155kW |
||
|
Emission standard |
Euro III |
||
|
Displacement |
6230ml |
||
|
Rated Speed |
1400~1600 rpm |
||
|
Gearbox |
Manual type, FAST 8JS85TM, 8 forward gears & 2 reverse |
||
|
Cabin |

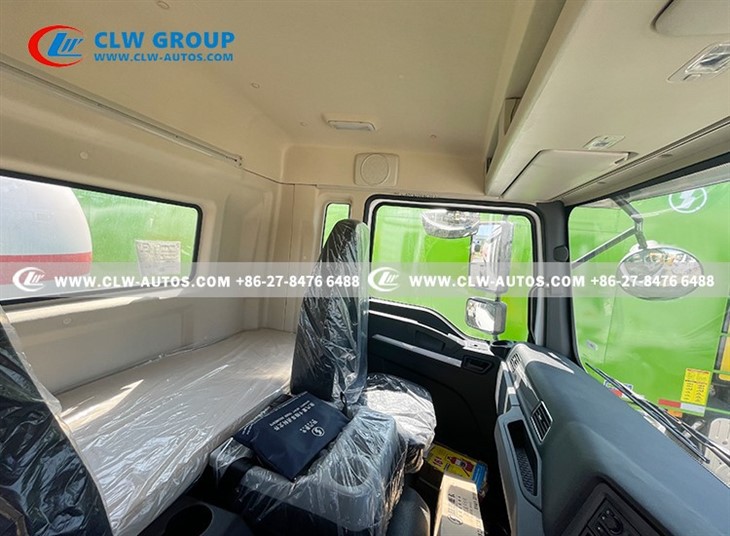

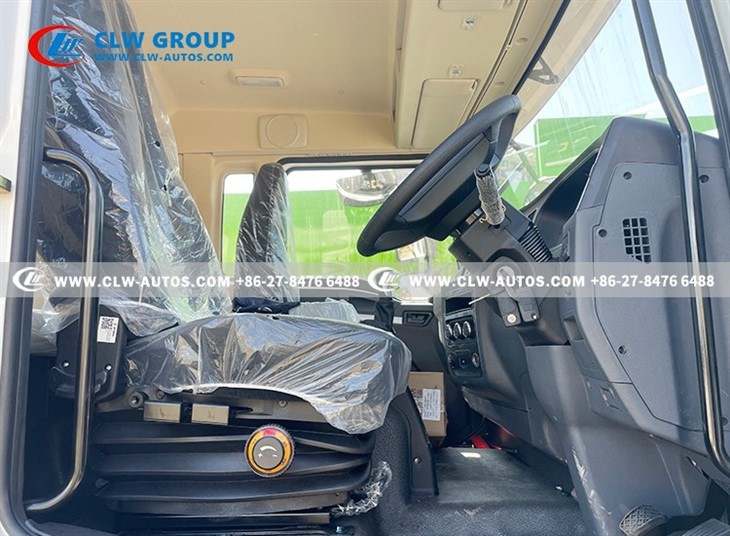

Original SHACMAN L3000 cabin with one sleeper Right Hand Driving for Zimbabwe with air conditioner Central lock Electric window |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Tire |
10.00R20, 6 pieces with 1 spare tire. |
||
|
Fuel box |
200L /steel material |
||
|
Exhaust Pipe |
At front of Cabin for safety |
||
|
LPG tank |
|||
|
Filling Medium |
Liquefied Petroleum Gas |
||
|
Working temperature |
-40~50 ℃ |
||
|
Volume: |
15,000Liters |
||
|
Tank material: |
Q345R |
||
|
Tank diameter: |
1900mm |
||
|
Tank thickness: |
10mm |
||
|
End plate thickness: |
10mm |
||
|
Tank length: |
As designed |
||
|
Gas phase |
Flange type,DN50/2” or according to customer request |
||
|
Liquid Phase |
Flange type,DN50/2” or according to customer request |
||
|
Filling gas |
Propane(LPG) |
||
|
Working Pressure: |
1.61Mpa |
||
|
Design Pressure |
1.71 Mpa |
||
|
Testing pressure |
2.21Mpa |
||
|
Corrosion Allowance |
1.0 mm |
||
|
Refilling Accessory |
|||
|
Directly driven by PTO(easy for future maintenance) |
|||
|

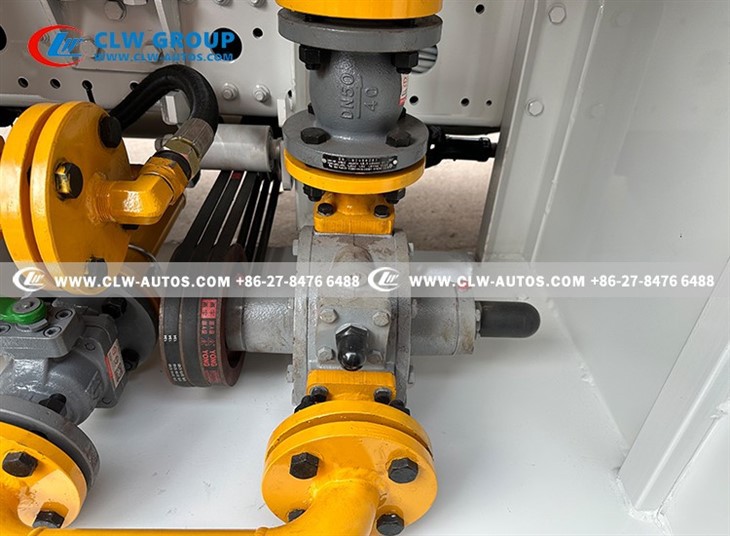

LPG Pump |
Chinese brand YQ15-5 |
||
|
Flow rate:15.5M3/H |
|||
|
10 Mpa inlet pressure |
|||
|
780 r/min for rotation speed |
|||
|
LPG Flow meter |
TSC-50 model Showing filling volume Inlet/Outlet 2”/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer. |
||
|
Filling hose |
15M,retractable with REGO adapter |
||
|
Level Gauge |
Chinese brand YWJ-25 Float Ball type at the rear of tank Nominal Pressure 2.5 mpa Showing in percentage
|
||
|
Safety Valve |
Model No. |
A412F-25-16 |
|
|
Type |
Built-in |
||
|
Nominal Pressure |
2.5 Mpa |
||
|
Safety return valve |
1 PC |
||
|
Pipeline safety valve |
1 PC |
||
|

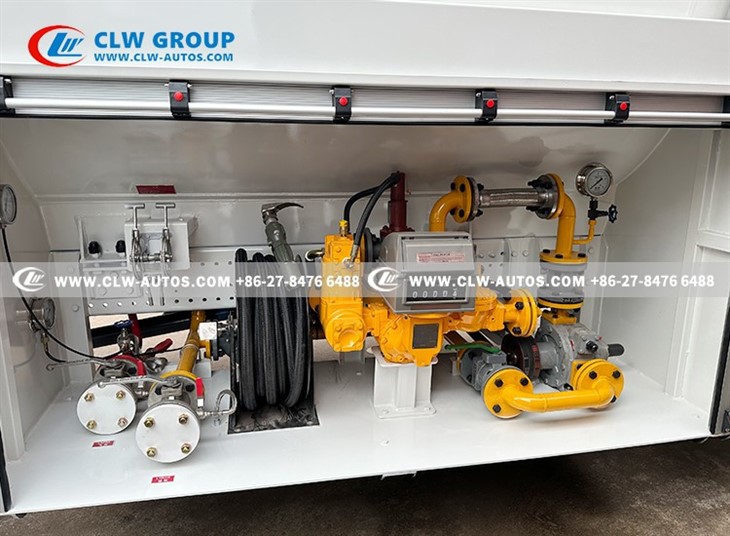

Equipment and Valve Box |
Located at side of LPG bobtail (opposite driver’s side) Strong design with rolling off cabinet
|
||
|
Manhole |
DN450 |
||
|
Thermometer |
1 pc WTQ-280 |
||
|
Pressure Gauge |
2 pc YN-100T |
||
|
Emergency shut off Valve |
2 pcs with switch inside valve box and at rear of truck |
||
|
Fender |
Steel |
||
|
Fire Extinguisher Holder |
1 set |
||
|
Static conductive tape |
1 pc |
||
