Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 4x2 gasoline type refrigerator box van truck in China. If you're going to buy high quality foton 4x2 gasoline type refrigerator box van truck, welcome to get more information from our factory. For price consultation, contact us.
Foton xiangling M1 gasoline refrigerated truck fresh meat vegetables refrigerated truck 4x2 refrigerator van box truck
Product Description
The refrigerated truck is also called refrigerated cold room van truck, freezer lorry, refrigerator van, refrigeration truck, freezer truck,refrigerated cargo truck. It is usually consisted of truck chassis, refrigeration unit, cooling van,etc. It mainly used to transport ice cream, milk , leben, frozen food,etc. The refrigerator van for meat and fish is equipped with meat hook on the inner roof and air trunking at box bottom of the truck.
The freezer unit we usually use are Thermo king, Carrier, Dongin, Hua Tai, Han Xue,etc.
The refrigerated temperature of refrigeration units are 5 degree Celsius below zero, 10 degree Celsius below zero, 15 degree Celsius below zero, 18 degree Celsius below zero. You also can install heating refrigerator to make the temperature above zero in bitter winter.
The material of refrigerator truck can be color plate, fiberglass, stainless steel, aluminium alloy, etc.
The surface of freezer van trucks are smooth and can be pasted with your logo, bill, etc. The inner of
meat transport refrigerated truck body is stainless steel.
As a professional refrigerator carrier truck manufacturer, the freezer cargo van for sale is with light curb weight, good insulation performance, waterproof, corrosion resistance,smooth
surface,clean easily and other advantages. Meanwhile, it is convenient to maintenance if box broken and without any markafter maintenance.
1. Purpose: It is used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. High end brand FOTON good quality chassis, 130HP diesel engine, 6-speed gearbox, 8.25R16 tires, etc.
3. Manufactured by our company, best production craft, sandwich structure freezer box, good thermal insulation capacity
4. Very light curb weight, fuel saving, and load more weight of cargoes
5. Truck box new craft, aluminum box edge reinforced, more strength
6. Optional refrigeration unit: -15ºC~0ºC, -5ºC~0ºC, 0ºC~5ºC, not only cooling, we also have heating unit
7. More options on c hassis and enigne, such as Foton, Dongfeng, Howo, Japan brand, JMC, Shacman, etc
Product Specifications
| Items | Descriptions | Specifications and Types |
| General | Truck Name | FOTON XIANGLIN M1 4*2 LHD gasoline refrigerated truck |
| Drive Type | 4*2 LHD | |
| Payload (kg) | 1.5T | |
| Seating person | 2 | |
| GVW (kg) | 3495 | |
| Curb Weight (kg) | 2100 | |
| Overall Dimensions (L*W*H) (mm) | 5605*1900*2700 | |
| Insulation van dimension(L*W*H)(mm) | 3700*1710*1700 | |
| Driver cab | FOTON XIANGLIN M1 truck body | |
| Engine | Engine Model | DAM15KL |
| Engine Brand | Dong'an | |
| Fuel Type | GASOLINE | |
| Max output (hp/rpm) | 85KW/116hp | |
| Emission Standard | Euro VI | |
| Capacity (cc) | 1498 | |
| Chassis | Chassis Brand | FOTON |
| Tire Specification | 185/55 R14 LT 8PR*6 | |
| Wheelbase (mm) | 3200 | |
| Axle No. | 2 | |
| Steering Wheel | Left hand drive, | |
| Gear Box | 5 speed gearbox, manual | |
| Brake | Air brake | |
| Air-conditioner | Original air conditioner | |
| Upperstructure | Box inner dimension(mm) | 3700*1710*1700 |
| Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
| Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
| Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. | |
| Refrigeration unit | Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5ºC to 15ºC. And the reefer can be adjusted at the driver cab. |

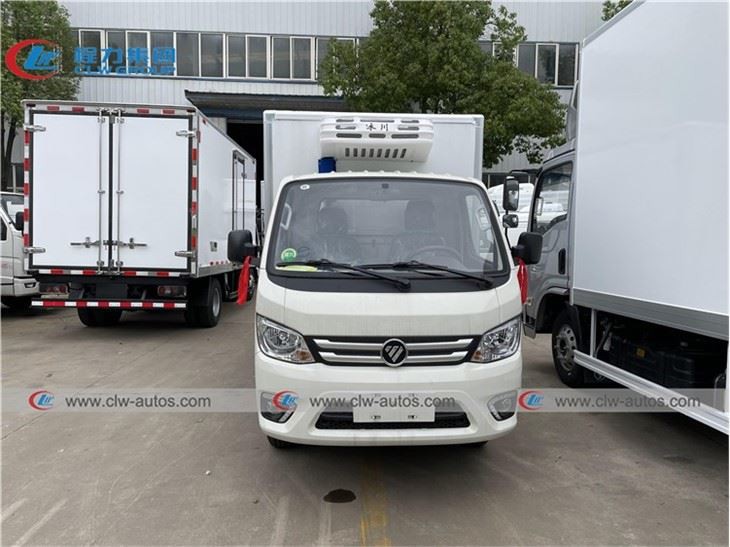

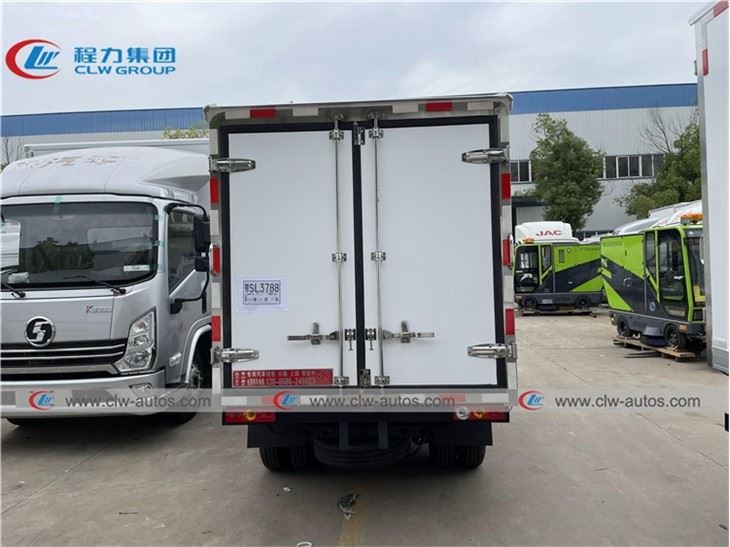

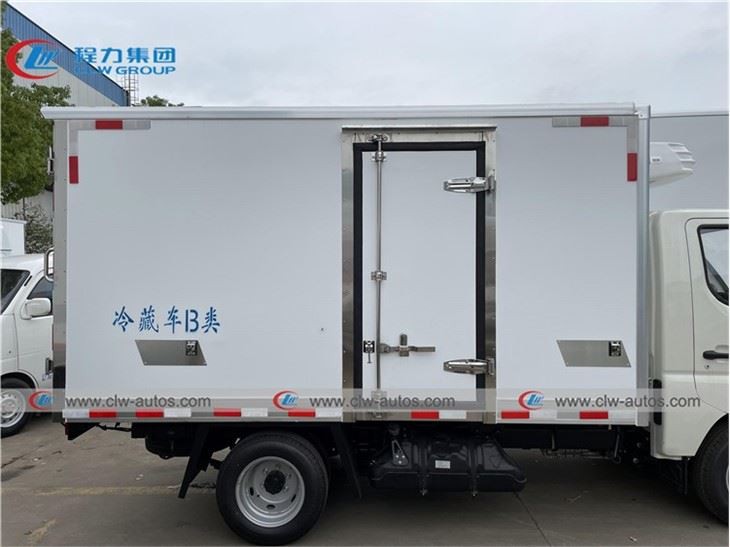

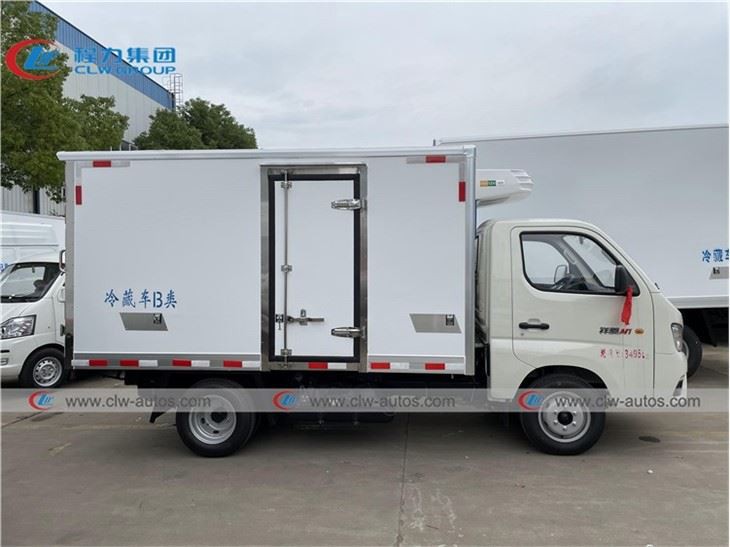

Product pictures
Key words: Foton truck, refrigerated truck, van truck, refrigerator van truck, freezer truck
