Double Row Cabin 5 Persons 3Ton Dump Truck
The double-row dump truck is made of light truck chassis, which is novel in style and beautiful. Equipped with a double-cylinder hydraulic jack, stable lifting, strong working safety, large lifting force, and more cargo. The whole car is of the right size and can be awarded with a blue card. It is an ideal vehicle for highway maintenance, municipal maintenance, power maintenance, landscaping maintenance and other units. Body colors are available: white, engineering yellow, upper white and lower yellow, upper white and lower orange, etc.
The main feature of the double-row dump truck is the large cab space, which can seat 5 or 6 people, and can also pull cargo. With the dump function, it saves time, effort and worry.
Dongfeng Furica Dump Truck Series
Ø Double-row cabin, seat 5 or 6 people
Ø 3300 wheelbase 3. Xichai 98 horsepower,
Ø Wanliyang 5-speed with auxiliary gearbox,
Ø Front axle 1.8T, rear axle 3.5T, 188*5 Girder,
Ø 7.00R16 steel wire tire,
Ø Air brake, clutch assist, ABS,
Ø Air conditioning, electric doors and windows, central locking.
Ø Big box size: 3200*1880*400
Vehicle size: 5995*1980*2270
Ø Total weight: 4495kg
Rated quality: 1495kg
Curb weight: 2675kg
Truck Specification:
Dongfeng Double Row Engineer Dump Truck | |||
Model No.: | EQ3041D3BDFAC | Tracking: | 4X2 |
Wheel Base: | 3308mm | Engine: | Quanchai, 4B2-115C50 |
Gearbox： | WLY 5 Forward | Ratio of Rear Axle: | 4.875 |
Truck Size： | 5995x1980x2270mm | Front Wheel Track： | 1505mm |
GVW: | 4495kg | Rear Wheel Track： | 1494mm |
Tare Weight: | 2675kg | Loading Weight: | 1497kg |
Loading Level: | Light Truck | Approaching Angle: | 20° |
Departure Angle | 15° | Market Use: | Engineer Construction |
Engine | |||
Engine Model: | 4B2-115C50 | Brand | Quanchai |
Cylinder | 4 | Fuel Type | Diesel |
Displacement | 2.545L | Emission Standard | EURO 5 |
Horse Power | 115HP | Power: | 85kW |
Max Torque: | 320N·m | Max torque | 1400-2400rpm |
Rared Speed： | 3200rpm | Engine type | electronically controlled high pressure common rail + SCR |
Box Size: | |||
Box Length | 3370mm | Box Width: | 1880mm |
Height | 400mm | Box Type | Self Discharging |
Cabin | |||
Cabin | Double Row / 2 Row | ||
Seats | 5- 6person | ||
Gearbox | |||
Model | WLY 5 Forward & 1 Reverse | Brand | WangLi Yang |
Forward Gear | 5 | Reverse Gear | 1 |
Tire | |||
Tire Size: | 7.00-16 8PR,7.00R16 8PR | Tire Quantity | 6Units |
Chassis | |||
Front Axle: | 1800kg | Rear Axle | 2695kg |
Speed Ratio | 4.875 | Leaf Spring: | 6/6+5 |

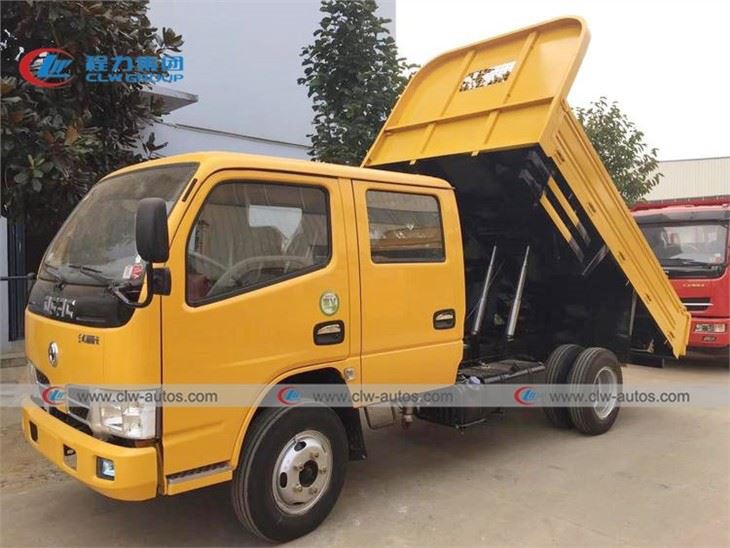

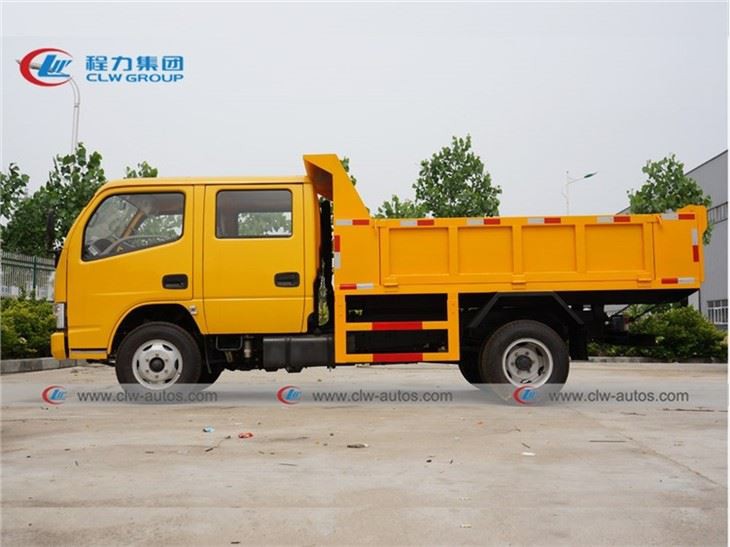

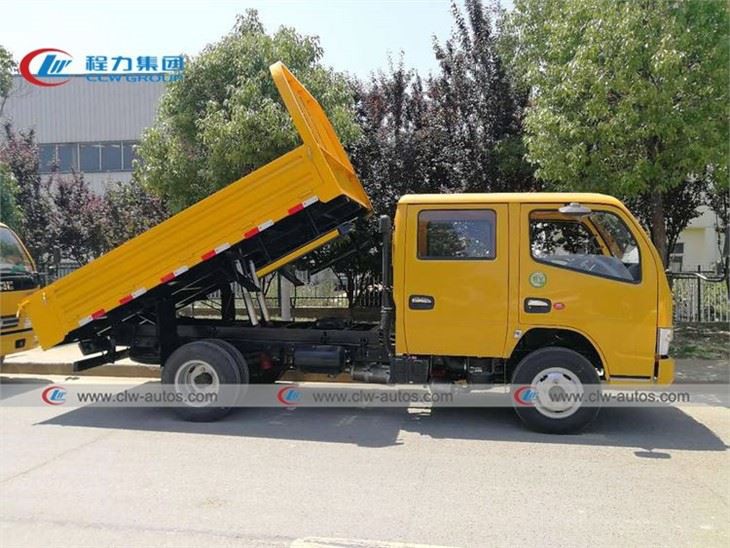

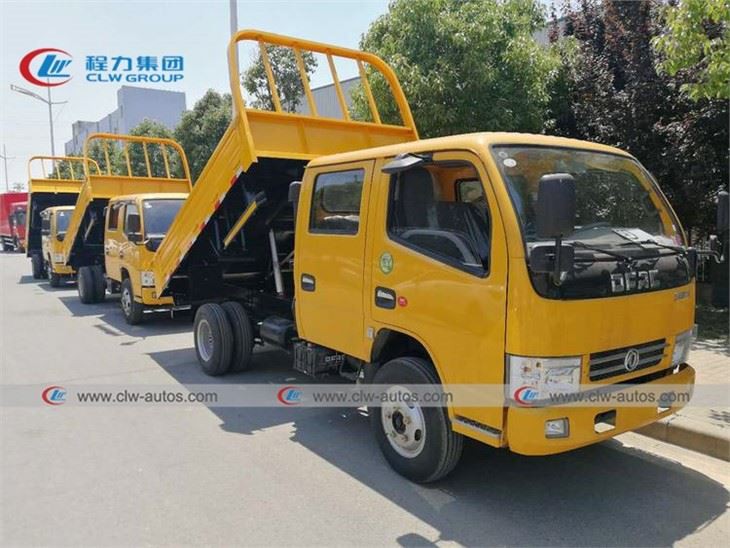

Truck Photos Details:
