Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 24m3 synchronous chip sealer in China. If you're going to buy high quality sinotruk 24m3 synchronous chip sealer, welcome to get more information from our factory. For price consultation, contact us.

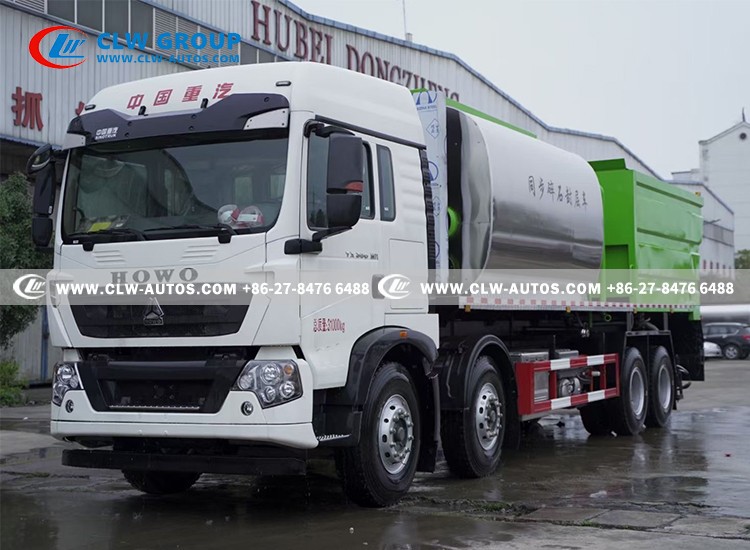

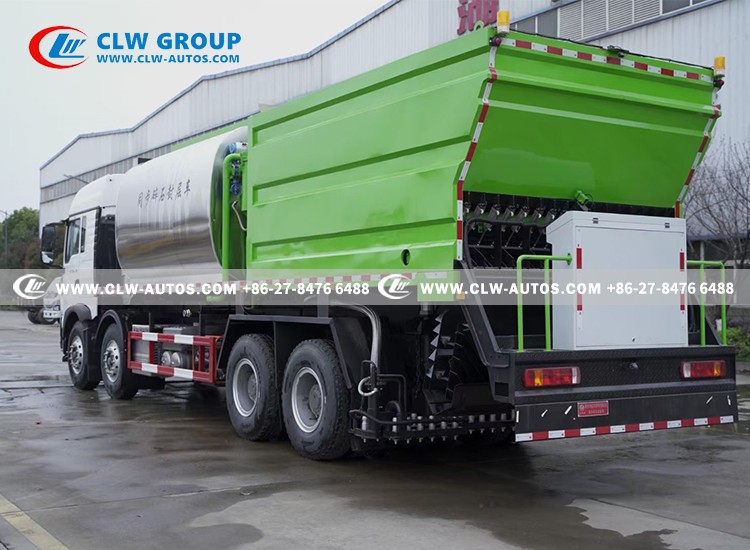

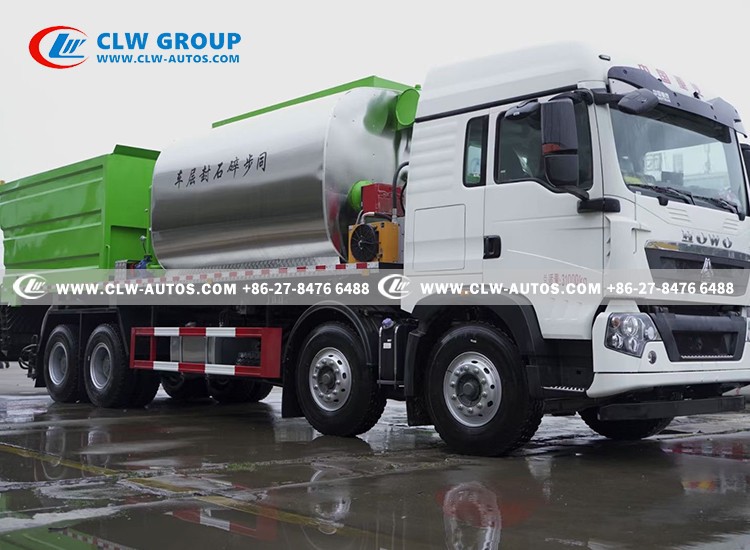

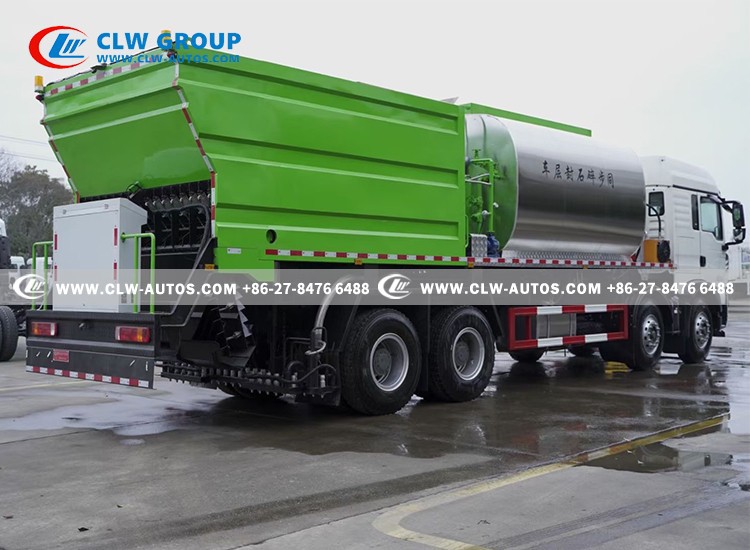

8x4 Sinotruk Synchronous Chip Sealer
Synchronous Chip Sealing Truck-also known as a synchronized gravel sealing truck, asphalt-gravel synchronized sealing truck, or synchronized paving truck-is a specialized vehicle designed for the application of synchronous chip sealing technology.
Ideal for new road construction and preventive maintenance
| Chassis Model | HOWO 350HP | ||||
| Overall Dimensions | mm | 12000*2500*3750 mm | |||
| Wheelbase | 1800+4600+1350 mm | ||||
| Tank Capacity | m3 | Asphalt Tank 12m3 | |||
| Gravel Tank 12m3 | |||||
| Curb Weight | kg | 13,000 kg | |||
| Gross Vehicle Weight (GVW) | 31,000 kg | ||||
| Engine | Power | 257 kW / 350 HP | |||
| Displacement | 7,300 mL | ||||
| Max Torque | 1,600 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 12.00R20 | ||||
| Electric System | 24 V | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | 12 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Insulation Thickness | 50 mm Rock Wool Insulation | ||||
| Exterior Stainless Steel | 1 mm thick stainless steel plate | ||||
| Bitumen Pump | QGB950, Flow Rate: 950 L/min | ||||
| Motor | 05-110BD40 | ||||
| Proportional Valve | Taiwan EFRD-G03-160-05-31 | ||||
| Control System | Infineon Brand (PLC Control) | ||||
| Asphalt Nozzles | 32 pcs | ||||
| Burner | 2 × Riello G20 (Italy), 200,000 kcal/h each | ||||
| Heat Oil Pump | RY32-32-160, from a well-known Chinese brand | ||||
| Heating Motor | 5.5 kW (Petrol-powered) | ||||
| Spray Width | 4.2 m | ||||
| Spray Capacity | 0.2-3.0 kg/m2 | ||||
| Chip Spraying Rate | 2 to 22 L/m2 | ||||
| Asphalt Heating Speed | 20 °C/h | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor | Ni5-G12, Turck (Germany) | ||||
| Temperature Controller | Pt100, from a well-known Chinese brand | ||||
