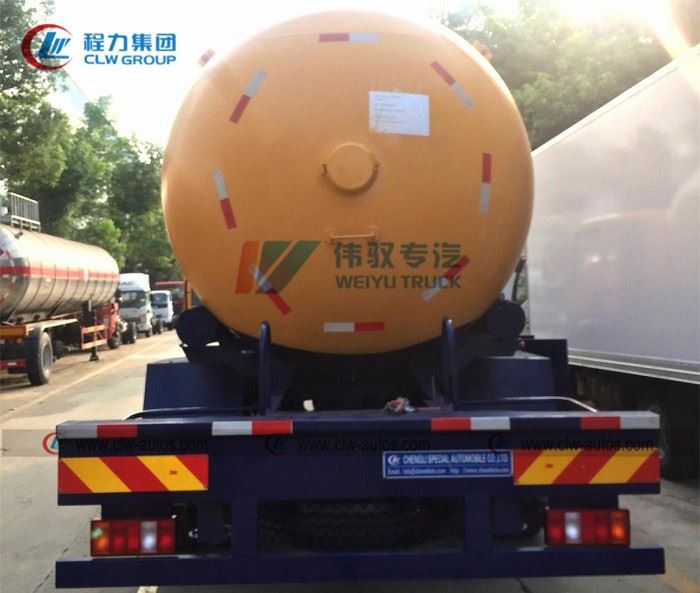

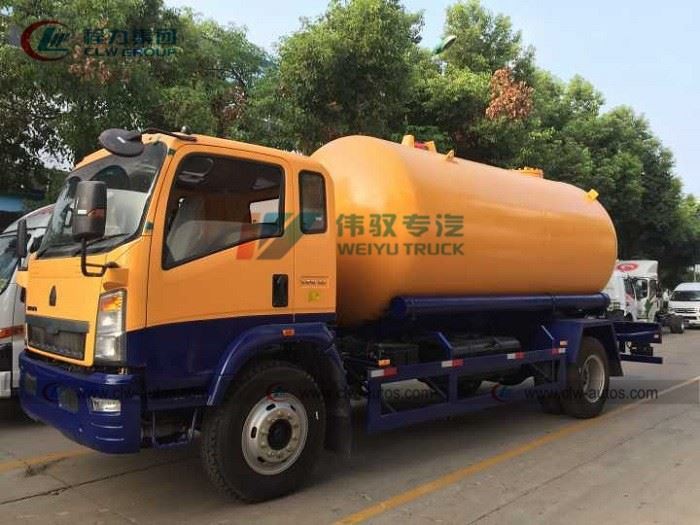

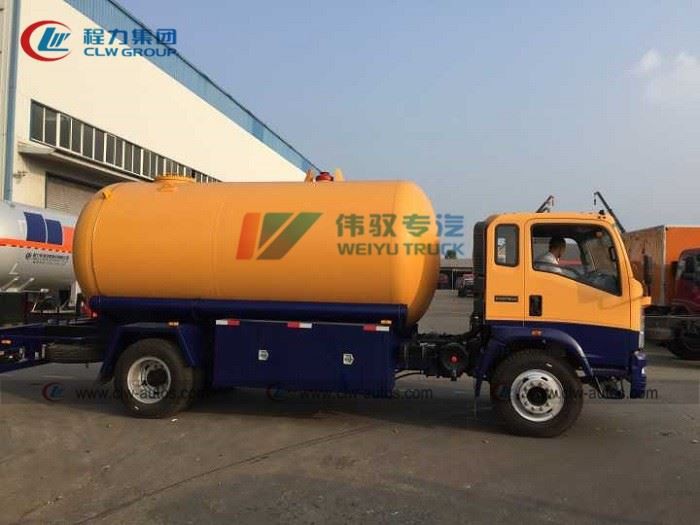

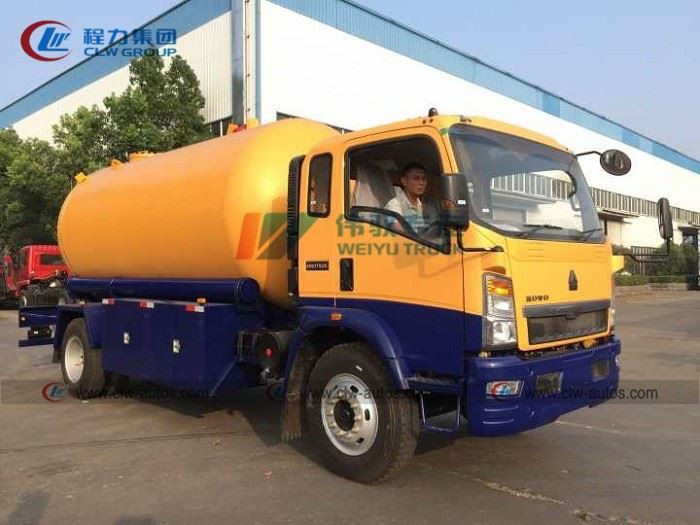

Sino Howo 15000Liters LPG Bobtail Truck

Cab

Single row cab,   with power steering.,with a/c

Driving Type

4*2 Left hand   driving

Max Speed (km/h)

99

Overall   dimension(mm)

7980*2430*3450

GVW( kg)

15000

Mass in working   order ( kg)

8700

Wheelbase(mm)

4700

F/R track base   (mm)

1900/1800

F/R overhang   (mm)

1205/2050

Approach/Departure   Angel

22/23

Tire

9.00-20 (6+1)

Clutch

Single-plate dry   diaphragm spring clutch

Steering

Hydraulic   steering with power assistance

Gear box

6-speed

Bridge

Front axle

5T

Rear axle

10T

Enging

Model

B170-33

Fuel Type

Diesel fuel

Type

Water-cooled   four-stroke,, direct injection, turbocharged

Exhaust(ml)

5700

Max output   power/rotate speed (hp /rpm )

170/2500

Max   torque/rotate speed(n.m/rpm)

560/1300

Braking system

Service Brake

Compressed air   brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

LPG TANK   specification

Design specific   gravity

0.42 Kg/L

Tank material

Q345R

Tank Designed   thickness

End cover

9.35mm

Tank body

9.37mm

Design   temperature

50 ⁰C

working   temperature

20~50 ⁰C

Corrosion   allowance

1.0mm

Designed   pressure

1.77Mpa

Hydraulic test   pressure

2.30MPa

Leak test   pressure

1.77Mpa

Heat treatment

Wholly get rid   of stress

Use Years

Ten years

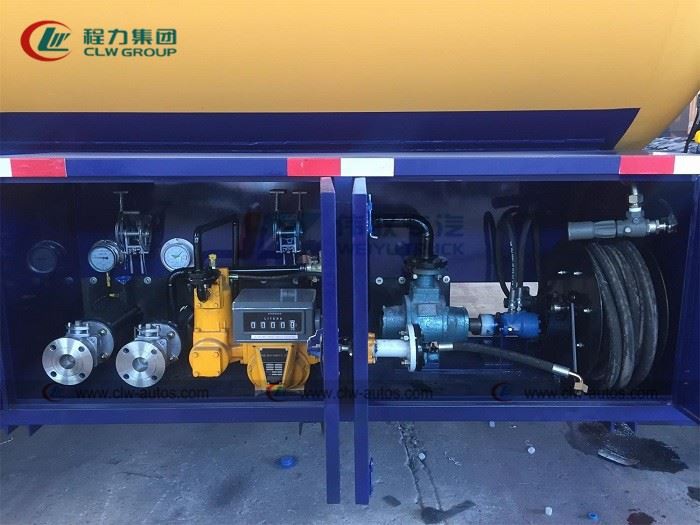

LPG dispenser

Function

Dispenser LPG to   LPG cylinder or other LPG truck

Flow rate

10 ~ 60L/min

Max working   pressure

2.5Mpa

LPG pump

Function

Delivery and   pump LPG

Flow rate

30-80L/min

Working pressure

1.60Mpa

Liquid level   meter

Type

Rotary

Model

YWG-2.5

Nominal pressure

PN2.5Mpa

Surveying range

50-2300mm

Precision

2.5Grade

Emergency   cutting valve

Type

Gas phase

QCJ43F-2.5-8

Liquid phase

QCJ43F-2.5-7

Nominal pressure

PN2.5Mpa

Nominal diameter

Gas phase

DN25mm

Liquid phase

DN50mm

Operation way

Fluid pressure

Closing time

≤10 Sec

Melting switch   temperature

70±5°C

Safe valve

Type

A412F-2.5-16

Model

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN50

Opening pressure

1.7MPa

Closing pressure

1.86-1.94MPa

Complete opening   pressure

<2.12 MPa

Loading and   unloading device

Valve type

Gas phase

YKAG-3.3-6

Liquid phase

YKAG-3.3-7

Model

Quick tie-in

Nominal Diameter

Gas phase

DN25mm

Liquid phase

DN50mm

Pressure meter

YN-100T

Temperature   gauge

WTQ-280

Other equipment

  1.double tool   box
  2.double valve box
  3.double Emergency Cut-off Valve
  4.single pipe liquid out
  5.both side loading and unloading
