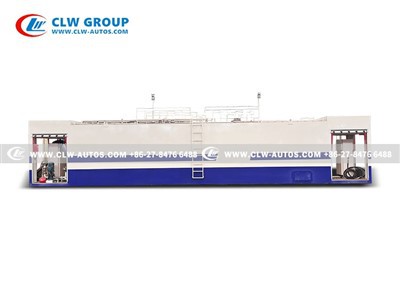

50cbm LPG Skid Refueling Station
LPG Tank volume: 50cbm, 50,000litres
Total weights: 20-25tons
Tank material: Carbon Steel Q235-B
Tank wall thickness: Inner 8mm and Outer 4mm
Operating Voltage: 380V
Operating Power: 8.5KW
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50cbm lpg skid refueling station in China. If you're going to buy high quality 50cbm lpg skid refueling station, welcome to get more information from our factory. For price consultation, contact us.

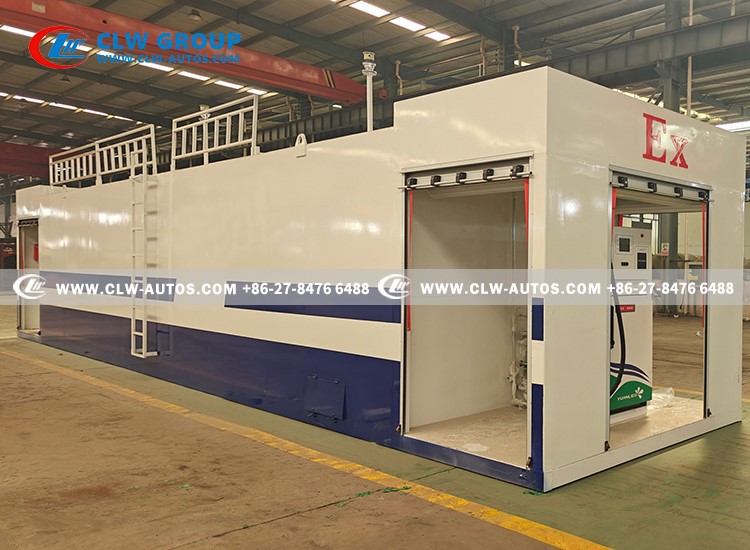

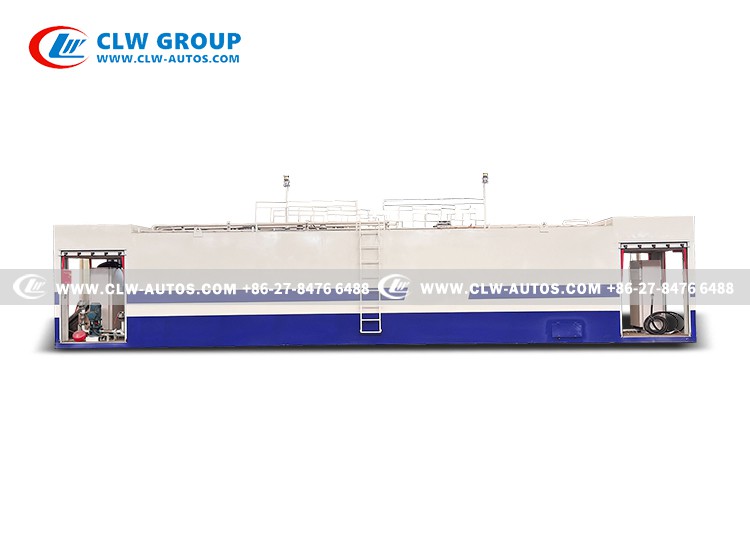

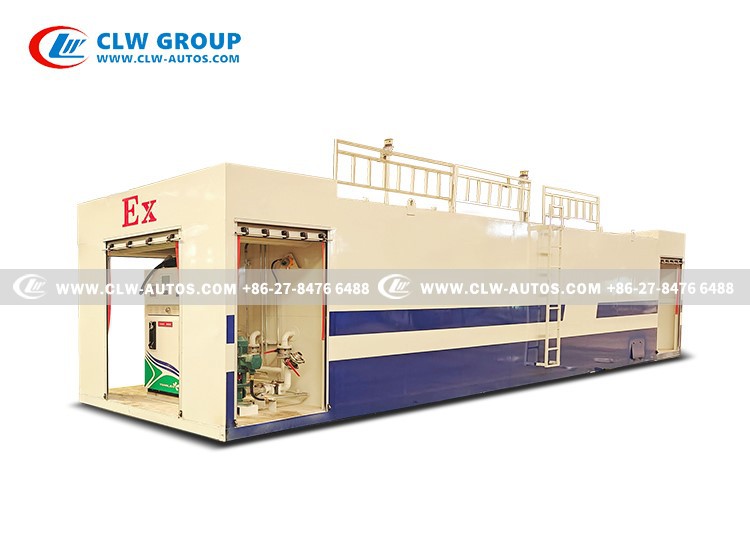

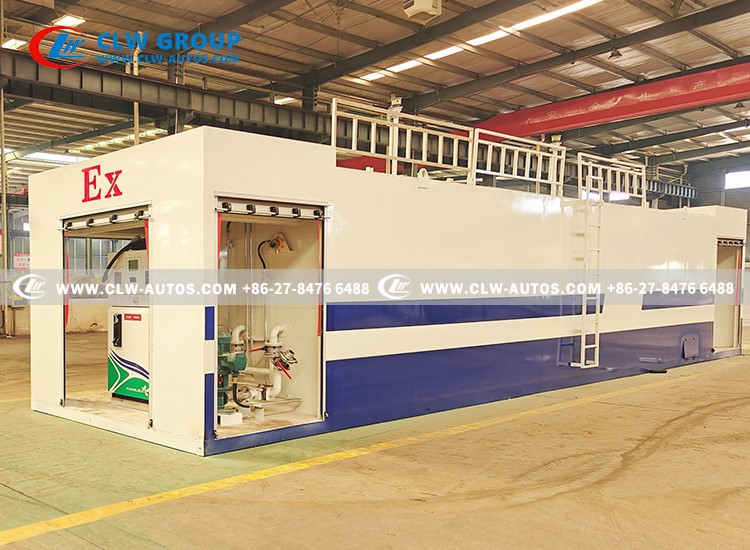

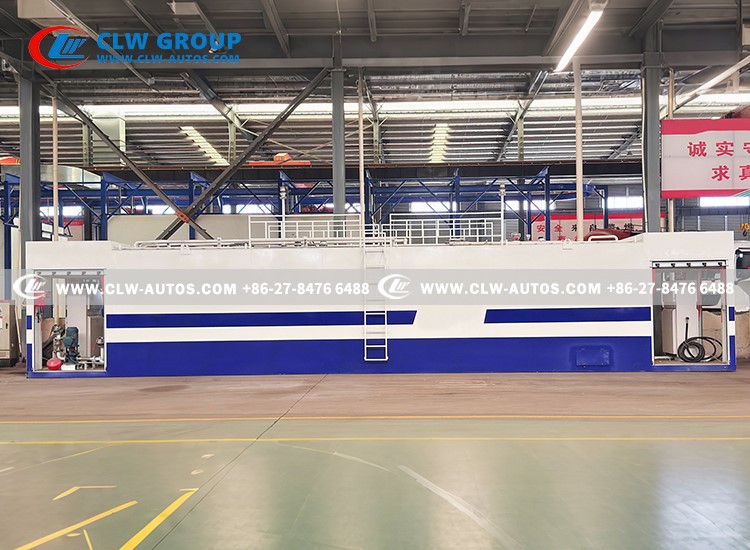

50m³ LPG Skid-Mounted Refueling Station
– Safe, Efficient, & Ready-to-Deploy
Products Description
Our 50m³ LPG Skid-Mounted Refueling Station represents a significant leap forward in safe, flexible, and cost-effective liquefied petroleum gas (LPG) refueling solutions. This fully integrated, pre-assembled unit is designed for rapid deployment and operation, eliminating the need for extensive civil works. The station is built around a robust 50-cubic meter LPG storage tank crafted from carbon steel Q235-B with an 8mm inner wall and 4mm outer wall, ensuring long-term durability and containment integrity. The entire tank utilizes explosion-proof materials for superior safety.
Engineered for reliability, the station operates on a 380V working voltage with a 8.5KW power rating, and comes pre-equipped with a comprehensive suite of safety and operational features, making it a complete, plug-and-play refueling hub for a wide range of commercial and industrial applications.
Key Features & Superior Advantages
All-in-One, Pre-Assembled Design
As a skid-mounted station, it arrives pre-piped, pre-wired, and pre-tested on a single chassis. This drastically reduces installation time and costs, requiring only a leveled concrete foundation and basic utility connections to become operational.
Comprehensive Safety & Protection Systems
Your safety is our top priority. This LPG station is safeguarded by multiple, redundant protective systems:
Explosion Prevention
The tank is filled with explosion-proof materials and features a vapor recovery system during refueling to minimize vapor release
Emergency Response
Equipped with an Emergency Shut-off Valve and Emergency Pressure Relief Device for critical incident contro
Leak & Overflow Protection
Includes vapor containment adaptation, Overfill Prevention,
Operational Efficiency & Control
The station is designed for seamless daily operation and management:

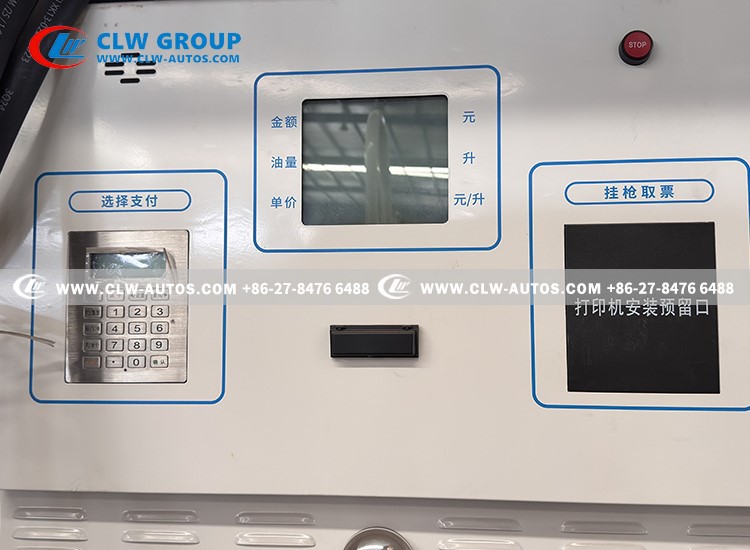

-Precise Fueling: Features a Single-Pump Single-Hose Dispenser for accurate metering and fast refueling.
-Easy Replenishment: Includes a complete Unloading Pump & Piping System and Liquid Level Gauge for easy inventory management and tank refilling.
-Vapor Recovery: The Vapor Recovery System during unloading captures fumes, enhancing environmental protection and operational safety
Fire Safety
Integrated Automatic Fire Suppression System and Explosion-Proof and Fire-Resistant Pressure Relief Valve offer active fire protection
Products Technical Specification
|
name |
describe |
|
|
Explosion-proof storage tank |
Explosion-proof storage tanks, both inner and outer tanks are reinforced with double-layer weld joints . Its weld strength is higher than that of butt welds on 12mm thick steel plates. Strength. (Packaging containers for hazardous chemicals under normal pressure) |
|
|
Explosion-proof materials |
The inner tank and the space between the inner and outer tanks are filled with explosion-proof materials. (This can be customized according to the customer's specific needs.) |
|
|
Explosion-proof power distribution system |
380V three-phase |
|
|
Explosion-proof audible and visual alarm Device |
Explosion-proof audible and visual alarm light: flashes 150/ min ; sound intensity ≥ 90(dB) Explosion-proof marking: Ex db ⅡC T4 Gb; Ex tb ⅢC T130℃ Db ; Protection level: IP65. |
|
|
Safety lighting system |
Safety lighting: Explosion-proof ceiling light, integrated design, aesthetically pleasing and energy-saving. Explosion- proof markings: Ex db eb mb ⅡC T6 Gb; Ex tb ⅢC T80°C Db . |
|
|
Oil and gas alarm device |
Employing imported catalytic combustion sensors and microcontroller technology, it has the function of concentration With temperature display and audible and visual alarm functions, it is installed at refueling sites or unloading areas. Pump valve chamber. |
|
|
Emergency shut-off device (automatic shut-off protection) (Protective valve) |
When encountering earthquakes, accidental overturning, falls, impacts, or other events beyond human control... In the event of a disaster, the tank automatically seals to prevent oil leakage. This device contains... The unit employs mechanical transmission components to ensure operation even in the event of a power outage. It can work effectively. The device is normally in the open position and emits... In the event of a fire, its fuse melts when heated, thus shutting off the valve. |
|
|
Automatic fire extinguishing device |
Ultrafine dry powder fire extinguishing agent, filled with an appropriate amount of nitrogen as the propellant gas, technology Performance meets the requirements of GA602-2013 standard. Operating temperature. 68-93 degrees. |
|
|
Explosion-proof flame arrestor breather valve device |
The breather valve operates at a positive pressure of 2 kPa to 3 kPa and a negative pressure of 1.5 kPa . 2 kPa, installation height greater than 4.5 m, nominal pressure: 1.0 MPa |
|
|
Emergency pressure relief device |
When the internal pressure becomes too high, the emergency pressure relief device will burst, causing... This allows for rapid pressure reduction, preventing the tank from exploding due to pressure and avoiding further serious consequences. Major accident. One unit per compartment, opening pressure: 27±2KPa |
|
|
Overflow prevention device |
When the oil level in the tank exceeds the warning height (reaching 95% of the tank's capacity), the tank... The body automatically locks to prevent oil spillage. |
|
|
Lightning protection grounding, static Electrical grounding system |
Includes electrostatic grounding alarm, lightning surge protector, and oil unloading device. Aluminum alloy electrostatic clamps and grounding copper braided wires connected to the vehicle. to the grounding electrode at the application site (the user must ensure the grounding electrode is properly connected). Resistance < 4Ω. |
|
Our Official Website--Factory Real Shot Video For You
Why do you choose us ?
Why Choose Our
LPG Skid-Mounted Station?
Rapid Deployment: Get your refueling operations up and running in record time.
Enhanced Safety: Multi-layered, integrated safety systems designed to prevent and mitigate incidents.
Regulatory Compliance: Designed and constructed with reference to established safety standards for the storage and handling of LPG.
Cost-Effective: Lower initial investment and reduced installation costs compared to traditional built-in-station alternatives.
Reliable Support: Backed by our expertise as a manufacturer of over 800 types of special purpose vehicles.
Ideal Application Scenarios
Fleet Management Bases: Ideal for taxi companies, logistics hubs, and public bus depots.
Industrial & Mining Sites: Provides dedicated fuel for LPG-powered machinery, forklifts, and mining equipment.
Agricultural Operations: Serves farms with LPG-fueled tractors and other agricultural vehicles.
Remote Locations & Construction Sites: Offers a self-contained refueling solution for projects away from established fuel infrastructure.
Commercial Stations: Can be used to quickly establish or expand retail LPG refueling stations.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Ready to Streamline Your LPG Refueling Operations?
Sales Manager
Cathy Gao
Phone Number (whatsapp)
+86 173 4334 1170
cathy@clw-autos.com
Contact Us Today for a Detailed Quotation and Customization Options!
Let's discuss how this efficient and safe 50m³ LPG Skid-Mounted Refueling Station can meet your specific needs. We are committed to providing you with a high-quality, reliable solution and exceptional service.
