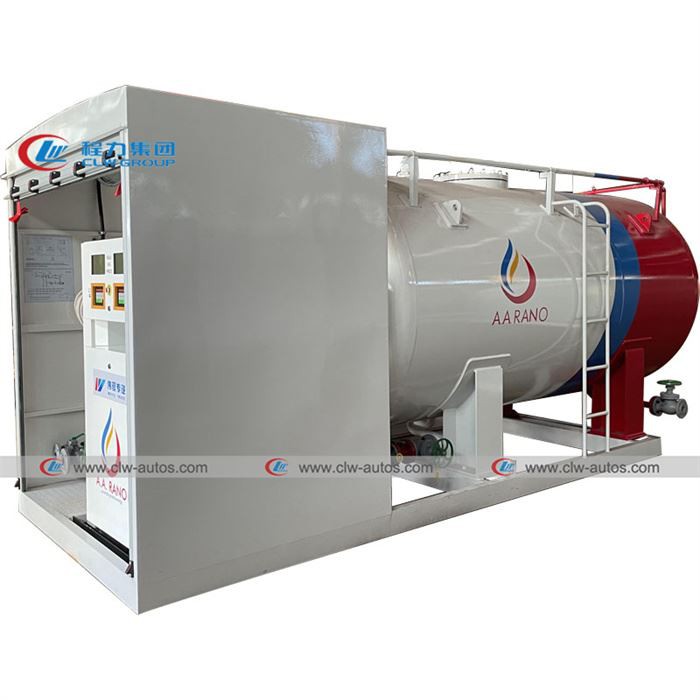

10,000L 5MT LPG Gas Filling Skid Station
5 Metric Tons LPG Station
10,000L/10,000liters LPG Tank Station
5 Tons 5MT 5t 5mt LPG Station Tank

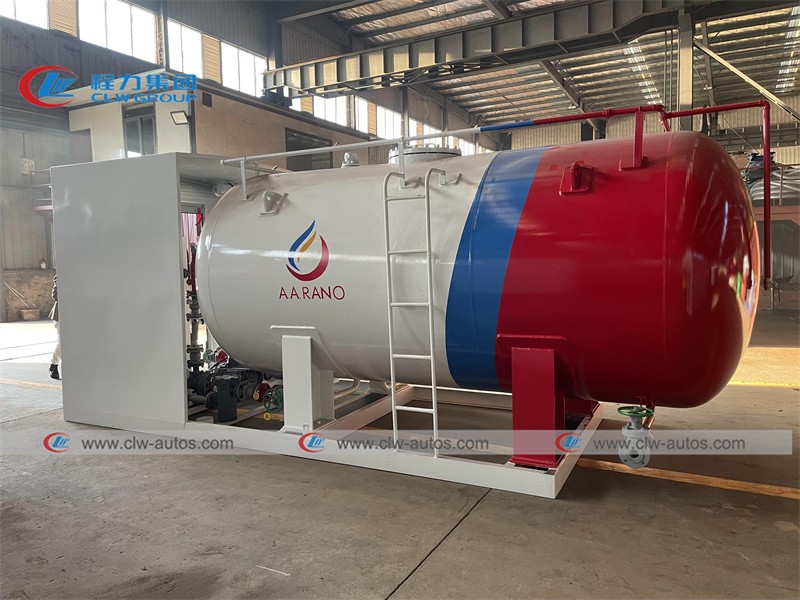

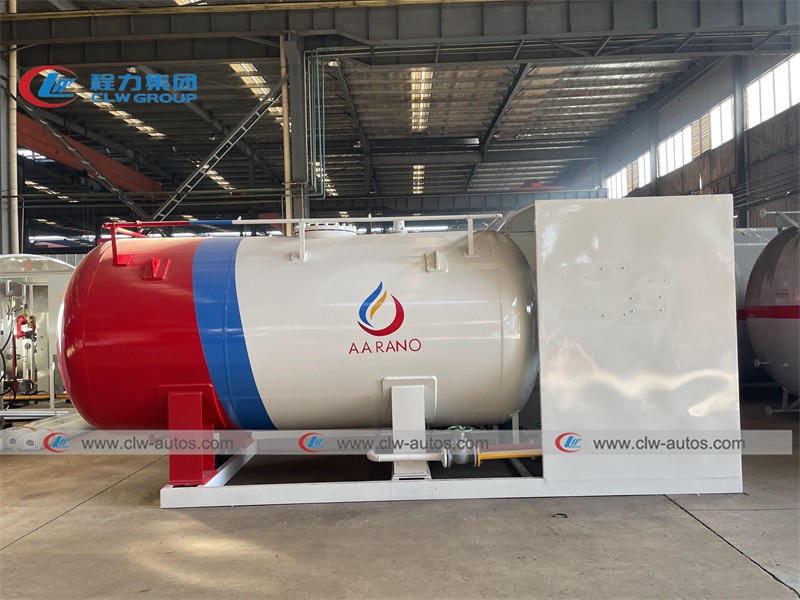

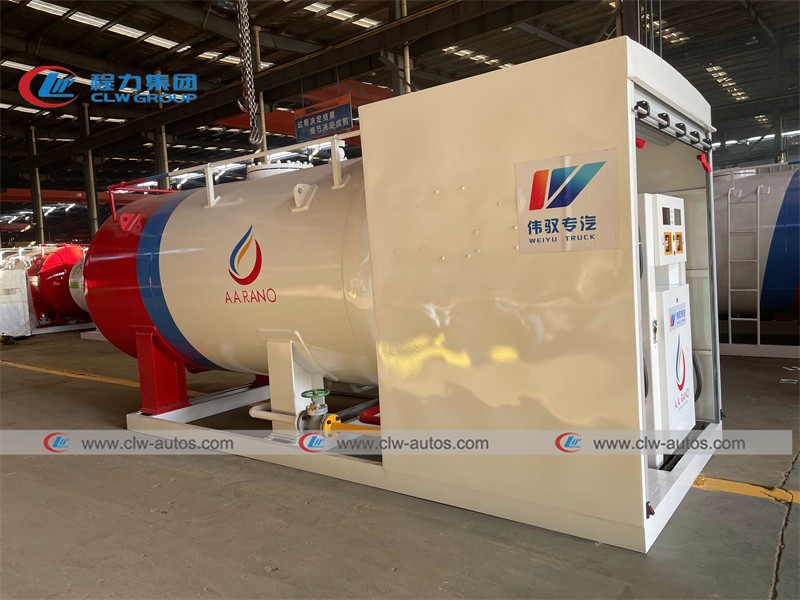

Completed gas station with gas dispenser

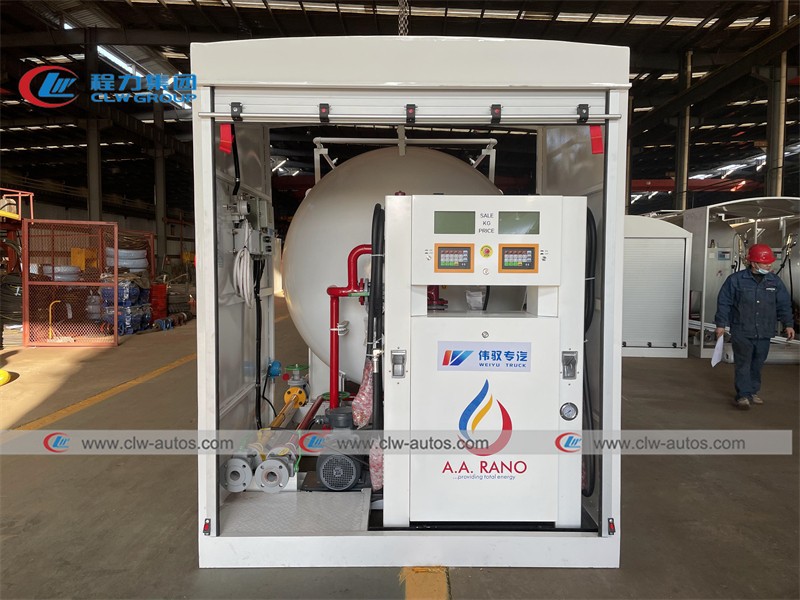

Completed filling station with 2 sets pumps & motors
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10,000l 5mt lpg gas filling skid station in China. If you're going to buy high quality 10,000l 5mt lpg gas filling skid station, welcome to get more information from our factory. For price consultation, contact us.
Production Introduction
LPG Skid station is also called mini lpg plant,portable gas station,completed lpg filling station. It's used for refilling cooking gas in home use cylinder in different size or hotel use commercial tanks.
Why do you choose us for LPG skid station?
we are not proud that our skid station is the cheapest,but the safest, more durable and functional.
· 2 sets of 5.5 kw lpg pumps and motors(two can work together or work as a spare)
· 2 sets of 2021 new type lpg filling scales with top quality or double nozzle lpg dispenser
Safest:
· water sprinkler system on top
· gas leakage detector with English panel
Fire extinguisher for each station

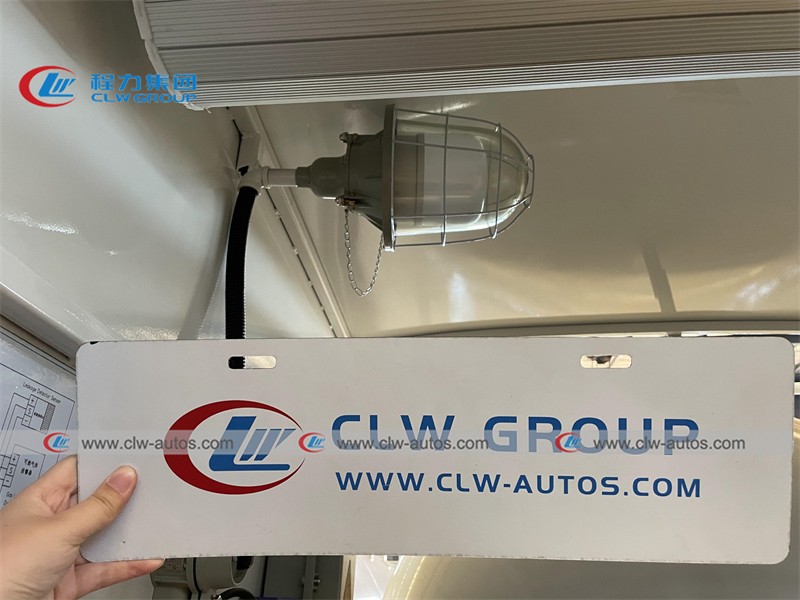

· ex-proof lamp

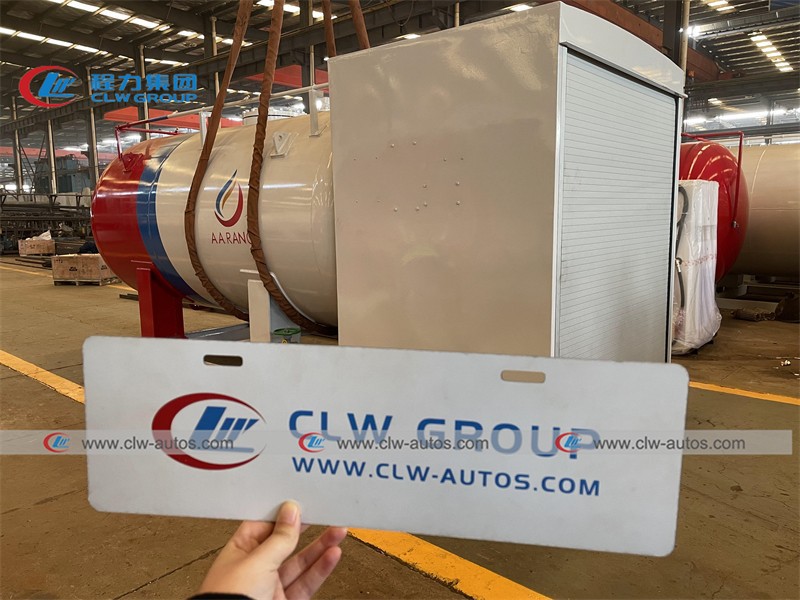

· Lockable filling room with rolling off door to protect your filling equipment.
Durable:
· Safest pipeline system with pipeline safety valves and non-return valves
· Side ladder
· Shock proof discharging pipeline at inlet and outlet of pump to protect pump lifetime

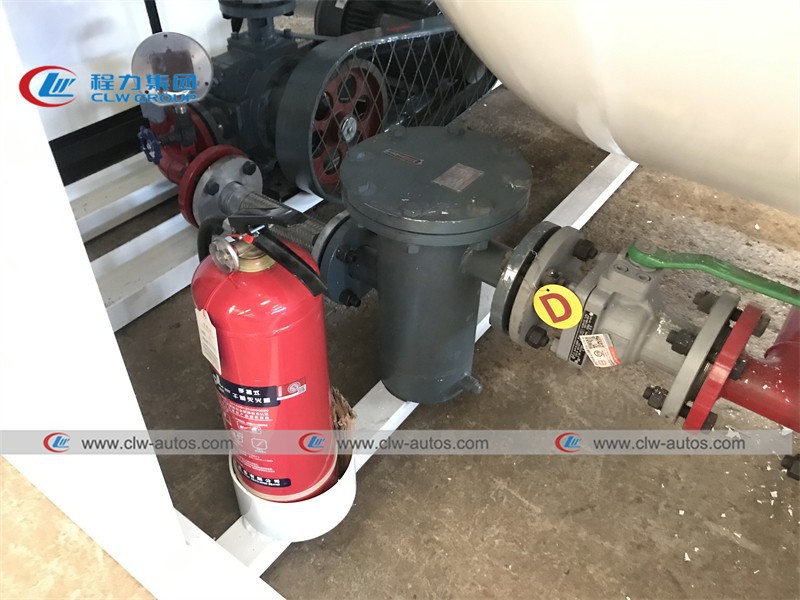

· Strainer valve before pump inlet to avoid impurity into pump and lengthen pump lifetime
Functional
· From skid station to fill cylinders
· From bobtails to skid station by skid station pump
Service:

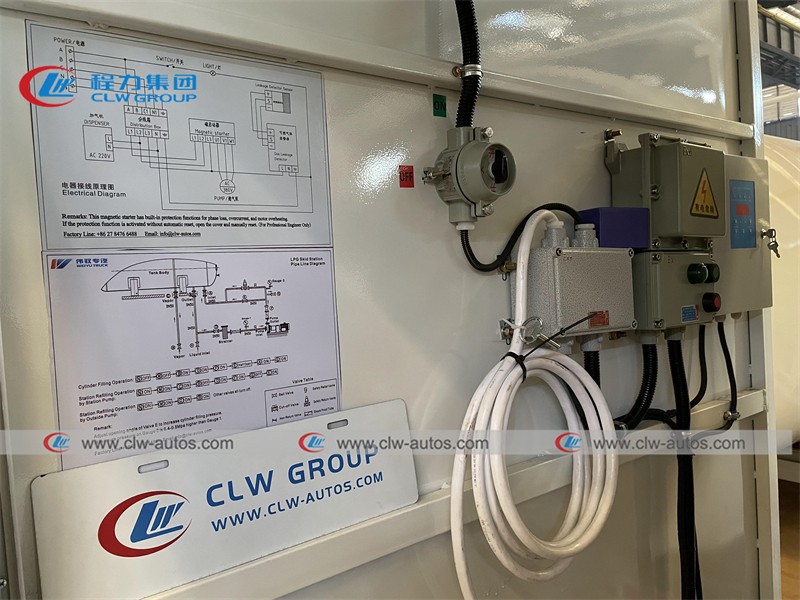

· English pipeline drawing and electrical drawing for daily use reference;
· English operation video will be offered.
Technical Parameter
10CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 10CBM, 10000Liters, 10M3, 10 cubic meters | ||
Filling Weight | 5000 kg | ||
Tank Weight | 2600 kg | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 11 mm | ||
Tank Diameter (mm) | 1800 mm | ||
External Dimensions (mm) (length x width x height) | As designed | ||
Overall Skid Size | As designed | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Test Pressure | 2.22 Mpa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50-2" | 1 | |
Inflow Pipe | DN50-2" | 1 | |
Outlet | DN50-2" | 1 | |
Gas phase balance pipes | DN50-2" | 1 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50-2" | 1 | |
Other accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
Pictures
