Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 8cbm 5tons compressed garbage truck in China. If you're going to buy high quality dongfeng 8cbm 5tons compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Main feature
1. Different chassises for customer to choose, like Dongfeng, FAW, Foton etc.
2. In accordance with local DOT rules and regulations
3. The compaction ratio varies between 0.6 to 0.7 according to the characteristic of the garbage.
4. Top, hydrant, and reservoir filling capability
Hydraulic system:
PTO: according to the transmission
Gear pump: China Top Brand
Working Pressure: 24 MPa
Rear loading garbage compactor
Garbage compression system: slide plate mechanism; scraper blade mechanism
Working time for finish one cycle: 35s

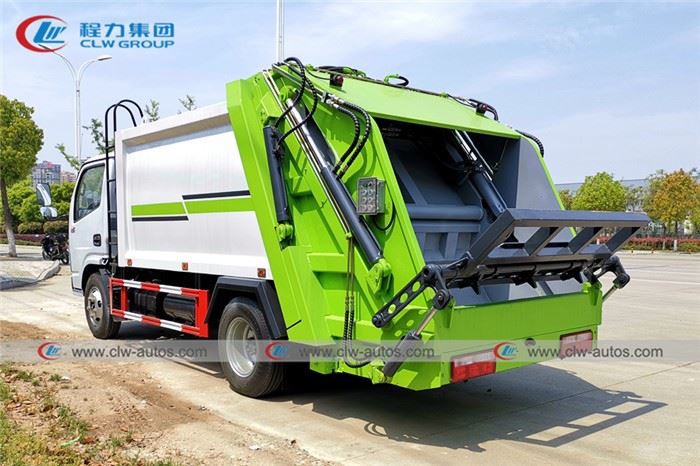

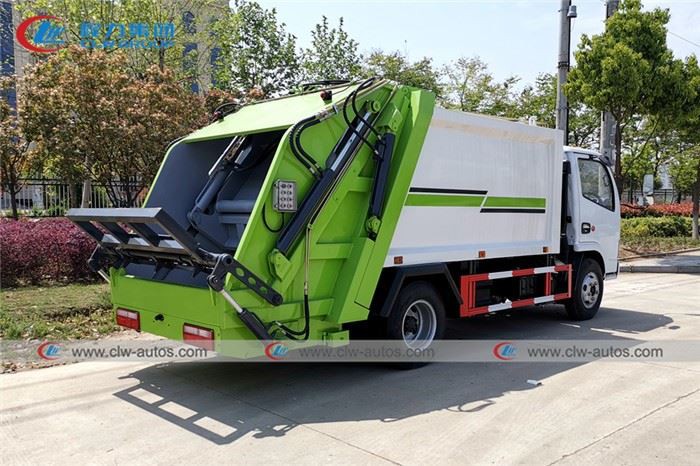

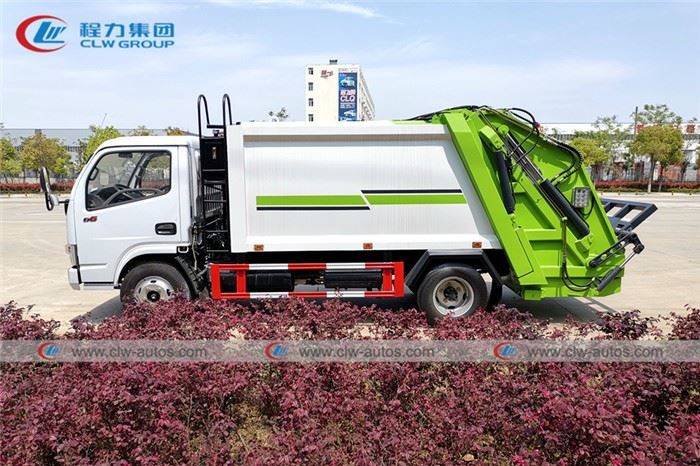

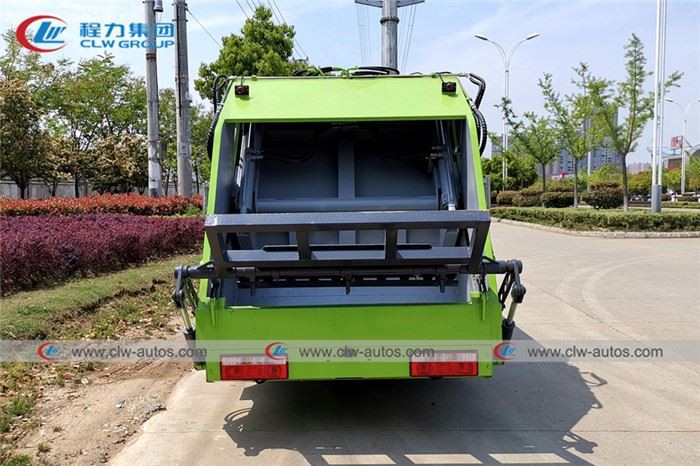

Reference picture
Specification
| ISUZU 600P 120HP 5tons Compressed Garbage Truck | |||
Overall Dimension | 7750×2495×3400 mm | Gross Vehicle Weight | 15000 kg |
Curb Weight | 6095 kg | Loading Weight | 6700 kg |
Wheel Base | 3800 mm | Front / Rear Axle | 2500/4500 kg |
Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner | ||
Engine | Yuchai brand | ||
Engine horsepower | 130HP, EURO 2/3 | ||
Max Driving Speed | 90 km/h | ||
Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||
Tire | 7.50R16, 6 pieces with one spare) | ||
Garbage Bin | Capacity | 8CBM | |
Material | 4mm Carbon Steel for Garbage Bin Body | ||
Design | Whole unit with Leakage Proof Design | ||
Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
Garbage Compact Ratio | 0.6-0.7 | ||
Control System | One control Panel on the back, One Control system in back of Cabin | ||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
2. Automatic loading, compressing and discharging, all handled by 1 person | |||
3. Sewage water collection tank to avoid any pollution during handling. | |||
4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
Dependable Security | |||
5. Electrical Control Panel for compacting system. | |||
6. Cycling time<14~18s | |||
Remarks | 1. Color is optional | ||
2. Customized LOGO painting as per customer request | |||
Diagram for compressed garbage truck
