Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of lpg filling plant tank 25tons 50,000l in China. If you're going to buy high quality lpg filling plant tank 25tons 50,000l, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG filling plant tank(also called lpg tank,lpg plant tank,lpg station tank,propane tank,lpg storage tank,bullet lpg tank,cooking gas tank,liquified petroleum gas tank,gas station tank,lpg bulk storage tank,autogas tank,propane storage tank,lpg gas tank) is made from welded steel Q345R and is designed and used for storing hydrocarbon gas including propane,butane,lpg...
--LPG filling station tank from clw group hubei chengli special automobile co., ltd is optional for tank size from 5,000liters to 200,000liters usually,from 2tons to 100tons.
--Design standard: GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Material: Q345R;
--Optional for lpg plant equipment and accessories
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design and same strict working standard for Chinese and overseas market;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg filling plant tank;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;

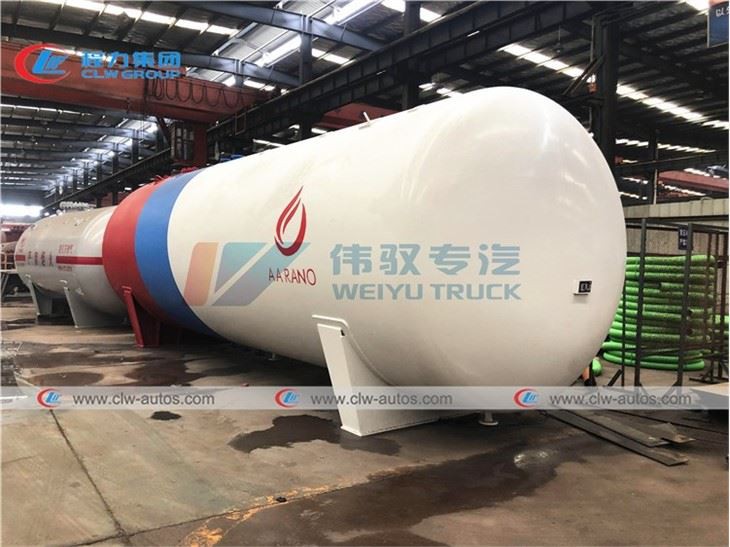

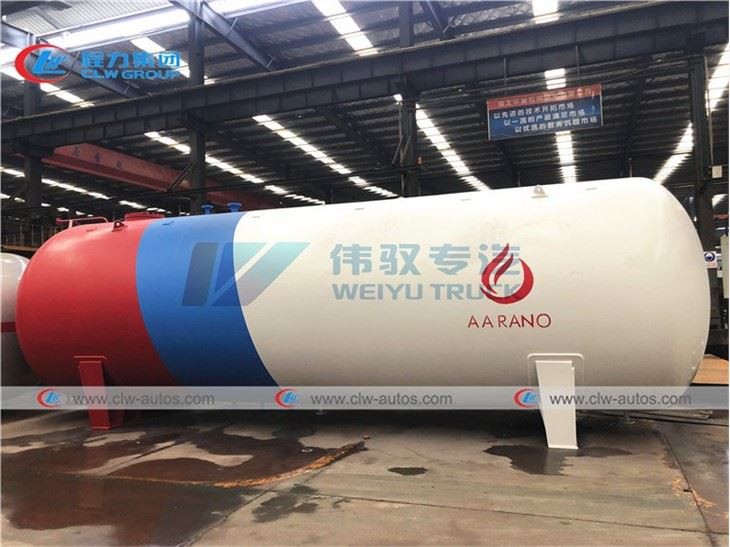

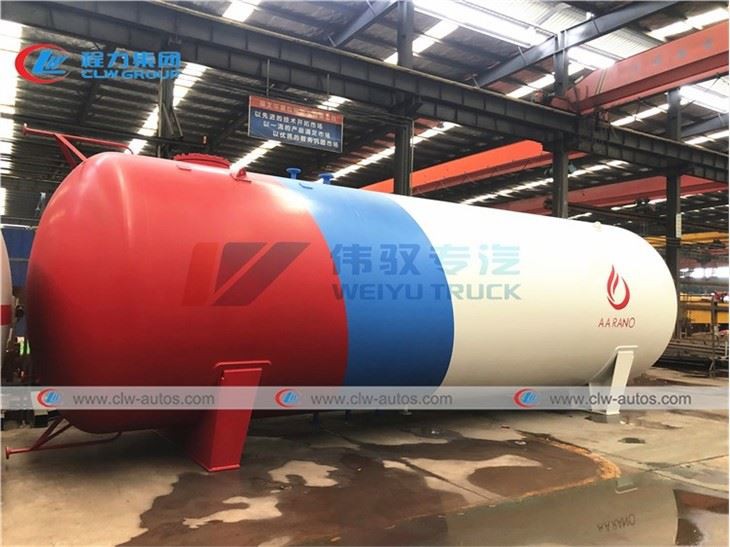

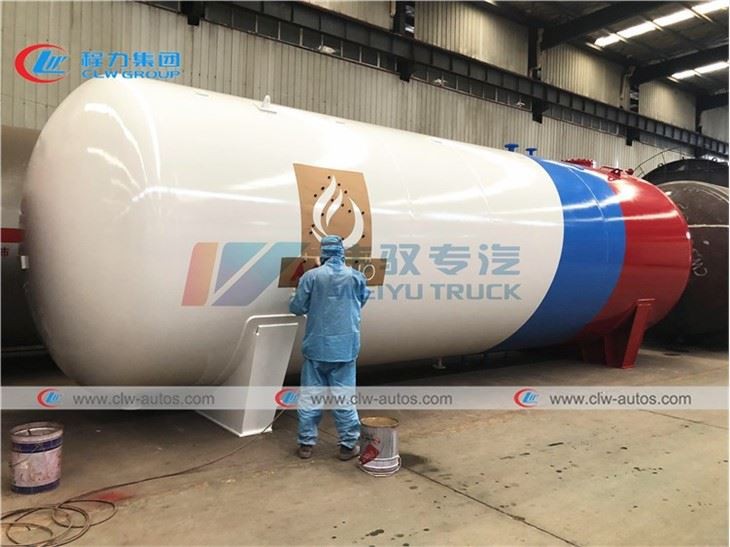

Reference picture

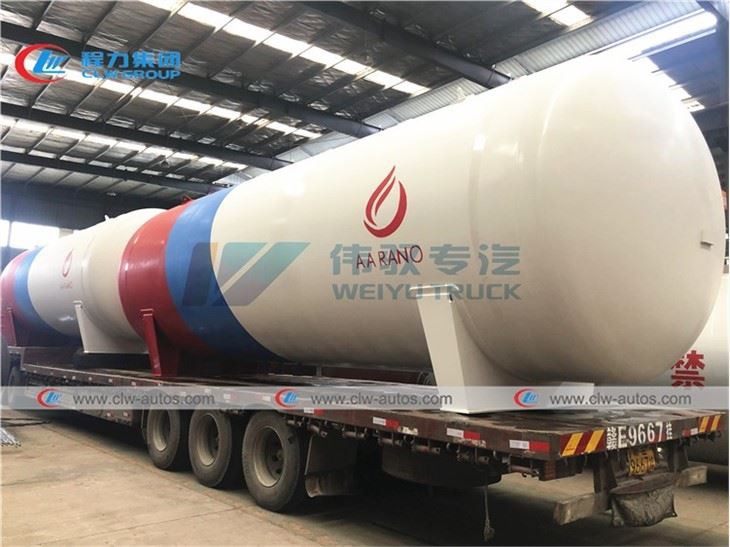

(lpg filling plant tank 25tons delivery to shanghai port)
Specification
Item No. | Parameters |
Volume of Tank (cbm) | 50 |
Tare Weight (kg) | 10640 kg |
Filling Capacity (kg) | 19950 kg |
Thickness of Shell (mm) | 14 |
Thickness of Endplate (mm) | 16 |
tank cylinder diameter (mm) | 2700 |
External Dimensions (mm) | 9182*2728*3318 |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas |
Design Pressure | 1.77MPa ( 256.65 Psi) |
Corrosion Allowance | 1 mm |
Medium Density | 420 kg/ cbm |
