Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng cng engine 5cbm garbage compactor truck in China. If you're going to buy high quality dongfeng cng engine 5cbm garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
1. The garbage Compactor truck is also known as the carriage and compression garbage truck. It is mainly suitable for the collection and transportation of garbage in various places such as municipal sanitation, property management, large-scale factories, industries, and mines.
2. The garbage can be completely compressed by the full hydraulic control operating system.
3. The utility model can realize the combined operation of a car and a plurality of garbage compartments, circulate transportation, and fully improve the transportation capacity of the vehicle.
4. One car can carry multiple boxes, which is efficient, energy saving and cost saving.
5. The truck chassis is Dongfeng brand, CNG engine which can be much better for envirenmental protective.
6. Our garbage Compactor truck has the features : a. reasonable structure b. simple and stable operation; c. High efficiency; d. Good sealing performance; e.Easy Dumping;

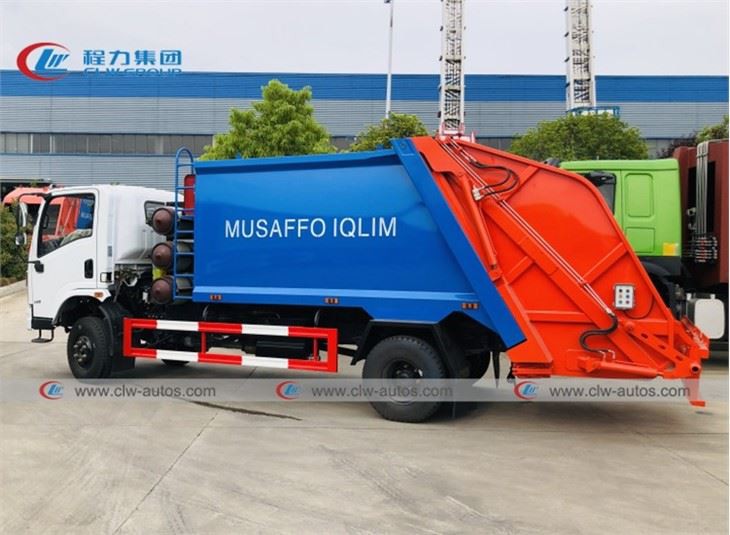

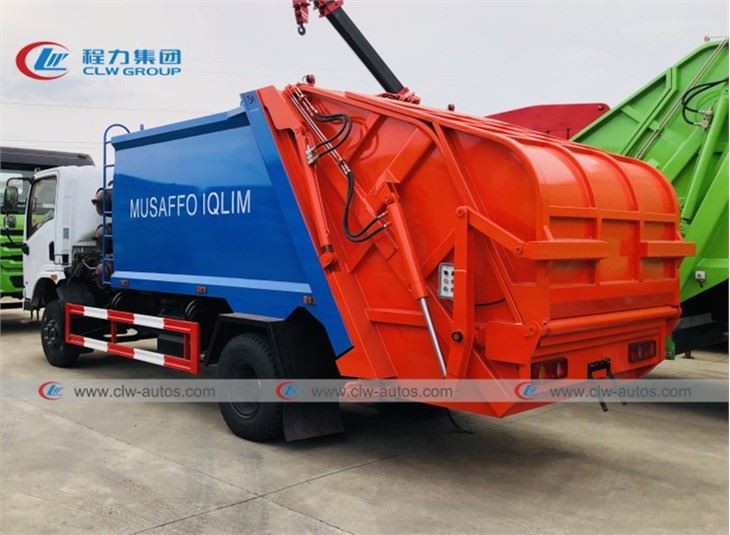

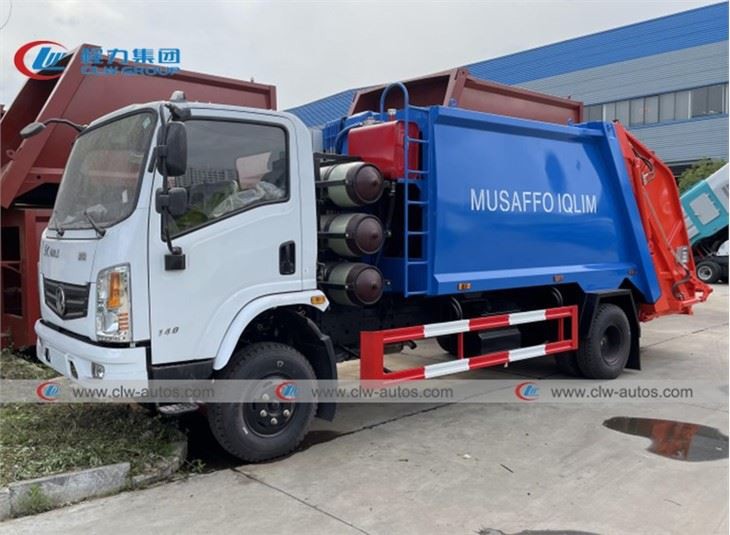

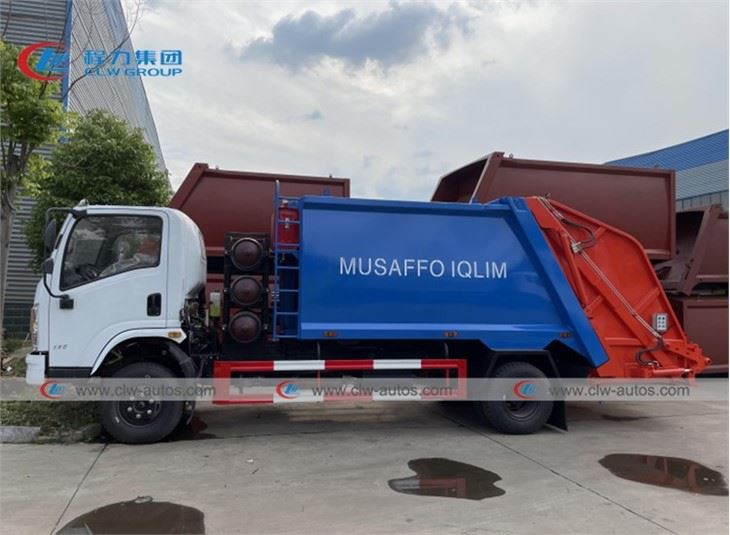

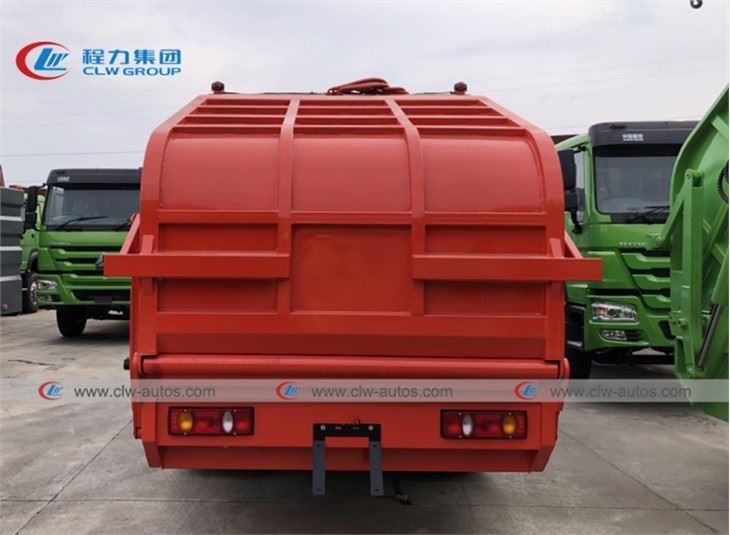

Detailed pictures for Dongfeng CNG Engine 5CBM Garbage Compactor Truck:
Paramaters for Dongfeng CNG Engine 5CBM Garbage Compactor Truck:
| Dongdfeng 4x2 CNG Engine 5cbm Garbage Compactor Truck | |||||
| Overall Dimension | 6125*2500*2600mm | Gross Vehicle Weight | 7400 kg | ||
| Curb Weight | 2500kg | Loading Weight | 2900kg | ||
| Wheel Base | 3360 mm | Front / Rear Axle | 2400/4200kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine model | CNG engine, | ||||
| Engine horsepower | 116HP | ||||
| Max Driving Speed | 100 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.50R16(6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 5CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with high quality dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Optional for different methods of waste collection which should be confirmed with us, different type, the cost is different:
NO. | Name | Structure and performance characteristics |
1 | Trash Bin | Optional for 120/240、660L plastic trash bin Or 330Lsteel material trash bin. |
2 | Manual and pneumatic sealing cover | Optional for 120/240、660L plastic trash bin.
|
3 | Triangle trash hopper | Optional for 120L、240L plastic trash bin. Hopper inside can load two 240L plastic trash bin.
|
4 | All-sealing trash hopper | with large landing bucket, have high operation efficiency and self sealing function
|
5 | Swing arm system with hopper. | With the swing arm dustbin (with a volume of about 2.5-3m3), multiple dustbin collection points can be placed in one plant area.
|
