Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6ton dongfeng kingrun boom crane truck with 1 ton hydraulic platform in China. If you're going to buy high quality 6ton dongfeng kingrun boom crane truck with 1 ton hydraulic platform, welcome to get more information from our factory. For price consultation, contact us.
1Ton Platform Lifting 6Ton Dongfeng Kingrun Crane Truck in Telescopic Straight Arm
Major Specification:
1. Truck Brand: Dongfeng Brand, 170HPCummins Engine, FAST Gearbox, 9.00R20 Tire
2. Crane: 6Ton Crane, Straight arm, CLW Brand or XCMG, SANY Plafinger.
3. Box: 5600x2200x550m, Carbon Steel, 2mm side, 3mm bottom
4. Lifting Platform: Hydraulic Control,1Ton to 2Ton Lifting Capacity.
5. Fuction: equipment delivery, electrical pole delivery, etc
Product Specification
General Description | |||||||||||
Overall Dimension(mm) | 8600×2490×3650 | Cargo body size | 5600*2200*550 | ||||||||
Gross Weight | Appro* 12000Kg | Driving type | 4*2, left hand drive | ||||||||
Curb weight | Appro* 6120Kg | Rated loading capacity kg | 6000 | ||||||||
Wheel base (mm) | 3950 mm | Axle number | 2 | ||||||||
Approaching/Departure Angle(°) | 23/20(°) | F/R Axle load(kg) | 3600/7650 | ||||||||
Passengers in cab | 3 | Maximum speed(km/h) | 90 | ||||||||
Number of Tires | 6 (1 spare piece) | Tyre type | 9.00-20 | ||||||||
Front/Rear suspension(mm) | 1250/2650 | Front/Rear track base (mm) | 1920/1860 | ||||||||
Transmission | 6 Forward with 1 Reverse, manual | Fuel type | Diesel oil | ||||||||
| |||||||||||
Brand | Cummins | Model | B170-33 | ||||||||
Displacement (L) | 5.9 L | Emission Standard | EURO III | ||||||||
Max Power Output | 125 kw | Horse power | 170HP | ||||||||
Number of cylinders | 6 | Cylinder spread pattern | In-line | ||||||||
|
|
| 2500 | ||||||||
Crane Model(5 Ton 3 telescopic arms crane) | SQ5SA2 | Unit | |||||||||
Max Lifting Capacity | 5000 | kg | |||||||||
Max Lifting Moment | 12.5 | T.M | |||||||||
Recommended Power | 20 | KW | |||||||||
Recommended Hydraulic Flow | 40 | L/min | |||||||||
Rated hydraulic Pressure | 20 | MPa | |||||||||
Oil tank capacity | 100 | L | |||||||||
Crane Weight | 2200 | kg | |||||||||
Installation Space | 900 | mm | |||||||||
Rotation Angle | 400° | ° | |||||||||
lifting capacity table | |||||||||||
Working radius(m) | 2.5 | 3.95 | 6.3 | 8.65 | |||||||
Rated loading(kg) | 5000 | 2250 | 1450 | 1000 | |||||||

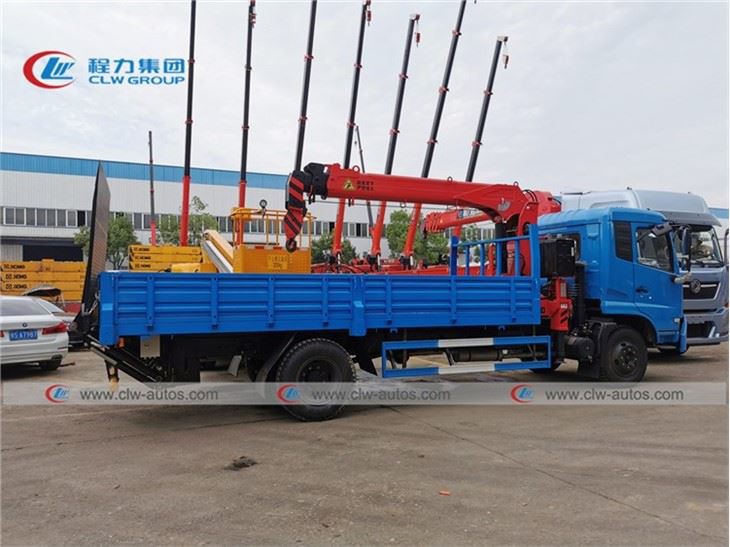

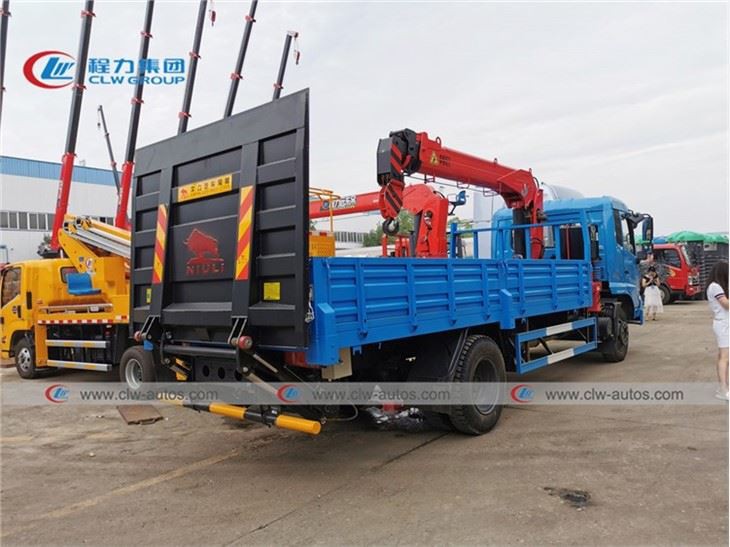

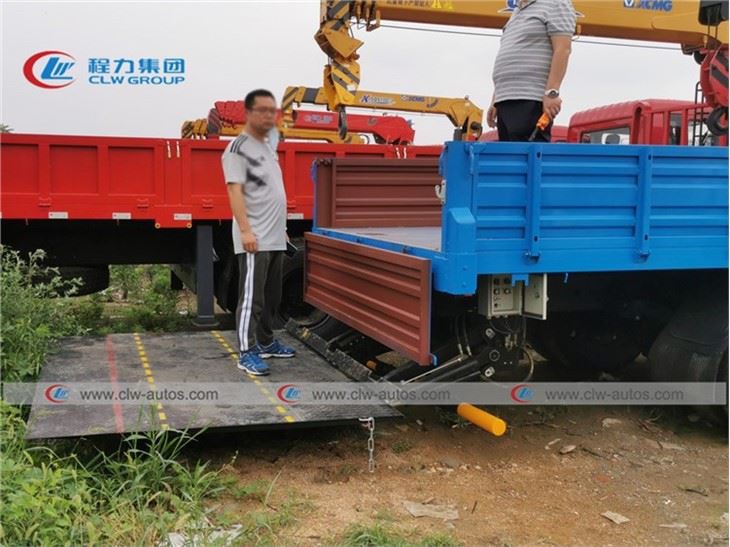

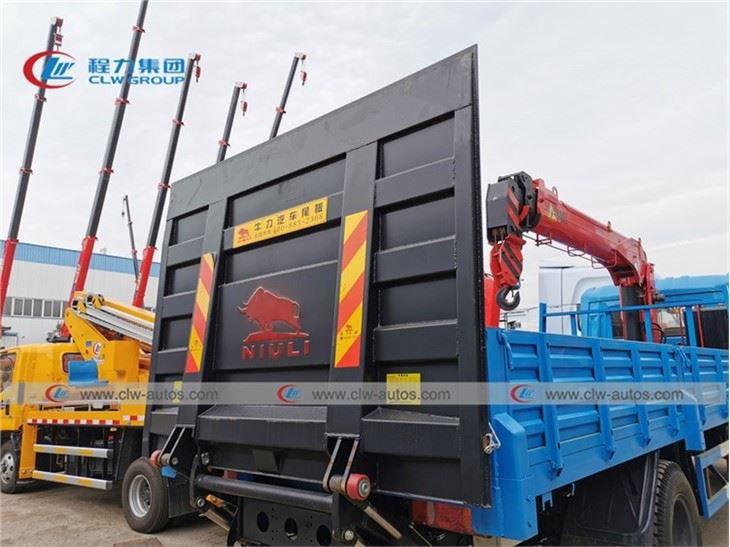

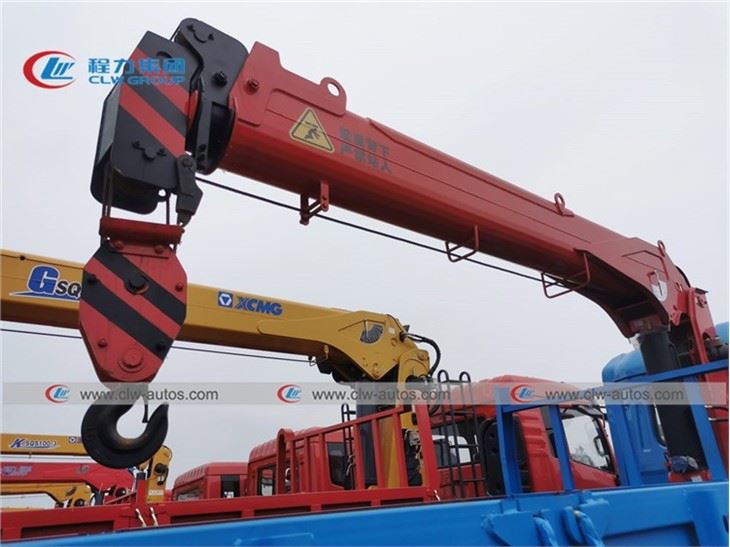

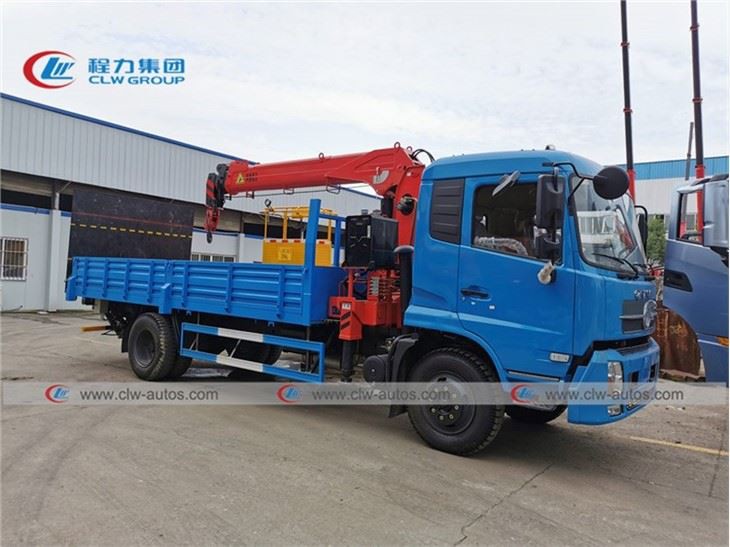

Product Photos Detail
