Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of man 6x4 8tons tank fire emergency rescue truck in China. If you're going to buy high quality man 6x4 8tons tank fire emergency rescue truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. MAN 6X4 fire fighting truck is composed with truck body and cabin, cabin is two rows, which can allow 6 persons. The front part of truck body is equipment room, middle is water tank and foam tank, rear is pump room.
2) To ensure good performance of fire trucks, howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.
Prodution Specification
| Model | Parameters | others |
| Brand | MAN | |
| Driving Type | 6x4 | |
| Overall Dimension | 9200×2550×3350 | |
| GVW | 33000kg | |
| Engine Model | D2066LF06 | |
| Engine Power | 294KW/400HP | |
| Wheelbase | 3900+1350mm | |
| Max.speed | 90km/h | |
| Emission Standard | 10518ml | Euro 5,6 |
| Passengers | 2+4 | |
| Tyres | 315/80R22.5 | |
| Fire pump rated flow | 60L/s@1.0Mpa;30L/s@2.0Mpa | Vacuum pump |
| Water monitor rated flow | 48-64L/s | Adjustable |
| Water monitor range | Water range≥60m,foam≥55m | |
| Approach angle | ≥16° | |
| Departure angle | ≥23° |
| Item | Parameters | others | |||||
| 1 | Water tank capacity | water | 6000 | Built-in type | |||
| Foam tank capacity | foam | 2000 | |||||
| 2 | Fire pump model | CB20·10/30·60 | Shanghai rongshen | ||||
| 3 | Fire pump performance | condition | Pressure1:1.0Mpa flow:60L/S Pressure2:2.0Mpa flow:30L/S | Use vacuum pump to priming water | |||
| 4 | The installation site of fire pump | rear | |||||
| 5 | The quantity of fire pump water outlet | 6 | |||||
| 6 | Pressure gauge | 0-1.6 Mpa, 0-2.5 MPa | 2.6 level | ||||
| 7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||||
| 8 | Water monitor (PL48-64YZ) | water | Flow: 48- 64L/S | Range:60m | Shandong zhangqiu | ||
| foam | Range:55m | ||||||
| Depression/Elevation angle | -30-+70° | ||||||
| Turning angle 360° | |||||||
| 9 | PTO Model | YTQ590K type full power sandwich , pneumatic | |||||

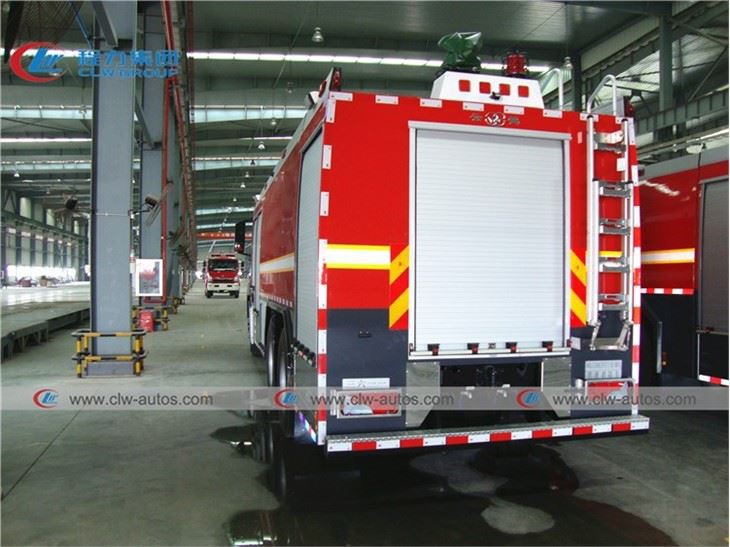

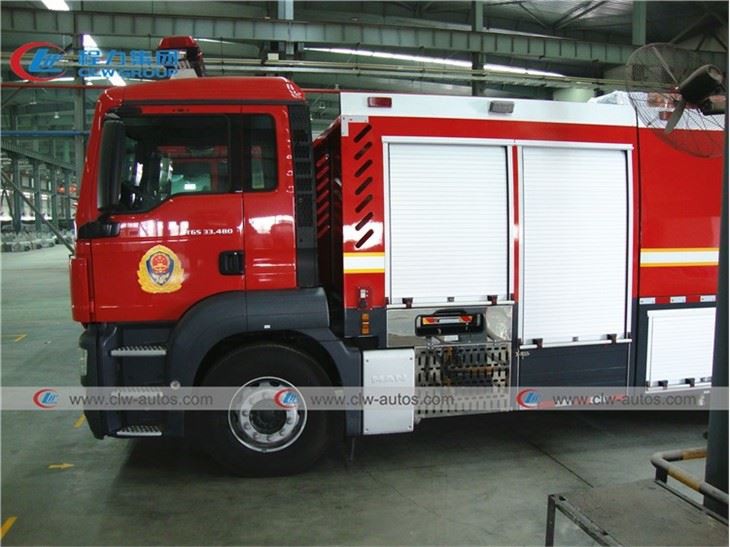

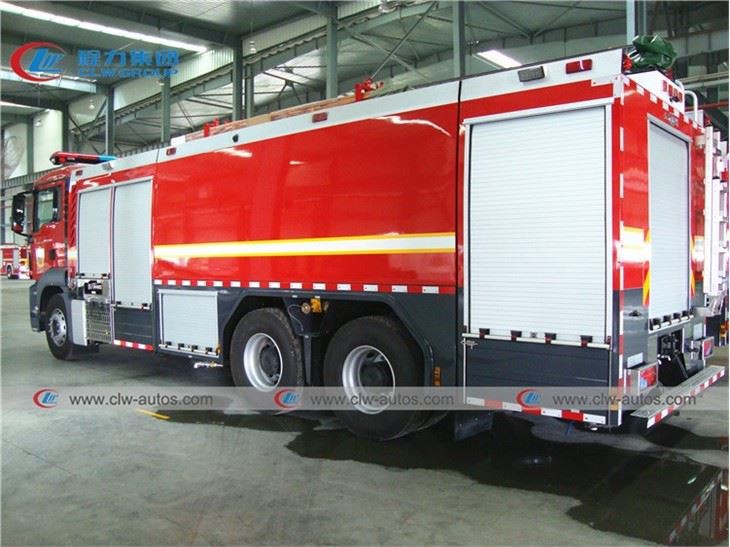

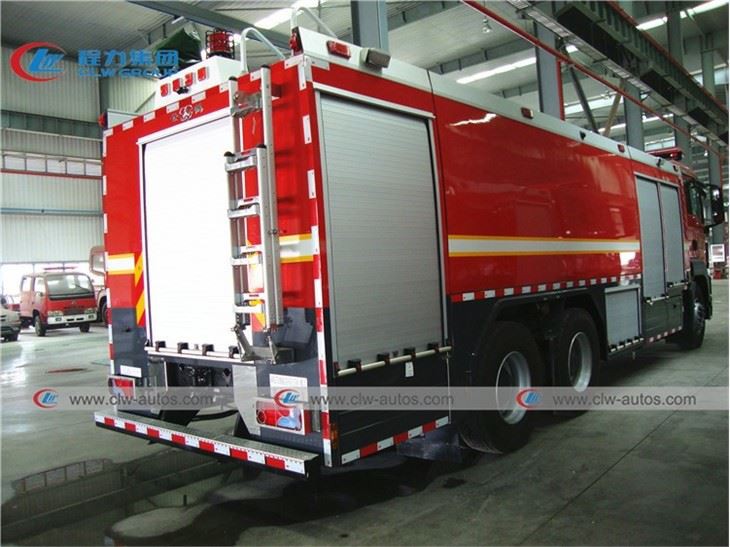

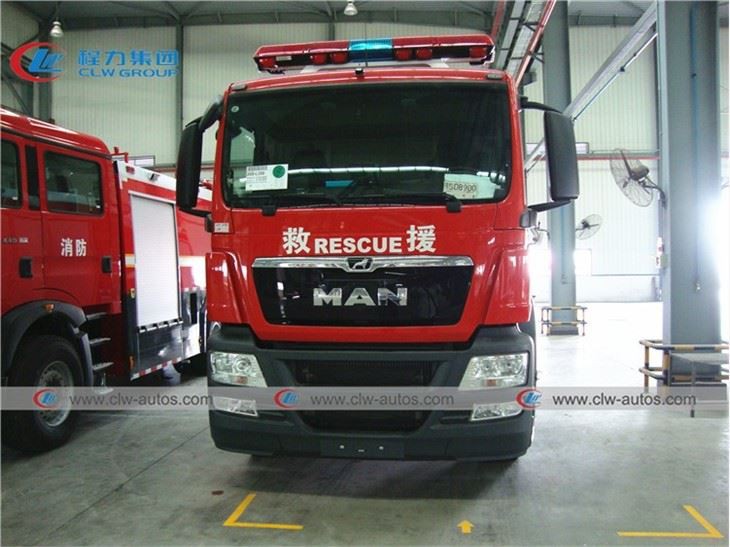

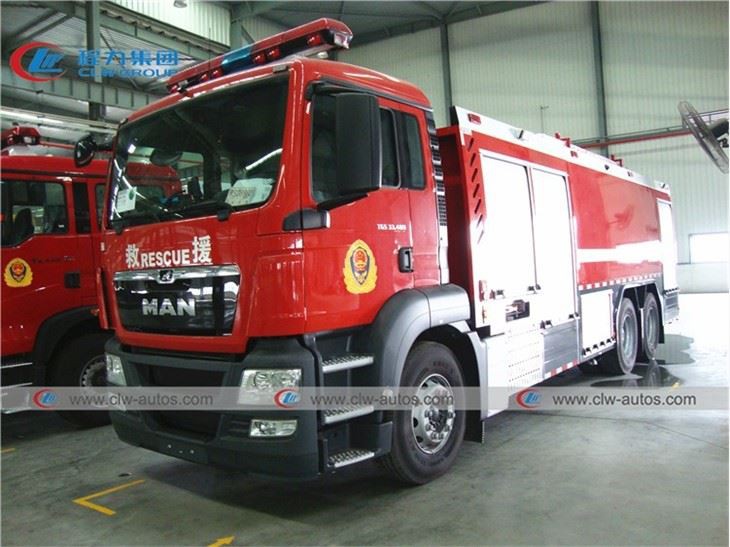

Product pictures
