Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 6x4 10000liters fire fighting truck in China. If you're going to buy high quality isuzu 6x4 10000liters fire fighting truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. ISUZU 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 5-6 persons. The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.
Product Specifications
| Chassis | Chassis brand | / | ISUZU |
| Model | / | QL1250 | |
| Drive type | / | 6x4 left hand drive | |
| Cabin | / | double cabin, two row, 2+3 seats | |
| Overall dimension(L*W*H) | mm | 9775x2500x3560 | |
| Total mass | kg | 25000 | |
| Rated Loading capacity | kg | 11050 | |
| Wheel Base | mm | 5100+1300 | |
| Front /rear suspension | mm | 1335/1950 | |
| Approach/departure angle | (°) | 26/12 | |
| Spring No. | / | 9/10 | |
| Tyre No. | pcs | 11 pcs, one spare tyre | |
| Type & Size of Tyre | / | 11.00-20 | |
| Axle No. | / | 3 | |
| Steering wheel | / | left hand drive | |
| Engine | Engine model | / | 6HK1-TCSG40 |
| Engine brand | / | ISUZU | |
| Maximum power | KW/HP | 206/280 | |
| Fuel type | / | diesel | |
| Displacement | ml | 7790 | |
| Max torque | N.m | / | |
| Rated rotor speed | Rpm | / | |
| Emission Standard | / | Euro IV, V | |
| 8,000 liters water tank & 2000 liters foam tank | |||
| Fire pump | Model | / | CB10/60, normal pressure pump |
| Pressure | Mpa | ≥1.0 | |
| Max suction height | m | 7 | |
| Flux | L/S | 60 | |
| Rated speed | r/min | 3000 | |
| Time of drawing water (s) | s | ≤35 | |
| Input diameter | mm | 125 | |
| Outlet diameter | mm | 2xΦ75 | |
| Fire monitor | Model | / | PL48 |
| Fire fighting nozzle range | Water (m) | ≥60 | |
| Foam (m) | ≥55 | ||
| Flux | L/S | 48 | |
| Rated Working pressure | Mpa | 1 | |
| Rotation angle | (°) | 360 | |

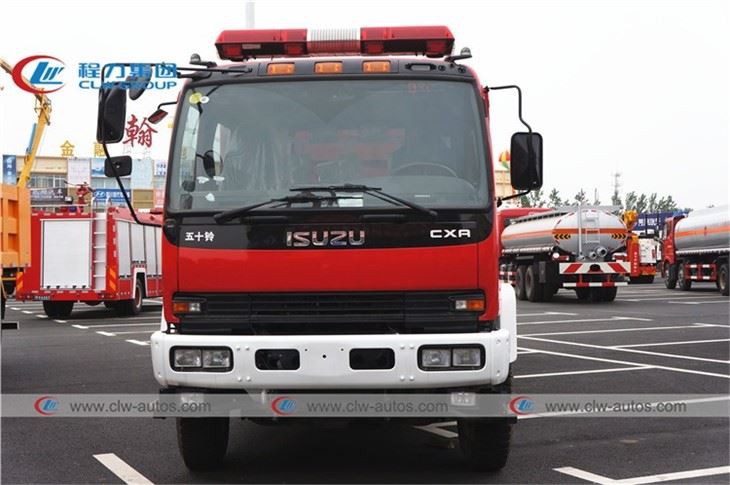

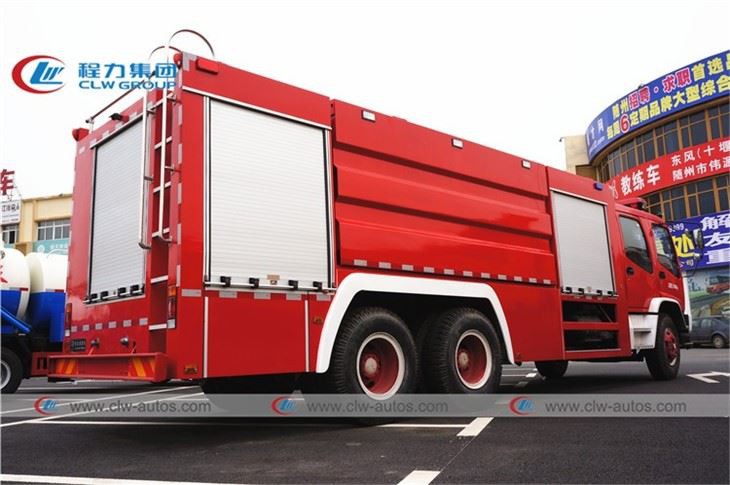

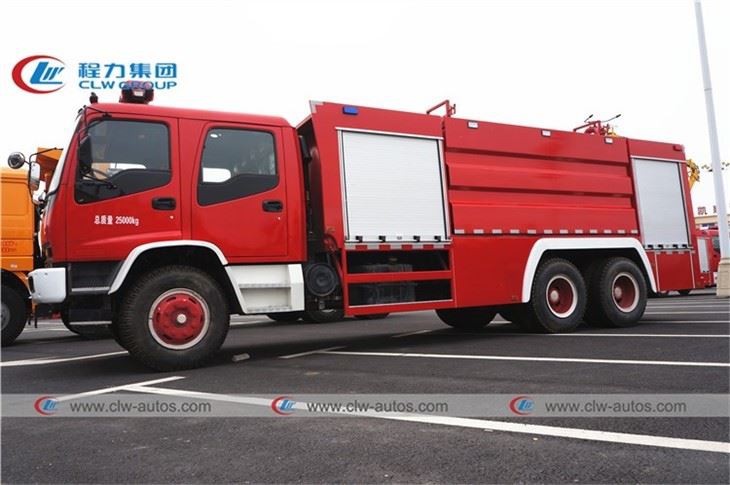

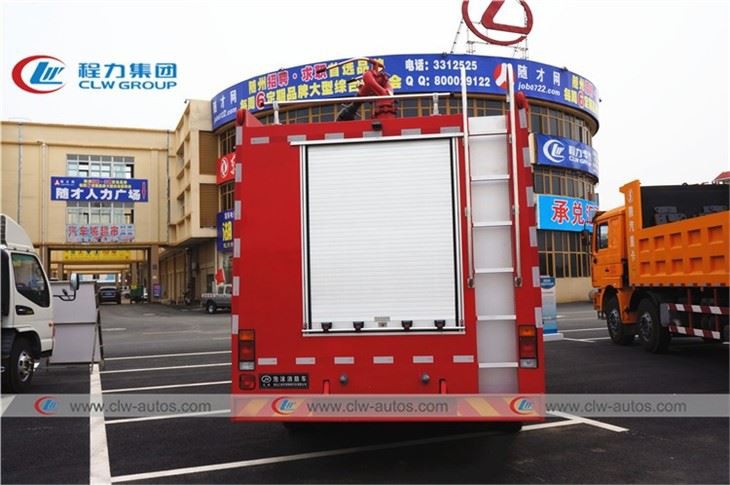

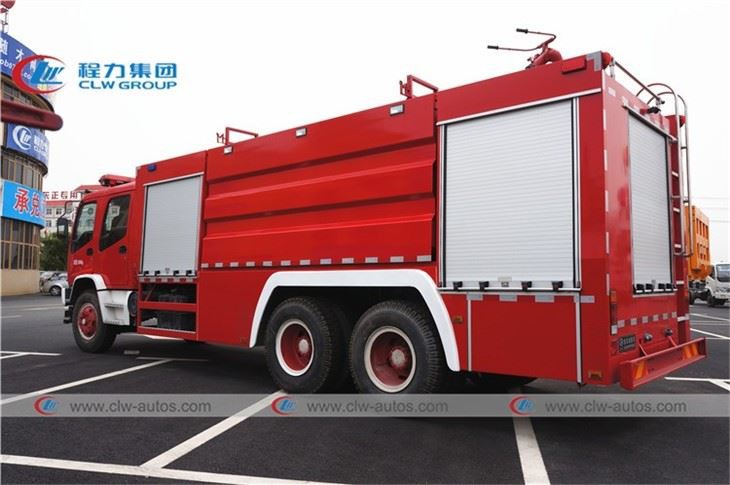

Product pictures
