Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10cbm 5mt lpg storage tanker in China. If you're going to buy high quality 10cbm 5mt lpg storage tanker, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose: For storage LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of propane Storage Tank: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.
4. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
5. LPG pump: China famous brand and US Corken brand for optional.
6. Level gauge: China famous brand and International brand for optional.
7. Tank material: High quality carbon steel Q345R for pressure vessel.
8. Painting and LOGO: We can do the customized design of the painting and LOGO for each customer.
9. Certificate: ISO CCC SONCAP FERI and BV etc.
Prepare works before place the order to us
1. Buy or hire a land of this gas plant project.
2. Find a engineer to assist of the construction works or directly call us.
To all customers
1. Why we buy the LPG storage tanker and necessary accessories of the gas plant?
CLW group reply: To start the LPG business and make money.
2. How we can make big money from this business?
CLW group reply: Cooperate with reliable supplier and who can provide the professional suggestion to you.
3. What's the reliable supplier?
CLW group reply: They will provide you all the necessary aceessories list for a complete gas plant
4. Purchasing concept
CLW group reply: Save time, earn enough moeny and have future.
5. Why choose us?
CLW group reply: Long time experience in this LPG business and cooperated with many Nigeria, South American and Middle East professional engineers. Our LPG storage tanker and LPG accessories have been exported to more than 30 countries such as Nigeria, Tanzania, Uganda, Rwanda, UAE, Ivory Coast, Ghana, Kenya, LAOS and South America etc.

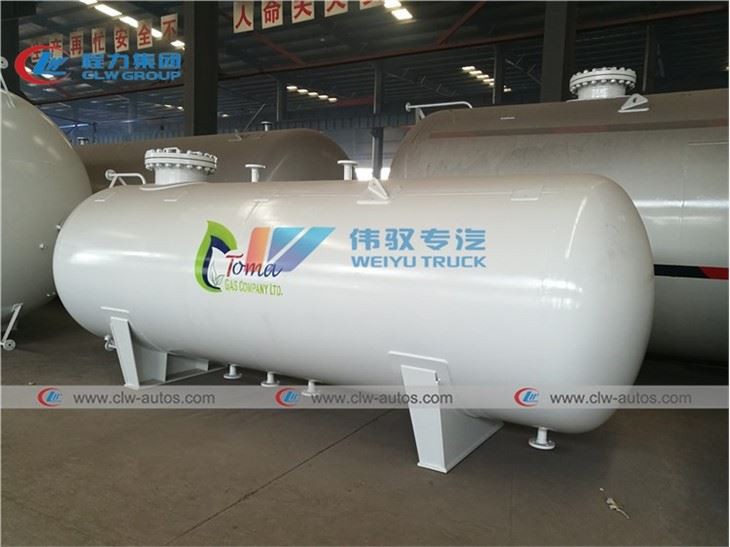

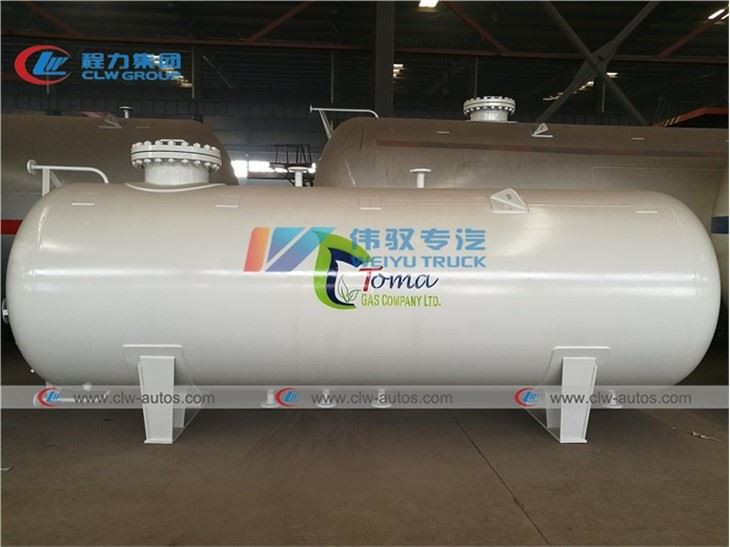

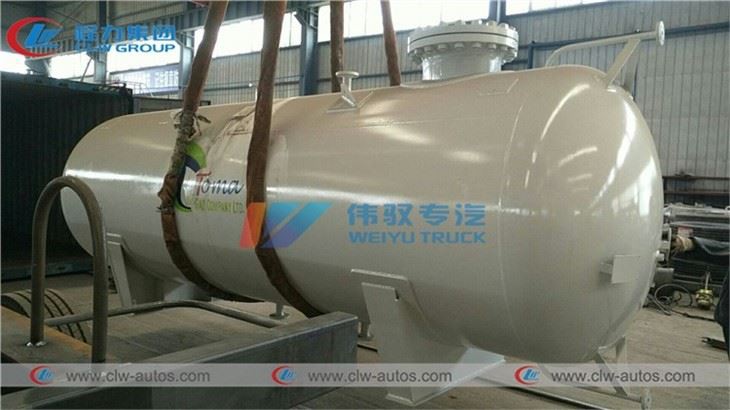

Reference picture
Available LPG Storage Tanker Size
10CBM 5MT LPG Storage Tanker
5CBM 2.5MT LPG Storage Tanker
12CBM 6MT LPG Storage Tanker
15CBM 7.5MT LPG Storage Tanker
20CBM 10MT LPG Storage Tanker
25CBM 12.5MT LPG Storage Tanker
32CBM 16MT LPG Storage Tanker
40CBM 20MT LPG Storage Tanker
50CBM 25MT LPG Storage Tanker
60CBM 30MT LPG Storage Tanker
65CBM 32MT LPG Storage Tanker
80CBM 40MT LPG Storage Tanker
100CBM 50MT LPG Storage Tanker
105CBM 52MT LPG Storage Tanker
120CBM 60MT LPG Storage Tanker
200CBM 100MT LPG Storage Tanker
Available Level Gauge for 5-200CBM LPG Storage Tanker
①Float Ball type level gauge
②Magnetic reversible level gauge
Specification
| Parameter of 10CBM 5MT LPG Storage Tanker | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 10cbm | Thickness of Shell | 10mm | |||
| Tank Material | Q345R | Thickness of End plate | 10mm | |||
| Overall Size | 5260*1620*2210 mm | Tank Net Weight | 2950 kg | |||
| Tank Diameter | 1600mm | Loading Capacity | 4750 kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420-550kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 20 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
