Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 5000l diesel fuel tanker truck in China. If you're going to buy high quality sinotruk howo 5000l diesel fuel tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Fuel tank truck(also called oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.
1.
Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2.

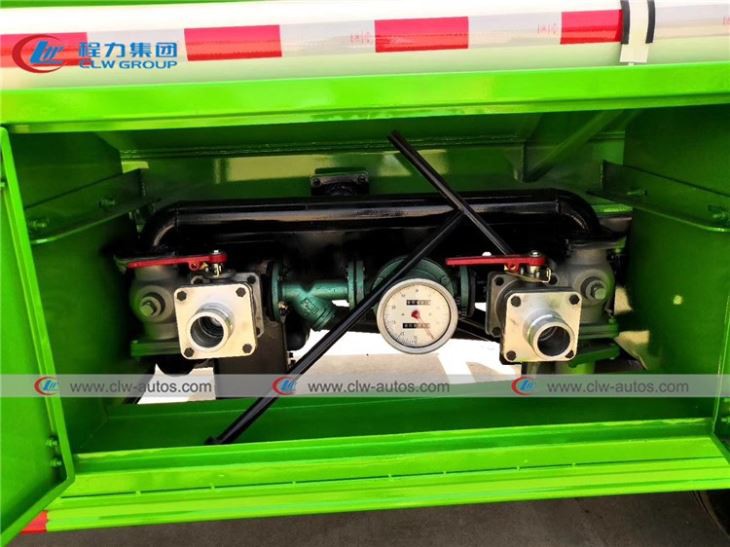

Optional for Refueling System: Oil pump, Hose reel with filling gun/Oil dispenser machine
3.
Optional for
Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
4.
Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5.
Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6.
Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Condition | Brand new/left hand drive or right hand drive/4X2 | ||
| Brand | Howo | |
Wheelbase(mm) | 3360 or 3800 mm | ||
Dimensions(mm) | 6200X2180X2510 mm | ||
Front/Rear Axle loading(kg) | 2400/4200 kg | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 7.50R16 | ||
| Manual type, 6 Forwards and 1 reverse | ||
| It can accommodate three people with cabin width 2mm and with Air Conditioner | ||
| Brand | Yuchai | |
Model | YN4102QBZL | ||
Fuel type | |||
Displacement(ml) | 3760 ml | ||
Power(kw) | 85kw | ||
Horsepower(HP) | 116HP | ||
Cylinder number | 4 | ||
Emission standard | Euro II | ||
| |||
| Capacity(cbm/liters) | 5 cbm/5,000 liters | |
Tank material | Tank material:Q235 high tensile strength steel. | ||
Thickness(mm) | 5mm of tank and 6mm of end plate | ||
| 1 | ||
| ∮500mm 1 set with breather valve | ||
| 1 set of API Pneumatic Bottom Valves | ||
| 1 set ∮100 discharging valves | ||
| Pneumatic control at tank two sides | ||
| At rear of tank | ||
| Color and design as customer’s requirement | ||
Key word: 5tons fuel truck,5t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck
