Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6x4 20-25tons wrecker tow truck in China. If you're going to buy high quality sinotruk howo 6x4 20-25tons wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.
Product description:
Wrecker tow truck is also called wrecker towing truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck,
towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Our Wrecker tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
3. Capacity: 20-60tons
Product specifications:
| Cabin | HW76(with one bed)/HW79(with two beds) | |
| Wheelbase | 5200+1350mm | |
| Overall dimensions(LxWxH) | 10500×2500×3300mm | |
| Tare Weight | 13,500kg | |
| Engine | CNHTC brand , Euro II emission | |
| Clutch | Sinotruk Reinforced diaphragm clutch, diameter 430mm | |
| Gear box | Sinotruk HW19710, 10-speed forward and 2 reverse gear | |
| Front axle | HF7 drum, rated loading 7 ton | |
| Rear axle | MCY13Q driving axle | |
| Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
| Rated under-hoisting capacity | 10,000kg | |
| Max under-pulling capacity | 40,000kg | |
| Max under-hoist useful length | 3,100mm | |
| Max lifting capacity | 25,000kg | |
| Max Lifting Height | 4,830mm | |
| Extend-retract of Lifting Arm | 3,300mm | |
| Slope Angle of Lifting Arm | 5~33° | |
| Winch rating pulling capacity | 10,000kg*2 | |
| Length of steel | 45m | |

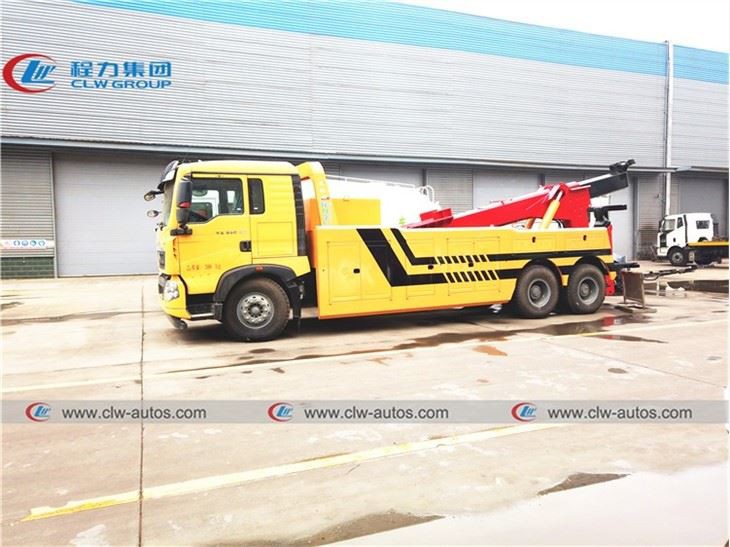

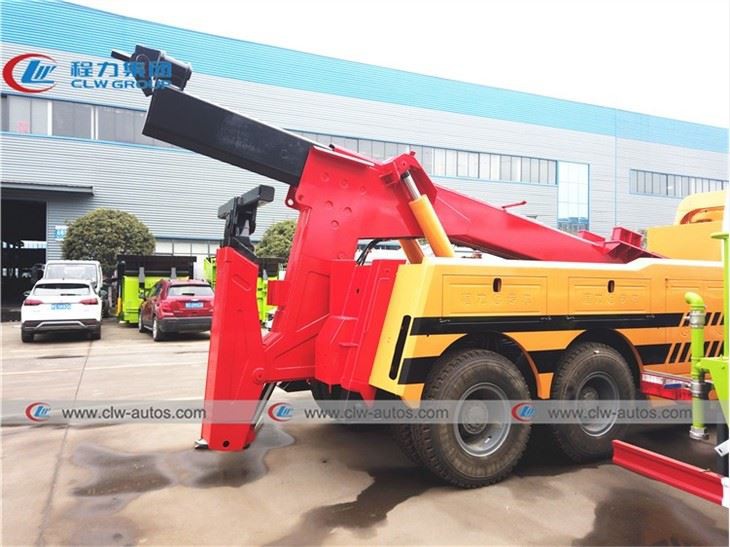

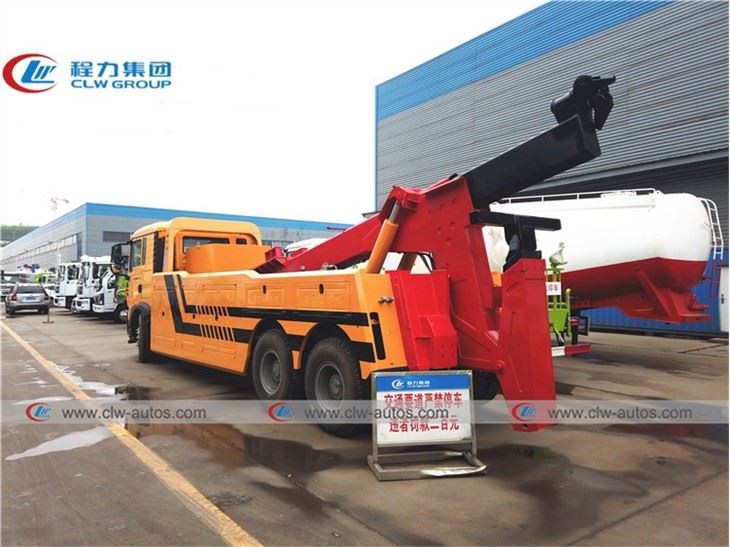

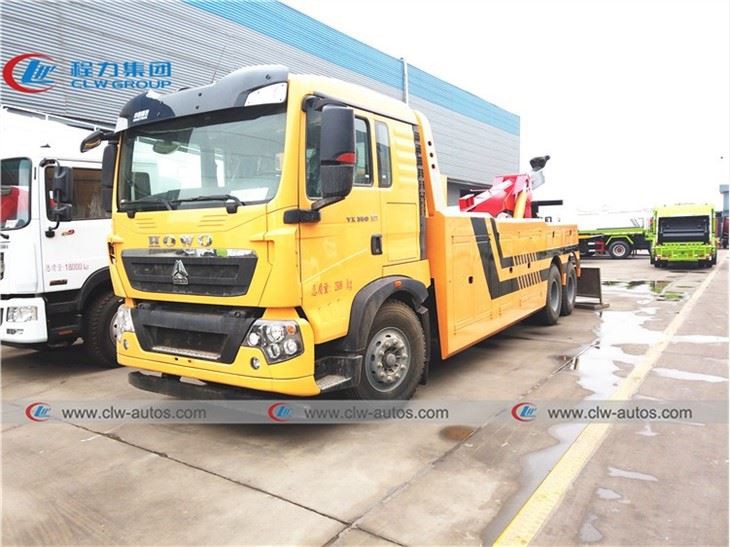

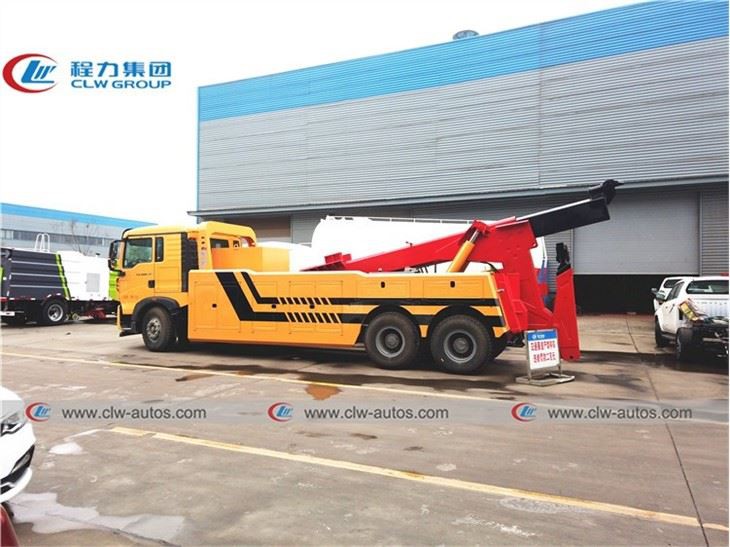

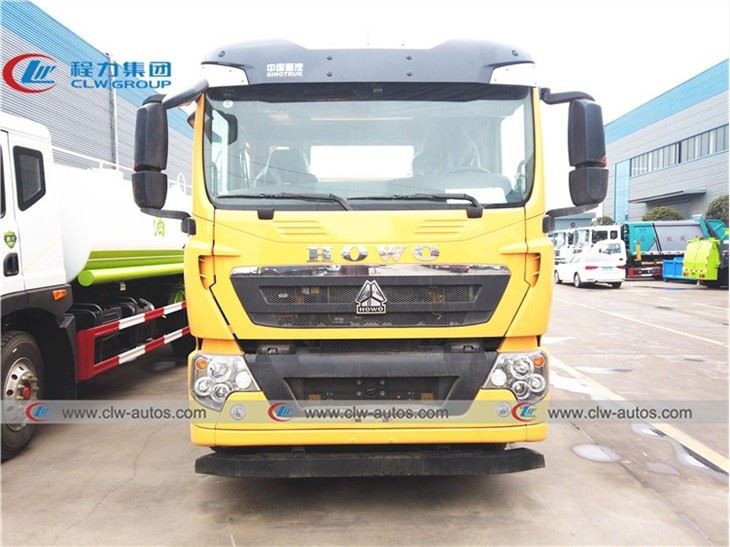

Product pictures:
Working scenario:
