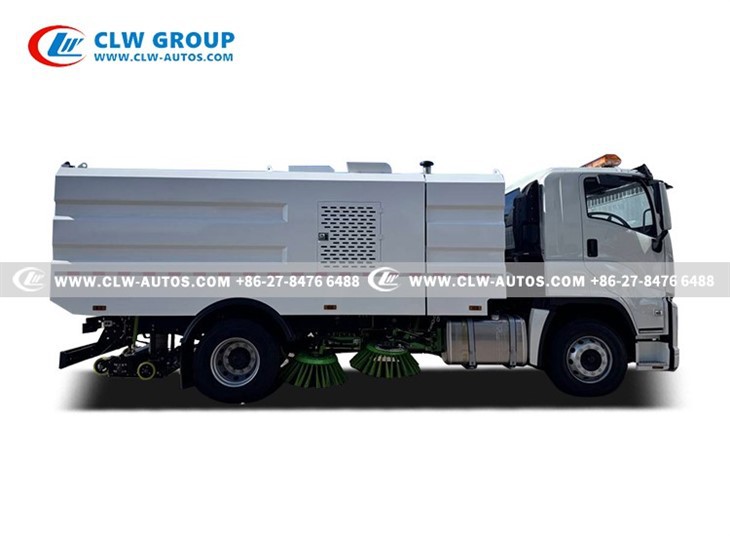

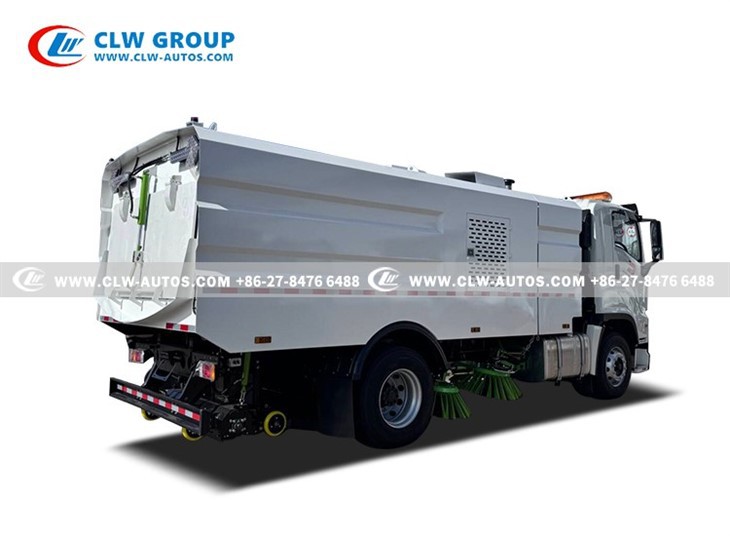

ISUZU FVR Road Sweeper Truck

Drive type:4x2
Water capacity:4m³
Garbage capacity:8m³
Auxiliary engine horsepower:140hp
ISUZU FVR 12CBM Road Sweeper Truck

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu fvr road sweeper truck in China. If you're going to buy high quality isuzu fvr road sweeper truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU GIGA FVR 4x2 12m³ Road Sweeper Truck



We are 100% Straight Factory Manufacturer

We have 100% Quality Assurance



Products Video




Summary of Vehicle Core Configuration



  • Chassis Model: Isuzu FVR (Medium-duty truck chassis)
  • Wheelbase: 4500 mm
  • Chassis Power: 300 hp
  • Superstructure Function: Sweeper vehicle (sweeping + water spraying for dust suppression)
  • Capacity: 12 m³ total (4 m³ water tank + 8 m³ garbage bin)
  • Auxiliary Engine: 140 hp (drives the sweeping and suction system)



Products Features and Advantages



1. Internationally Renowned and Reliable Chassis – Isuzu FVR

  • Global Recognition: Isuzu is a highly regarded commercial vehicle brand in the international market, known for its exceptional reliability, durability, and low operating costs. This significantly reduces procurement concerns and post-purchase maintenance challenges for overseas users.
  • Powerful Performance: The 300 hp main engine provides ample driving power, adapting to various road conditions and slope operations, ensuring efficient mobility between job sites.
  • Parts Commonality: Isuzu's global service network and spare parts supply system are well-established, making components relatively easy to obtain even overseas, ensuring high vehicle availability.



2. Efficient and Professional Sweeping Superstructure Design

  • Optimal Capacity Ratio: The "4 m³ water + 8 m³ dust" design is highly rational. The 4 m³ water tank ensures sufficient clean water for continuous dust suppression until the 8 m³ garbage bin is full, preventing secondary dust caused by water shortage during operation-especially suitable for dry and dusty regions.
  • Powerful Auxiliary Engine System: The 140 hp auxiliary engine provides ample power for the fan and hydraulic systems, ensuring strong suction capability and sweeping efficiency. It can easily handle large volumes of debris such as leaves, gravel, and metal scraps.
  • Comprehensive Sweeping Capability: Typically equipped with a "sweeping brush + suction nozzle" combination, it enables both large-area sweeping and deep cleaning of pavement cracks, achieving integrated "sweeping, suction, and spraying" for remarkable cleaning results.



3. Excellent Adaptability and Cost-Effectiveness

  • 4500 mm Wheelbase: This wheelbase length strikes a good balance between maneuverability and stability. The vehicle has a relatively moderate turning radius, making it suitable for urban roads, industrial parks, ports, and terminals, while also providing sufficient garbage bin capacity.
  • High Cost-Effectiveness: Compared to similar specialized vehicles from Europe and America, the Isuzu-based sweeper offers significant competitive advantages in procurement costs while maintaining high levels of work efficiency and reliability, delivering excellent value for money to overseas customers.



Products Primary Application Scenarios



  • Urban main roads and expressway service roads: For mechanical sweeping.
  • Large industrial parks and logistics parks: Handling solid waste and dust generated within the parks.
  • Ports, airports, and railway stations: Cleaning large, open areas with complex waste types.
  • Suburban areas and provincial highways: Managing road dust and roadside litter.
  • Areas around large events and venues: Conducting high-intensity, high-quality centralized cleaning.



Why Choose to Purchase This Specialized Vehicle?



  • Reliable and Durable, Low Total Cost of Ownership: The core chassis has a low failure rate and excellent fuel efficiency, significantly reducing lifecycle usage, maintenance, and downtime costs.
  • High Operational Efficiency Meets Demanding Requirements: The powerful dual-engine configuration and scientifically designed capacity enable continuous and efficient operation, allowing rapid completion of large-area sweeping tasks-truly delivering value for money.
  • Strong Adaptability and Wide Applicability: The vehicle specifications allow it to operate in most urban areas while also being capable of handling outdoor industrial cleaning, covering multiple operational needs with a single vehicle.
  • Brand Trust and Support: The "Isuzu" chassis itself is a trusted name, reducing procurement risks. Coupled with mature superstructure technology, it forms a complete and reliable solution.
  • Clear Return on Investment: For regions or enterprises seeking to enhance the mechanization level of sanitation operations, improve the urban environment, and control budgets, this vehicle is a balanced, economical, and practical "flagship tool."







Products Parameters



ISUZU Truck Parameters

Condition

New condition/4x2

Chassis

Brand

Isuzu

Curb weight

8895 kg

Wheelbase

4500 mm

Dimensions

8000 x 2500 x 2800 mm

Axle Load

6300/13000 kg

Max. driving speed

100 km/h

Tire

Specifications

6pcs with 1 spare tire



Number

295/80R22.5

Clutch

Reinforced diaphragm clutch

Gear box

Manual type, 8 Forwards & 1 Reverse

Cabin

3 Passenger Allowed

Engine

Model

ISUZU Diesel Engine, 6 Cylinders

Horsepower

240 HP

Emission standard

Euro Ⅵ

Displacement

7800 ml

Brakes

Air brake

Steering Gear

Power steering, hydraulic steering with power assistance

Sweeping System

Tank

Garbage tank

Tank material

Stainless steel 304



Tank volume

8m³

Water tank

Tank material

Stainless steel 304



Tank volume

4m³

Auxiliary engine

Model

CUMMINS diesel engine

Horsepower

140HP

Brush

Quantity

4 pcs

Working area

2.7-3.2 m

Sweeping speed

5~20km/h

Max.sweeping capacity

100000 ㎡/h

Garbage dump angle

≥45°

Cleaning

High pressure reel

18 meters

Remarks

1. Water sprayer bar

2. Rear vacuum cleaner

3. Blower

4. Rear LED pilot lamp

5. Self-unloading box body

6. The colour will be designed according to your requirements



Products Photos

4isuzu fvr road cleaning truck
5isuzu road sweeper truck
6isuzu road cleaning truck
8isuzu road sweeper-fvr cabin
7isuzu road sweeper truck front flush
9isuzu road sweeper-brushes
