Hey there! As a supplier of LPG storage tanks, I know firsthand how crucial it is to keep these tanks in top - notch condition. One of the biggest threats to LPG storage tanks is corrosion. In this blog, I'm gonna share some effective ways to detect corrosion in an LPG storage tank.
Why is Corrosion Detection Important?
First off, let's talk about why we even need to detect corrosion. LPG, or liquefied petroleum gas, is highly flammable. A corroded storage tank can lead to leaks, which not only pose a huge safety risk but also result in financial losses. Corrosion weakens the structural integrity of the tank, and if left undetected, it can cause the tank to fail catastrophically. So, regular corrosion detection is a must - do to ensure the safety of your LPG storage.
Visual Inspection
The simplest and most basic method of detecting corrosion is through visual inspection. You don't need any fancy equipment for this. Just walk around the tank and take a good look at it. Check for any signs of rust, discoloration, or pitting on the surface of the tank. Rust is a clear indication of corrosion. Pitting looks like small holes or depressions on the tank's surface, and it can be particularly dangerous as it can penetrate deep into the metal.
Look at the areas where the tank is in contact with the ground or any support structures. These areas are more prone to corrosion due to moisture and dirt accumulation. Also, check the welds. Welds are often the weak points in a tank, and corrosion can start there. If you notice any cracks or signs of corrosion around the welds, it's a red flag.
Ultrasonic Testing
Ultrasonic testing is a non - destructive testing method that's widely used to detect corrosion in LPG storage tanks. It works by sending high - frequency sound waves into the metal of the tank. These sound waves travel through the metal and bounce back when they hit a defect, like a corroded area. By analyzing the time it takes for the sound waves to return and the pattern of the echoes, technicians can determine the location and extent of the corrosion.
This method is great because it can detect corrosion that's hidden beneath the surface of the tank. You don't have to rely solely on what you can see on the outside. Ultrasonic testing can also measure the thickness of the tank walls. As corrosion eats away at the metal, the wall thickness decreases. By regularly measuring the wall thickness, you can track the progress of corrosion over time.
Magnetic Flux Leakage (MFL)
Magnetic flux leakage is another non - destructive testing technique. It's based on the principle that when a magnetic field is applied to a ferromagnetic material (like the steel used in LPG storage tanks), any defects or corrosion in the material will cause a leakage of the magnetic field.
A special device is used to apply a magnetic field to the tank's surface and then detect the leakage. This method is very effective for detecting corrosion in the tank's bottom plates. The bottom plates are often the most vulnerable to corrosion because they're in contact with the ground and can be exposed to moisture and contaminants. MFL can quickly scan large areas of the tank and provide detailed information about the location and size of the corroded areas.
Radiographic Testing
Radiographic testing involves using X - rays or gamma rays to create an image of the inside of the tank. This method is similar to getting an X - ray at the doctor's office, but for the tank. The rays pass through the metal of the tank and create an image on a film or digital detector. Any corroded areas will show up as darker or lighter spots on the image, depending on the type of radiation used.
Radiographic testing is very accurate and can detect even small defects and corrosion. However, it's also more expensive and time - consuming than some of the other methods. It also requires special safety precautions because of the use of radiation. So, it's usually used when a more detailed inspection is needed, especially for critical areas of the tank.
Eddy Current Testing
Eddy current testing is a non - contact method that uses electromagnetic induction to detect corrosion. When an alternating current is passed through a coil near the tank's surface, it creates eddy currents in the metal. Any changes in the conductivity or thickness of the metal, caused by corrosion, will affect the eddy currents. By measuring these changes, technicians can detect the presence of corrosion.
This method is fast and can be used to inspect large areas of the tank quickly. It's also good for detecting surface - breaking defects and corrosion in thin - walled sections of the tank. However, it's not as effective for detecting corrosion deep inside the metal as some of the other methods.
Impact of Environmental Factors
It's important to note that environmental factors can have a big impact on the corrosion rate of LPG storage tanks. For example, if the tank is located in a coastal area, the high salt content in the air can accelerate corrosion. Similarly, areas with high humidity or frequent rainfall can also increase the risk of corrosion.
If your tank is exposed to chemicals or pollutants, it can also cause corrosion. For instance, if the tank is near a factory that releases acidic gases, these gases can react with the metal of the tank and cause corrosion. So, when you're doing corrosion detection, you should also take into account the environmental conditions around the tank.
Regular Maintenance and Monitoring
Corrosion detection isn't a one - time thing. It should be part of a regular maintenance and monitoring program. Set up a schedule for visual inspections, and use non - destructive testing methods at regular intervals. Keep records of all the inspections and test results. This way, you can see if the corrosion is getting worse over time and take appropriate action.
If you detect corrosion, don't ignore it. Depending on the severity of the corrosion, you may need to repair the tank or even replace it. There are various ways to repair a corroded tank, like applying a protective coating or welding in new sections of metal. But in some cases, if the corrosion is too severe, replacement may be the only option.
Our LPG Storage Tanks

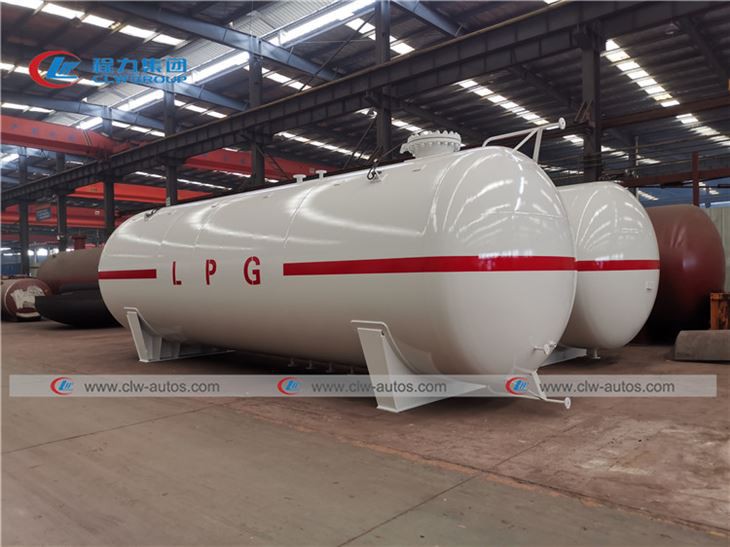

We offer a wide range of high - quality LPG storage tanks. Check out our 60,000Liters LPG Storage Tank, 20CBM 10MT 10T 10tons LPG Storage Tanker, and 35tons LPG Gas Tank 70m3 LPG Storage Tank. These tanks are built to last, but regular corrosion detection is still essential to keep them in great shape.
Get in Touch
If you're in the market for an LPG storage tank or need advice on corrosion detection and tank maintenance, don't hesitate to reach out. We're here to help you make the best choices for your LPG storage needs. Whether you're a small business or a large industrial facility, we have the expertise and products to meet your requirements.
References
- "Corrosion Prevention and Control in the Oil and Gas Industry" by NACE International
- "Non - Destructive Testing Handbook" by the American Society for Nondestructive Testing
