35tons LPG Gas Tank 70m3 LPG Storage Tank
Tank Capacity:35tons,70m3,7000Liters
Design Pressure:1.77Mpa
corrosion allowance :1mm
Tank Material: Q345R
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 35tons lpg gas tank 70m3 lpg storage tank in China. If you're going to buy high quality 35tons lpg gas tank 70m3 lpg storage tank, welcome to get more information from our factory. For price consultation, contact us.
Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Product Advantage

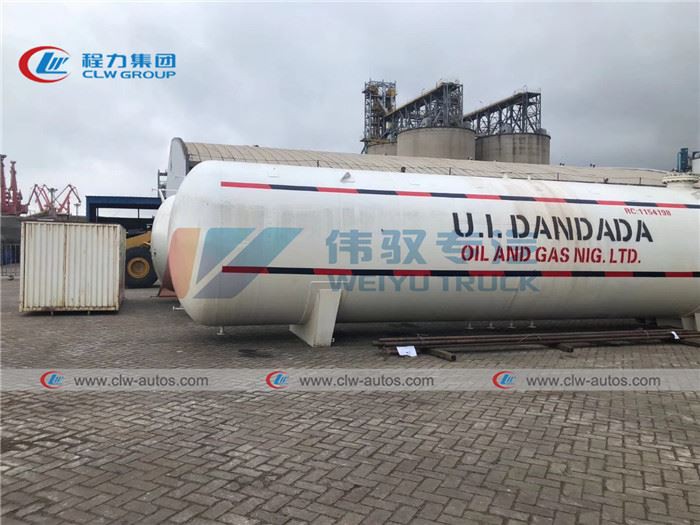

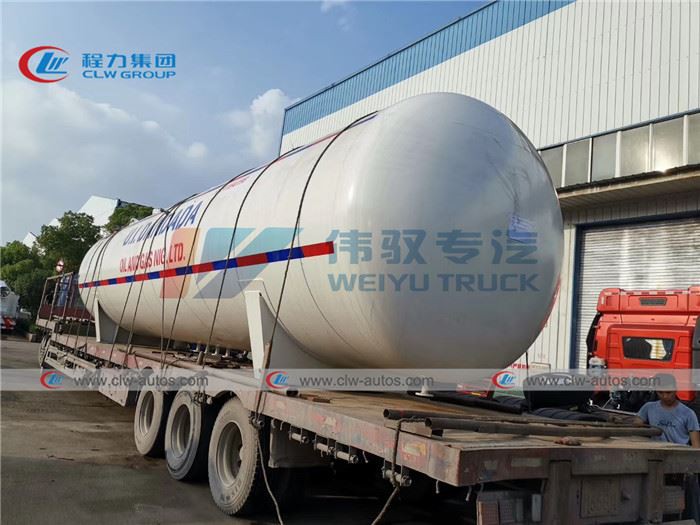

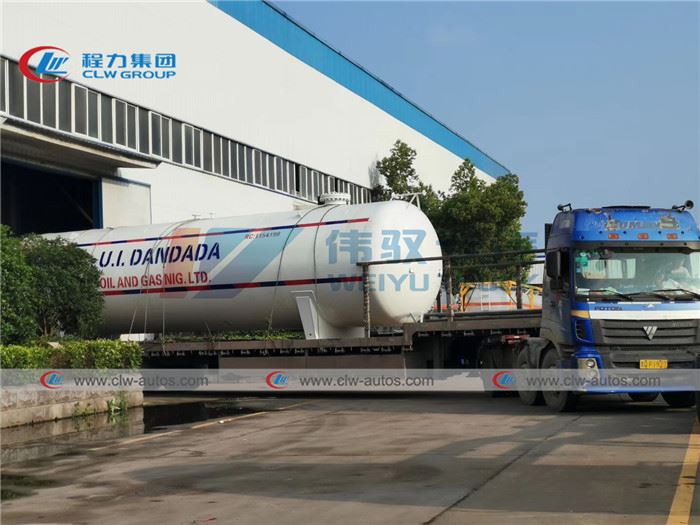

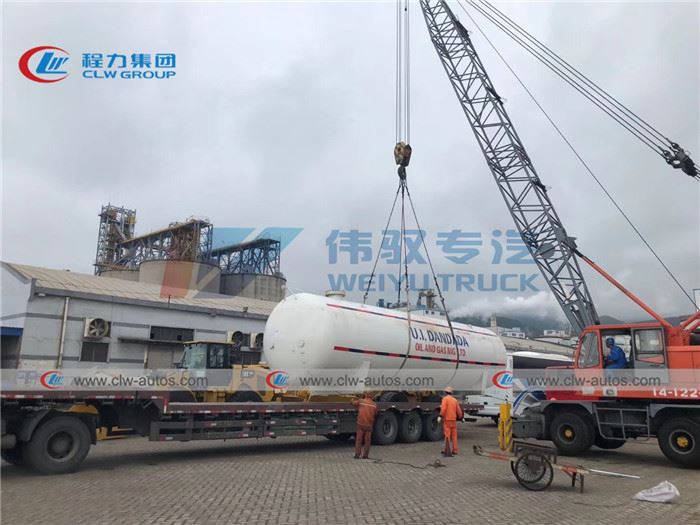

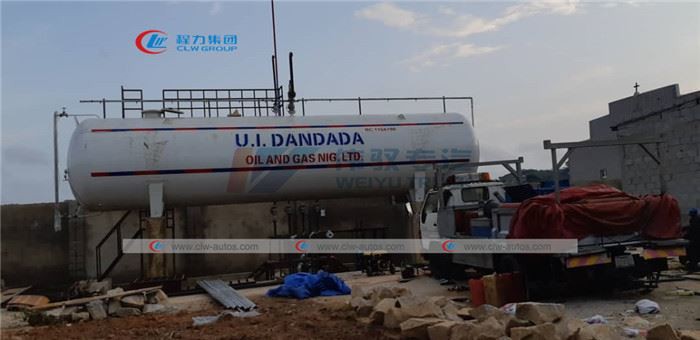

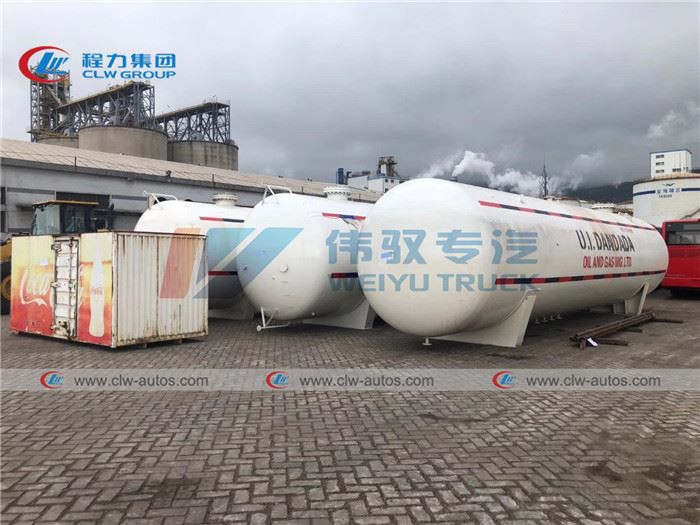

Reference picture
Specification
70CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 70 CBM | ||
Filling Weight | 27930 kg | ||
Tank Weight | 14480 kg | ||
Thickness of Shell (mm) | 14 mm | ||
Thickness of End plate (mm) | 16 mm | ||
Tank Diameter (mm) | 2700 mm | ||
External Dimensions (mm) (length x width x height) | 1271212 x 2728 x 3318 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa / 17.7Bar | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 500 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification | Quantity | |
Discharge Pipe | DN80 | 1 | |
Inflow Pipe | DN80 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Drain Hole | DN50 | 1 | |
Manhole | DN450 | 1 | |
Air-out Pipe | DN50 | 1 | |
Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): | |||
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||
