Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 10x4 5 axles 40tons integrated towing truck in China. If you're going to buy high quality shacman 10x4 5 axles 40tons integrated towing truck, welcome to get more information from our factory. For price consultation, contact us.
VIDEO
Truck Chassis:
SHACMAN X3000 10*4 5 Axles Truck chassis.
WP12.460E62, WEICHAI Diesel engine. 460HP. EURO-VI.
Transmission/Gearbox: FAST12JSDX220TA-B,12 forwards and 2 reverse
MAN Axle 5 pieces axles
315/80R22.5 tire
Heavy duty rescue and obstacle removal Truck Upper body equipment:
Lifting system: maximum lifting mass (kg) (in place support/vehicle) 28000/9950
Fully extended maximum lifting mass (kg) (in place support/vehicle): 12000/8100
Maximum effective length of bracket (mm): 3585
Telescopic stroke of supporting arm (mm): 1780
Folding angle of lifting load (°) -10-10
Folding angle (°): -10~90
Maximum distance from the fully extended fork mouth to the ground (mm): ≥ 900
Maximum lifting mass (kg): 40000
Lifting capacity when fully retracting the maximum lifting angle (kg): 40000
Lifting capacity at fully extended maximum lifting angle (kg): 18500
Basic length of lifting arm (mm): 5035
Cylinder telescopic stroke (mm): 3300
Maximum lifting height (mm): 6700
Number of boom sections: 2
Boom angle variation (0): 6-35
Winch: quantity (pieces): 2, rated traction force (kN) of each piece: 200,
Wire rope diameter (mm): φ 26. Steel wire rope length (m) 45X2,
Minimum linear speed of steel wire rope (m/min): 5
For more information, please contact us:
Phone: +86- 135 5419 5719
Envelope: h elen@clw-autos.com
Whatsapp: +86 135 5419 5719
Wechat: 13554195719

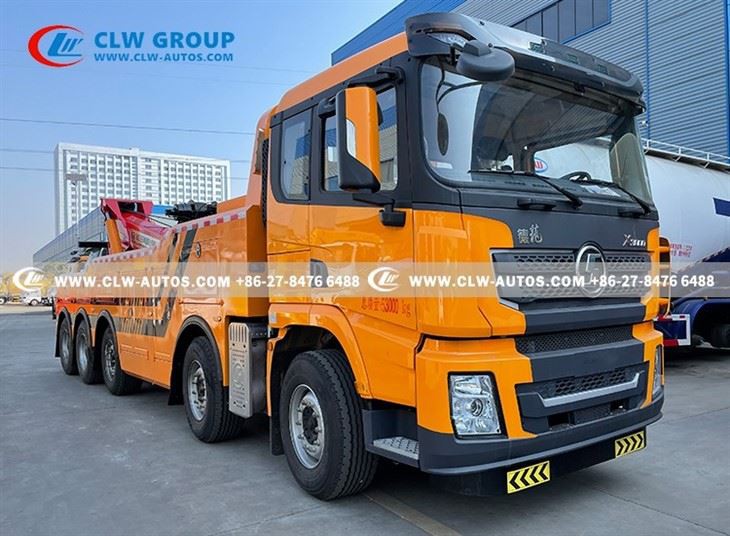

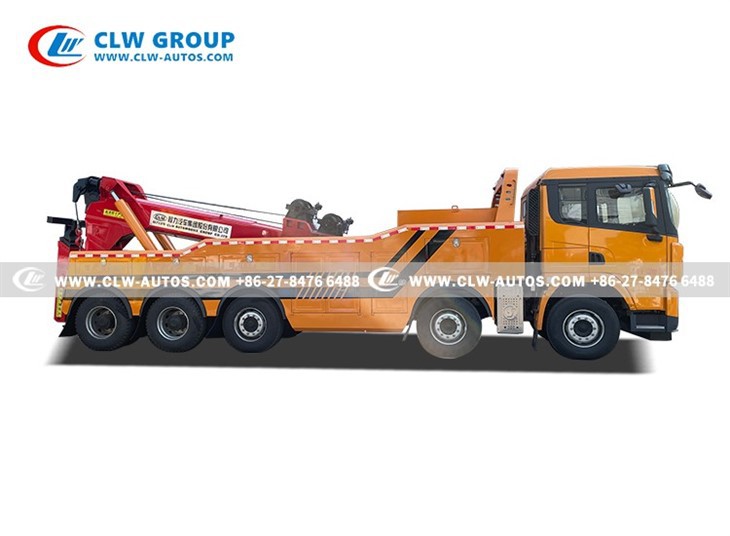

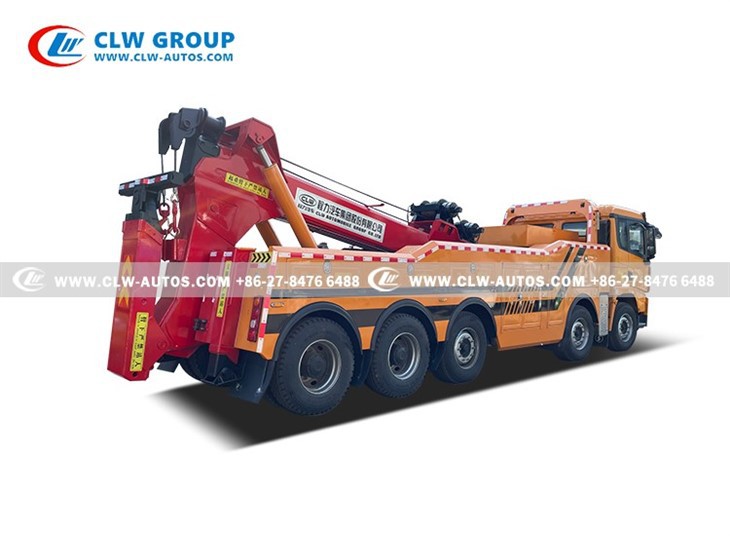

More detailed pictures:
