Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 10*4 5 axles 40 tons recovery integrated wrecker tow truck in China. If you're going to buy high quality sinotruk howo 10*4 5 axles 40 tons recovery integrated wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.

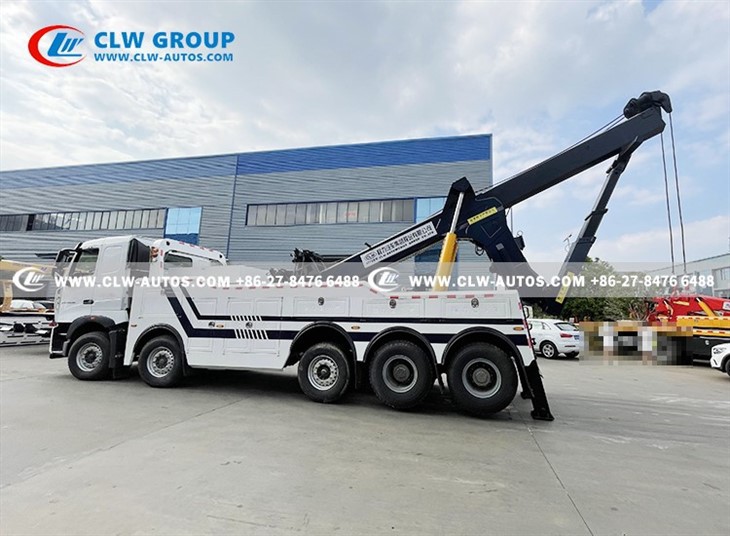

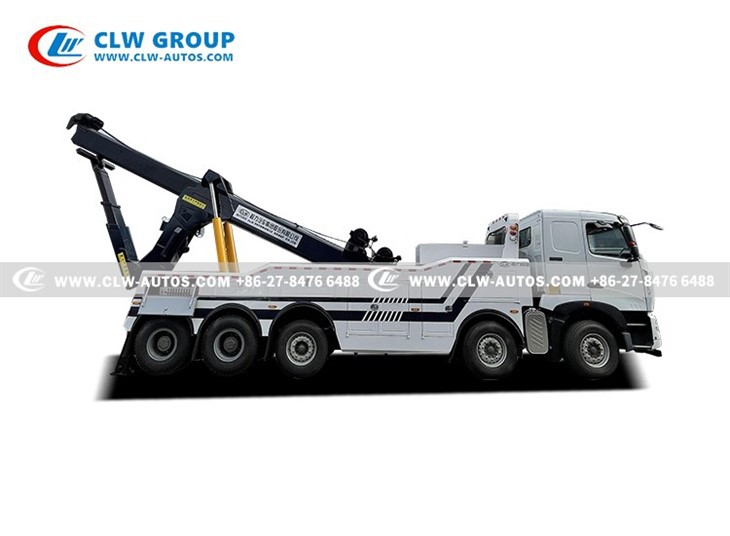

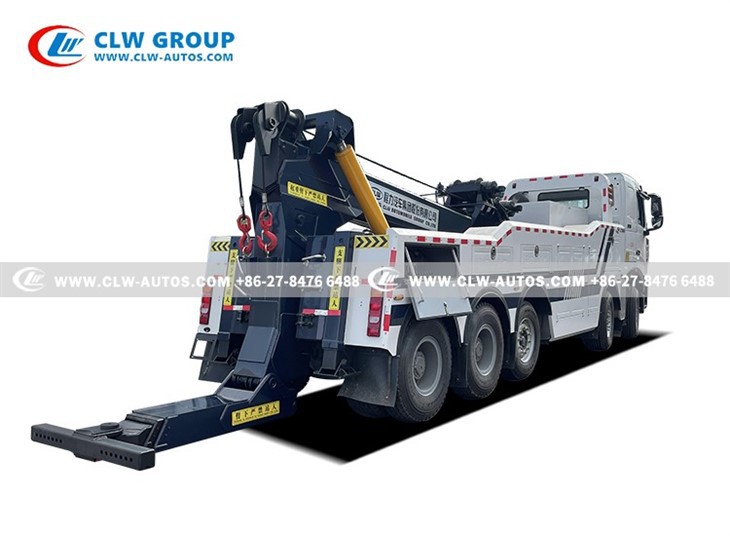

5-Axle conventional Road Rescue Recovery Wrecker Truck (2 front Axle steer - 1 Axle lift with air bag - 2 rear axle drive)
More detailed technical drawing, please contact:
helen@clw-autos.com
WhatsApp: +86 13554195719
|
Truck chassis Specification |
|||
|
Truck Model |
Sinotruk HOWO， Latest New Year Model |
||
|
Driving Type |
Left Hand Driving |
||
|
Dimension(Lx W xH)（mm） |
12500×2496×3450(mm) |
||
|
Cabin |
HOWO H-cab, With two sleeper bed, with air-conditioner |
||
|
Fuel tanker capacity(L) |
400L with locking fuel cap |
||
|
Clutch |
Single-plate dry clutch Φ430mm |
||
|
Engine Model
|
Model |
WP13.480E62，4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling |
|
|
Horse Power, |
480hp |
||
|
Engine Brand |
WEICHAI Diesel |
||
|
Emission |
EURO VI |
||
|
Maximum torque |
1900Nm @ 1200-1300rpm |
||
|
Displacement: |
12.54L |
||
|
Fuel Type |
diesel |
||
|
Transmission |
Model |
HW25712XSTCL, 12 forwards and 2 reverse |
|
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||
|
Steering system |
Model |
ZF |
|
|
Front axle |
2* VGD75, 2*7500kgs. |
||
|
Rear axle |
1* Liftable axle with air bag, 1*16000Kgs |
||
|
2*MCJ11BG, 2*16000kgs Loading capacity |
|||
|
Chassis |
Frame: Double decker frame (8+5/300) Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi –elliptic leaf spring and bogie springs |
||
|
Color |
Optional |
||
|
Tire |
12R22.5 tubeless tire, 16+1 spare tire |
||
|
Electrical system |
Operating voltage |
24V,negative grounded |
|
|
Starter |
24V,7.35KW |
||
|
Alternator |
28V,1500W |
||
|
Batteries |
2*12V.165Ah |
||
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
|||
|
Upper Wrecker Equipment |
|||
|
Underlifting System |
Max. Towing Weight(kg) |
150,000 |
|
|
Max. Lifting Weight(In-situ support/Whole Truck)(kg) |
28000/9950 |
||
|
Max. Lifting Weight under all extension(In-situ support/Whole Truck) (kg) |
12000/8100 |
||
|
Effective Length of Corbeling Arm(mm) |
3585 |
||
|
Extend-retract of Corbeling Arm(mm) |
1780 |
||
|
Folding angle under no load(°) |
-10~10 |
||
|
Folding angle under load(°) |
-10~90 |
||
|
Max. Ground Distance under all extension (mm) |
<900 |
||
|
Hydraulic Hose |
Tianhe,Guangdong Province |
||
|
Hydraulic control Valve |
Imported from Italy, Hydro Control brand |
||
|
Hydraulic Seals for all hydraulic cylinder |
Imported from Italy, Hydro Control brand |
||
|
Balance Valves |
Imported from Italy, Hydro Control brand |
||
|
All key steel structure |
One-step Modeling by Germany 3P2A 1000T punching machine made by H70 high tensile steel from Shanghai Bao Steel |
||
|
Make of Lifting System |
Design and made by CLW Group |
||
|
Boom Hoisting System |
Max. Hoisting Weight(kg) |
40,000 |
|
|
Max. Hoisting Weight under all extension (kg) |
18500 |
||
|
Max. Hoisting Weight under all retraction(kg) |
40000 |
||
|
Extension Distance of Oil Cylinder(mm) |
3300 |
||
|
Section No. Of Crane Arm |
2 |
||
|
Max. Hoisting Height(mm) |
6700 |
||
|
Boom luffing angle(°) |
6-35 |
||
|
Make of Hoisting System(crane) |
Design and made by CLW Group |
||
|
Winch |
No. |
2 |
|
|
Capacity(Kgs) |
2*20,000 |
||
|
Curb Traction/Per(KN) |
200 |
||
|
DN of Steel Rope(mm) |
Φ26 |
||
|
Length of Steel Rope(m) |
50*2; |
||
|
Min. Line Speed(m/min) |
5 |
||
|
Make of Winch |
Shandong Taian Yiqun Machinery Co,,ltd |
||
|
Rear Outrigger Type |
“L” type 4080mm |
||
|
Jump-start cables |
12~24 Volts |
||
|
Electric system |
Rear working lamp(stop,tail,turning) |
3 |
|
|
Revolving beacon |
1 |
||
|
Lamps for license plate |
1 set |
||
|
Pneumatic hoses |
1 set |
||
|
Key Parts |
Control Valve |
Italy Hydro control |
|
|
Balance Valve |
Italy Hydro control |
||
|
Pump |
Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd |
||
|
Hydraulic cylinder |
CLW Group |
||
|
Hydraulic Winch |
Shandong Taian Yiqun Machinery Co,,ltd |
||
|
Hydraulic Hose |
Tianhe,Guangdong Province |
||
|
Hydaulic Cylinder Seals |
Italy Hydro control |
||
|
Hydraulic Lock |
Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. |
||
|
Swivel Joint |
Yangzhou Zhongmei Pressure Parts Co.,Ltd. |
||
|
Compartment plate |
One-step Modeling by Germany 3P2A 1000T punching machine |
||
|
Remarks |
Color is optional |
||
