Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 10tons lpg gas transport truck in China. If you're going to buy high quality shacman 10tons lpg gas transport truck, welcome to get more information from our factory. For price consultation, contact us.
We are 100% straight LPG truck factory manufacturer
Professional LPG transport solution provider since 2004
LPG transport truck, also known as liquefied petroleum gas carriers, is specialized vehicle designed for transporting liquefied petroleum gas (LPG), a hydrocarbon mixture that includes propane, butane, and pentane. LPG is gaseous at ambient temperature and pressure but can be liquefied under specific pressure and low-temperature conditions. To facilitate storage and transport, LPG is pressurized to liquefy and then filled into specialized pressure vessels and cylinders.
Key components of LPG transport truck include:
- Chassis: The main structure that supports and protects the tank.
- Tank: Steel plates that can withstand low temperatures, such as Q345R, Q370R, Q420R etc., to ensure the stability and safety of the tank body under low temperature conditions.
- Loading and Unloading Equipment Devices for transferring LPG, including vapor and liquid pipelines.
- Safety Devices: Features such as emergency shut-off systems (closed during transport, opened during loading/unloading) ,safety relief devices (like pressure relief valves to prevent tank rupture and explosion), liquid level gauges, temperature measuring instrument, static-conducting grounding devices, and fire extinguishers to ensure safe transport.

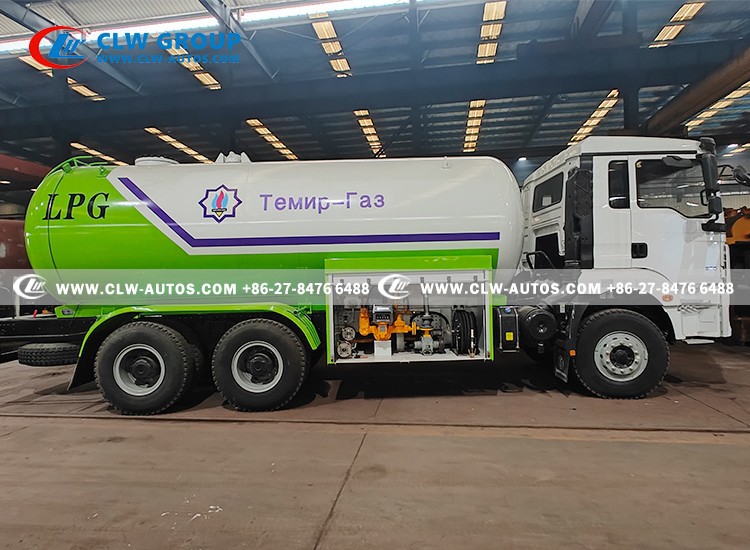

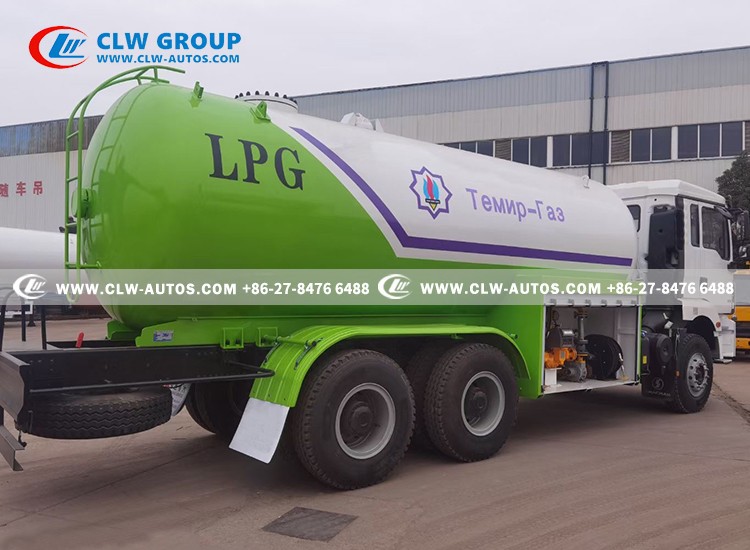

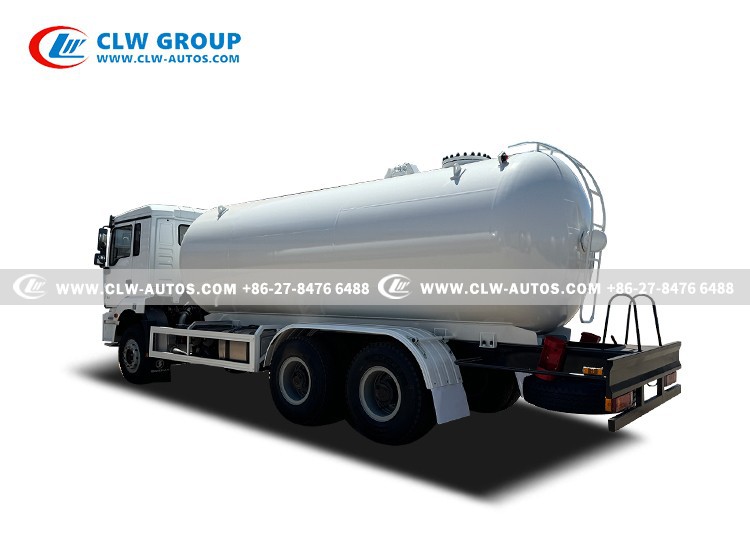

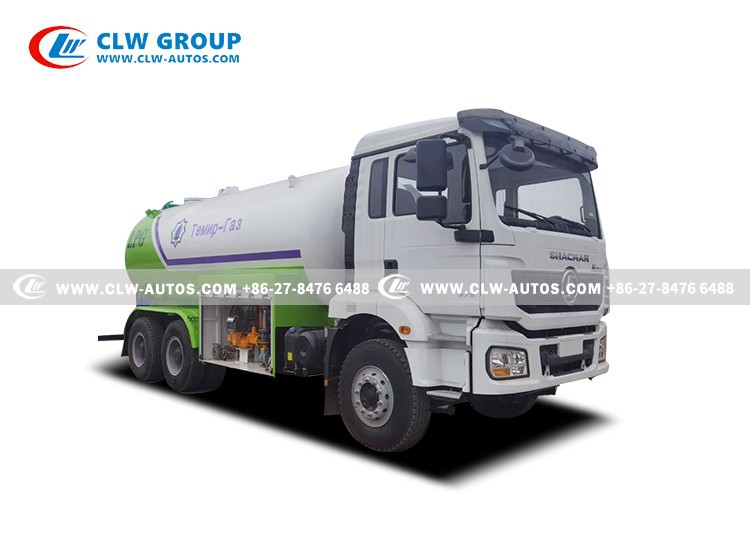

Shacman H3000 LPG Gas Transport/Delivery Tanker Truck, Euro V Weichai Engine 340HP Gas tanker vehicle is customized for Kazakhstan, Kyrgyzstan, Tajikistan, Turkmenistan, Philippines propane gas delivery business.
Truck Chassis Option:SINOTRUK HOWO,FAW,DONGFENG,ISUZU,FOTON,SHACMAN and other brands.
Tanker Size for LPG Bobtail Tanker Truck:
- 2mt/5cbm propane/butane/LPG delivery truck
- 5mt/10cbm propane/butane/LPG delivery truck
- 7mt/14cbm propane/butane/LPG delivery truck
- 8mt/16cbm propane/butane/LPG delivery truck
- 10mt/20cbm propane/butane/LPG delivery truck
- 12mt/24cbm propane/butane/LPG delivery truck
- 15mt/30cbm propane/butane/LPG delivery truck
- 17mt/34cbm propane/butane/LPG delivery truck
Want bigger tanker size over 40m3?
We also have LPG semi trailer, tanker size from 40m3~61.9m3 to meet your demands!
Customized propane LPG tanker truck:
Type 1 -- Transporting LPG/Propane/Butane gas only from lpg depot to lpg station
Type 2 -- Delivering and refueling propane/lpg gas/liquid petroleum gas into smaller hotel lpg tanks with REGO nozzle as follows
Type 3--Refueling home use lpg cylinders with different size.
Contact Juniper for Quick Inquiry!
Whatsapp: +86 139 2570 3918
Wechat: 139 2570 3918
Email: juniper@clw-autos.com
Professional LPG Tank/Truck/Semi Trailer Manufacturer Since 2004
Truck Chassis
Shacman H3000 340HP 6X4 Truck Chassis

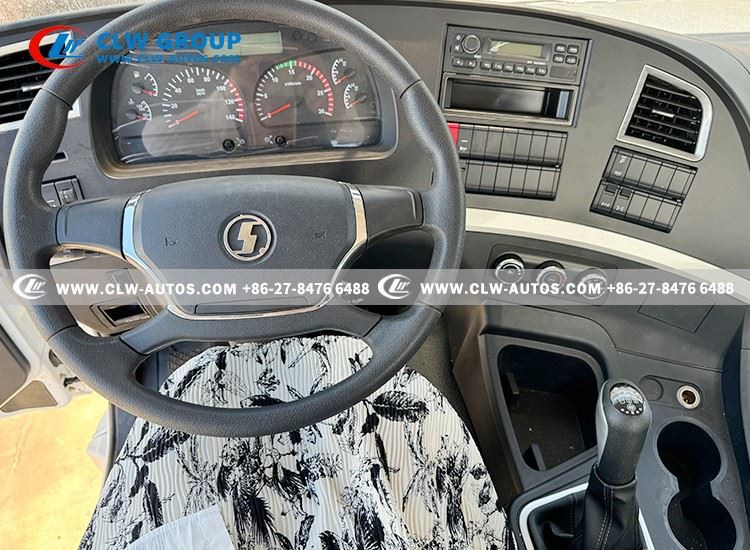

Cabin: Shacman H3000 cabin, Left hand driving, One sleeper, Air conditioned
Engine: WEICHAI WP8.340E51,340HP, Euro V
Transmission: FAST 9 speed forward and 1 reverse
Front/Rear Axle Loading:7500/13,000/13,000kg
Tire: 12.00R20,10 pcs with one spare
LPG tanker
Quality Control
The design and manufacture of our LPG tanker trucks follow China strict safety standards such as GB150-1998 "Steel Pressure Vessels" and undergoes strict quality inspections to ensure safety during transportation. This includes physical and chemical inspections of tank materials, non-destructive testing of weld quality, and testing of multiple technical indicators such as product sealing and pressure resistance to ensure product safety and reliability.
Customized Painting to Enhance Brand Awareness
|
Truck Chassis |
|||
|
Rough Overall Dimension |
9109x2480x3420 mm |
||
|
GVW |
23000 kg |
||
|
Curb Weight |
13740kg |
||
|
Payload |
10000kg(10Ton) |
||
| Driving Model | Left hand driving | ||
|
Wheel Base |
4375+1400 mm |
||
| Cabin |
Shacman H3000 flat top cab 2~3 seats with one sleeper Air conditioned |
||
| Engine |
Model: Weichai WP8.340E51, 340HP, Euro V Displacement:7.8L (Diesel), Max. Torque: 4100N.m 4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
||
|
Axle |
Front Axle: 7500kg |
||
|
Rear Axle: 13000kg x 2 |
|||
| Gearbox | Manual type, FAST 9 forward and 1 reverse gear | ||
| Tire | 12.00R20 (10 pcs with 1 spare) | ||
|
Max. Speed |
≥ 90 km/h |
||
|
Fuel Box |
300L |
||
|
Exhaust Pipe |
At front of Cabin for safety |
||
|
LPG tank |
|||
|
Volume |
20,000liters (20CBM, 20M3, 10Tons, 10MT) |
||
|
Tank material |
Q345R |
||
|
Tank diameter |
2050mm |
||
|
Tank thickness |
10mm |
||
|
End plate thickness |
10mm |
||
|
Tank length |
6449mm or as designed |
||
|
Gas phase |
Flange type,DN50/2" or according to customer request |
||
|
Liquid Phase |
Flange type,DN50/2" and DN80/3" |
||
|
Filling gas |
Propane, Butane (LPG) |
||
|
Design Pressure |
1.61Mpa |
||
|
Hydraulic pressure |
2.21Mpa |
||
|
Pumping System |
|||

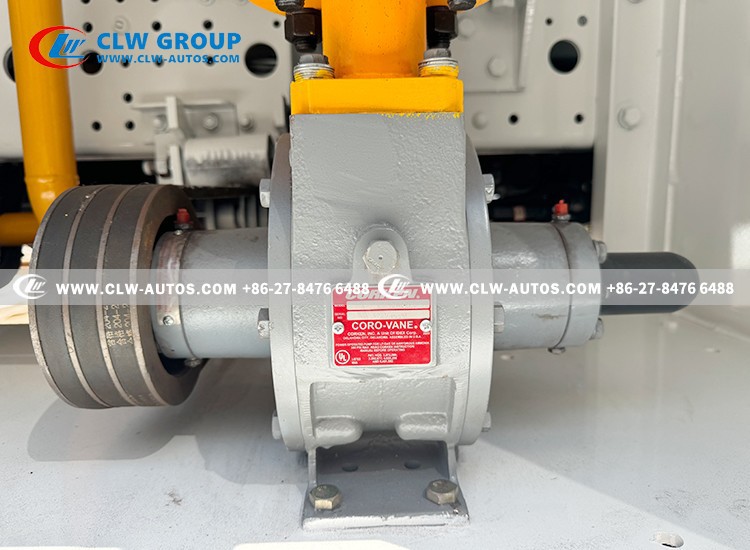

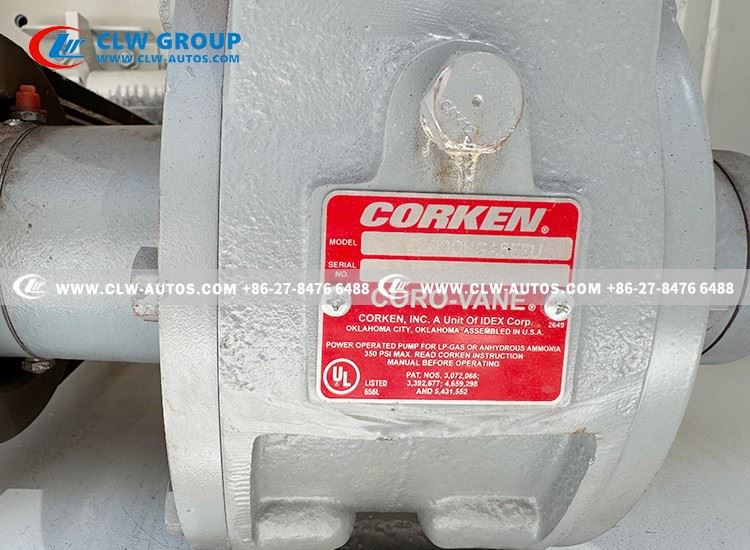

| LPG Pump | USA brand CORKEN vane pump | ||
|
Lockable filling cabinet |
Located at right side of truck |
||
| Manhole | DN450 | ||
|
Level Gauge (optional for Rochester level gauge) |
Chinese brand floating ball type level gauge at the rear of the truck Showing in percentage |
||
|
Safety Equipments |
Tool and valve box at lockable cabinet at side of the tanker Emergency shut off valve inside the side valve box and at the rear of the truck Built-in safety valve Safety return valve Pipeline safety valve Thermometer Pressure gauge Static conductive tape Fire extinguisher holder |
||
