Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ghana lpg bobtail in China. If you're going to buy high quality ghana lpg bobtail, welcome to get more information from our factory. For price consultation, contact us.

HOWO 5MT 10CBM LPG Bobtail Truck for Ghana,Africa

We are professional lpg tank manufacturer in China since 2004

Our lpg bobtail has been delivered to Ghana/Ivory Coast/Nigeria/Kenya/Zimbabwe etc

Product Descriptions

This is a versatile LPG bobtail truck to Ghana for efficient storage, transportation, and on-site dispensing of Liquefied Petroleum Gas (LPG). The vehicle combines innovative technology, robust performance, and safety features, making it an ideal solution for diverse LPG applications.

Video for Ghana LPG Bobtail, Ivory Coast/Kenya/Zimbabwe Propane Truck:

Key Features:

1. LPG Storage: Equipped with a high-pressure sealed storage tank, available in capacities ranging from 5000 liters to 37000 liters, suitable for various refueling needs.

2. Refueling System: Features a high-precision metering pump and refueling nozzle for fast and secure LPG dispensing.

3. Mobility: Designed for flexible operation in urban, rural, and remote areas, addressing gaps in fixed refueling station coverage.

4. Multi-Purpose Use: Suitable for household cylinder refills, small-scale commercial refueling, and industrial LPG supply.

Technical Highlights:

1. Smart Control System: Integrated digital monitoring system for real-time tracking of tank pressure, liquid levels, and refueling data, ensuring user-friendly operation.

2. Enhanced Safety: Equipped with multiple safety mechanisms, including pressure relief valves, explosion-proof components, and emergency shut-off systems.

3. High Efficiency: Utilizes advanced pressurization and transfer technology to improve refueling efficiency and reduce LPG loss.

4. Eco-Friendly Design: Meets international environmental standards, minimizing emissions during transportation and operation.

Global LPG Demand:

1. Residential Energy Needs

Primary Uses: Cooking, heating, and water heating. In many developing countries, LPG is the preferred clean energy source for households, particularly in areas lacking natural gas pipelines. It serves as an alternative to traditional fuels (such as charcoal, coal, and firewood), reducing pollution and improving air quality and health.

2. Industrial Applications

Primary Uses: Fuel for manufacturing, metal processing, and ceramics. LPG is favored in high-temperature and stable heat source scenarios due to its high combustion efficiency and low emissions.

3. Automotive fuel (Autogas)

The adoption of LPG vehicles has significantly increased globally, especially in Europe and Asia, as it is more environmentally friendly and cost-effective than gasoline and diesel.

4. Agricultural Demand

Primary Uses: Grain drying, sterilization, heating, and power generation. The modernization of agriculture has heightened the demand for LPG, particularly in mechanized farming systems.

5. Commercial Uses

Primary Uses: Widely utilized in restaurants, hotels, and other commercial establishments for heating. The demand for LPG in the commercial sector continues to rise in urbanizing areas.

For quick inquiry, pls contact Juniper:

Whatsapp: +86 139 2570 3918

Wechat: 139 2570 3918

Email: juniper@clw-autos.com

Technical Parameters

Truck Chassis
Driving Model	4X2
Wheel Base	4700 mm
Overall Dimension	7600x2500x2950 mm
Gross Vehicle Weight	11000 kg
Curb Weight	6800kg
Payload	4200 kg
Cabin	HOWO 2080 one row and a half cab (with one sleeper) LHD or RHD With air conditioner
Engine	Yuchai diesel engine, YC4E160-33 160 HP/118KW, Euro 3 Displacement:4.257L
Gearbox	Manual type HW90510C2, 10 forward and 2 reverse speed
Axle loading capacity	Front axle: 3600kg Rear axle: 10000kg
Tire	Model: 9.00R20 QTY: 6 pcs with 1 spare tire
Exhaust Pipe	At front of the cabin for safety
LPG Tank
Volume:	10000iters (5mt)
Filling gas	Propane(LPG)
Tank material	Q345R
Tank diameter	1720mm
Tank thickness	10mm
End plate thickness	10mm
Tank length	4420mm or as designed
Design Pressure	1.61Mpa
Testing pressure	2.21Mpa
Gas phase	Flange type,DN50/2" or according to customer request
Liquid Phase	Flange type,DN50/2" or according to customer request
Pumping System
Chinese Vane pump	Directly driven by PTO Flow rate: 15 m3/H Pressure differential: 0.5 Mpa Rotation Speed 780 r/min
Flow meter	English remarks with printer for receipt 55~550 L/min 2500Kpa(25 Bar) max. Working pressure
Lockable filling cabinet	Located at right side of truck
Discharge hose	2 Nos of 4 meters DN50 soft discharge hose
Level Gauge(optional for Rochester level gauge)	Chinese brand Float Ball type at the rear of tank Nominal Pressure 2.5 mpa Showing in percentage
Safety Valve	Type:Built-in
Safety Valve	Nominal Pressure:2.5 Mp
Tool and Valve Box	Lockable cabinet at side of LPG bobtail truck
Safety return valve	1 PC
Pipeline safety valve	1 PC
Manhole	DN450
Thermometer	1 pc
Pressure Gauge	2 pc
Emergency shut off Valve	3 pcs with switch handle inside valve box at rear of truck
Fender	Steel
Fire Extinguisher Holder	1 set
Static conductive tape	1 pc

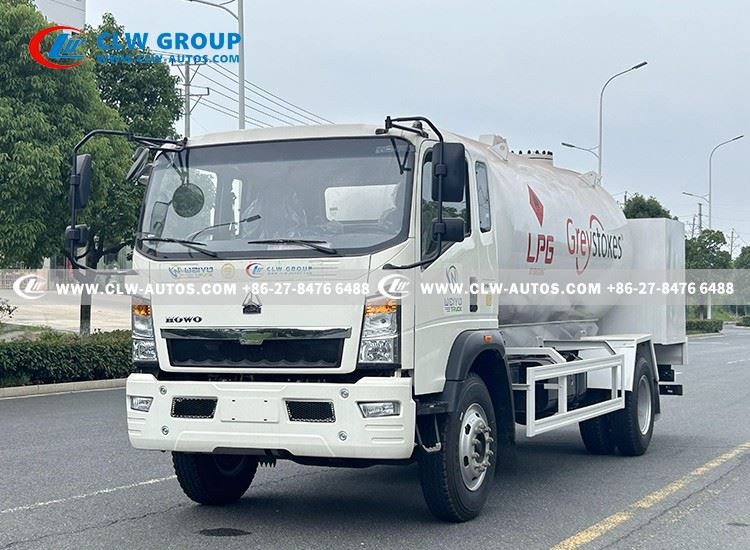

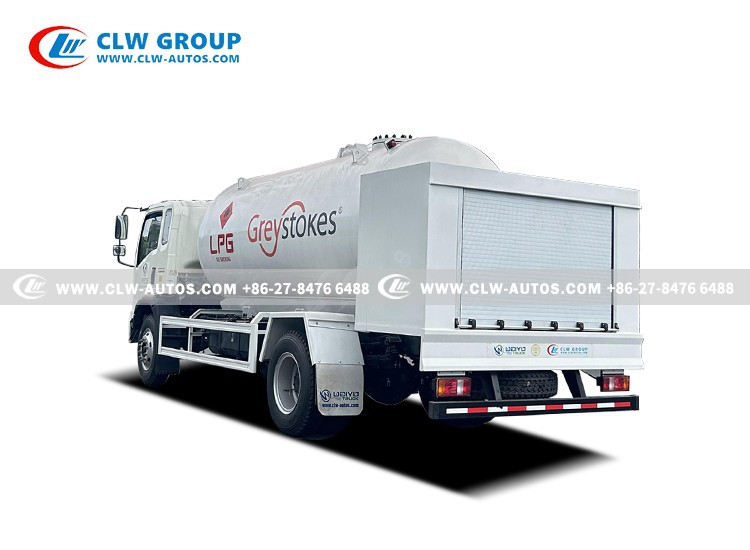

Truck Photos

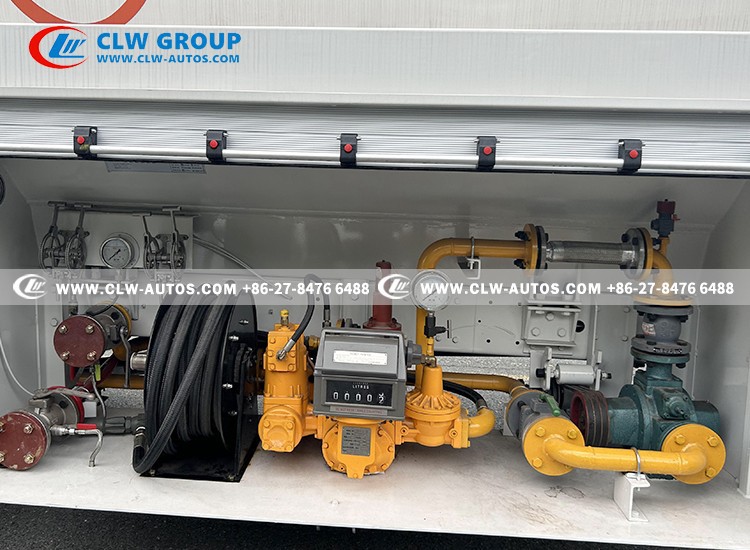

Pumping System

Refilling Small Hotel LPG Tank

The refilling system at truck side is consist of one unit lpg pump, flow meter, filling hose, Rego filling gun, safety relief valve, pressure gauge, liquid phase, vapour phase, thermometer, lockable rolling door. Designed to refill small hotel use lpg tank in Ghana.

Refilling Home Use Cooking Gas Cylinder

The refilling system at truck tail is consist of one unit lpg dispenser, filling hose,Rego filling gun, lockable rolling door.. Designed to refill lpg cylinders with different size in Ghana.
