Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 336hp 20,000liters 10tons lpg bullet truck in China. If you're going to buy high quality sinotruk 336hp 20,000liters 10tons lpg bullet truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG Bullet Truck(also called bullet lpg truck,bullet lpg tank truck,lpg bullet tanker,lpg tanker truck,propane truck,propane gas truck,propane tanker truck,propane delivery truck,propane transport truck,lpg bobtail,lpg tanker truck,lpg bobtail tanker,lpg dispenser truck,lpg refueler truck,lpg refilling truck,bulk lpg truck,lpg transport truck) is used to transport liquid petroleum gas/propane gas/cooking gas/LPG for a short distance.
--LPG bullet truck from our company is optional for 5000L,10,000L,15,000L,20,000L,24,000L and 35500L. Above howo 6X4 336hp 20,000L bullet lpg trucks are produced in 2021 and supplied to nigerian market.
--Design standard: Chinese GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--LPG bullet truck is optional for accessories :ROCHESTER float-ball/magnetic level gauge or rotator level gauge,chinese or corken lpg pump,flow meter or lpg dispenser.
--Optional truck chassis brands for LPG truck: DONGFENG/HOWO/ISUZU/FAW/SHACMAN...
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every propane tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
Reference picture

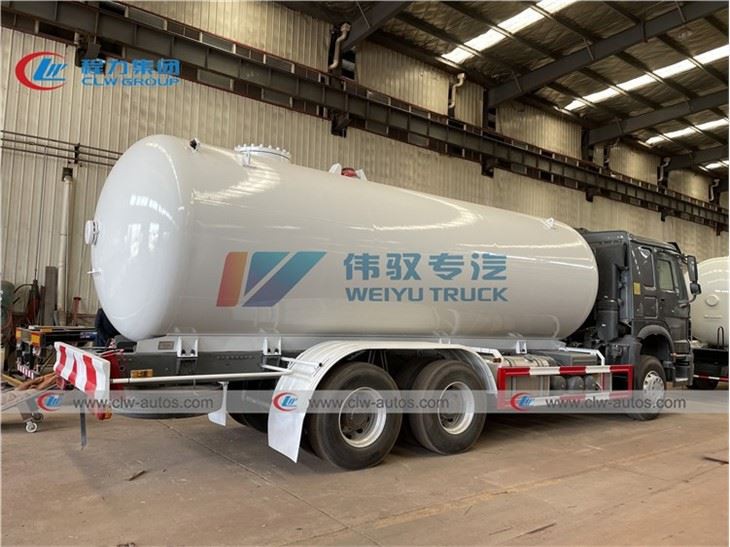

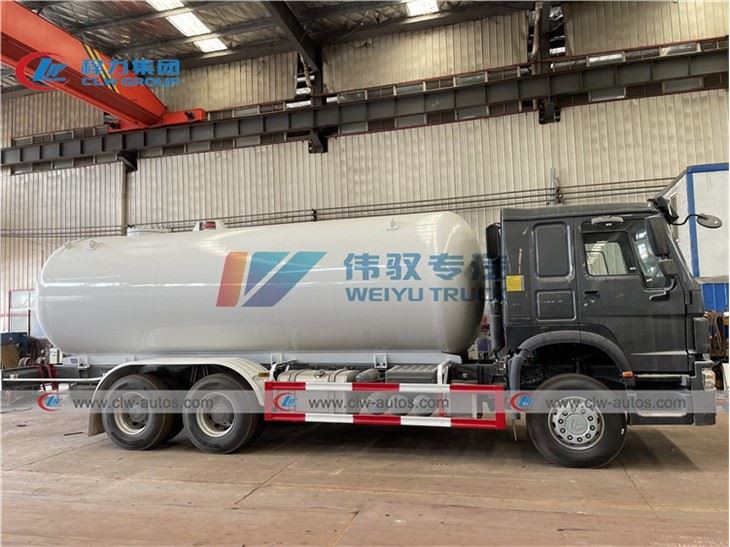

(side view of sinotruk howo 10tons lpg bullet truck)

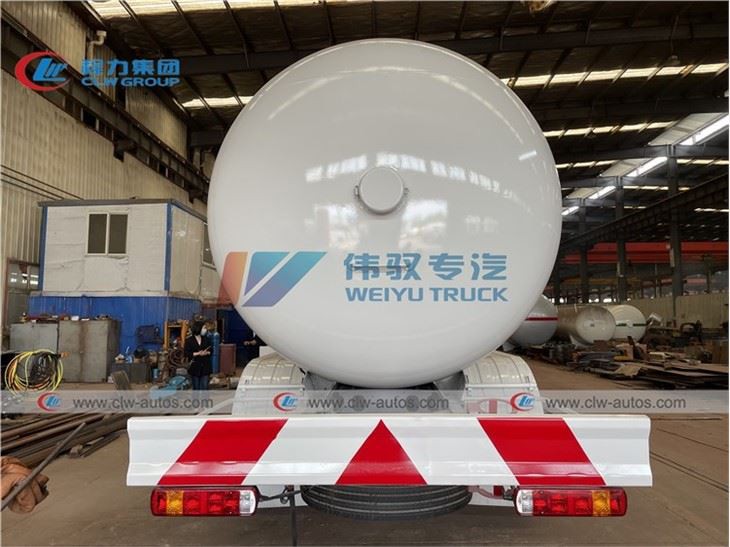

(rear view of sinotruk howo 10mt lpg bullet truck)
(Cabin of China sinotruk howo 20,000L lpg bullet truck)
(Cabin of China sinotruk howo 20,000L 10tons lpg truck)

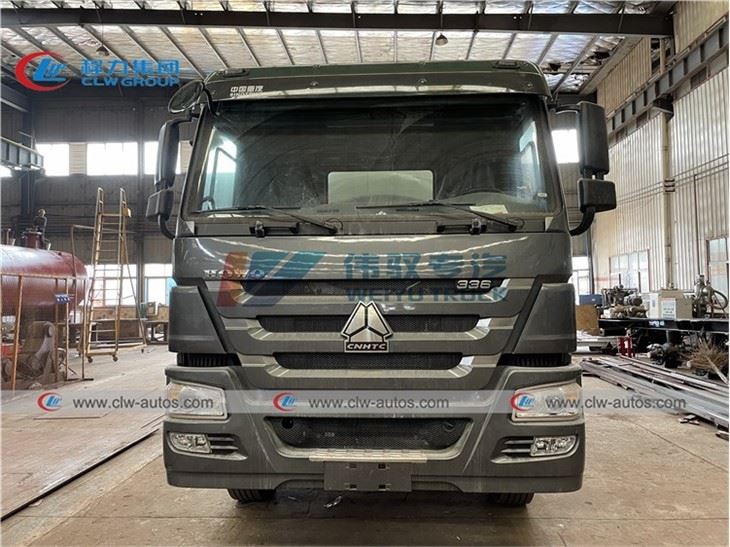

(front side view of sinotruk howo 10tons lpg truck)
(sinotruk howo 10tons lpg bullet truck equipped with flow meter and refilling hose for mobile home cylinder)
(sinotruk howo 10tons lpg bullet truck equipped with chinese top brand lpg vane pump and flange 2" and 3" liquid and vapour phase)
Specification
Item No. | Parameters |
Overall Dimension | 10720x2480x3420mm |
Driving Model | left hand drive |
Gross Vehicle Weight | 25000 kg |
Curb Weight | 14240kg |
Payload | 10630kg |
Wheel Base | 5200+1350 mm |
Front/rear Tread | 2022/1830 mm |
Approach/Departure Angle | 16/12 degree |
Front Axle | HF9,9000kg |
Rear Axle | HC16,16000kgX2(Heavy duty design) |
Engine | WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
Engine horsepower | 336HP EUROII |
Displacement | 9760mL (Diesel) |
Max Driving Speed | 95 km/h |
Gearbox | HW19710 |
Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
Tire | 12R22.5/12.00R20 (10 pcs with one spare) |
LPG tank | |
Volume: | 20,000Liters/24,000liters |
Tank material: | Q345R |
Tank diameter: | 2050mm |
Tank thickness: | 12mm |
End plate | 12mm |
Tank length: | 8060mm or as designed |
Gas phase | DN50 or according to customer request |
Liquid Phase | DN80 or according to customer request |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
LPG Pump | 1 pc,Chinese brand |
radiator | 1 pc |
Volume flow meter | 1 pc,English remarks with printer for receipt,Chinese brand |
Filling hose with filling nozzle | 15M |
Level Gauge | Rochester Float Ball type/located at side or rear of lpg tanker |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher Holder | 2 |
Exhaust shaft | At the front of truck for safety |
