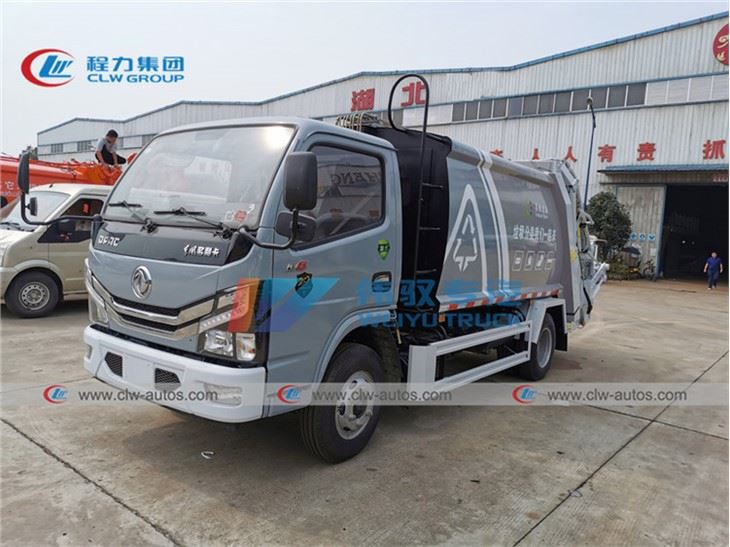

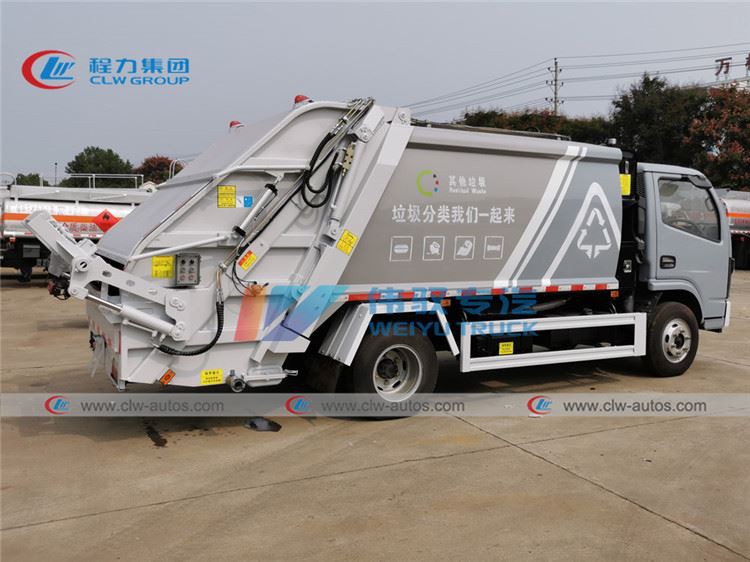

EURO 6 Dongfeng 3Ton~5Ton Home Waste Garbage Compactor Truck Rear Loader
EURO 6 Garbage Truck
Rear Loader Compactor
4Ton Loading Capacity
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of euro 6 dongfeng 3ton~5ton home waste garbage compactor truck rear loader in China. If you're going to buy high quality euro 6 dongfeng 3ton~5ton home waste garbage compactor truck rear loader, welcome to get more information from our factory. For price consultation, contact us.
EURO 6 Dongfeng 3Ton~5Ton Home Waste Garbage Compactor Truck Rear Loader Type
Product Description
Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution
Easy Full Automatic Operation: computer control system for loading and unloading operations.
Dongfeng 5T compression garbage truck ihydraulic mechanism system:
composed of chamber,
loading mechanism,
compression mechanism,

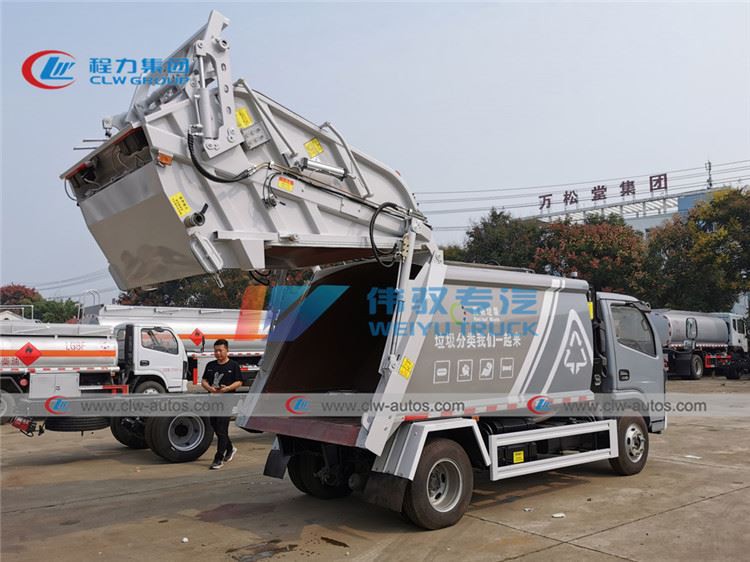

unloading mechanism,
oil pump, oil cylinder,

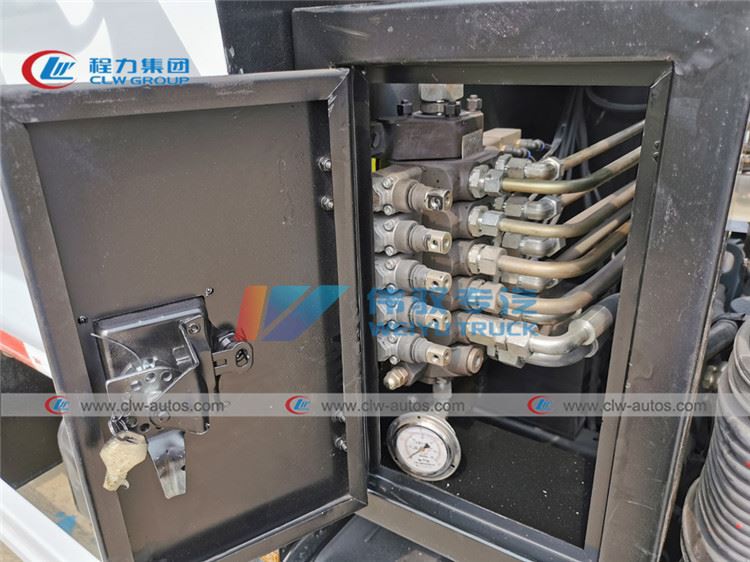

control valve, etc.

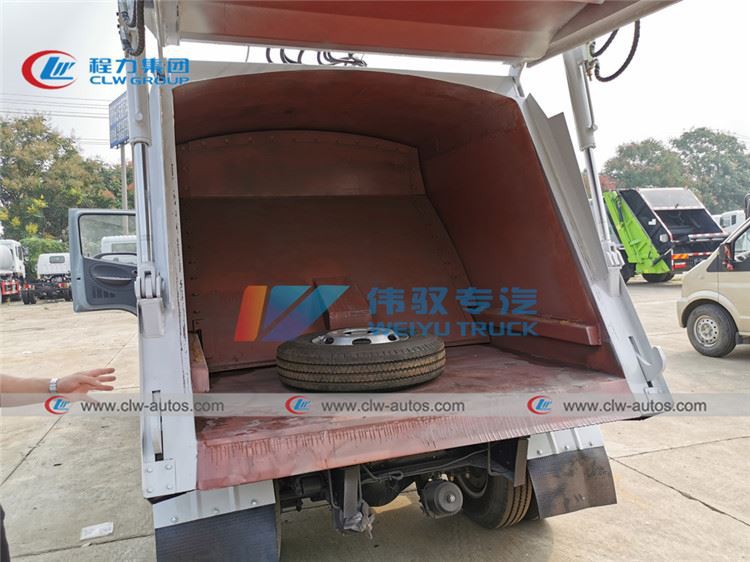

The chamber body is made of high-quality carbon steel,
thickness (unit: mm): side 4, bottom 4, chamber
volume: 8m 3.
The loading mechanism is composed of bracket, connecting rod mechanism, cam, hook, etc.
Under the action of the oil cylinder, the garbage in the garbage can is automatically turned over and poured into the hopper.
Specifications of 5-7 CBM Garbage Compactor Truck
Item No. | Parameters | |
Overall Dimension | 6450 x 2050 x 2570mm | |
Gross Vehicle Weight | 730 kg | |
Loading Weight | 2000 kg | |
Curb Weight | 5170 kg | |
Wheel Base | 3308 mm | |
Axles Quantity | 2 Axles | |
Front / Rear Axle | 2500 kg / 3500kg | |
Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, with ABS, SCR | |
Engine | Chaochai CY4BK551 Diesel, Four Stroke, 4 Cylinder in line, Inter-cooling, High Pressure Common Rail Fuel System, SCR | |
Engine horsepower | 102HP, EURO 5 | |
Displacement | 3707 ml | |
Max Driving Speed | 90 km/h | |
Gear Box | 5Forward Gear, 1 Reverse Gear, | |
Fuel Tank | 75 Liter | |
Tire | 7.00R16 (6 pieces with one spare) | |
Garbage Bin | Capacity | 5 CBM |
Material | 4mm Carbon Steel for Garbage Bin Body | |
Design | Whole unit with Leakage Proof Design | |
Ways of Loading | Rear Loading with optional Bucket Lifting System | |
Plat Form | 2 side for 2 worker for foot transport | |
Garbage Compact Ratio | 1/3 - 1/4 | |

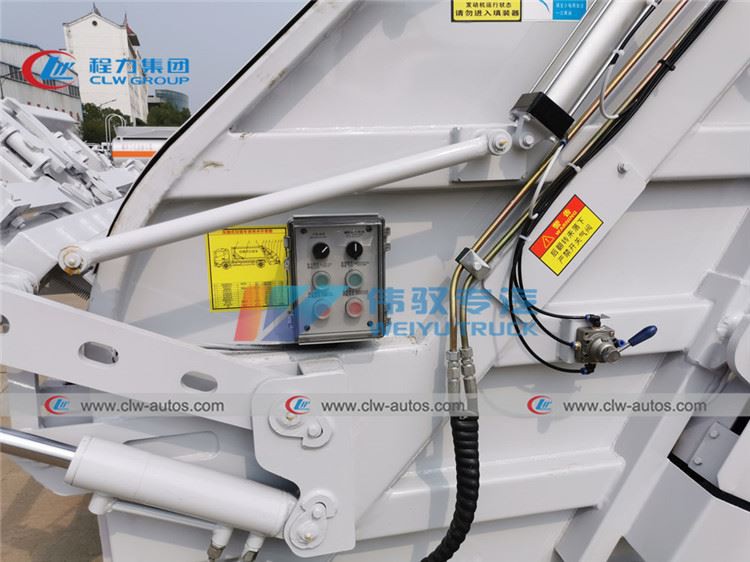

Control System | One control Panel on the back, One Control system in back of Cabin | |
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2.Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time＜14~18s | |
